First Ever Vertical Coils

T

theclaw20

Bronze Contributor
Member For 3 Years

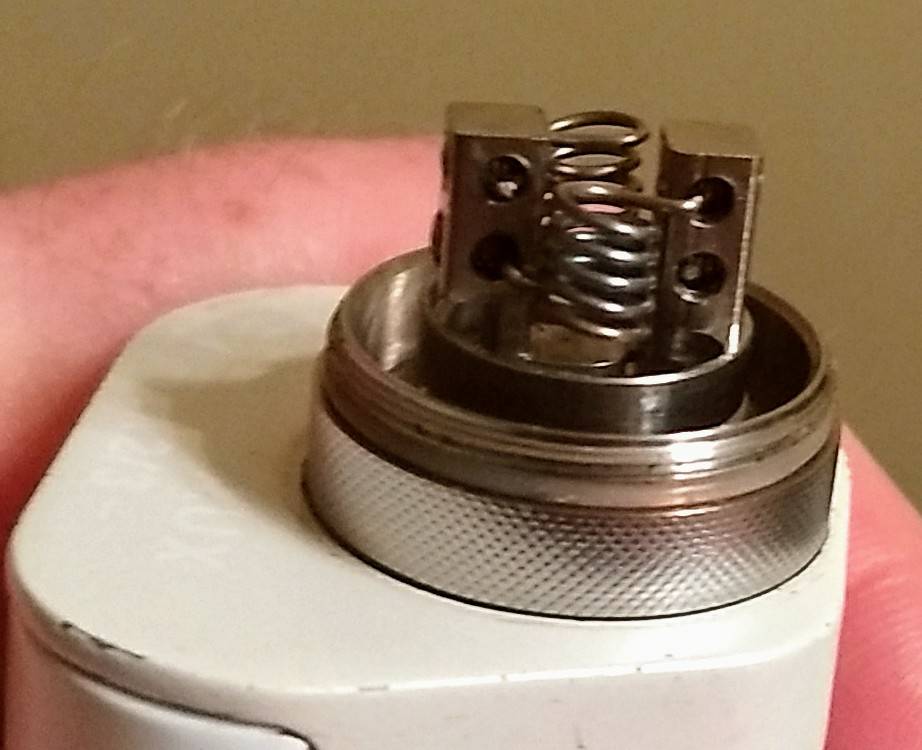

Picked up an Aromamizer RDTA, first edition. I had never made vertical coils before. Loved building it, way easier to cut the leads once the first coil is in, and I fit wider coils than I could have fit horizontally. 3.5mm ID, 5 wraps, 22 gauge spaced. 0.19 ohms. Spaced the length of the posts. No room to spare. Took the AFC off for maximum air.

It's hitting like a dream. I might have to pick up one of the more recent renditions.


Sent from my Moto G (5) Plus using Tapatalk

T

theclaw20

Bronze Contributor
Member For 3 Years
Could probably make the same build with 20 gauge in the larger Aromamizer. This build came to 0.19, so a 20 gauge should still clock in above 0.10

Sent from my Moto G (5) Plus using Tapatalk

MannyScoot

MannyScoot

Diamond Contributor
Member For 4 Years
theclaw20 said:
Picked up an Aromamizer RDTA, first edition. I had never made vertical coils before. Loved building it, way easier to cut the leads once the first coil is in, and I fit wider coils than I could have fit horizontally. 3.5mm ID, 5 wraps, 22 gauge spaced. 0.19 ohms. Spaced the length of the posts. No room to spare. Took the AFC off for maximum air.

It's hitting like a dream. I might have to pick up one of the more recent renditions.


Sent from my Moto G (5) Plus using Tapatalk
Click to expand...
How did you wick it.....

Sent from my Z981 using Tapatalk

T

theclaw20

Bronze Contributor
Member For 3 Years
Made a fairly fat, twisted an end, pushed it in from the top, gently tweezed it down into the well and then tweezed it out of the well to make room to tweezed a bit more down. Then when ta decent amount was past the well, I cut the tightened part away and split the cotton into two sides. Gently pushed the cotton down on each side of the coil

Sent from my Moto G (5) Plus using Tapatalk

T

theclaw20

Bronze Contributor
Member For 3 Years
Doubt I'm gonna rebuild this one for a while. This build is a winner

Sent from my Moto G (5) Plus using Tapatalk

T

theclaw20

Bronze Contributor
Member For 3 Years
55.5 watts should last a whole day on a 2 battery mod

Sent from my Moto G (5) Plus using Tapatalk

nlt2836

nlt2836

Bronze Contributor
Member For 4 Years
Any way you could post pics of how you wicked it. I would also like to try some vertical coils

Sent from my XT1565 using Tapatalk

T

theclaw20

Bronze Contributor
Member For 3 Years

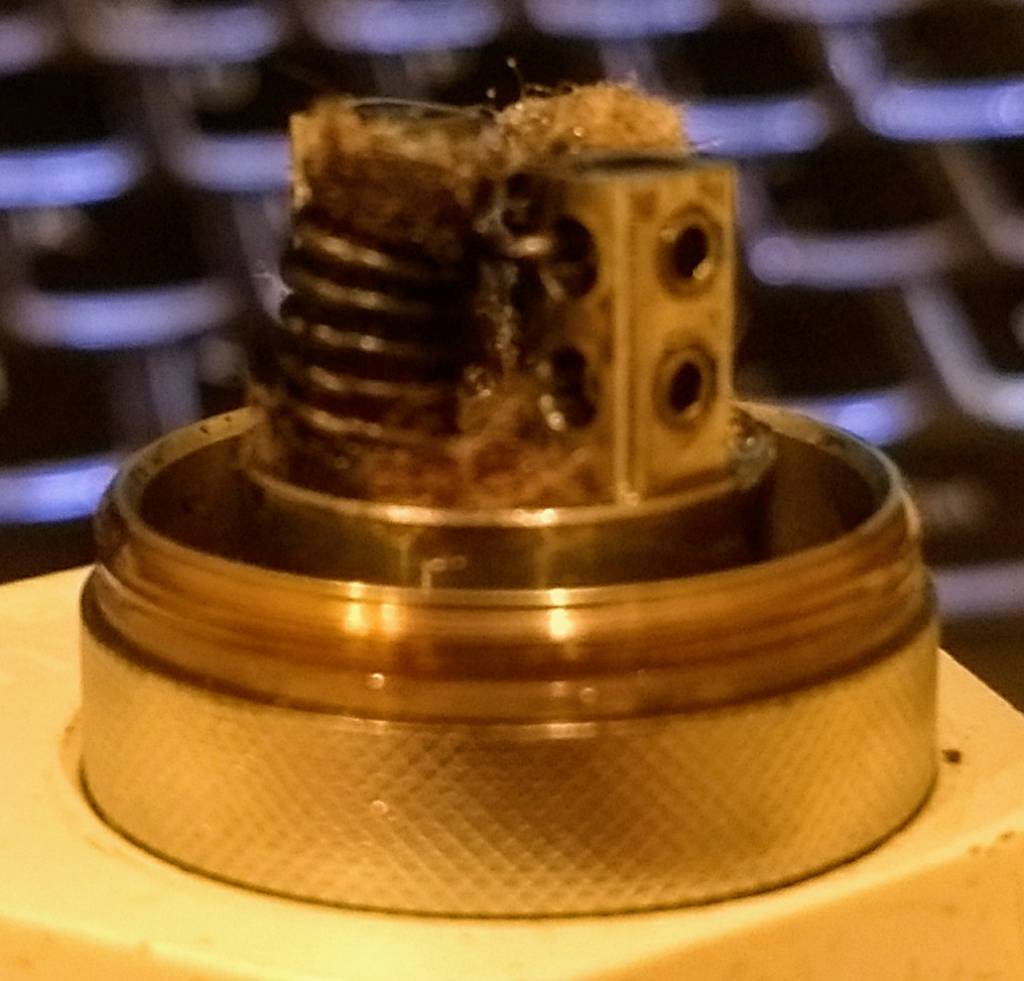

Not sure how much these pics will help. The main thing is pulling the cotton down through the coil. In order to avoid bending the coil, I would tweeze the cotton directly down through the coil, then lift the cotton I pulled down outside of the deck to make room to pull the cotton down again. I repeated that 5 times or so on each coil.


Sent from my Moto G (5) Plus using Tapatalk

T

theclaw20

Bronze Contributor
Member For 3 Years
My coil spinner maxes out at 3.5ID, but I imagine I can fit even larger ID verticals on my larger decks like my TFV12. Could even pinch the coils to make them oval shaped and build even larger IDs

Sent from my Moto G (5) Plus using Tapatalk

ben73

ben73

Gold Contributor
Member For 4 Years
Supreme 25 , Velocity deck space ,


Supreme 25m
same build

MkII Origen genni
Sent from my ONEPLUS A3003 using Tapatalk



Supreme plus 30mm postless

Last edited:
ben73

ben73

Gold Contributor
Member For 4 Years
Cheers , was the same wanted to try vertical builds , using a dentist tool to help pull wicks down through center of coils and then spread out over decks , all Velocity supremes allow vertical builds , the Origen MKII is for vertical only builds

Sent from my ONEPLUS A3003 using Tapatalk

T

theclaw20

Bronze Contributor
Member For 3 Years
How is the TF-RDTA for vertical builds? It's only $10 at element vape. Or is the Aromamizer Supreme V2 that much better?

Sent from my Moto G (5) Plus using Tapatalk

T

theclaw20

Bronze Contributor
Member For 3 Years
Actually the better question is what is the best rebuildable tank/deck for vertical coils? The TF-RDTA posts are somewhat short and I imagine the chamber would prevent tall building.

Sent from my Moto G (5) Plus using Tapatalk

ben73

ben73

Gold Contributor
Member For 4 Years
Supreme and Supreme v2 take the same postless and Velocity decks , the V2 has a grid like over Airflow so helps prevent spit back when using Vertical builds ,

Sent from my ONEPLUS A3003 using Tapatalk

T

theclaw20

Bronze Contributor
Member For 3 Years
It seems like the deck on the Aromamizer Supreme will allow a taller build than the Smok RDTA. Smok RDTA is much cheaper, but I think I won't be as happy with it.

Sent from my Moto G (5) Plus using Tapatalk

T

theclaw20

Bronze Contributor
Member For 3 Years
benley73 said:
Supreme and Supreme v2 take the same postless and Velocity decks , the V2 has a grid like over Airflow so helps prevent spit back when using Vertical builds ,

Sent from my ONEPLUS A3003 using Tapatalk
Click to expand...
That's really the only difference?

Sent from my Moto G (5) Plus using Tapatalk
