O-atty v1 coil/wicking tutorial

troydestroy

troydestroy

Silver Contributor
Member For 4 Years
I just wrote this up for a friend and thought i would share with you bonkers...

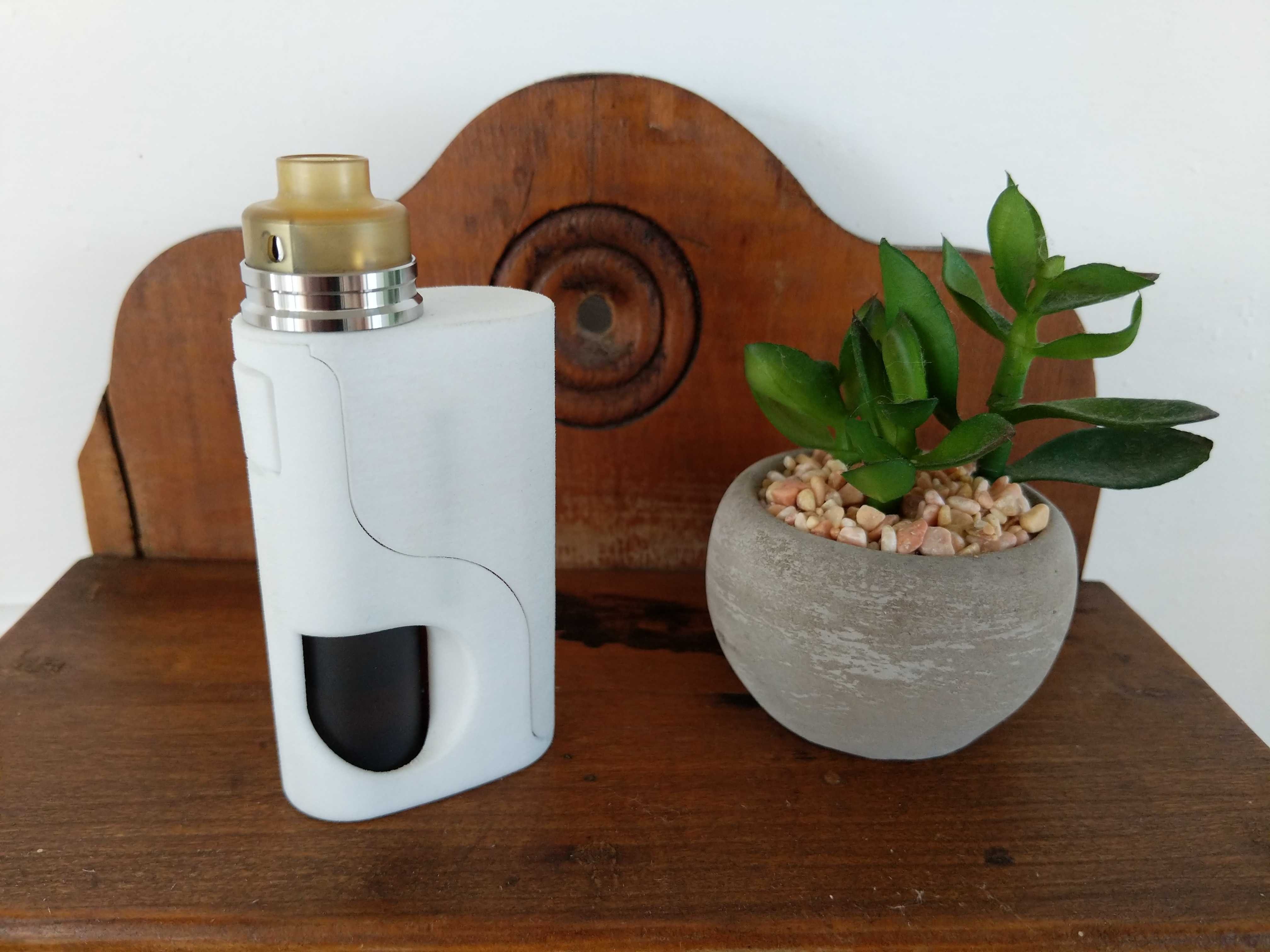

I'm a huge fan of the O-atty v1 rda. I use it on a single battery mech squonker and run a simple single wire build that provides a nice dense warm vape with no ramp up time, excellent flavor, and great battery life. The coil is n80 24g 5 wrap on 3.5mm rod.

Mount with coil level with side walls
[Pic](https://i.imgur.com/asQEgap.jpg)

Better picture showing spacing of coil and how legs are mounted
[Pic](https://i.imgur.com/4QCqJID.jpg)

Firm but slightly loose wicking cut 1-2mm from edge of side walls
[Pic](https://i.imgur.com/daT7Pcq.jpg)

Fluff up the ends of the wick. I use pointed end of tweezers
[Pic](https://i.imgur.com/lXxL2Er.jpg)

Gently tuck those wick tails down into the well and leave a space from the side wall (i find this makes less mess and less likely to get leakage from air flow on cap)
[Pic](https://i.imgur.com/gnmgVzE.jpg)

Hope this helps!

Last edited:
snake94115

snake94115

Diamond Contributor
Member For 4 Years
Very nice thanks.
Just 1 question.
Why have the coil at an angle like that instead of perpendicular to the airflow intake?

troydestroy

troydestroy

Silver Contributor
Member For 4 Years
snake94115 said:
Very nice thanks.
Just 1 question.
Why have the coil at an angle like that instead of perpendicular to the airflow intake?
Click to expand...
This is how the posts and air channels are designed for this particular RDA. I have tried a coil installed perpendicular and it's a huge pain in the ass and you need to raise the coil higher and split the wick (forked like a snakes tongue :)). I noticed no benefit/improvement so i stick with rocking the coil this way.

ben73

ben73

Gold Contributor
Member For 4 Years
troydestroy said:
This is how the posts and air channels are designed for this particular RDA. I have tried a coil installed perpendicular and it's a huge pain in the ass and you need to raise the coil higher and split the wick (forked like a snakes tongue :)). I noticed no benefit/improvement so i stick with rocking the coil this way.
Click to expand...
Yep i agree , its no different but easier to wick an do at an angle ,

Sent from my ONEPLUS A3003 using Tapatalk
Where you pick up top cap from only have the SS cap
