Parallel Mech box with no mosfet. Is it safe?

Discussion in 'Unregulated (Mechanical) Mods' started by merememories, Oct 19, 2017.

  1. merememories

    merememories New Member

    Blog Posts:
    0
    Joined:
    Oct 19, 2017
    Messages:
    15
  2. Sonar505

    Sonar505 Silver Contributor Member For 3 Years Modder

    Blog Posts:
    0
    Joined:
    Aug 5, 2014
    Messages:
    571
    Do us a favor and take some pictures of the inside of the box with at least one close up of the switch. The images on the link only show the outside. And the description says it is a mechanical. The more info you provide the better advice we can give you.

    f1r3b1rd likes this.
  3. r055co

    r055co VU Donator Gold Contributor Member For 1 Year

    Blog Posts:
    0
    Joined:
    Jan 24, 2016
    Messages:
    4,506
    If you know what you're doing it's perfectly safe, if not no it's very dangerous

  4. merememories

    merememories New Member

    Blog Posts:
    0
    Joined:
    Oct 19, 2017
    Messages:
    15
    Yes it is a fully mechanical mod with a fully mechanical switch, there is no mosfet in there and that's is my concern because I want to run a 0.1 coils. As for the pics I will send them as soon as I got the product it is still in the way.

    Well what I know is that 2 Sony vtc5a parallel would give me 42.5 amp ( taking account of inefficiency ) that would allow me to run 0.1 without an issue.
    But I don't know anything about mosfet, I read that switches in general have small amp rating and running a low ohm build will course the switch to fail.

    So I know the limit of my battery but I don't know how would this be affected if my mod doesn't have a mosfet.

  5. Sonar505

    Sonar505 Silver Contributor Member For 3 Years Modder

    Blog Posts:
    0
    Joined:
    Aug 5, 2014
    Messages:
    571
    Here is the thing. Until you get it and see exactly what type of switch is installed. You have no way of knowing what your limits are. With or without a mosfet. It could be a true mechanical in which case you are limited by how much current the postive and negative strips can carry. Or it could be what some Chinese manufactures call a mechanical. Where they wire in a 3 amp push switch with no mosfet. and call that a mech. In which case you play Russian roulette on how soon the switch contacts are going to weld in the closed position. That is where the mosfet comes into play. as it lets the full current flow thru it instead of through the switch.

    scalewiz and r055co like this.
  6. r055co

    r055co VU Donator Gold Contributor Member For 1 Year

    Blog Posts:
    0
    Joined:
    Jan 24, 2016
    Messages:
    4,506
    IMO Mosfet's give a false sense of security, I prefer mechanical mods myself. As long as you know what you're doing you're pefectly safe but again ONLY if you know what you're doing. As long as you're aware of proper safety, keep everything clean, take care of you're batters along with keeping up with battery safety you're perfectly safe.

    I rarely go below 0.13Ω or 0.14Ω, just heats the shit out of your atty, your mod and your batteries. But you're alright with VTC5A's but also be aware that the Mod you show'd isn't what I would call a quality device. The materials look cheap so you're going to get higher than normal loss so I honestly recommend you invest in a higher quality Mod if you wanna Vape below 0.2Ω.

  7. r055co

    r055co VU Donator Gold Contributor Member For 1 Year

    Blog Posts:
    0
    Joined:
    Jan 24, 2016
    Messages:
    4,506
    ^^^^^ this

    Like I said in my post above, if you wanna vape below 0.2Ω invest a good quality mod, don't mess about with Cheap Chinese shit.

    Just say'n

  8. Sonar505

    Sonar505 Silver Contributor Member For 3 Years Modder

    Blog Posts:
    0
    Joined:
    Aug 5, 2014
    Messages:
    571
    Just curious in what way do you feel that mosfets give that?

  9. r055co

    r055co VU Donator Gold Contributor Member For 1 Year

    Blog Posts:
    0
    Joined:
    Jan 24, 2016
    Messages:
    4,506
    More shit to fail and go wrong (more points of failure), that's me.

  10. Sonar505

    Sonar505 Silver Contributor Member For 3 Years Modder

    Blog Posts:
    0
    Joined:
    Aug 5, 2014
    Messages:
    571
    Very true. And I agree.that the more components added the more points of failure. As with any type of system. (Mechanical, Hydraulic, or Electrical.)
    Thanks for replying.

    r055co likes this.
  11. r055co

    r055co VU Donator Gold Contributor Member For 1 Year

    Blog Posts:
    0
    Joined:
    Jan 24, 2016
    Messages:
    4,506
    NP.

    I'm very anal retentive when it comes down to my Mod's, Maintenance and insuring everything is working as it should. I've been in High Tech for a few decades and I know how electronic's fail. Kinda ironic that I've been a Techie for decades, love the shit but also know how more complicated shit gets the higher the failure and buggy shit is. So when it comes to homes, car's, Vaping and few other things (especially critical) I prefer the basic's, old school ya know ;)

    EMusic likes this.
  12. 5150sick

    5150sick Under Ground Hustler Staff Member Senior Moderator VU Donator Platinum Contributor Member For 3 Years ECF Refugee

    Blog Posts:
    0
    Joined:
    Jun 1, 2014
    Messages:
    7,551

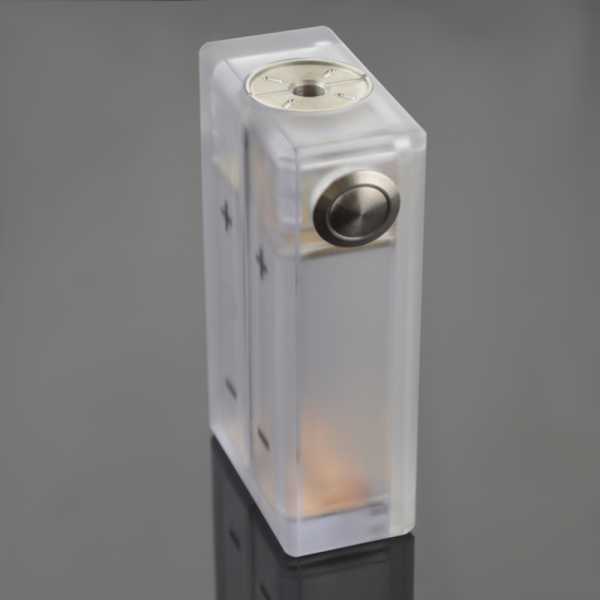

    [​IMG]


    There is one very thin wire that goes up the center of these things so you will be able to vape as low as that very thin wire that connects both batteries negative posts to the 510 connector allows you to.

  13. Sonar505

    Sonar505 Silver Contributor Member For 3 Years Modder

    Blog Posts:
    0
    Joined:
    Aug 5, 2014
    Messages:
    571
    Preaching to the choir. Old school is where I am at also. Navy was kind enough to teach me electricity, electronics, and Hydraulics. Back in 1984 So very old school. Then went on to servicing and Rebuilding of circuit boards. Until most manufactures went to surface mounted components. Instead of through hole. Talk about over complicating things. That and as I got older eyesight and hand steadiness began to fail me.:cuss2:

  14. r055co

    r055co VU Donator Gold Contributor Member For 1 Year

    Blog Posts:
    0
    Joined:
    Jan 24, 2016
    Messages:
    4,506
    I defiantly wouldn't go below 0.2Ω, hell probably not below 0.3Ω actually

    I've you're looking for something inexpensive here's something to look at

    https://www.fasttech.com/products/0/10014174/3718902-abaddon-box-styled-2-18650-mechanical-mod

    5150sick likes this.
  15. r055co

    r055co VU Donator Gold Contributor Member For 1 Year

    Blog Posts:
    0
    Joined:
    Jan 24, 2016
    Messages:
    4,506
    Hah! A Squid! Old Jarhead here, so you know where my mentality is, we make shit work with spit and bailing wire. I was in from 83-94 ;)

  16. merememories

    merememories New Member

    Blog Posts:
    0
    Joined:
    Oct 19, 2017
    Messages:
    15
    What mod do you suggest I have heard about the Philippines one but those are really expensive over 200$

  17. Sonar505

    Sonar505 Silver Contributor Member For 3 Years Modder

    Blog Posts:
    0
    Joined:
    Aug 5, 2014
    Messages:
    571
    Yep now know where you are coming from. If you were in Subic bay in 86 or 88 then we might have been on opposite sides of some very entertaining
    Bar Fights. That is until Shore Patrol broke them up.
    Ahh. Good Times. :cheers:

  18. r055co

    r055co VU Donator Gold Contributor Member For 1 Year

    Blog Posts:
    0
    Joined:
    Jan 24, 2016
    Messages:
    4,506
    I've got both the Authentic and the Clone. The Clone like this is one I posted is good, I enjoy it enough to keep my Authentic packed away for safe keeping.

  19. r055co

    r055co VU Donator Gold Contributor Member For 1 Year

    Blog Posts:
    0
    Joined:
    Jan 24, 2016
    Messages:
    4,506
    Actually never made it over to the PI, but during Vietnam my brother was in the Navy stationed in Subic Bay ;) But I certainly had fun elsewhere ;)

  20. MarkS

    MarkS Gold Contributor Member For 2 Years

    Blog Posts:
    0
    Joined:
    Jan 14, 2015
    Messages:
    1,516
    Personally if I bought a Mod like the one pictured I would go and solder at least 16 AWG wire (if parallel) or 12 AWG wire if series. Then I would probably put a parallel MOSFET in it. The switch doesn’t look like it’s mechanical and a switch built for reliable high current operations is much bigger than what’s pictured. Just my $0.02 worth. If it wasn’t obvious, I believe in margin and a little overkill. It’s served me well over the past nearly 40 years. For what it’s worth, any unregulated Mod isn’t safe unless the user is safe, educated, and allows margin. There is no forgiveness for ID10T errors.


    Sent from my iPhone using Tapatalk

    Last edited: Oct 25, 2017
  21. zombievapereview

    zombievapereview Bronze Contributor

    Blog Posts:
    0
    Joined:
    Oct 18, 2017
    Messages:
    247
    Dude you've always had top notch posts and are always very informative. Thank you for your post. Your also a pretty cool dude in talking to you through pm.

    I prefer regulated or vv. Im purchasing a mech pro and can't wait. Imo geekvapes mech mod are pretty thorough

    Sent from my Z981 using Tapatalk
