post your builds and get help perfecting it

Discussion in 'New Builders Corner' started by Jay420vape, Jan 8, 2017.

  1. Jay420vape

    Jay420vape New Member

    Blog Posts:
    0
    Joined:
    Jan 2, 2017
    Messages:
    28
    I figured id start a thead for people to post builds and get props amd constructive criticism or simple pointers to help perfect the build
    Ill start with mine
    This is my first hand twisted coil 30g 316l ss wire 14 wraps at .72 ohm



    Jane808 and EMusic like this.
  2. Seth7225

    Seth7225 New Member

    Blog Posts:
    0
    Joined:
    Nov 2, 2016
    Messages:
    4
    How about this? Good enough?
    I've tried to build staggered coil, but this is what i have build. :D Kanthal 2x26ga with 32 GA i get .12 ohms


    Attached Files:

    EMusic likes this.
  3. William2880

    William2880 New Member

    Blog Posts:
    0
    Joined:
    Jan 8, 2017
    Messages:
    22
    budget 33mm paper clip build...:shades:


    ...sike.

    Last edited: Jan 8, 2017
    MrScaryZ likes this.
  4. Seth7225

    Seth7225 New Member

    Blog Posts:
    0
    Joined:
    Nov 2, 2016
    Messages:
    4
    Fused Clapton's looks good!


    Attached Files:

    EMusic and gakudzu like this.
  5. Seth7225

    Seth7225 New Member

    Blog Posts:
    0
    Joined:
    Nov 2, 2016
    Messages:
    4
    How to build staggered?

  6. Jay420vape

    Jay420vape New Member

    Blog Posts:
    0
    Joined:
    Jan 2, 2017
    Messages:
    28
    If your going to budget wire use bread ties they are ss and get really low ohms im talking .01 but they eat your battery and you need to change um everyday cuz they get gross but paper clips usually have an alloy to keep um stiff
    o

  7. Jay420vape

    Jay420vape New Member

    Blog Posts:
    0
    Joined:
    Jan 2, 2017
    Messages:
    28
    1484075610512-1270159196.jpg 1484075709322895847732.jpg 14840757367021409573473.jpg This is my first try at a modified sleeper coil i know its not a sleeper coil hence modified its a parallel. 30g ss 316L. Wrapped into 2 coils with 10 wraps on each strand totaling to 20 wraps on each side 40 wraps in all @ 0.242 ohms 1484075610512-1270159196.jpg 1484075709322895847732.jpg 14840757367021409573473.jpg

    skt239 likes this.
  8. Jay420vape

    Jay420vape New Member

    Blog Posts:
    0
    Joined:
    Jan 2, 2017
    Messages:
    28
    This is it all finished 1484076039468-806517142.jpg 1484076188471-1855134152.jpg
    Completes

    EMusic likes this.
  9. Seth7225

    Seth7225 New Member

    Blog Posts:
    0
    Joined:
    Nov 2, 2016
    Messages:
    4
    I have no experience with ni200 26ga, have bought 5m and never had any luck with TC.
    Any suggestions?

  10. DaRodent

    DaRodent New Member

    Blog Posts:
    0
    Joined:
    Jan 15, 2017
    Messages:
    71

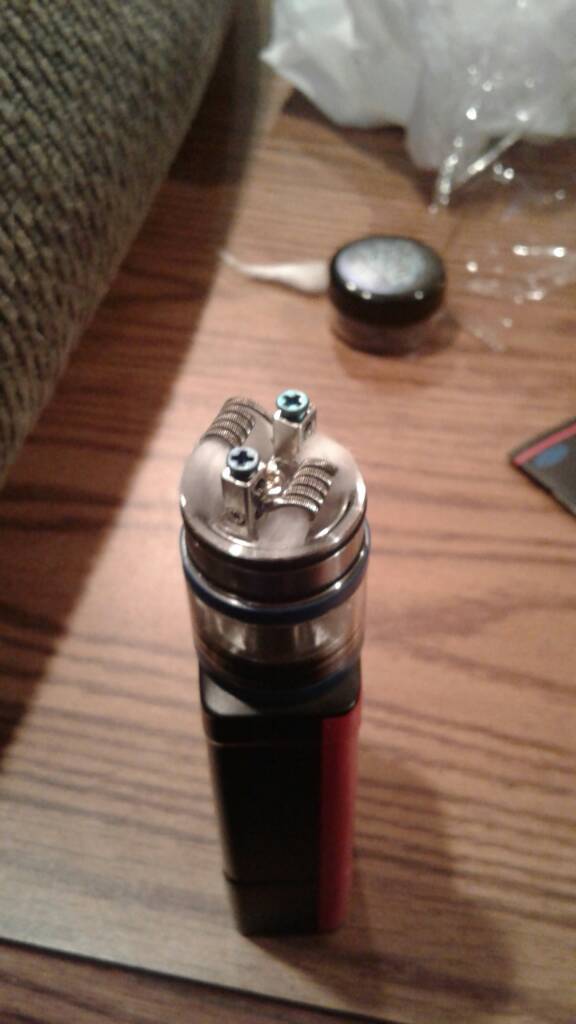

    First build
    Nothing compared with some I have seen on this forum but I am proud and only took me an hour and a half.

    It is 28 gage duel coil with 8 turns on a 2.5 mm rod. The are sitting in a Billows V7 deck and fire at .44 ohms


    [​IMG]

    [​IMG]

    [​IMG]

    Any tips to improve would be appreciated!

    Now to wick this and see how she works


    Sent from my iPad using Tapatalk

    gakudzu, EMusic and nightshard like this.
  11. nightshard

    nightshard It's VG/PG not PG/VG VU Donator Gold Contributor Member For 3 Years

    Blog Posts:
    0
    Joined:
    Oct 17, 2014
    Messages:
    3,731
    The coil seems to be bent out of shape, I suspect that happened when installing the coil and tightening the screws, to solve this install the coil while having it still on the rod/screwdriver/jig you were building it on, just make sure to turn off or lock the mod first.

    The coil is not twisted enough, needs to be a lot more twisted.

    As for your later build, since both coils are different and have a different resistance they won't heat up evenly, both coils need to be exactly (or roughly) the same.

    Huckleberried and gakudzu like this.
  12. AJBclouds

    AJBclouds New Member

    Blog Posts:
    0
    Joined:
    Jan 18, 2017
    Messages:
    42

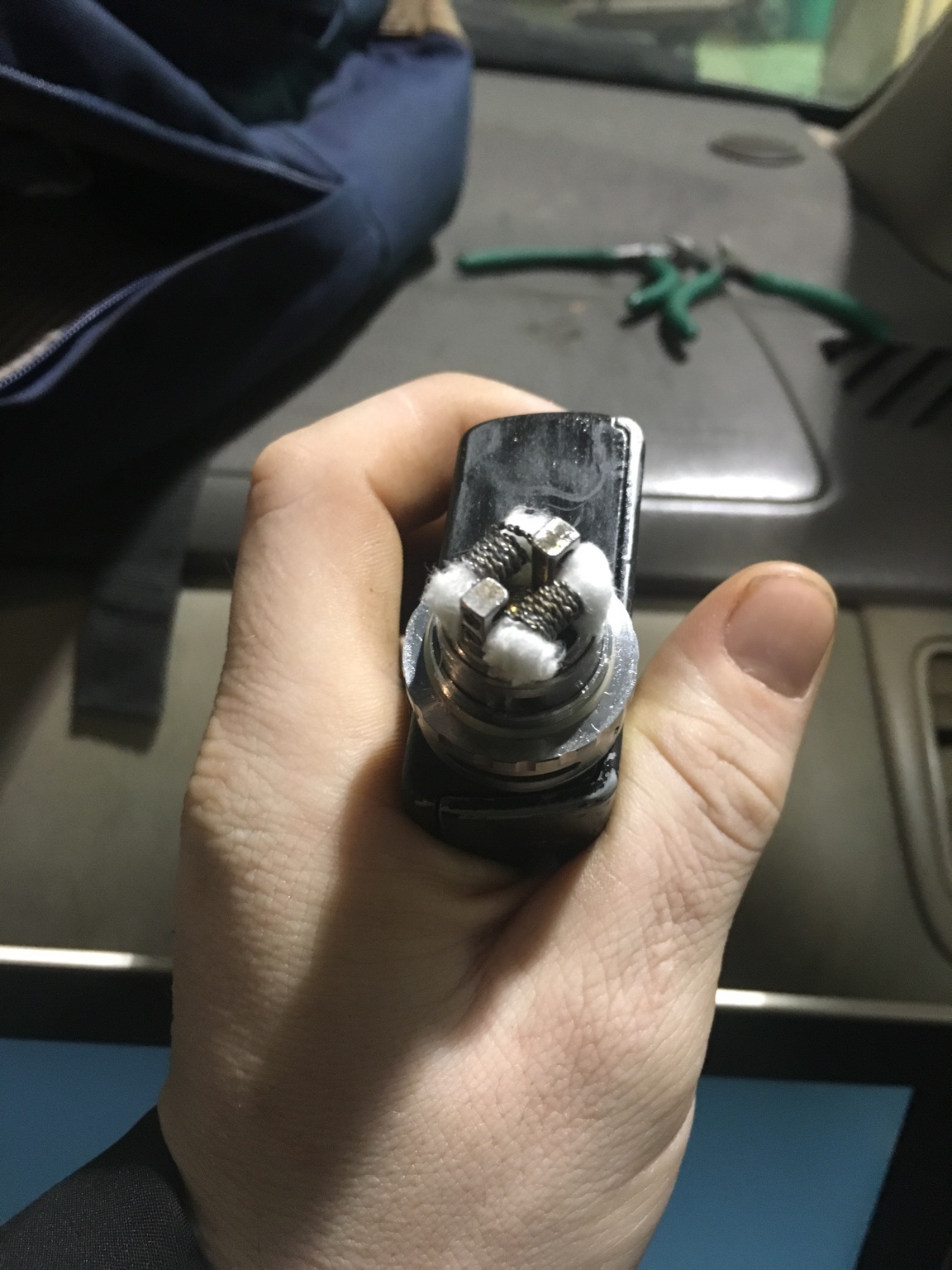

    My regular daily build on the Mutation X V4 - dual mix twisted 7 wrap. I also usually sit right around 70W - my comfort zone for both flavor and blowin O's lol - I just rewicked it last night for the "Panda Shake" I just got in the mail. By the way, if you enjoy cookies and cream, this is the best cookies & cream tasting flavor I've had so far. And, in my opinion, it tastes just like ice cream because it's made by Milkshake Liquids. Anyway, I'm new to posting on this board and I just wanted to say what up to all! Much love from Philly! #Vapedaily [​IMG][​IMG]




    Sent from my iPhone using Tapatalk

    Last edited: Jan 20, 2017
    SirRichardRear, gakudzu and EMusic like this.
  13. JESalo

    JESalo Member For 1 Year

    Blog Posts:
    0
    Joined:
    Oct 6, 2016
    Messages:
    11

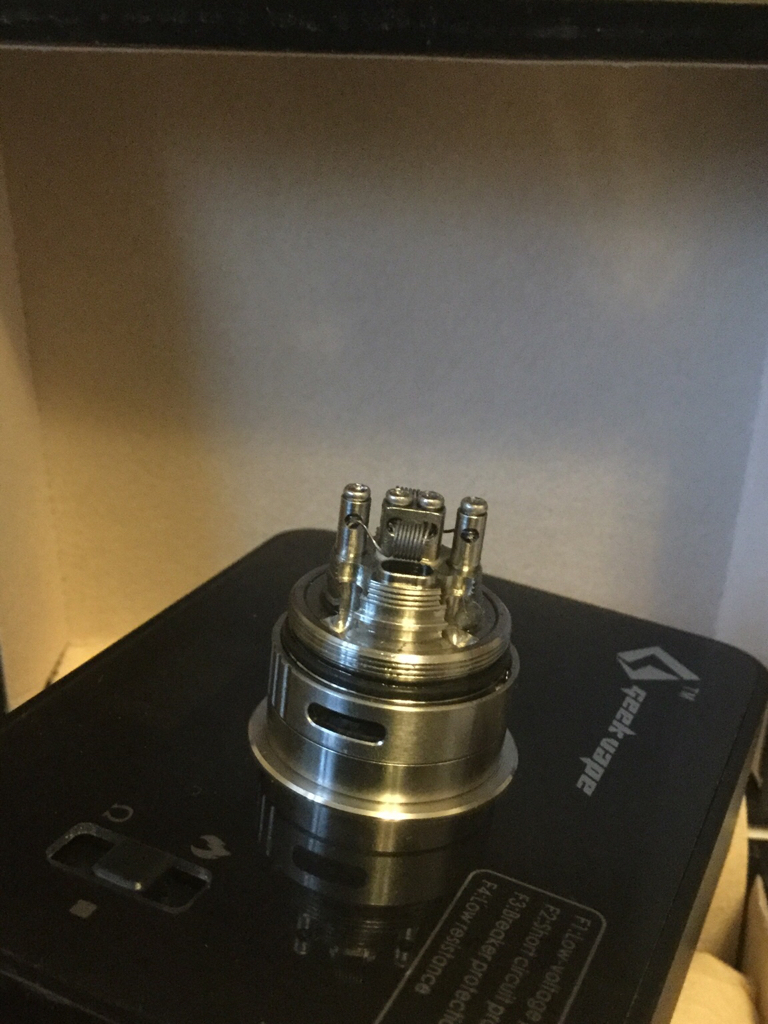

    Toptank mini RBA
    26g twisted kanthal, 5 wraps, 3mm ID, 0.54 ohm[​IMG]

    bomatt, gakudzu and EMusic like this.
  14. JESalo

    JESalo Member For 1 Year

    Blog Posts:
    0
    Joined:
    Oct 6, 2016
    Messages:
    11

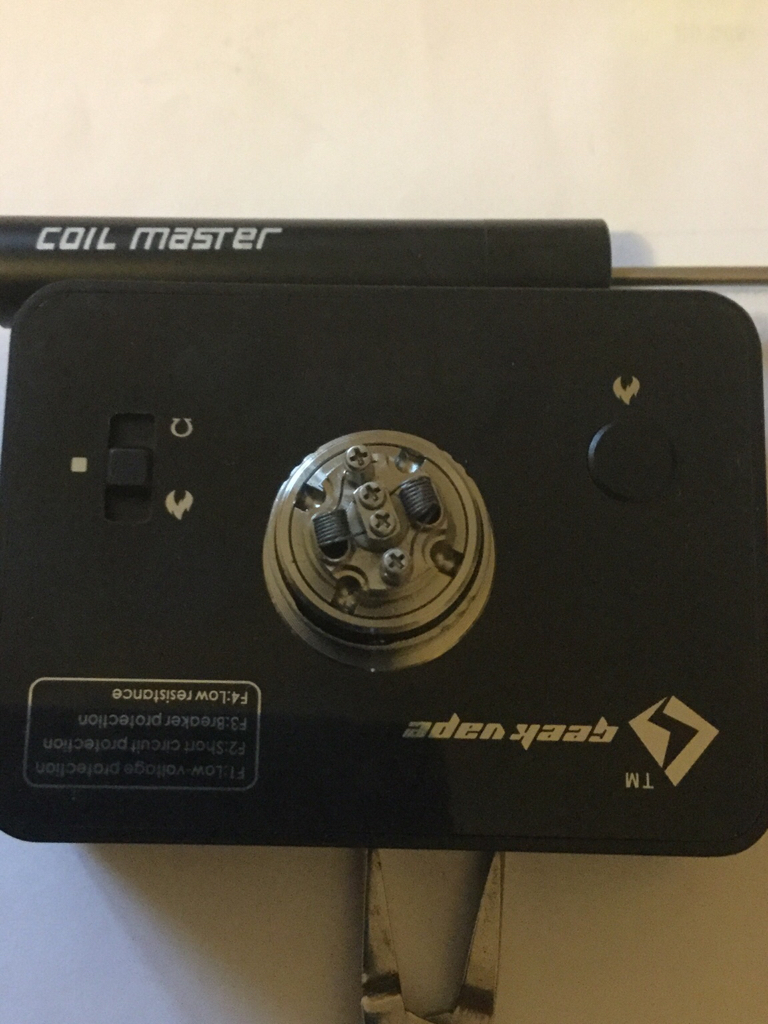

    Geek vape Ammit RTA deck
    26g twisted kanthal, 5 wraps, 2.8mm ID, 0.42 ohm[​IMG]

    gakudzu likes this.
  15. EMusic

    EMusic Gold Contributor Member For 1 Year

    Blog Posts:
    0
    Joined:
    Dec 15, 2016
    Messages:
    2,401
    How do you like your Toptank mini? I love mine. Works well even when chain vaping! I'm currently puffing on a .42 build and the flavor is right up there!

  16. JESalo

    JESalo Member For 1 Year

    Blog Posts:
    0
    Joined:
    Oct 6, 2016
    Messages:
    11
    Yeah, great flavour and performance. I prefer the Subtank mini, leakfree filling, but that has nothing to do with the RBA deck, since they use the same. Really happy with that build.

  17. gbalkam

    gbalkam Silver Contributor Member For 1 Year ECF Refugee

    Blog Posts:
    0
    Joined:
    Jun 10, 2016
    Messages:
    1,160

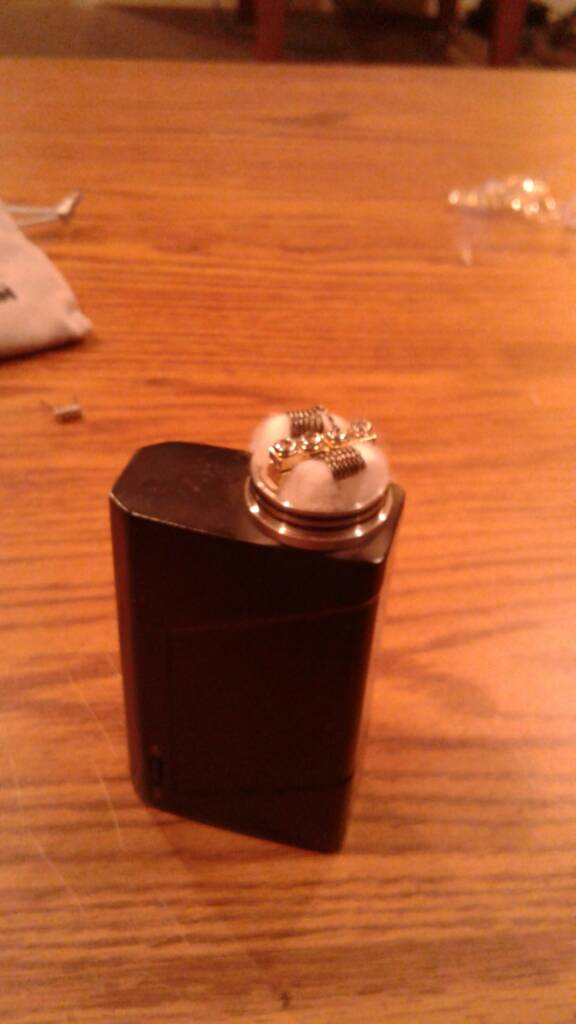

    My latest build for my Freakshow RDA. I built it to go on my mech mod. 0.24 ohm, pulls only around 16amp from a 20A battery.


    This is a kissing quad build. 2.5mm id core, 6 wraps each coil, 26ga nichrome.
    This is an awesome build for a 3 post atomizer. The coil sits directly over the air pipes!

    Last edited: Jan 23, 2017
    gakudzu likes this.
  18. AJBclouds

    AJBclouds New Member

    Blog Posts:
    0
    Joined:
    Jan 18, 2017
    Messages:
    42
    Hey! I just learned this trick on another section of the forum because I couldn't get my mutation to stop leaking AND was getting annoyed taking the cap off every time to drip so (with help of this forum, I'm sorry I can't remember who to credit) but this is how it came out! It truly stopped the leaking (unless you completely overflow it obviously lol) but it has helped me considerably! Cheers #vapefamily !

    [​IMG][​IMG]


    Sent from my iPhone using Tapatalk

    EMusic, bomatt and gakudzu like this.
  19. tooropcro

    tooropcro New Member

    Blog Posts:
    0
    Joined:
    Jan 23, 2017
    Messages:
    5
    [​IMG]

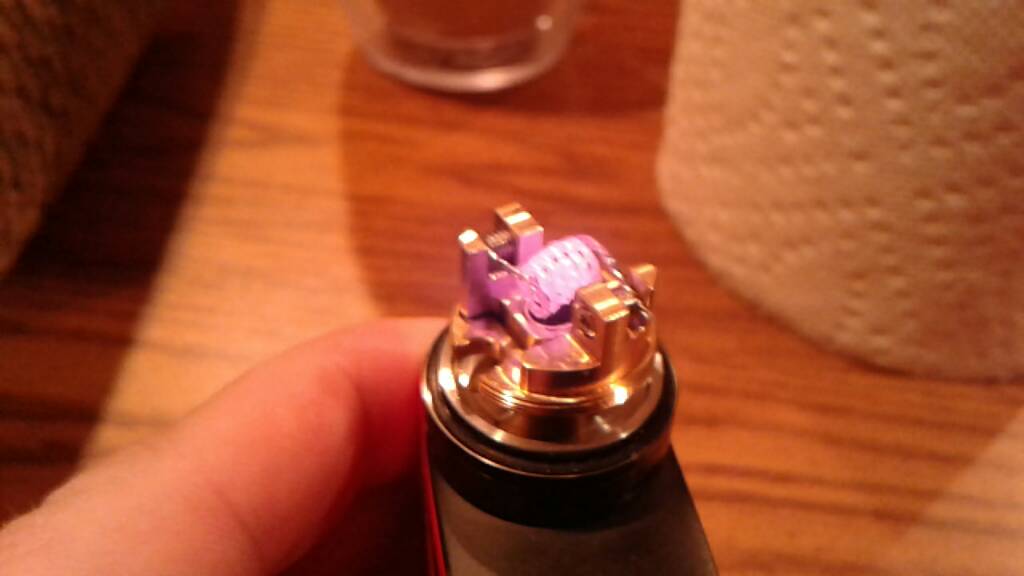

    My second build ever, staged fused clapton. Was so excited to vape it (was reading .11ohm) but after wicking and juicing it it was at .09ohms :D so now I'm waiting to end my surgery and hospital time and buying some unregulated box mod to try out this out :>

    Sorry on low quality photo :(

    AJBclouds likes this.
  20. AJBclouds

    AJBclouds New Member

    Blog Posts:
    0
    Joined:
    Jan 18, 2017
    Messages:
    42
    Staged fused claptons look so, so good.


    Sent from my iPhone using Tapatalk

  21. SirRichardRear

    SirRichardRear AKA Anthony Vapes on Youtube VU Donator Diamond Contributor Member For 1 Year Reviewer

    Blog Posts:
    0
    Joined:
    Jul 8, 2016
    Messages:
    11,525
    don't fire a .09 build on an unregulated mod. only way that would be safe is with a dual battery parallel mod and using LG HB6 batts and it's pushing right at the limit.

    I'd recommend getting a hohmwrecker G2. it'll fire any build and be much safer then using an unregulated mod

    EMusic, AJBclouds and gakudzu like this.
  22. SirRichardRear

    SirRichardRear AKA Anthony Vapes on Youtube VU Donator Diamond Contributor Member For 1 Year Reviewer

    Blog Posts:
    0
    Joined:
    Jul 8, 2016
    Messages:
    11,525
    welcome aboard!

  23. SirRichardRear

    SirRichardRear AKA Anthony Vapes on Youtube VU Donator Diamond Contributor Member For 1 Year Reviewer

    Blog Posts:
    0
    Joined:
    Jul 8, 2016
    Messages:
    11,525
    Ni wire IMO is just poor for vaping. if you want to try temp control get SS wire. it can also be used in power mode unlike Ni wire and is cheap and easy to find

    Seth7225, r055co and gakudzu like this.
  24. MrScaryZ

    MrScaryZ VU Donator Platinum Contributor Member For 3 Years

    Blog Posts:
    0
    Joined:
    Jun 25, 2014
    Messages:
    6,953
    haha that is some funny shit

  25. SirRichardRear

    SirRichardRear AKA Anthony Vapes on Youtube VU Donator Diamond Contributor Member For 1 Year Reviewer

    Blog Posts:
    0
    Joined:
    Jul 8, 2016
    Messages:
    11,525
    no! why would you want a .01 coil?
    did you check the resistance of that before using it on your mech? what do you normally build on? if you are using mechs as it looks like, you really need a meter to know the resistance and check for shorts

  26. tooropcro

    tooropcro New Member

    Blog Posts:
    0
    Joined:
    Jan 23, 2017
    Messages:
    5
    Yeah, that was something I had in my mind :)

    That G2 does look good, but damn, that price and shipping to Croatia... my god

  27. SirRichardRear

    SirRichardRear AKA Anthony Vapes on Youtube VU Donator Diamond Contributor Member For 1 Year Reviewer

    Blog Posts:
    0
    Joined:
    Jul 8, 2016
    Messages:
    11,525
    the price is good since there is a 50% off code (G2FLASHX1) but yeah shipping might be a bitch.

  28. tooropcro

    tooropcro New Member

    Blog Posts:
    0
    Joined:
    Jan 23, 2017
    Messages:
    5
    I cant get it to work on official site? :(

  29. SirRichardRear

    SirRichardRear AKA Anthony Vapes on Youtube VU Donator Diamond Contributor Member For 1 Year Reviewer

    Blog Posts:
    0
    Joined:
    Jul 8, 2016
    Messages:
    11,525
    Vaporcube?

    Sent from my SM-G935V using Tapatalk

  30. gbalkam

    gbalkam Silver Contributor Member For 1 Year ECF Refugee

    Blog Posts:
    0
    Joined:
    Jun 10, 2016
    Messages:
    1,160
    I find, some of my builds will leak, if the wick it to close to the top edge of the deck. Basically, it becomes over saturated and dribbles out of the wick. Making sure I had the wick totally inside and not on top, of the top of the deck worked.

    gakudzu likes this.
  31. bomatt

    bomatt New Member

    Blog Posts:
    0
    Joined:
    Dec 29, 2016
    Messages:
    43
    Coilart Mage GTA
    [​IMG]


    Limitless RDTA plus
    [​IMG]

    [​IMG]

    I dont know what's up with this RDTA but it leaks like a mother. I checked the o rings and everything looked okay.

    I think Friday I'm gonna go get a dripper to use at home. I'm not having good luck with the tanks.

    EMusic likes this.
  32. SirRichardRear

    SirRichardRear AKA Anthony Vapes on Youtube VU Donator Diamond Contributor Member For 1 Year Reviewer

    Blog Posts:
    0
    Joined:
    Jul 8, 2016
    Messages:
    11,525
    where is it leaking from?

  33. Huckleberried

    Huckleberried Senior Moderator Staff Member Senior Moderator VU Donator Diamond Contributor Member For 3 Years

    Blog Posts:
    0
    Joined:
    Jul 3, 2014
    Messages:
    26,043
    Can't say this would solve it, but looks to me, like it needs more wicking. Just my amateur opinion.

    gakudzu likes this.
  34. SirRichardRear

    SirRichardRear AKA Anthony Vapes on Youtube VU Donator Diamond Contributor Member For 1 Year Reviewer

    Blog Posts:
    0
    Joined:
    Jul 8, 2016
    Messages:
    11,525
    I think you are on the right path for sure ;)

  35. bomatt

    bomatt New Member

    Blog Posts:
    0
    Joined:
    Dec 29, 2016
    Messages:
    43
    Roger that. Not sure where exactly it's leaking from. Maybe from air holes. But I put it in my pocket. Always on the go. I think I'm gonna get a setup to take with me and a dripper for home.

  36. bomatt

    bomatt New Member

    Blog Posts:
    0
    Joined:
    Dec 29, 2016
    Messages:
    43
    [​IMG]

    [​IMG]

    [​IMG]

    gakudzu likes this.
  37. AJBclouds

    AJBclouds New Member

    Blog Posts:
    0
    Joined:
    Jan 18, 2017
    Messages:
    42
    I'm sorry I didn't catch that - SEE ABOVE


    Sent from my iPhone using Tapatalk

    SirRichardRear likes this.
  38. Crutter447

    Crutter447 New Member

    Blog Posts:
    0
    Joined:
    Feb 9, 2017
    Messages:
    15
    Got pictures of my first build to post. Can't figure how to post them

  39. Crutter447

    Crutter447 New Member

    Blog Posts:
    0
    Joined:
    Feb 9, 2017
    Messages:
    15
    [​IMG]
    24g single coil. 7/64 drill bit used as guide.
    0.430 ohms.

    bugalien likes this.
  40. bugalien

    bugalien Bronze Contributor Member For 1 Year

    Blog Posts:
    0
    Joined:
    Nov 29, 2016
    Messages:
    473
    It won't let me see the photo. :cuss2:

    Were you sure to resize the photo to a small enough size for upload? I actually use my phone to post most photos here because it is so easy to resize them on the phone's editor.

    Edit: Just checked and the google photo editor will not resize, I must have just used it to save and resize in another program before.

    Last edited: Feb 9, 2017
  41. bugalien

    bugalien Bronze Contributor Member For 1 Year

    Blog Posts:
    0
    Joined:
    Nov 29, 2016
    Messages:
    473
    I made a pair of coils so badly today (my second), I am afraid to photograph them. Damn claptons on a 3 post deck!:gaah: It was vapable but so ugly and hard to fit without touching the sides of the RDA's air flow If I want to close it any. I need to work on centering them, I guess.:facepalm:

    Last edited: Feb 9, 2017
    gakudzu likes this.
  42. Crutter447

    Crutter447 New Member

    Blog Posts:
    0
    Joined:
    Feb 9, 2017
    Messages:
    15
    It's alittle blurry but i cropped it.


    Attached Files:

  43. Whiskeywarrior

    Whiskeywarrior Silver Contributor

    Blog Posts:
    0
    Joined:
    Dec 12, 2016
    Messages:
    559
    What is it? 7 wrap 24g?

  44. Crutter447

    Crutter447 New Member

    Blog Posts:
    0
    Joined:
    Feb 9, 2017
    Messages:
    15
    That is correct. Single coil, 7 wrap 24g. Worked great until i messed with it to adjust the wick then the protect kicked on.

  45. Whiskeywarrior

    Whiskeywarrior Silver Contributor

    Blog Posts:
    0
    Joined:
    Dec 12, 2016
    Messages:
    559
    Is the coil close or touching the atty wall?

  46. Crutter447

    Crutter447 New Member

    Blog Posts:
    0
    Joined:
    Feb 9, 2017
    Messages:
    15
    It was close, not touching. Tried to adjust it and to protect warning came on.

  47. Whiskeywarrior

    Whiskeywarrior Silver Contributor

    Blog Posts:
    0
    Joined:
    Dec 12, 2016
    Messages:
    559
    Probably a short somewhere. What are you looking to achieve? Clouds, flavor, a bit of both?

    gakudzu likes this.
  48. Crutter447

    Crutter447 New Member

    Blog Posts:
    0
    Joined:
    Feb 9, 2017
    Messages:
    15
    I'm running a 220watt alien mod with a baby beast tank as my daily. It has good flavor and decent clouds at 90watts with a t8 coil. My RDA would probley lean more towards clouds preferably.

    bugalien likes this.
  49. bugalien

    bugalien Bronze Contributor Member For 1 Year

    Blog Posts:
    0
    Joined:
    Nov 29, 2016
    Messages:
    473
    Once you get the RDA going good it might be hard to use the tank again. Both my husband and I have had our baby beasts (our first subohm sets were alien kits) pretty much laying around and mostly using the drippers. lol

    gakudzu likes this.
  50. Crutter447

    Crutter447 New Member

    Blog Posts:
    0
    Joined:
    Feb 9, 2017
    Messages:
    15
    I'm having a rough time of it. I can't seem to make any functionable coils


Share This Page

Close This Message
