post your builds and get help perfecting it

Discussion in 'New Builders Corner' started by Jay420vape, Jan 8, 2017.

  1. gakudzu

    gakudzu Gold Contributor Member For 1 Year

    Blog Posts:
    0
    Joined:
    Oct 6, 2016
    Messages:
    2,397
    3 and 4 post deck are a PITA for a beginner, IMO. Velocity-styled are way easier. I have a 22mm DOGE 3 w/4 post deck, and it took me awhile to get it right. Gotta leave yourself lots of coil-leg to work with.

    EMusic likes this.
  2. gakudzu

    gakudzu Gold Contributor Member For 1 Year

    Blog Posts:
    0
    Joined:
    Oct 6, 2016
    Messages:
    2,397
    All I can think is maybe the post screws loosened up when you adjusted the coil.

  3. Crutter447

    Crutter447 New Member

    Blog Posts:
    0
    Joined:
    Feb 9, 2017
    Messages:
    15
    A velocity style deck would be nice but, i don't have the money for a brand new rda. Somebody sold me a nice condition wotofo atty3 cubed.

  4. gakudzu

    gakudzu Gold Contributor Member For 1 Year

    Blog Posts:
    0
    Joined:
    Oct 6, 2016
    Messages:
    2,397
    I feel that. I paid like 9 bucks for the DOGE. It's a clone, but from the reviews I saw, the clone was actually of higher quality. Go figure, lol. I now have a Pharaoh-clone on oreder from FT, for $13. 25mm, spring-loaded clamp, bottom airflow deck. Things can be found cheap.

    I'm using the rba deck in my baby beast now. Kinda small, but it's a velocity-style bottom airflow, and works really well for me. I paid around $11 for it.

    It also just occurred to me that, on the Alien, once you get a "protect" message, I think you have to unscrew the atty and hit the fire button to reset the resistance.

  5. Crutter447

    Crutter447 New Member

    Blog Posts:
    0
    Joined:
    Feb 9, 2017
    Messages:
    15
    I keep messing with it. Single coil 24g 7 wrap. The post screws are tightened down, not touching the deck with the coil or legs on opposite post sides. Says "do not abuse protects every time.

  6. gakudzu

    gakudzu Gold Contributor Member For 1 Year

    Blog Posts:
    0
    Joined:
    Oct 6, 2016
    Messages:
    2,397
    You may have broken or cracked a leg when you were adjusting it. I would loosen the screws, readjust the coil, and retighten. Reset the resistance on the mod. If that doesn't work, I'd trash it and make a new one.

  7. Crutter447

    Crutter447 New Member

    Blog Posts:
    0
    Joined:
    Feb 9, 2017
    Messages:
    15
    Also, the center post(positive) spins when i try to tighten the post screws.

    Mr RELENTLESS likes this.
  8. gakudzu

    gakudzu Gold Contributor Member For 1 Year

    Blog Posts:
    0
    Joined:
    Oct 6, 2016
    Messages:
    2,397
    That could very well be the problem. Take it off the mod, hold the center post with pliers, and try to tighten the screw in the 510 connector.

  9. Crutter447

    Crutter447 New Member

    Blog Posts:
    0
    Joined:
    Feb 9, 2017
    Messages:
    15
    So i followed your advice and tightened that screw in the 510 and i now have a functioning single coil coming in at 0.57 ohms. Thank you for all your help

    EMusic, bugalien and gakudzu like this.
  10. gakudzu

    gakudzu Gold Contributor Member For 1 Year

    Blog Posts:
    0
    Joined:
    Oct 6, 2016
    Messages:
    2,397
    Great! Glad I could help.

    EMusic likes this.
  11. Crutter447

    Crutter447 New Member

    Blog Posts:
    0
    Joined:
    Feb 9, 2017
    Messages:
    15
    50 watts of outstanding flavor.

    gakudzu likes this.
  12. HellbillyRJ

    HellbillyRJ Bronze Contributor

    Blog Posts:
    0
    Joined:
    Feb 9, 2017
    Messages:
    225

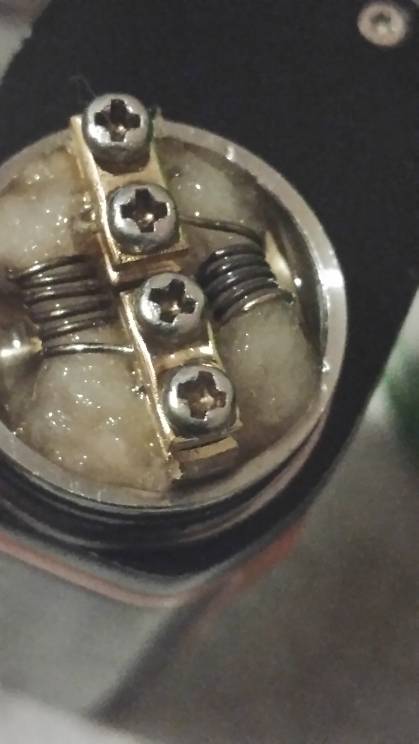

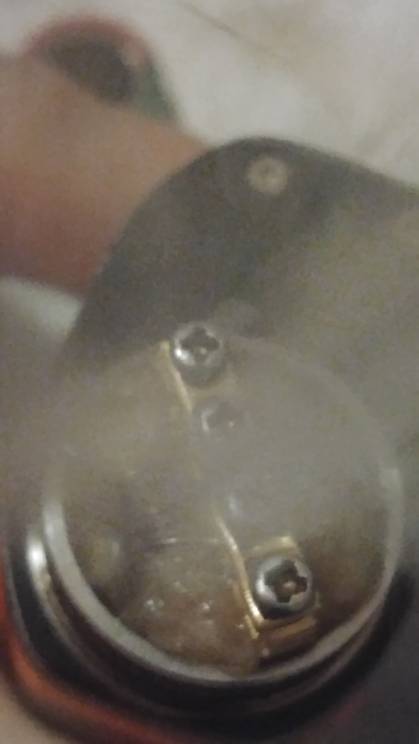

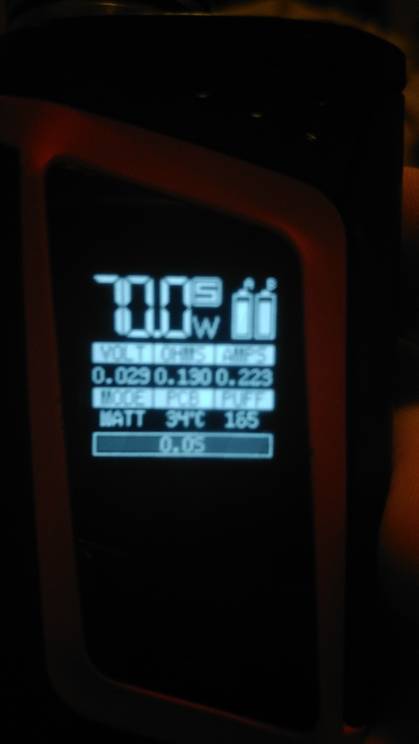

    Dual AWG 24g Stainless steel, 6 wraps spaced, comes in at 0.130 ohms

    Thoughts or advice to improving this build? I regretfully say this is one of my cleaner coils builds lately. I really want to learn parallels but I think my wire is too thick, with 8 wraps I come in at about 0.11 ohms and my Alien won't fire it. If I add more wraps it doesn't fit in the RDA (too long from lead to lead) on Goon 24mm. Right now 24g is all I have but I do plan on getting a few different sizes and possibly also fused Claptons. I'm a huge fan of SS wires though. Willing to try anything but kanthal though as they are the only 2 I've used so far.

    [​IMG]
    [​IMG][​IMG][​IMG][​IMG]

    gakudzu and bugalien like this.
  13. gakudzu

    gakudzu Gold Contributor Member For 1 Year

    Blog Posts:
    0
    Joined:
    Oct 6, 2016
    Messages:
    2,397
    Have you tried firing it in Temp Mode?

  14. HellbillyRJ

    HellbillyRJ Bronze Contributor

    Blog Posts:
    0
    Joined:
    Feb 9, 2017
    Messages:
    225
    Well... I would... But... Ya see, the thing is... I have the alien mod and just upgraded the firmware to 1.2.11 last night and in doing so my TC mode completely shit out on me. I prefer to run my SS in TC but unless I can find a downgrade link back to 1.2.1 or they fix it soon in a new upgrade I'm without TC until I get a new mod :(

    Sent from my ZTE A2017U using Tapatalk

  15. gakudzu

    gakudzu Gold Contributor Member For 1 Year

    Blog Posts:
    0
    Joined:
    Oct 6, 2016
    Messages:
    2,397
    Oh yeah, I remember reading that. Damn. Glad I couldn't get mine updated now, lol. Try updating again? Maybe there was just a glitch in the matrix before.

    HellbillyRJ likes this.
  16. HellbillyRJ

    HellbillyRJ Bronze Contributor

    Blog Posts:
    0
    Joined:
    Feb 9, 2017
    Messages:
    225
    I'll try that actually didn't even think about it. Thank you.

    Sent from my ZTE A2017U using Tapatalk

  17. gakudzu

    gakudzu Gold Contributor Member For 1 Year

    Blog Posts:
    0
    Joined:
    Oct 6, 2016
    Messages:
    2,397
    *fingers crossed*

  18. HellbillyRJ

    HellbillyRJ Bronze Contributor

    Blog Posts:
    0
    Joined:
    Feb 9, 2017
    Messages:
    225
    Nope, still not working... Scouring for a downgrade link now...

    Sent from my ZTE A2017U using Tapatalk

  19. HellbillyRJ

    HellbillyRJ Bronze Contributor

    Blog Posts:
    0
    Joined:
    Feb 9, 2017
    Messages:
    225
    I found a link for 1.2.2 I'll see if that helps

    Sent from my ZTE A2017U using Tapatalk

    gakudzu likes this.
  20. Crutter447

    Crutter447 New Member

    Blog Posts:
    0
    Joined:
    Feb 9, 2017
    Messages:
    15
    I'm no help. I literally just made my first vapable build. Single coil, 24g 7 wrap around a 5/32 drill bit. Fires like a champ at 65watts. Flavor enormous and decent clouds.

    gakudzu and HellbillyRJ like this.
  21. HellbillyRJ

    HellbillyRJ Bronze Contributor

    Blog Posts:
    0
    Joined:
    Feb 9, 2017
    Messages:
    225
    I use the coil master jigs, but pretty much only the 4mm. Usually 5-8 wraps depending on where I want my ohms. 5 wraps comes in around 0.13-0.15 8 wraps is usually right around a 0.2 build

    Sent from my ZTE A2017U using Tapatalk

  22. HellbillyRJ

    HellbillyRJ Bronze Contributor

    Blog Posts:
    0
    Joined:
    Feb 9, 2017
    Messages:
    225
    But I almost always run dual coils

    Sent from my ZTE A2017U using Tapatalk

  23. bugalien

    bugalien Bronze Contributor Member For 1 Year

    Blog Posts:
    0
    Joined:
    Nov 29, 2016
    Messages:
    473
    2017-02-10 17.38.13.jpg I finally wrapped a halfway decent pair of clapton coils on this 3 post CCI Archon. I failed a couple times but this one doesn't touch the sides, pop or snap, and tastes great. Just imperfect and ugly looking to me. I am determined to perfect doing this with this roll of clapton wire until I get a roll of simple wire and hope it will be easy street with that. Lol

    It is not that hard on the 2 post deck, but I only have the 2 decks shared between my husband and I and we seem to have rejected our Baby Beast tanks since I have started us dripping.

    HellbillyRJ likes this.
  24. HellbillyRJ

    HellbillyRJ Bronze Contributor

    Blog Posts:
    0
    Joined:
    Feb 9, 2017
    Messages:
    225
    I have some fused Clapton and single wire is MUCH easier to work with IMHO. I can't get the pics to load but it sounds like you've got it figured out. The more you wrap the better they'll start to look, it's a practice thing. Mine still look pretty bad most of the time, but they're functional and that's what's important.

    Sent from my ZTE A2017U using Tapatalk

    gakudzu and bugalien like this.
  25. bugalien

    bugalien Bronze Contributor Member For 1 Year

    Blog Posts:
    0
    Joined:
    Nov 29, 2016
    Messages:
    473
    Thanks! My OCD is terrible so I see it as ugly AF. While I built that this afternoon, my daughter and husband were waiting for me to go for a 4WD truck drive down our new neighborhood dirt roads. :wait:lol

    My husband had that deck before with a real shitty build I did for him that popped, snapped, and was just BAD. lol So I gave him my 2 post deck with my first ever build on it and had to fix that one real quick or we both wouldn't have our own mods and drippers for the ride! :rolleyes:
    Too bad he doesn't do the building...
    I need a smaller wire snipper with the angle on it and some other things if I am going to get faster at this...
    Toe nail clippers should be for toe nails. lol
    Drill bits don't have anything to stop against unless I rig it with a wrap of some kind.
    I'm working with hardly anything here. :kickbutt:

    gakudzu likes this.
  26. SirRichardRear

    SirRichardRear AKA Anthony Vapes on Youtube VU Donator Diamond Contributor Member For 1 Year Reviewer

    Blog Posts:
    0
    Joined:
    Jul 8, 2016
    Messages:
    11,520
    Looks like your leads on the center pin are touching the coils?

    Sent from my SM-G935V using Tapatalk

  27. HellbillyRJ

    HellbillyRJ Bronze Contributor

    Blog Posts:
    0
    Joined:
    Feb 9, 2017
    Messages:
    225
    https://www.coil-master.net/product/coil-master-diy-kit-v3 this is what I use more often than not. The coil jigs are really nice, with a bit of a learning curve for first time use. I found a YouTube video that showed how to properly use it (there are no manuals or papers in it at all, so as a first time builder it was all guess work). But that has everything I use for my building and everything works really. I sometimes use a screwdriver to wrap on if I don't feel like messing with the jigs but I have no idea what size it is ~3.5-4mm though I think

    Sent from my ZTE A2017U using Tapatalk

  28. bugalien

    bugalien Bronze Contributor Member For 1 Year

    Blog Posts:
    0
    Joined:
    Nov 29, 2016
    Messages:
    473
    Please elaborate? One coil was getting red faster than the other initially so I really want to know. Leads?

  29. SirRichardRear

    SirRichardRear AKA Anthony Vapes on Youtube VU Donator Diamond Contributor Member For 1 Year Reviewer

    Blog Posts:
    0
    Joined:
    Jul 8, 2016
    Messages:
    11,520
    So the part u have screwed into the pin coming out is touching the 1st wrap on the coil next to it

    Sent from my SM-G935V using Tapatalk

    bugalien likes this.
  30. bugalien

    bugalien Bronze Contributor Member For 1 Year

    Blog Posts:
    0
    Joined:
    Nov 29, 2016
    Messages:
    473
    I really would like to snip that but can't! I just can't. lol I want to give up until I can get a better snipper. I even tried pushing it in and snipping, then backing out slightly to screw down but it kept catching in the dent the screw made and pushed it back out (if that makes any sense).

    I hope this helps someone with the 3 post and no good snippers...

    Any other trick to do this would be awesome!

  31. Crutter447

    Crutter447 New Member

    Blog Posts:
    0
    Joined:
    Feb 9, 2017
    Messages:
    15
    Just finished a dual coil build. 9 wraps of 24g. .3 ohms. 80watts

    gakudzu and HellbillyRJ like this.
  32. SirRichardRear

    SirRichardRear AKA Anthony Vapes on Youtube VU Donator Diamond Contributor Member For 1 Year Reviewer

    Blog Posts:
    0
    Joined:
    Jul 8, 2016
    Messages:
    11,520
    Not the extra part. I'm talking about the start of your coil is crossing over and touching the wrapped part of the coil

    Sent from my SM-G935V using Tapatalk

  33. Crutter447

    Crutter447 New Member

    Blog Posts:
    0
    Joined:
    Feb 9, 2017
    Messages:
    15
    I'm actually really proud of my new build. Seeing as it's only my second functioning build, 0.3 ohms at 80watts seems pretty decent

    gakudzu likes this.
  34. wheelie

    wheelie VU Donator Bronze Contributor Member For 2 Years

    Blog Posts:
    0
    Joined:
    Jul 21, 2015
    Messages:
    199
    [​IMG]
    2- 28g K1 0.1*0.3 Ribbon 3.5mm 7 wraps 1.1 ohms made two for My Griffin 25 Plus for a .5 CHEERS

    gakudzu likes this.
  35. PhantomOp

    PhantomOp VU Donator Gold Contributor Member For 1 Year

    Blog Posts:
    0
    Joined:
    Nov 5, 2016
    Messages:
    1,867
    gakudzu and HellbillyRJ like this.
  36. HellbillyRJ

    HellbillyRJ Bronze Contributor

    Blog Posts:
    0
    Joined:
    Feb 9, 2017
    Messages:
    225
  37. PhantomOp

    PhantomOp VU Donator Gold Contributor Member For 1 Year

    Blog Posts:
    0
    Joined:
    Nov 5, 2016
    Messages:
    1,867
    Sorry that I just caught this thread tonight. I could of gotten you links that night you were looking for them.

  38. HellbillyRJ

    HellbillyRJ Bronze Contributor

    Blog Posts:
    0
    Joined:
    Feb 9, 2017
    Messages:
    225
    No worries, I could have probably found them I was just being lazy lol

    Sent from my ZTE A2017U using Tapatalk

  39. PhantomOp

    PhantomOp VU Donator Gold Contributor Member For 1 Year

    Blog Posts:
    0
    Joined:
    Nov 5, 2016
    Messages:
    1,867
    I'm running 1.2.11 on my Alien -- I'll have to try TC with this coil I'm using to see if it is working or not. I don't use TC mode, so I have never check it. :D

  40. HellbillyRJ

    HellbillyRJ Bronze Contributor

    Blog Posts:
    0
    Joined:
    Feb 9, 2017
    Messages:
    225
    I can't speak for the majority of them but it wasn't wanting to run right in SS mode

    Sent from my ZTE A2017U using Tapatalk

  41. PhantomOp

    PhantomOp VU Donator Gold Contributor Member For 1 Year

    Blog Posts:
    0
    Joined:
    Nov 5, 2016
    Messages:
    1,867
    Can you explain not wanting to "run right" ... I've got a SS316L 24g/36g Clapton in my Ammit right now and TC seems to be working without issue.

  42. HellbillyRJ

    HellbillyRJ Bronze Contributor

    Blog Posts:
    0
    Joined:
    Feb 9, 2017
    Messages:
    225
    Had just a dual coil build, spaced 24 AWG 316L set to 530F at 100 watts, wouldn't fire for even a full second before the temp control kicked in and cut power.

    Sent from my ZTE A2017U using Tapatalk

    PhantomOp likes this.
  43. HellbillyRJ

    HellbillyRJ Bronze Contributor

    Blog Posts:
    0
    Joined:
    Feb 9, 2017
    Messages:
    225
    It was a 0.2 ish ohm I think.

    Sent from my ZTE A2017U using Tapatalk

    PhantomOp likes this.
  44. PhantomOp

    PhantomOp VU Donator Gold Contributor Member For 1 Year

    Blog Posts:
    0
    Joined:
    Nov 5, 2016
    Messages:
    1,867
    I just ran this SS316L 24g/36g Clapton in TC, starting it out at 200,240,310,440,470, and working up to 530F and it was shutting down properly.

    What was the coil ID? How many wraps?

  45. PhantomOp

    PhantomOp VU Donator Gold Contributor Member For 1 Year

    Blog Posts:
    0
    Joined:
    Nov 5, 2016
    Messages:
    1,867
    you replied before me ... sorry.

  46. HellbillyRJ

    HellbillyRJ Bronze Contributor

    Blog Posts:
    0
    Joined:
    Feb 9, 2017
    Messages:
    225
    4mm 7 wraps

    Sent from my ZTE A2017U using Tapatalk

    PhantomOp likes this.
  47. PhantomOp

    PhantomOp VU Donator Gold Contributor Member For 1 Year

    Blog Posts:
    0
    Joined:
    Nov 5, 2016
    Messages:
    1,867
    K, that would have been a heat flux of 285 @ 100w.
    So ya, that would have heated up really quick and hitting the temps within split seconds.


    HellbillyRJ likes this.
  48. HellbillyRJ

    HellbillyRJ Bronze Contributor

    Blog Posts:
    0
    Joined:
    Feb 9, 2017
    Messages:
    225
    The image isn't wanting to load on my end. What was the math for that, or site link? That could be extremely helpful in my next build

    Sent from my ZTE A2017U using Tapatalk

    PhantomOp likes this.
  49. PhantomOp

    PhantomOp VU Donator Gold Contributor Member For 1 Year

    Blog Posts:
    0
    Joined:
    Nov 5, 2016
    Messages:
    1,867
  50. PhantomOp

    PhantomOp VU Donator Gold Contributor Member For 1 Year

    Blog Posts:
    0
    Joined:
    Nov 5, 2016
    Messages:
    1,867
    I've been running my clapton @ 45W (.35Ω) and 510F --- takes a little over a second to temp out.
    I bumped it up to 100W and it hit temp control within .2 seconds @ 510F


Share This Page

Close This Message
