Pyro RDTA Coil / Wattage Builds

[brando117]

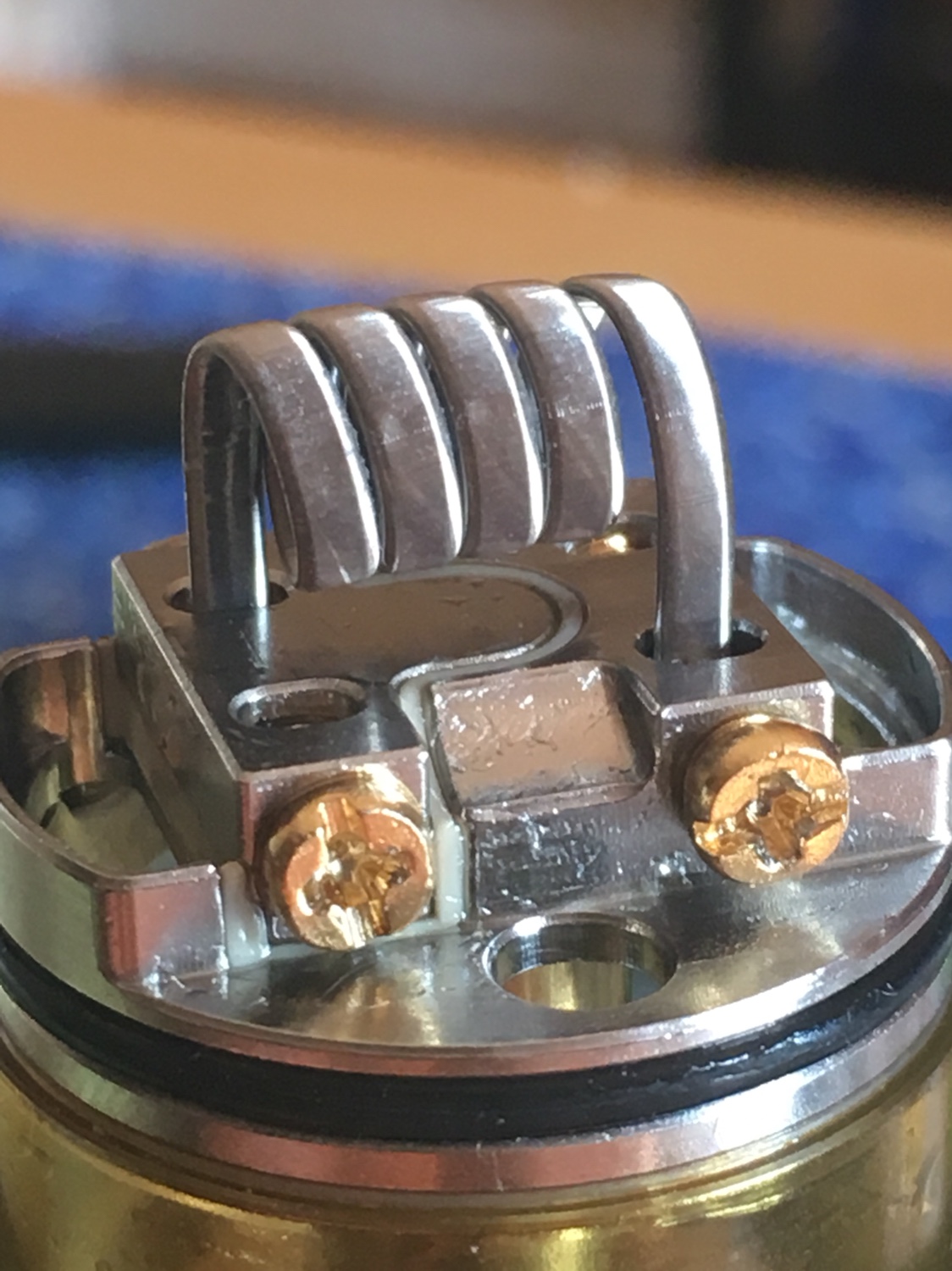

Hey everyone. I was actually just throwing this out there to get a feeler on what kinds of builds and wattages people are using / running on their VV Pyros. The following is one I had just gotten put together. It is a stapled staggered fused clapton single coil (.4 ohms) - just installed coil and wicked yesterday. I plan on running it at around 30 watts. Thanks for taking the time, hope to see what you all are running with these!



@SnapDragon NY - I finally got the thread posted!



[Ralph_K]

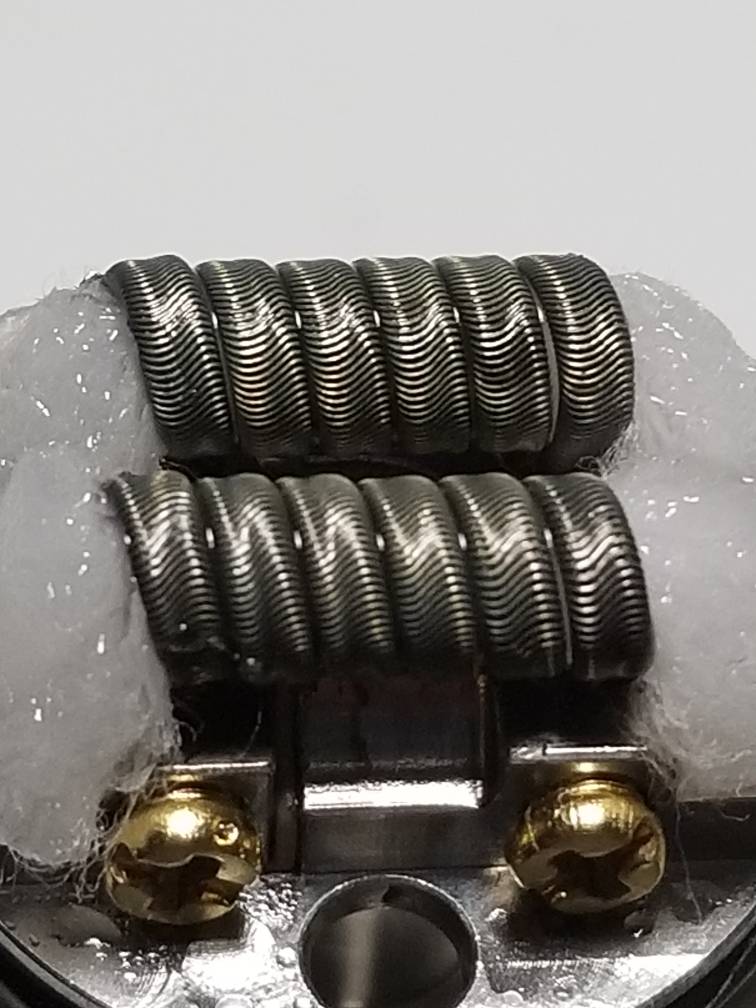

Got dual fused claptons 3mm id at .14 ohms running at 80w



[Don29palms]

Hey everyone. I was actually just throwing this out there to get a feeler on what kinds of builds and wattages people are using / running on their VV Pyros. The following is one I had just gotten put together. It is a stapled staggered fused clapton single coil (.4 ohms) - just installed coil and wicked yesterday. I plan on running it at around 30 watts. Thanks for taking the time, hope to see what you all are running with these!

View attachment 118644

@SnapDragon NY - I finally got the thread posted!

It doesn't look like that has any airflow hitting the coil.



[gadget!]

Hey everyone. I was actually just throwing this out there to get a feeler on what kinds of builds and wattages people are using / running on their VV Pyros. The following is one I had just gotten put together. It is a stapled staggered fused clapton single coil (.4 ohms) - just installed coil and wicked yesterday. I plan on running it at around 30 watts. Thanks for taking the time, hope to see what you all are running with these!

View attachment 118644

@SnapDragon NY - I finally got the thread posted!

I have 2 of them and the way they are designed you won't get near as much flavor out of a single coil build as you will from a dual coil.
I'm running a dual fused Clapton at 0.12 ohms at 60 watts.

I have tried with mine because I do like a single coil but it just doesn't produce the same flavor.



[zephyr]

Hey everyone. I was actually just throwing this out there to get a feeler on what kinds of builds and wattages people are using / running on their VV Pyros. The following is one I had just gotten put together. It is a stapled staggered fused clapton single coil (.4 ohms) - just installed coil and wicked yesterday. I plan on running it at around 30 watts. Thanks for taking the time, hope to see what you all are running with these!

View attachment 118644

@SnapDragon NY - I finally got the thread posted!

Always dual coils for me, coils as close to the air holes as possible without touching. One coil is okay but needs to have a big diameter like 4 mm or bigger

Coils like that ssfc, imo, are best for dripping so the top of the coil always gets filled with juice - I don't think they are good for tanks that wick juice up from below, but that is just my opinion

I'm all for dual coil aliens or at least fused claptons, or framed staples for tanks wattage is totally dependent on the size of the coils and how tight you want the air



[Ralph_K]

I have 2 of them and the way they are designed you won't get near as much flavor out of a single coil build as you will from a dual coil.
I'm running a dual fused Clapton at 0.12 ohms at 60 watts.

I have tried with mine because I do like a single coil but it just doesn't produce the same flavor.

I guess you might need a bigger coil. I did a 7mm coils once it was good but I think dual coils work better for less ramp up



[brando117]

It doesn't look like that has any airflow hitting the coil.

Pardon my question, just trying to figure this out, do you mean it is just too far away from the airflow holes for air to hit the coil or is there something I'm missing?



[brando117]

I have 2 of them and the way they are designed you won't get near as much flavor out of a single coil build as you will from a dual coil.
I'm running a dual fused Clapton at 0.12 ohms at 60 watts.

I have tried with mine because I do like a single coil but it just doesn't produce the same flavor.

I have yet to build a dual coil build at all. I will try that next time



[brando117]

Always dual coils for me, coils as close to the air holes as possible without touching. One coil is okay but needs to have a big diameter like 4 mm or bigger

Coils like that ssfc, imo, are best for dripping so the top of the coil always gets filled with juice - I don't think they are good for tanks that wick juice up from below, but that is just my opinion

I'm all for dual coil aliens or at least fused claptons, or framed staples for tanks wattage is totally dependent on the size of the coils and how tight you want the air

I suppose I have a lot to learn LOL

ssfc - idk what that means



[zephyr]

I suppose I have a lot to learn LOL

ssfc - idk what that means

Ssfc, fast way to type "staple staggered fused clapton " lol



[gadget!]

Ssfc, fast way to type "staple staggered fused clapton " lol

Lol
I had guessed Stainless Steel Fused Clapton.

@brando117
Here's my set up

Sent from a Galaxy far far away!



[Vape Fan]

These are from when I first tried a few builds in it. so they may be more what not to do if your looking for flavor.

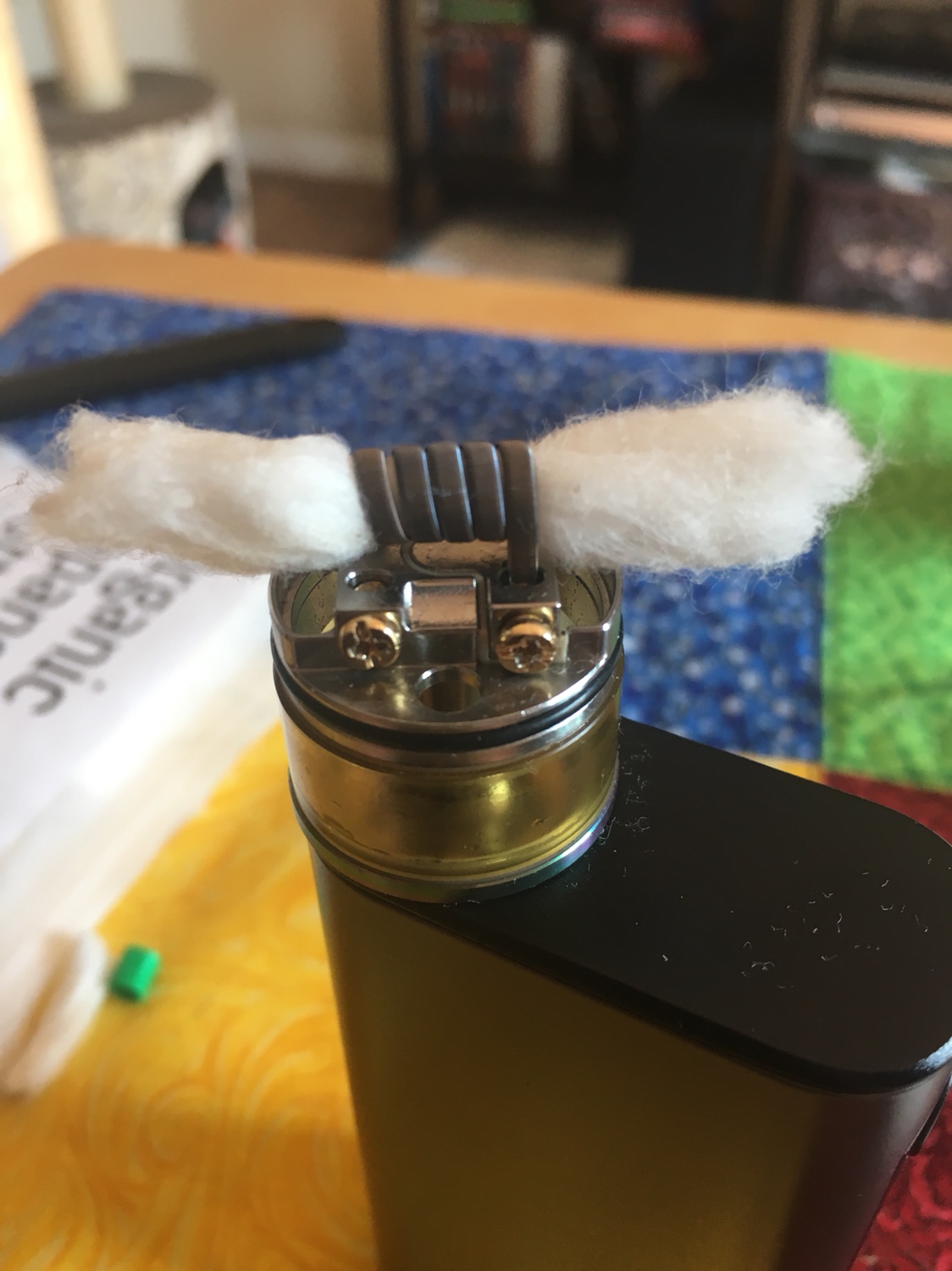

This one is single 7.5id ss flapton. Pretty good flavor for a flapton. Slow ramp up and made the cap run hot.


Dual 3id parallel ss fc in dual. Worked well, but mounted to high, which made cap still run hot. Good ramp up. Flavor ok but knew it should be better.


Since, I run dual 2.5 id mounted closer to deck and more over the AF. Cap still wants to run warm with the short stock tip, so I swapped that out and everything's good now. No pics for that tho



[Ralph_K]

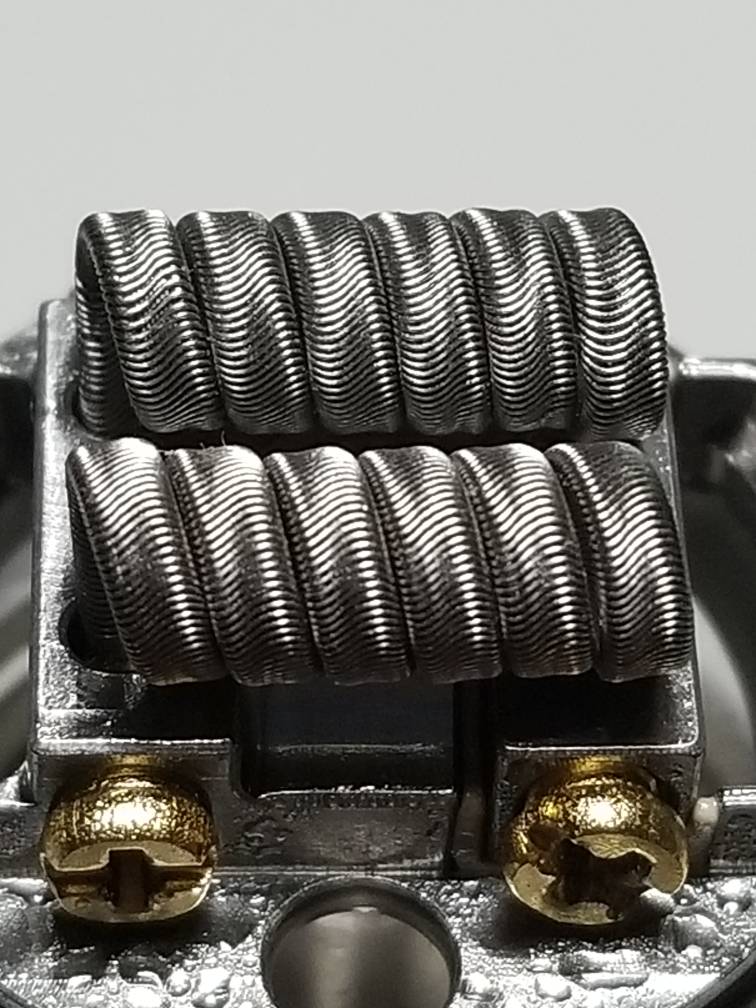

I just did a new build using triple core fused clapton 28ga/36ga SS316L dual 3mm id 5 wraps came out to .12 ohms I got it on a mech



[Don29palms]

Pardon my question, just trying to figure this out, do you mean it is just too far away from the airflow holes for air to hit the coil or is there something I'm missing?

That airflow is designed to hit the bottom of the coils with dual coils. With a single coil in the middle the airflow is going up the sides of the coil and is barely hitting the coil at all and there is definitely no airflow on the bottom side of the coil.



[Vape Fan]

That airflow is designed to hit the bottom of the coils with dual coils. With a single coil in the middle the airflow is going up the sides of the coil and is barely hitting the coil at all and there is definitely no airflow on the bottom side of the coil.

Actually, it's designed for the af to also cross over to the opposing coil.



[VAPEROXX]

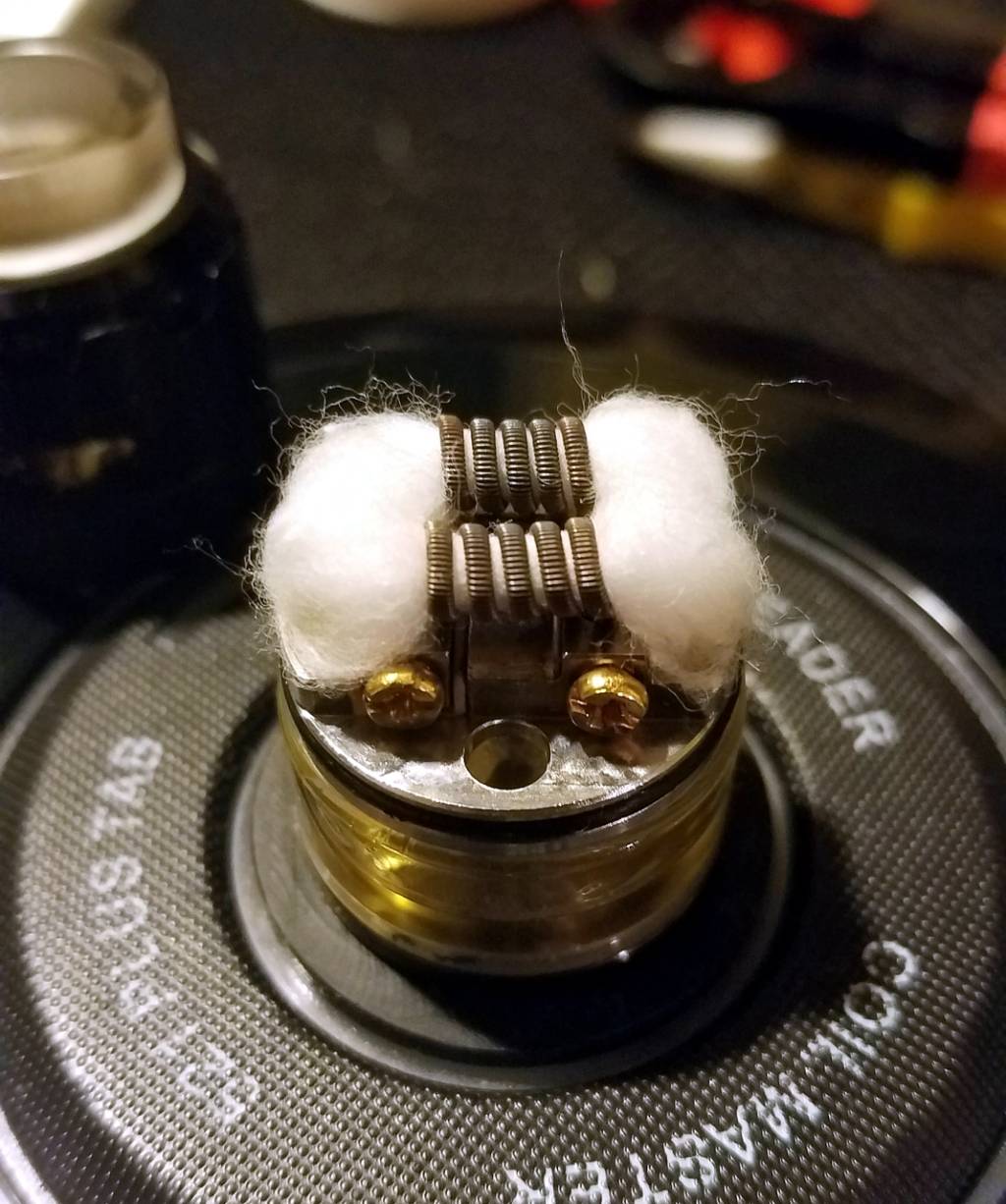

This is what I had in my Pyro before I sold it. Dual 6 wrap NiCh80 Aliens. Great Vape!

Sent from my SM-G965U using Tapatalk



[Don29palms]

Actually, it's designed for the af to also cross over to the opposing coil.

Not possible.



[MrMeowgi]

Ssfc, fast way to type "staple staggered fused clapton " lol

And they're hard to make. Only made two in my career and have kept one for 6 months. So pretty it's hard to tarnish it by vaping. Lol

Sent from my Nexus 6P using Tapatalk



[jwill]

These are from when I first tried a few builds in it. so they may be more what not to do if your looking for flavor.

This one is single 7.5id ss flapton. Pretty good flavor for a flapton. Slow ramp up and made the cap run hot.
View attachment 118710

Dual 3id parallel ss fc in dual. Worked well, but mounted to high, which made cap still run hot. Good ramp up. Flavor ok but knew it should be better.
View attachment 118713

Since, I run dual 2.5 id mounted closer to deck and more over the AF. Cap still wants to run warm with the short stock tip, so I swapped that out and everything's good now. No pics for that tho

Did you just stick a whole pull of cotton bacon through that huge coil? 7.5mm. Damn.



[brando117]

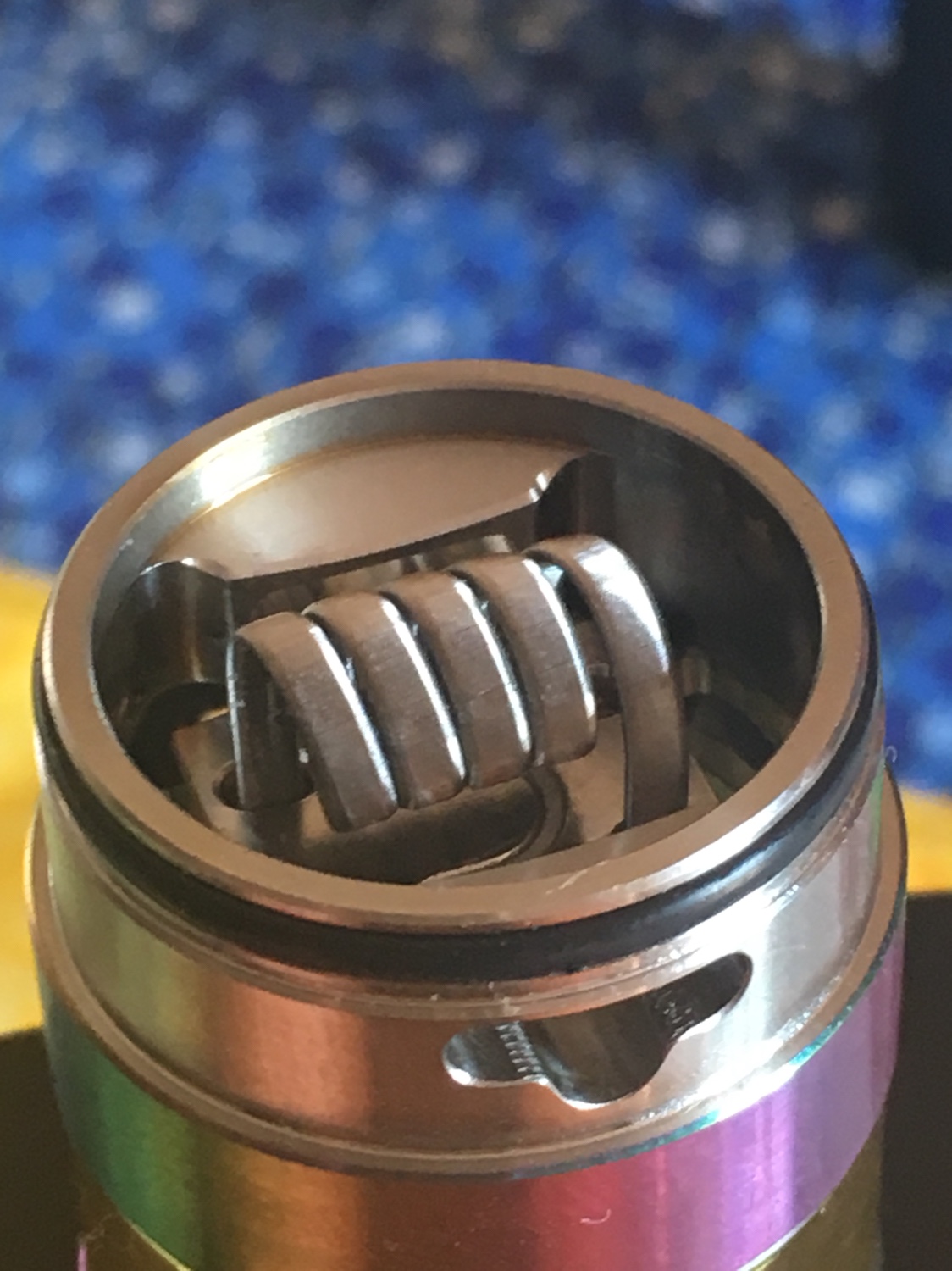

Just set this up. Single coil from Captain’s Craft @Pegleg Meg

Could be a touch high off the deck...

Sent from my iPhone using Tapatalk



[zephyr]

Just set this up. Single coil from Captain’s Craft @Pegleg Meg

Could be a touch high off the deck...

Sent from my iPhone using Tapatalk

Let us know how it vapes



[MrMeowgi]

Just set this up. Single coil from Captain’s Craft @Pegleg Meg

Could be a touch high off the deck...

Sent from my iPhone using Tapatalk

Looks like the airflow will hit the bottom section of the coil. Usually a good thing as long as the top of the coil doesn't touch anything

Sent from my Nexus 6P using Tapatalk



[brando117]

We about to see what’s what lol

Sent from my iPhone using Tapatalk



[brando117]

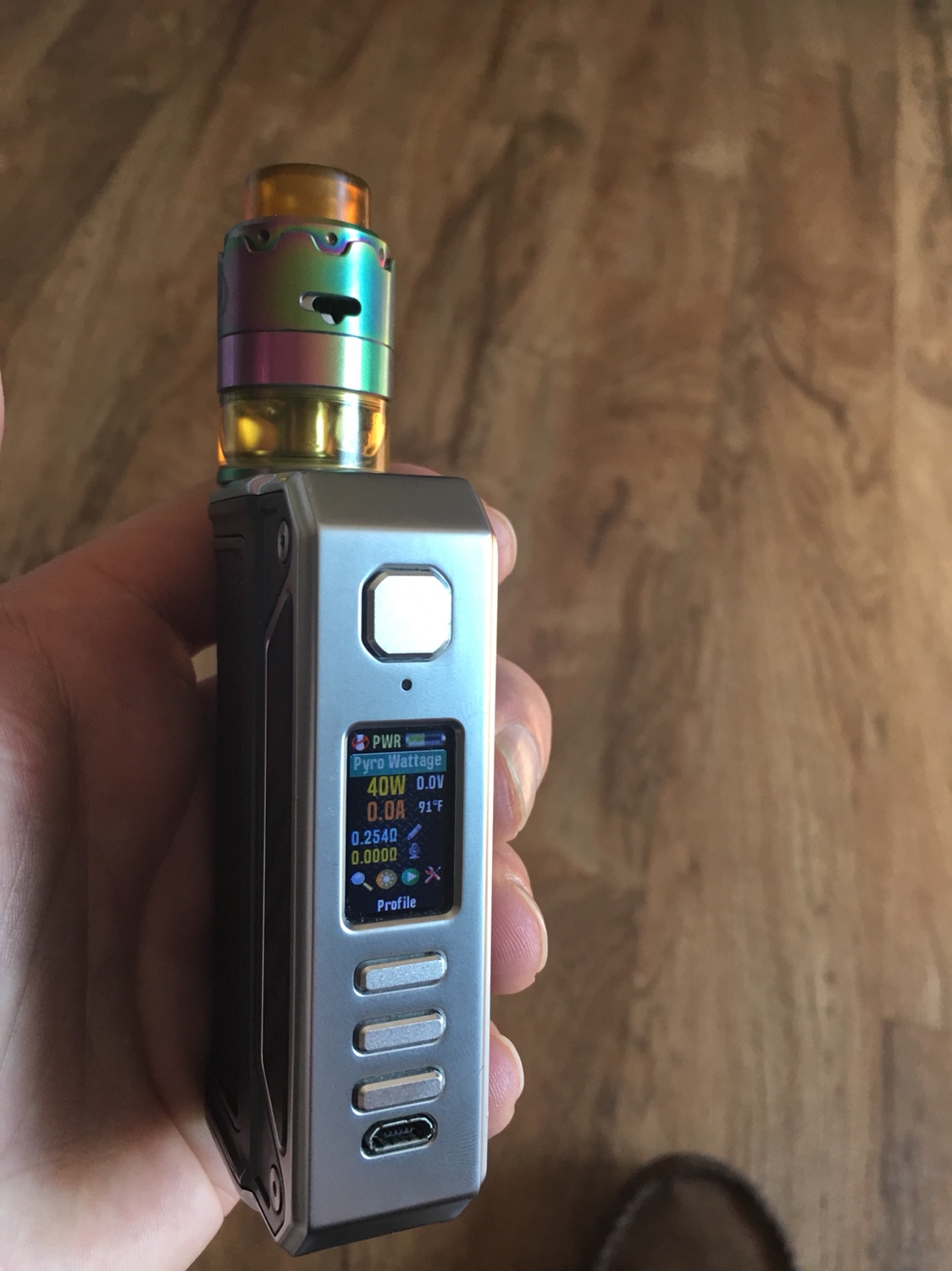

.254 ohms Struuueberry Custard and my oh my, quite tasty!! @Pegleg Meg it vapes wonderfully!! Now to find the right wattage...

Sent from my iPhone using Tapatalk
