Rebuilding an atlantis coil (I used twisted 26g )

Discussion in '"How To" - Rebuilding Tutorials' started by Tim Vatic, May 19, 2015.

  1. Tim Vatic

    Tim Vatic Bronze Contributor

    Blog Posts:
    0
    Joined:
    Jun 24, 2014
    Messages:
    279
    Ever wanted to rebuild your Atlantis coils instead of tossing them and buying new ones? Here's how I rebuild mine. Turns out they are quite easy to do and work great. I have been building my own for a long time and I've been asked how its done by several people so I made a half assed "how-to".. If you've built an RDA before , that'll make this an easy task to accomplish.

    first, yank the old one apart. Pull out the metal stopper on the bottom and the white O ring. Be careful not to damage the little white O ring because you'll be reusing it, This is what separates the positive and negative leads of your coil. Be sure to get out all of the old, cruddy cotton and kanthal.
    [​IMG]

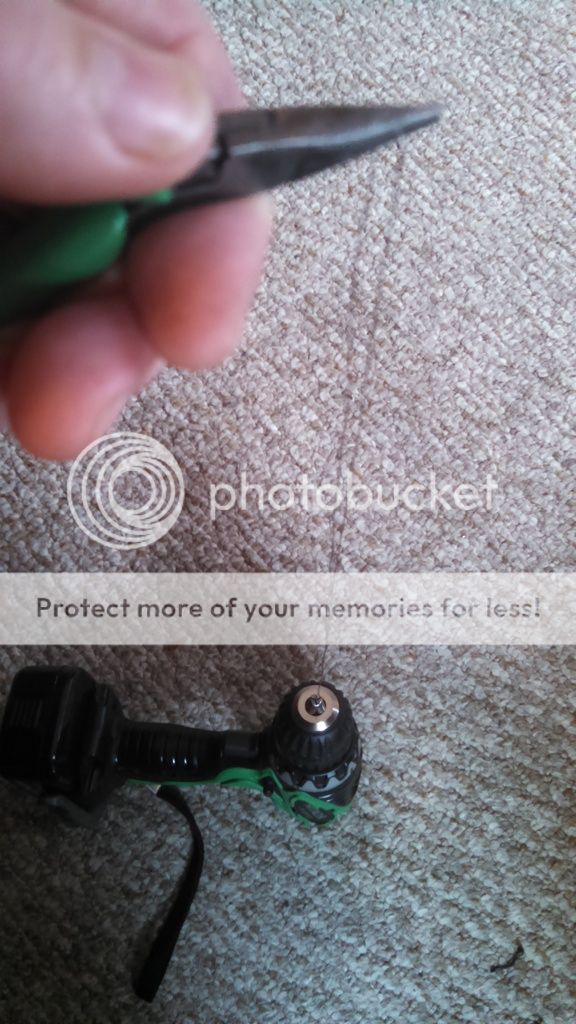

    I'm gonna make a twisted 26g so, Here we go. If you want to wrap a regular coil that's fine, skip these steps of twisting the wire before you wrap your coil..

    [​IMG]

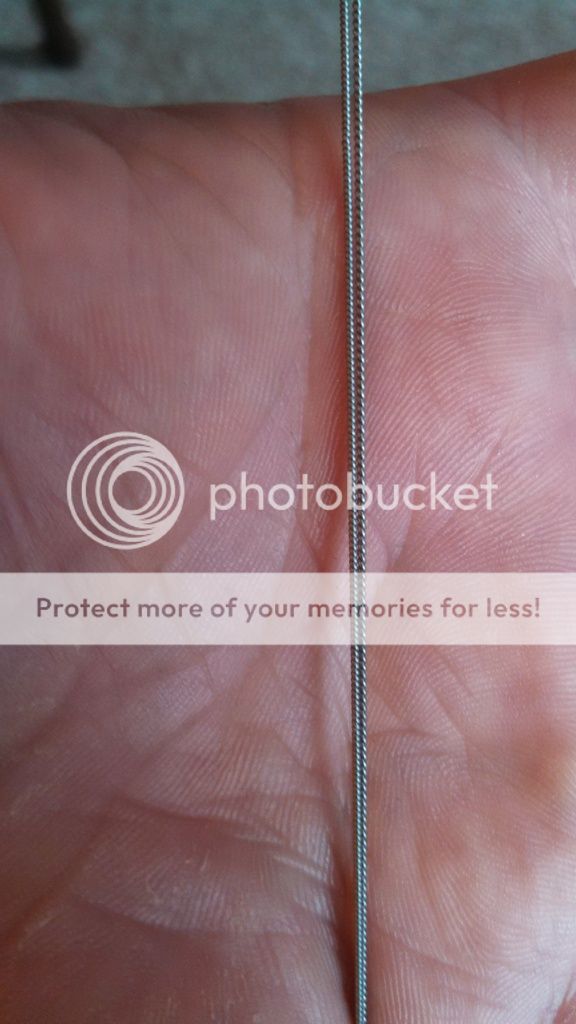

    Here's the end result. Just keep twisting till the end breaks, if you wanna make a regular coil skip this part.
    [​IMG]

    A 7/64 drill bit is the size of the stock hole. I decided to drill one out to 5/32. it didn't make that much of a difference.
    [​IMG]

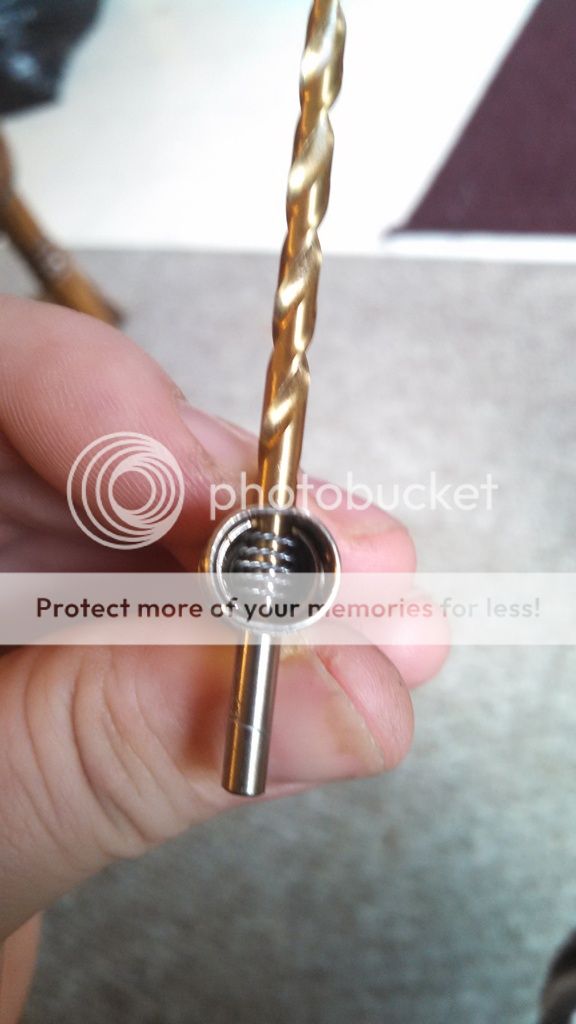

    wrap your coil and stick it in the Atlantis coil housing. Make sure the coil does not touch the sides. then slide the drill bit back through like this to hold the coil in place while you put the white O ring and metal plug back in.
    [​IMG]

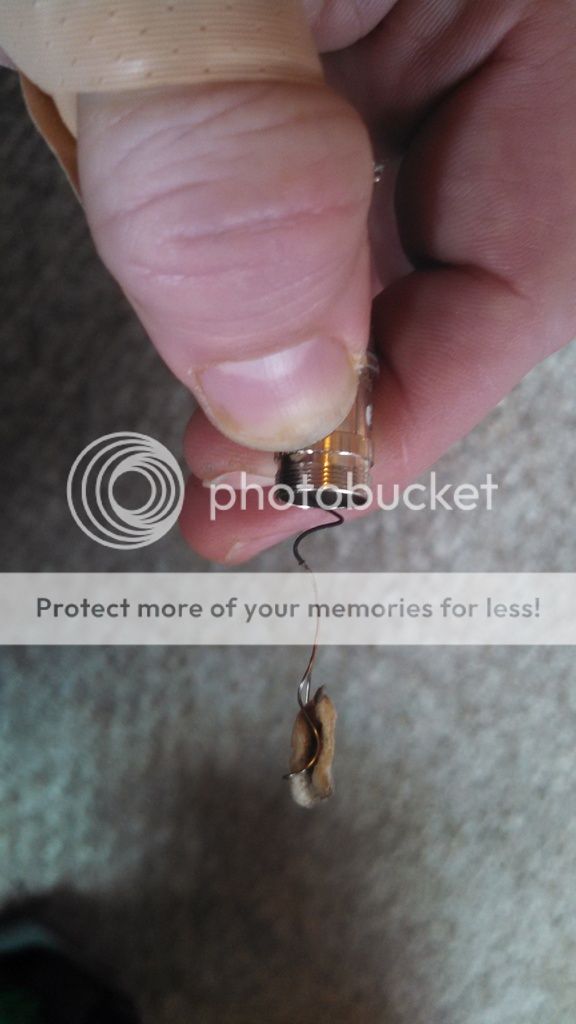

    now put your the rubber O ring and butt plug back on. one lead from your coil goes through the middle of the white ring and one goes on the outside. Pull them snug and then pop the steel plug back in. Have a look at the coil and make sure it looks the way you want it. Then snip off the excess wire and screw it back into the base. Make sure you use an Ohm meter to test for shorts and achieve your desired ohms. When you put the cotton in, this will help the coil from moving, touching the housing and shorting, you want the cotton snug but not super tight. Too tight and it wont wick properly.

    [​IMG]

    Slide some cotton through, snip off the extra ,wet it with some juice and your good to go. Now all you need to do is yank out the old cotton once a week or so and do a dry burn and your rebuilt coil will be like new. Enjoy.

    [​IMG]
