ss316 build help

Discussion in 'Coil Building' started by Rincones, Feb 9, 2016.

  1. Rincones

    Rincones New Member

    Blog Posts:
    0
    Joined:
    Jul 31, 2015
    Messages:
    35
    I'm wanting on some 24g ss wire wondering what are good builds that are worth doin thanks

  2. Neunerball

    Neunerball Platinum Contributor Member For 3 Years ECF Refugee

    Blog Posts:
    0
    Joined:
    Dec 29, 2014
    Messages:
    5,165
    Take a look at http://www.steam-engine.org/coil.asp. Click the How it works, read, play around with it. It'll give you a guideline for your build(s).

  3. Rincones

    Rincones New Member

    Blog Posts:
    0
    Joined:
    Jul 31, 2015
    Messages:
    35
    Have a laisimo 200w and just lookin for some good flav and cloud production not to much mellow builds

  4. BlowinSmoke

    BlowinSmoke New Member

    Blog Posts:
    0
    Joined:
    Oct 30, 2015
    Messages:
    39
    A 8 wrap dual coil around a 3mm bit will give u around 0.2ohms, even on my mech it produces big clouds and nice flavour.

    Ive made some clapton, currently using a single 24g/28g ss 316l 5 wrap fused clapton guess it was on a 2.4mm comes out to 0.16 ohms. the flavour is amazing and those clouds ohhh

    Rincones likes this.
  5. JERUS

    JERUS Gold Contributor Member For 1 Year

    Blog Posts:
    0
    Joined:
    Oct 19, 2015
    Messages:
    2,641
    For a simple build just twist it up (look up twisted builds) and wrap up a coil. If you're up to it and have the wire I really enjoyed the 24g fused clapton I made the other day.

    IMO I'd at least twist it up, it's easy enough and just takes a few minutes. I find it better all around compared to just a strait wire build.

  6. Kormiro

    Kormiro Member For 3 Years

    Blog Posts:
    0
    Joined:
    May 18, 2015
    Messages:
    21

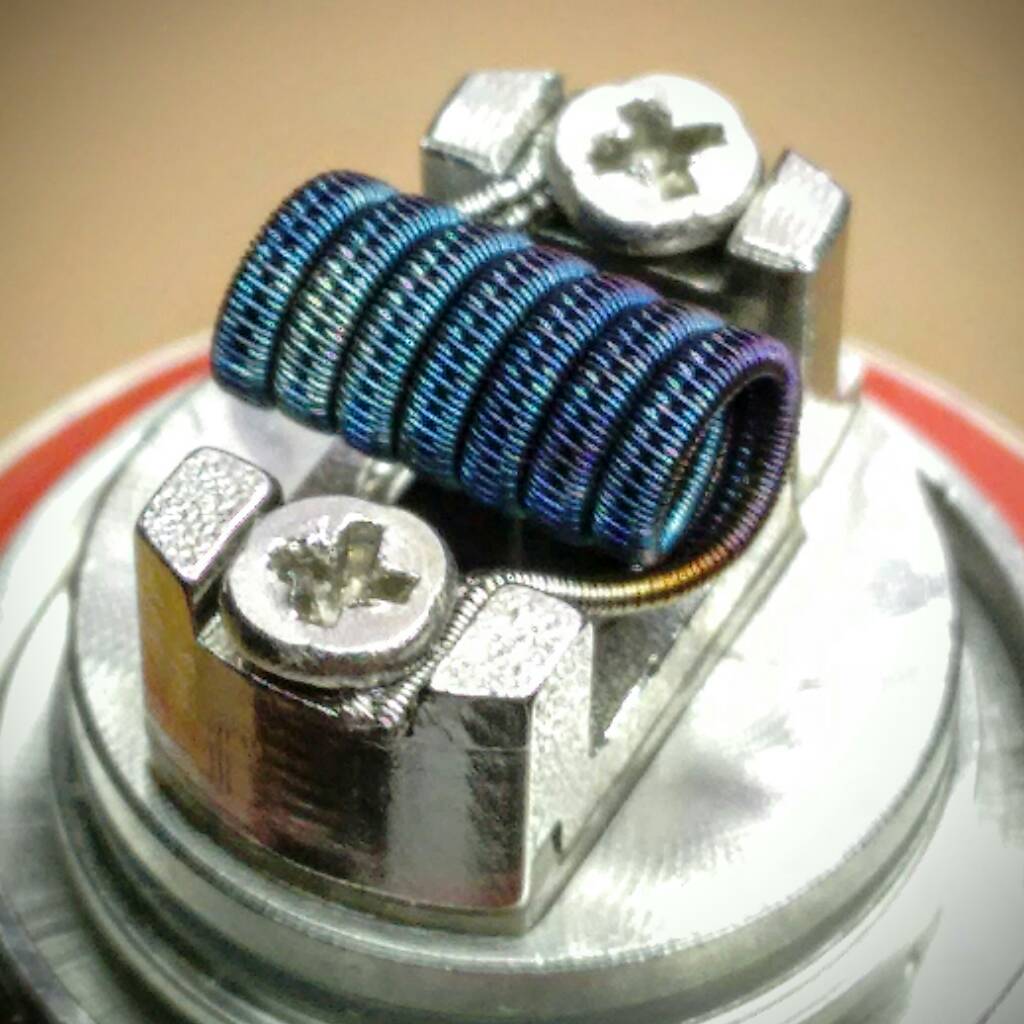

    Maybe try something like this...
    [​IMG]

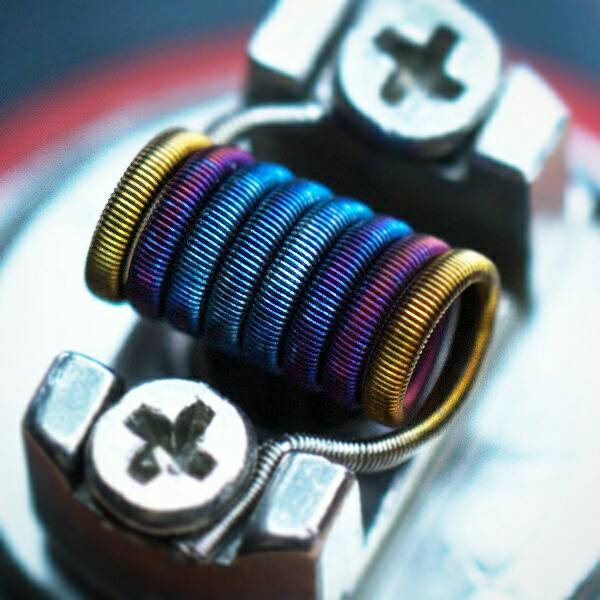

    or like this...
    [​IMG]
    ;)

    Sun Valley and Rincones like this.
  7. Rincones

    Rincones New Member

    Blog Posts:
    0
    Joined:
    Jul 31, 2015
    Messages:
    35
    What temp and watts do u vape at? And nice builds I'm not new to builds like thoses but just never messed with ss well I just got it today so hopefully comes out good

  8. Kormiro

    Kormiro Member For 3 Years

    Blog Posts:
    0
    Joined:
    May 18, 2015
    Messages:
    21
    In power mode usually 19W. In TC mode 250°C (480°F), 20W, TCR 92 (VTC mini).
    She needs more work in removing the hot spots, compared with Kanthal. ;)

    Rincones likes this.
  9. Rincones

    Rincones New Member

    Blog Posts:
    0
    Joined:
    Jul 31, 2015
    Messages:
    35
    Thanks kormiro that's was helpfull... I'm on a 24g 10 wrap 3mm at .34 at 40 watt and 285 good smooth vape cloud and flavor. Hey on a another note are ss coils supposed to look like Copper?

  10. Kormiro

    Kormiro Member For 3 Years

    Blog Posts:
    0
    Joined:
    May 18, 2015
    Messages:
    21
    Color appears as a result of tempering the steel.
    [​IMG]
    source

    Rincones likes this.
  11. Rincones

    Rincones New Member

    Blog Posts:
    0
    Joined:
    Jul 31, 2015
    Messages:
    35
    Ok so since I dry fired them to get even that's why it's has the appearance as if I vape at 400 I get it now .... Not the best pic lol IMAG0092_1.jpg

    Kormiro likes this.
  12. antikryst

    antikryst New Member

    Blog Posts:
    0
    Joined:
    Feb 27, 2017
    Messages:
    111
    Just got me some 24 and 26 ss steel too. Does it wick ok with 10 wraps? Is it spaced?

    Sent from my SM-G935F using Tapatalk

  13. Synphul

    Synphul Silver Contributor Member For 2 Years

    Blog Posts:
    0
    Joined:
    Jun 6, 2016
    Messages:
    1,394
    Just keep in mind that ss316L doesn't have the same resistance as say kanthal. Going more complex with multiple strands of 24g is going to drop your resistance pretty quick, typically ss complex builds use slightly smaller gauge wire to avoid dropping resistance down super low.

    Something like a twisted 24g ss316L with 2 strands (simple twisted), 5 wraps with a 3mm diameter coil is going to drop you down to around .2 ohms. A 3 wire twisted 24g will take you down to around .12 or .13 ohms with 5 wraps.

    Not sure what resistance you're figuring on but something to consider. Due to the fairly low resistance of ss you may have to go a couple more wraps than you're used to. 24g ss316L acts more like 20g kanthal A1.
