SS316L coil

Discussion in 'Coil Building' started by meshari, Jun 23, 2019.

  1. meshari

    meshari New Member

    Blog Posts:
    0
    Joined:
    Jun 23, 2019
    Messages:
    2
    hello guys
    I have questions

    I vape on serin 2 Mtl
    I try to build ss316l my target ohm is above 1.2 ohm but I can’t get this target
    My ss 30 wga I wrap on 7 and 8 and 9 wraps
    But the ohm is 0.66 Maximum
    I want ss coil for temperature control

    Any advice guys

    Thanks


    Attached Files:

    Vape Fan likes this.
  2. 5150sick

    5150sick Under Ground Hustler Staff Member VU Administrator Senior Moderator VU Donator Diamond Contributor Mod Team Leader Member For 5 Years

    Blog Posts:
    0
    Joined:
    Jun 1, 2014
    Messages:
    10,278
    Why can't you just use 0.66ohms?

    I use ss316l for dual coils in my RTA's and have to do 12 or 13 wraps each to get around 0.25 ohms.

    Can you fit more wraps in there if you pinch the coil together?

    Letitia9 likes this.
  3. Theboss

    Theboss VU Donator Gold Contributor Member For 1 Year ECF Refugee

    Blog Posts:
    0
    Joined:
    Sep 27, 2018
    Messages:
    2,448
    Buy a thicker gauge wire or add more wraps.

    Letitia9 likes this.
  4. r055co

    r055co VU Donator Platinum Contributor Member For 3 Years

    Blog Posts:
    0
    Joined:
    Jan 24, 2016
    Messages:
    5,944
    You mean thinner

    Sent from my Pixel 3 XL using Tapatalk

    Just Frank likes this.
  5. anatawirja

    anatawirja New Member

    Blog Posts:
    0
    Joined:
    Jun 22, 2019
    Messages:
    4
    You don't need to hit certain ohms for temp control, don't sweat the ohms and build for your airflow

    Sent from my Pixel using Tapatalk

    Just Frank and Letitia9 like this.
  6. Vape Fan

    Vape Fan More like I am now, than I was before VU Donator Gold Contributor Member For 2 Years

    Blog Posts:
    0
    Joined:
    Jan 17, 2018
    Messages:
    3,410
    Go for 2.5 ID [or 3 if it fits]

    Letitia9 likes this.
  7. Theboss

    Theboss VU Donator Gold Contributor Member For 1 Year ECF Refugee

    Blog Posts:
    0
    Joined:
    Sep 27, 2018
    Messages:
    2,448
    Lol! Exactly what I meant

    The Cromwell and Letitia9 like this.
  8. jasonandsarah

    jasonandsarah Gold Contributor Member For 2 Years

    Blog Posts:
    0
    Joined:
    May 3, 2017
    Messages:
    2,412
    If your getting .66 on 7,8 and 9 wraps something's wrong.

    Sent from my SM-N960U using Tapatalk

  9. meshari

    meshari New Member

    Blog Posts:
    0
    Joined:
    Jun 23, 2019
    Messages:
    2
    If 9 wraps what supposed ohm i have
    On correctly?

  10. Vape Fan

    Vape Fan More like I am now, than I was before VU Donator Gold Contributor Member For 2 Years

    Blog Posts:
    0
    Joined:
    Jan 17, 2018
    Messages:
    3,410
    r055co likes this.
  11. nadalama

    nadalama Senior Moderator Staff Member Senior Moderator VU Donator Platinum Contributor Member For 1 Year

    Blog Posts:
    0
    Joined:
    Feb 26, 2018
    Messages:
    5,740
    0.66 ohms in my opinion is too hot for an MTL device, imagine that's why OP is trying for higher. Will temp control get the vapor cool enough if he sets it low? I've never tried this.

    ETA: OP, do you mean Siren 2?

  12. PoppaVic

    PoppaVic Platinum Contributor Member For 4 Years

    Blog Posts:
    0
    Joined:
    Sep 5, 2014
    Messages:
    5,115
    Um.. ohms isn't heat. It's just resistance. TC is a waste of bytes, but you can set that up with Power/watts - or even VV/volts - and get a nice vape.

  13. nadalama

    nadalama Senior Moderator Staff Member Senior Moderator VU Donator Platinum Contributor Member For 1 Year

    Blog Posts:
    0
    Joined:
    Feb 26, 2018
    Messages:
    5,740
    MTL devices don't have the proper airflow to run coils like that. Whether the resistance directly means heat or not, in an MTL atty, that vape would be hot.

    VapingReaper27 likes this.
  14. PoppaVic

    PoppaVic Platinum Contributor Member For 4 Years

    Blog Posts:
    0
    Joined:
    Sep 5, 2014
    Messages:
    5,115
    I tend to disagree, but then I've had yihi, and dna, mechs and misc regulated and PWM mods.

    In a mod that lacks a "preheat", you will end up waiting a bit with low volts, but apparently some folks are quite used to firing well away from their lips and raising it as they estimate the temp is ready.

    I've had "MTL" before, running .5 to 1.2Ω - depends on the mod outputs. Right now the NC is running an orchid I had to rig with dual ni80's to hit ,9Ω - which is about perfect. It's not DTL or MTL - but thankfully it's not the old 91% either.

    EDIT: correction... I left the bubble-tanked orchid over on the sxmini while the v1 aromamizer rides the NC. My bad.

    nadalama likes this.
  15. PoppaVic

    PoppaVic Platinum Contributor Member For 4 Years

    Blog Posts:
    0
    Joined:
    Sep 5, 2014
    Messages:
    5,115
    (I'd love to LIKE the orchid, because.. bubbtank and "uses my otherwise useless kayfun pyrex tank stuff", but.. Seriously - I am ready to toss anything orchid/monster/kayfun related in the trash)

    I'm really tempted to get the Aromamizer Lite that recently was released: single coil. BUT, that damned Noisy Cricket cannot fit 24mm atty - and the Lite is claimed to be either 23 or 23.5mm - these sort of "accuracies" make me cringe.

    VAPEROXX likes this.
  16. nadalama

    nadalama Senior Moderator Staff Member Senior Moderator VU Donator Platinum Contributor Member For 1 Year

    Blog Posts:
    0
    Joined:
    Feb 26, 2018
    Messages:
    5,740
    The wire OP pictured at the beginning of the thread is 30x2/38 SS316L Clapton wire.

    Steam-engine.org says 3 mm Id coil at 12 wraps with 5mm legs gives 1.117 ohms. So OP needs 12 or 13 wraps to get close.

  17. PoppaVic

    PoppaVic Platinum Contributor Member For 4 Years

    Blog Posts:
    0
    Joined:
    Sep 5, 2014
    Messages:
    5,115
    I had a siren clone - it was awful.

    I dunno how he can fit 12 wraps in there at all, but - rotsa' ruck!

  18. nadalama

    nadalama Senior Moderator Staff Member Senior Moderator VU Donator Platinum Contributor Member For 1 Year

    Blog Posts:
    0
    Joined:
    Feb 26, 2018
    Messages:
    5,740
    I wouldn't dare spend the bucks on an authentic Kayfun, but I have definitely let a few clones fly. Most exasperating gear I've ever had.

    Would the NC V2 hold 24mm? I'm thinking so...

  19. nadalama

    nadalama Senior Moderator Staff Member Senior Moderator VU Donator Platinum Contributor Member For 1 Year

    Blog Posts:
    0
    Joined:
    Feb 26, 2018
    Messages:
    5,740
    I don't know that he can, but that's what its gonna take with the wire he has.

  20. VAPEROXX

    VAPEROXX Gold Contributor Member For 4 Years Unlisted Vendor

    Blog Posts:
    0
    Joined:
    Sep 14, 2015
    Messages:
    2,952

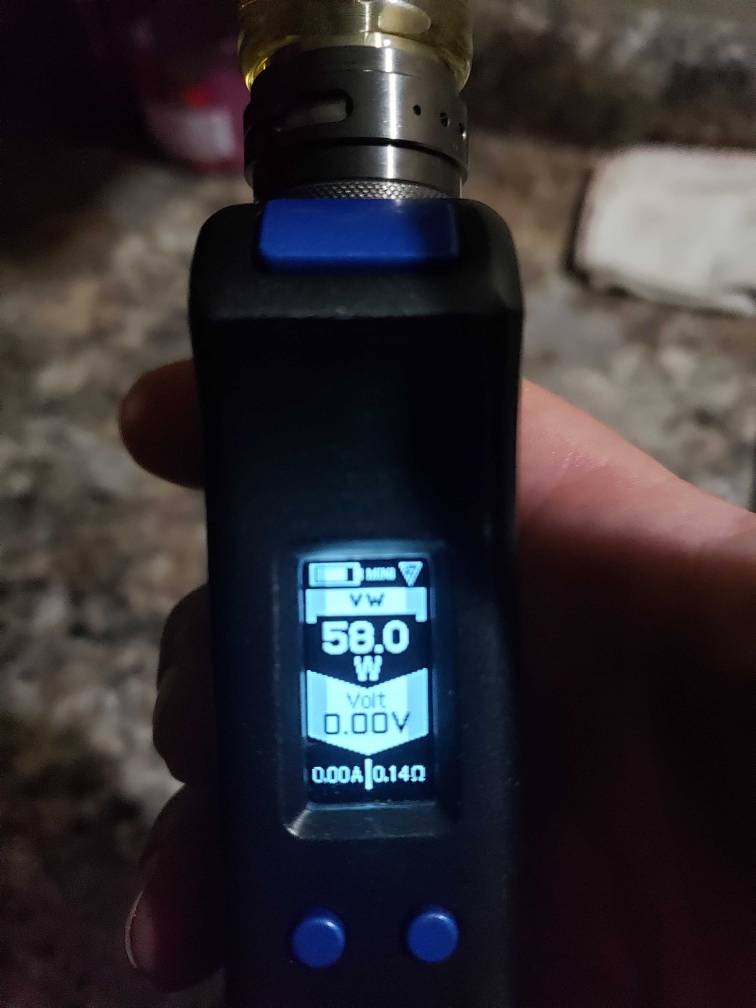

    I must agree with PoppaVic here. I MTL on my Steam Crave Aromamizer Lite with a 4 core, 3mm ID, 3.5 wrap Nichrome 80 Alien coil, clocking in at .14 ohms. Very cool comfortable vape at 58 watts.

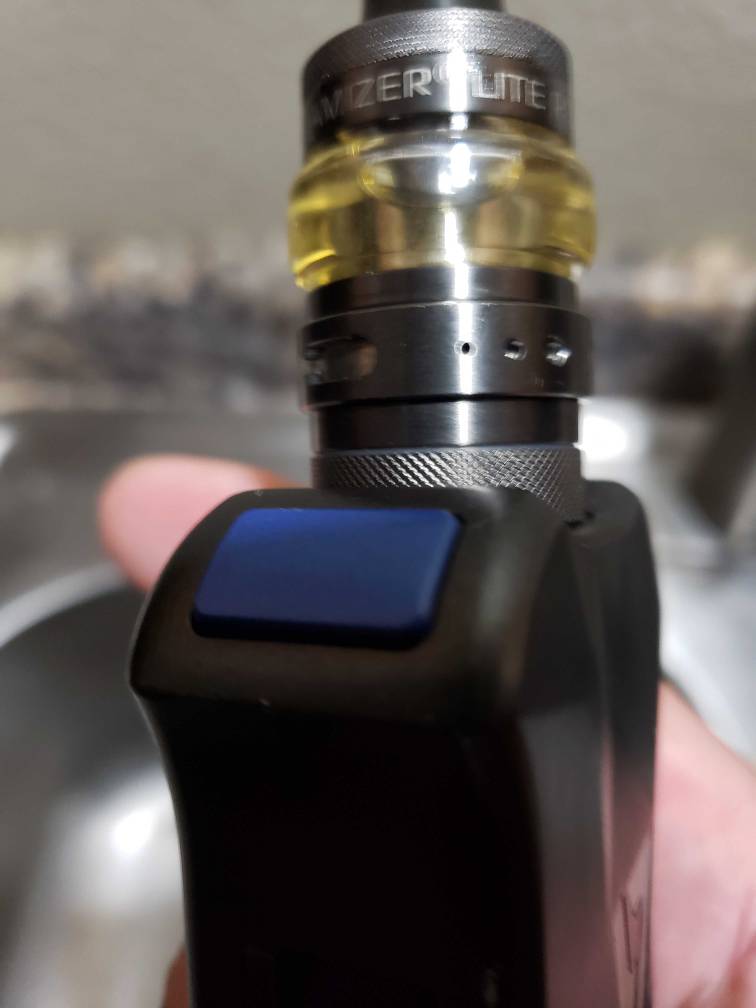

    PoppaVic: the Aromamizer Lite is 23mm, and worth every penny! DTL, MTL, it shines at both and you don't even have to rebuild the thing to switch styles![​IMG][​IMG]

    http://vapingunderground.com/threads/wts-wtt-aspex-performance-coils.434798/

    PoppaVic likes this.
  21. PoppaVic

    PoppaVic Platinum Contributor Member For 4 Years

    Blog Posts:
    0
    Joined:
    Sep 5, 2014
    Messages:
    5,115
    Coolio.. If you threw a caliper on the base & it's 23, I'm gold - if it's 23.5. the same - over that and I'm screwed on the NC - it'll conflict with the lip on the switch.

    VAPEROXX likes this.
  22. VAPEROXX

    VAPEROXX Gold Contributor Member For 4 Years Unlisted Vendor

    Blog Posts:
    0
    Joined:
    Sep 14, 2015
    Messages:
    2,952
    I'll be honest. I didn't put a caliper to it. But I have many 24mm atomizers and the Aromamizer Lite is noticeably smaller than those. Full transparency lol

    http://vapingunderground.com/threads/wts-wtt-aspex-performance-coils.434798/

    PoppaVic likes this.
  23. Bigrick

    Bigrick Silver Contributor Member For 1 Year ECF Refugee

    Blog Posts:
    0
    Joined:
    Jan 31, 2018
    Messages:
    1,197
    I use an og Dead Rabbit on my NC. It's tight and over hangs a tiny bit but they pair well. I made a leather cover fot the mod and it compensates for the over hang. Looks nice as well.

  24. VapeOn1960

    VapeOn1960 New Member

    Blog Posts:
    0
    Joined:
    Nov 20, 2019
    Messages:
    11
    I was actually going to try that same wire but didn't realize it would take that many winds. On the other hand, my RTA can easily be setup to do restricted DTL so might try it anyway (RTA is a 2018 Silverplay) Was hoping to do loose MTL with that wire... just using 26 ga Kanthal for now (actually I was going to try the Ni80 version of that superfine clapton wire... would that work better?)
