Twisted coil jumping ohms

Discussion in 'Coil Building' started by snowbeast, Dec 7, 2017 at 3:11 PM.

  1. snowbeast

    snowbeast New Member

    Blog Posts:
    0
    Joined:
    Nov 26, 2017
    Messages:
    11
    I'm a new coil builder. I do everything by hand, including twisting my wire.

    Tonight I spent an hour trying different coils and configurations on my voopoo drag and peerless rda.

    I built a 3mm id, 24ga ni80 coil with 6 wraps. First reading was 0.17ohms whilst pulsing and eliminating hotspots. Wicked it and it hit like a champ. 5 mins later it read at 0.27ohms and now it's on 0.3ohms and I can taste cotton.
    Can anybody suggest why a coil will jump around like this? Keen to learn
    Thanks in advance[​IMG]

    Wtmke1 likes this.
  2. Wtmke1

    Wtmke1 Silver Contributor Member For 2 Years

    Blog Posts:
    0
    Joined:
    Sep 25, 2015
    Messages:
    924
    May be contact screws not tight. Usually when my ohms jump I have a leg not tight enough

    Sent from my Nexus 6P using Tapatalk

    snowbeast likes this.
  3. snowbeast

    snowbeast New Member

    Blog Posts:
    0
    Joined:
    Nov 26, 2017
    Messages:
    11
    Thank you. It's 22:20 here in South Africa. Ill check the legs as I get up tomorrow morning. I never thought of that.

    Wtmke1 likes this.
  4. HondaDavidson

    HondaDavidson Gold Contributor Member For 1 Year

    Blog Posts:
    0
    Joined:
    Mar 21, 2016
    Messages:
    3,020
    Jumping ohm is almost always a loose connection somewhere.

    r055co likes this.
  5. HondaDavidson

    HondaDavidson Gold Contributor Member For 1 Year

    Blog Posts:
    0
    Joined:
    Mar 21, 2016
    Messages:
    3,020
    Last edited: Dec 9, 2017 at 7:54 AM
  6. snowbeast

    snowbeast New Member

    Blog Posts:
    0
    Joined:
    Nov 26, 2017
    Messages:
    11
    It's settled on 0.29ohms.
    The one connection was loose.
    Heats up evenly from the middle, but thinking of running a second coil next time

    Wtmke1 likes this.
  7. zombievapereview

    zombievapereview Bronze Contributor

    Blog Posts:
    0
    Joined:
    Oct 18, 2017
    Messages:
    247

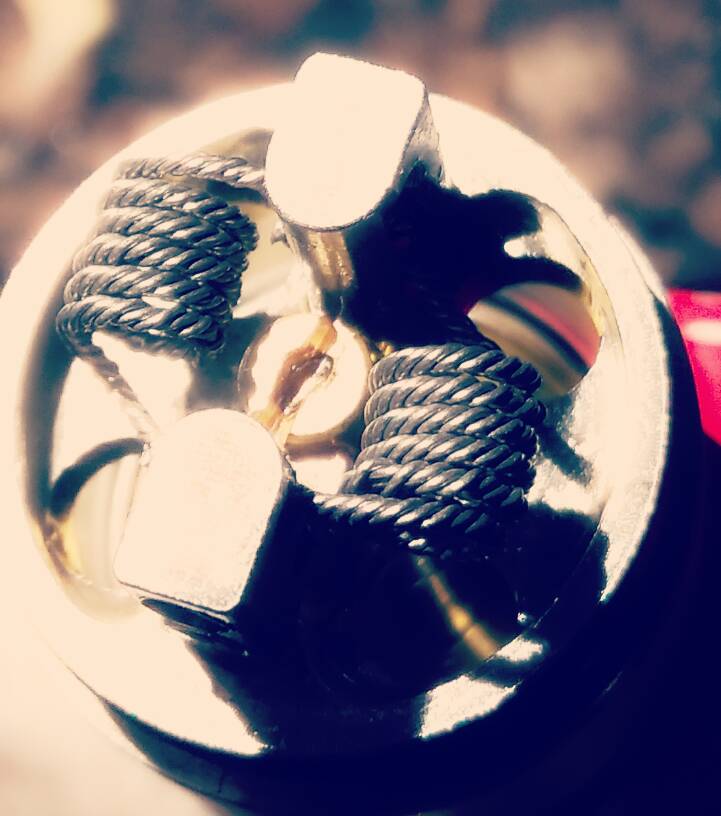

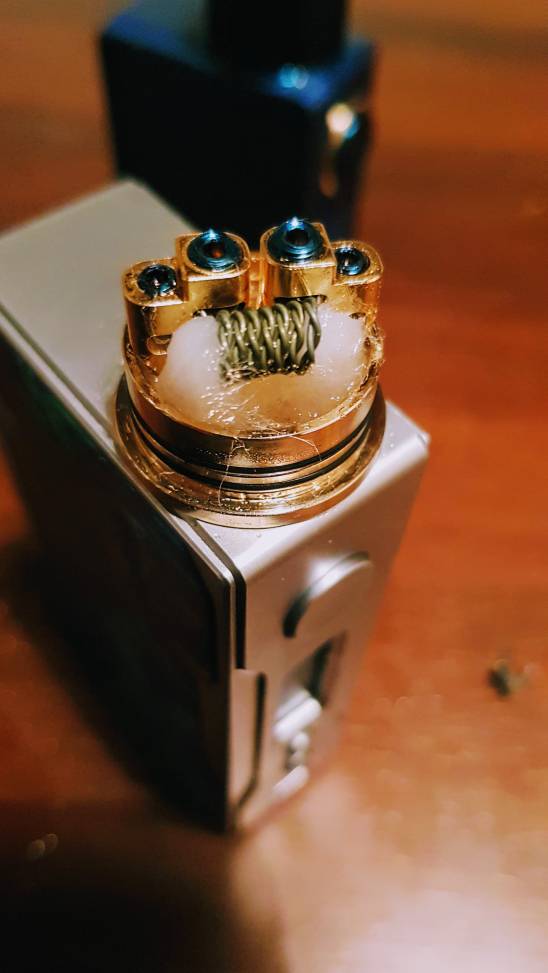

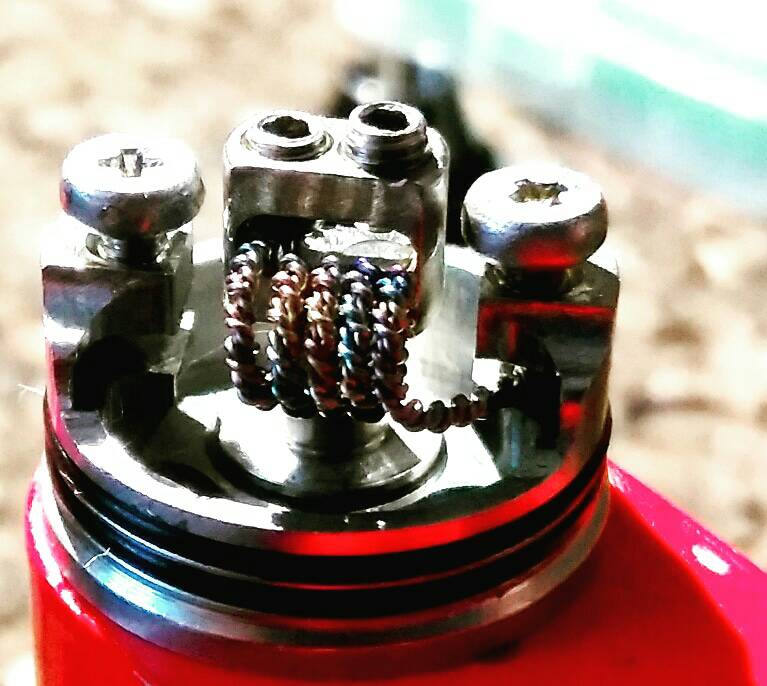

    Bro you need to twist that wire way more until it's even. Try this... I twist by hand as well.. also n80 will jump and settle higher than when it was installed. That is normal. Do yourself a favor and twist the shit out of it. [​IMG][​IMG][​IMG][​IMG]

    Sent from my Z981 using Tapatalk

  8. zombievapereview

    zombievapereview Bronze Contributor

    Blog Posts:
    0
    Joined:
    Oct 18, 2017
    Messages:
    247
  9. zombievapereview

    zombievapereview Bronze Contributor

    Blog Posts:
    0
    Joined:
    Oct 18, 2017
    Messages:
    247
    I have started using kanthal again on twisted builds. I never do 2, I think 28g quad reigns supreme. Better taste

    Sent from my Z981 using Tapatalk

    HondaDavidson likes this.
  10. Wtmke1

    Wtmke1 Silver Contributor Member For 2 Years

    Blog Posts:
    0
    Joined:
    Sep 25, 2015
    Messages:
    924
    Do you twist all four strands at once or twice two sets then twist the sets? If you can understand my giberish

    Sent from my Nexus 6P using Tapatalk

  11. zombievapereview

    zombievapereview Bronze Contributor

    Blog Posts:
    0
    Joined:
    Oct 18, 2017
    Messages:
    247
    Dude it's not gibberish. Your curious and that's what got me into building. If you twist 2 sets then twist together tightly that is called hive, if your twist two sets then back twist that makes chain wire. To do quad twisted you have to twist all 4 wires at the same time together.

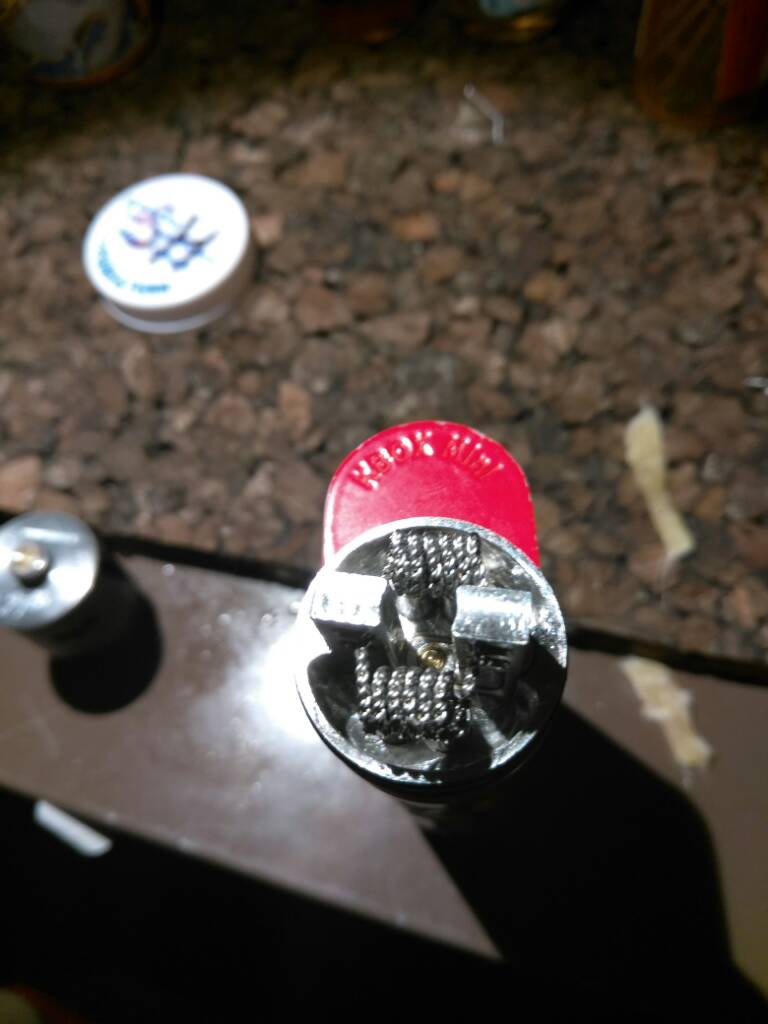

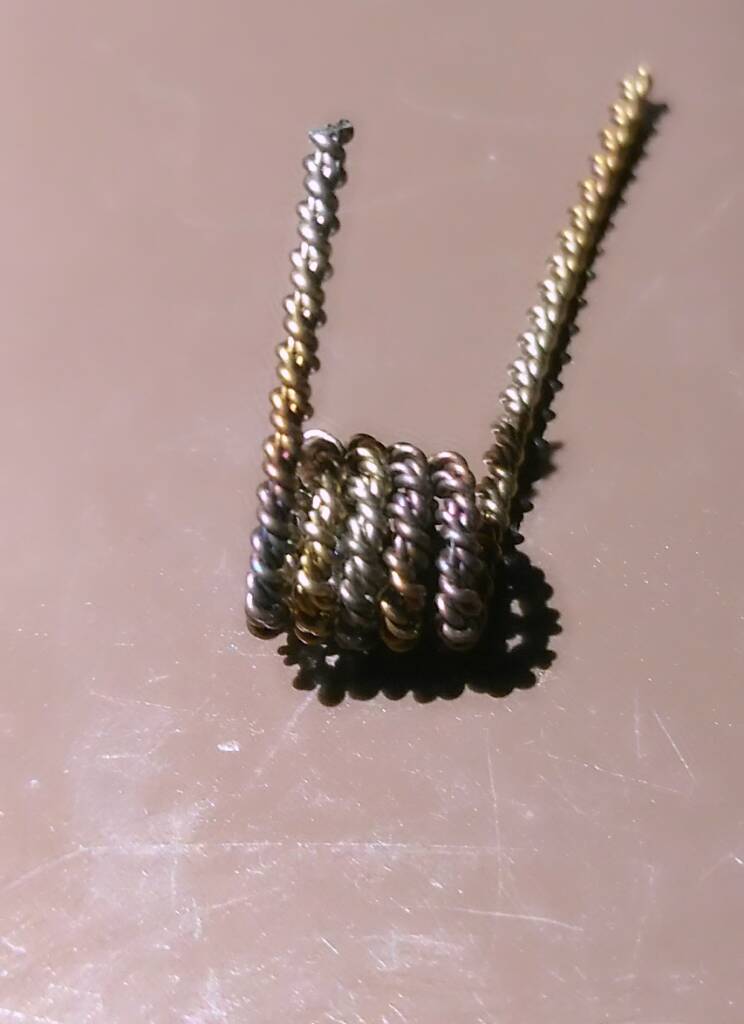

    Here's a quad and two hive wire[​IMG][​IMG][​IMG]

    Sent from my Z981 using Tapatalk

    Wtmke1 likes this.
  12. Wtmke1

    Wtmke1 Silver Contributor Member For 2 Years

    Blog Posts:
    0
    Joined:
    Sep 25, 2015
    Messages:
    924
    Oh cool deal. Thanks

    Sent from my Nexus 6P using Tapatalk

  13. zombievapereview

    zombievapereview Bronze Contributor

    Blog Posts:
    0
    Joined:
    Oct 18, 2017
    Messages:
    247
    No problem. You just need to figure out your sweet spot and that feeling when it's right about to head but before it bunched up

    Sent from my Z981 using Tapatalk

  14. HondaDavidson

    HondaDavidson Gold Contributor Member For 1 Year

    Blog Posts:
    0
    Joined:
    Mar 21, 2016
    Messages:
    3,020
    There really no wrong way to twist wire..... but yah more small wire is better than a single wire to get like power outputs.... experiment 4x twisted then try twisting pairs then doing a pair and aiding th 3rd and 4th with opposite direction of twist for each added strand... ect... steam-engine.org will even do calculations foe you. Just note error us greater for each strand of wire.

    Sent from my SCH-I605 using Tapatalk

    Wtmke1 likes this.
