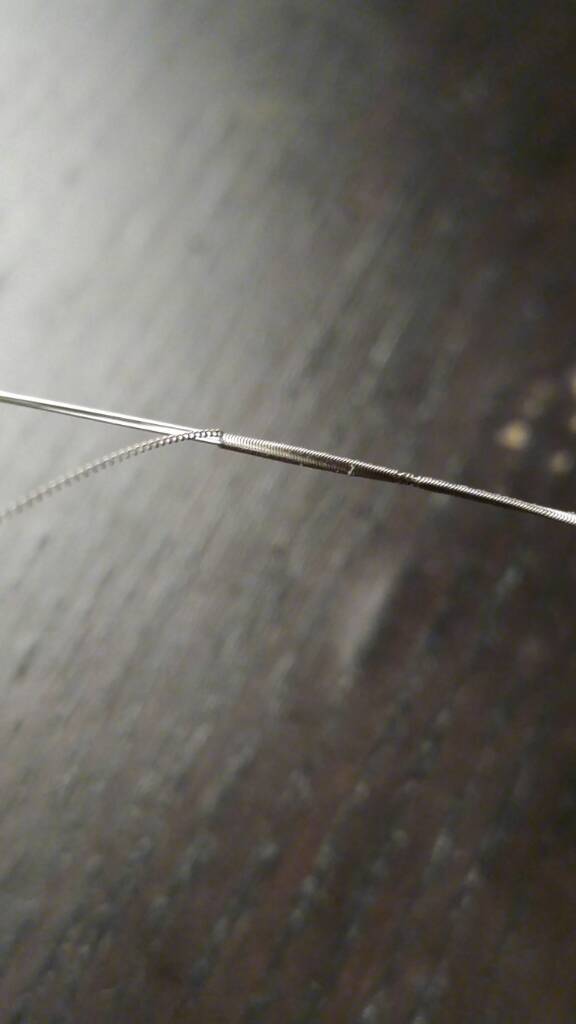

Im actually trying to go for a reversed framed staple type build with this as the core and 3ply .5 ribbon as the frame. Gonna go for the long piece next, that was the test run to make sure i had the tension right...

Sent from my LG-H811 using Tapatalk


CrazyChef

Custom Hand Crafted Coils - PureCoils.com
VU Vendor
VU Donator
Platinum Contributor
Member For 4 Years
ECF Refugee
Clarify. I don't understand what this has to do with your 33/38 aliens.


Schmucko

Silver Contributor
Member For 4 Years
26 cores are way to big... Anywho, i shall return with results

Sent from my LG-H811 using Tapatalk


CrazyChef

Custom Hand Crafted Coils - PureCoils.com
VU Vendor
VU Donator
Platinum Contributor
Member For 4 Years
ECF Refugee
Okay, I guess I don't understand what you're trying to do.


Schmucko

Silver Contributor
Member For 4 Years
Okay, I guess I don't understand what you're trying to do.

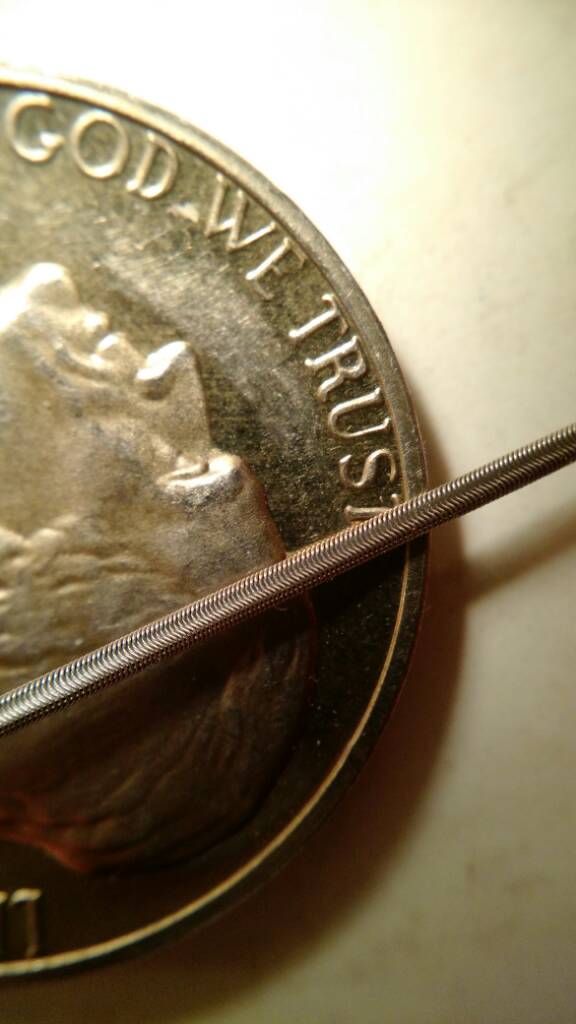

I wasn't sure if you had a lot of hands on time with high gauge aliens but i know scarecrow has done a fair share of 30/38 (if im not mistaken). Anyways, im going for a "caged alien" variation with the 33/38 alien as the core with 3p ply .5 on either side and doing a stagered framed staple but with the staples for the frames. If that makes any sense. And if it doesnt, just disregard as the ramblings of a deranged mad man....

Sent from my LG-H811 using Tapatalk


CrazyChef

Custom Hand Crafted Coils - PureCoils.com
VU Vendor
VU Donator
Platinum Contributor
Member For 4 Years
ECF Refugee
Gotcha. The two best things you can do for smaller gauge core wires are high quality swivels and a lot of tension on the core wires to keep them rigid, yet not twisting.


iSubOhm

Silver Contributor
Member For 4 Years
Member For 3 Years
Member For 2 Years
Member For 1 Year
Member For 5 Years
I need to get some high quality swivels soon.. Gonna try a few more aliens, my cores didn't stay flat all the way through either.

Sent from my Phablet
Instagram: @ohmmage


AnthonyLouis

Silver Contributor
Member For 4 Years
Unlisted Vendor
Gotcha. The two best things you can do for smaller gauge core wires are high quality swivels and a lot of tension on the core wires to keep them rigid, yet not twisting.
Which swivels u recommend? I can't find them anywhere by me! Maybe got a link for an online vendor?

Sent from my HTC One_M8 using Tapatalk


CrazyChef

Custom Hand Crafted Coils - PureCoils.com
VU Vendor
VU Donator
Platinum Contributor
Member For 4 Years
ECF Refugee
Yup, the same exact ones.


CrazyChef

Custom Hand Crafted Coils - PureCoils.com
VU Vendor
VU Donator
Platinum Contributor
Member For 4 Years
ECF Refugee
Not really porn yet - more like, porn-to-be?

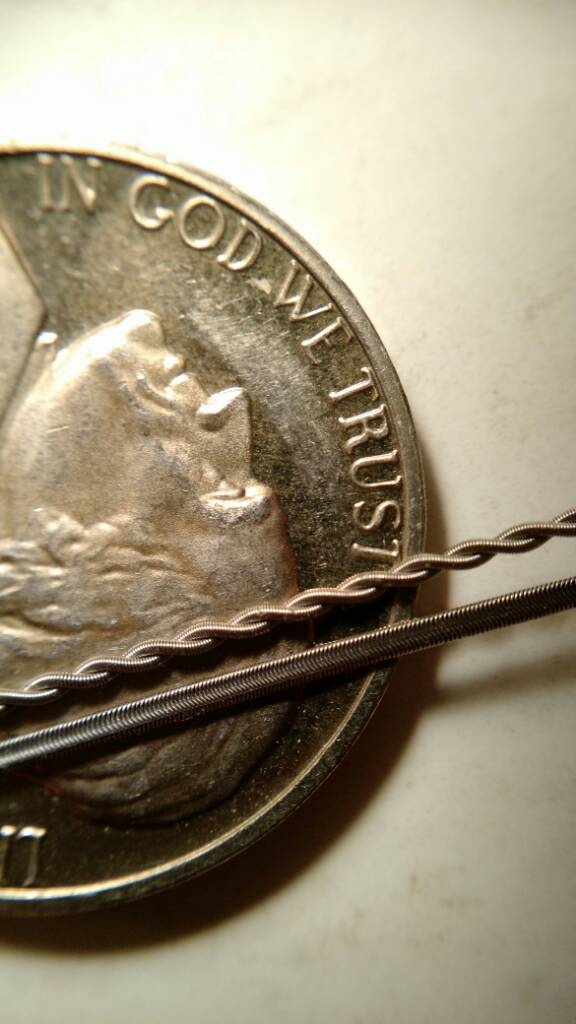

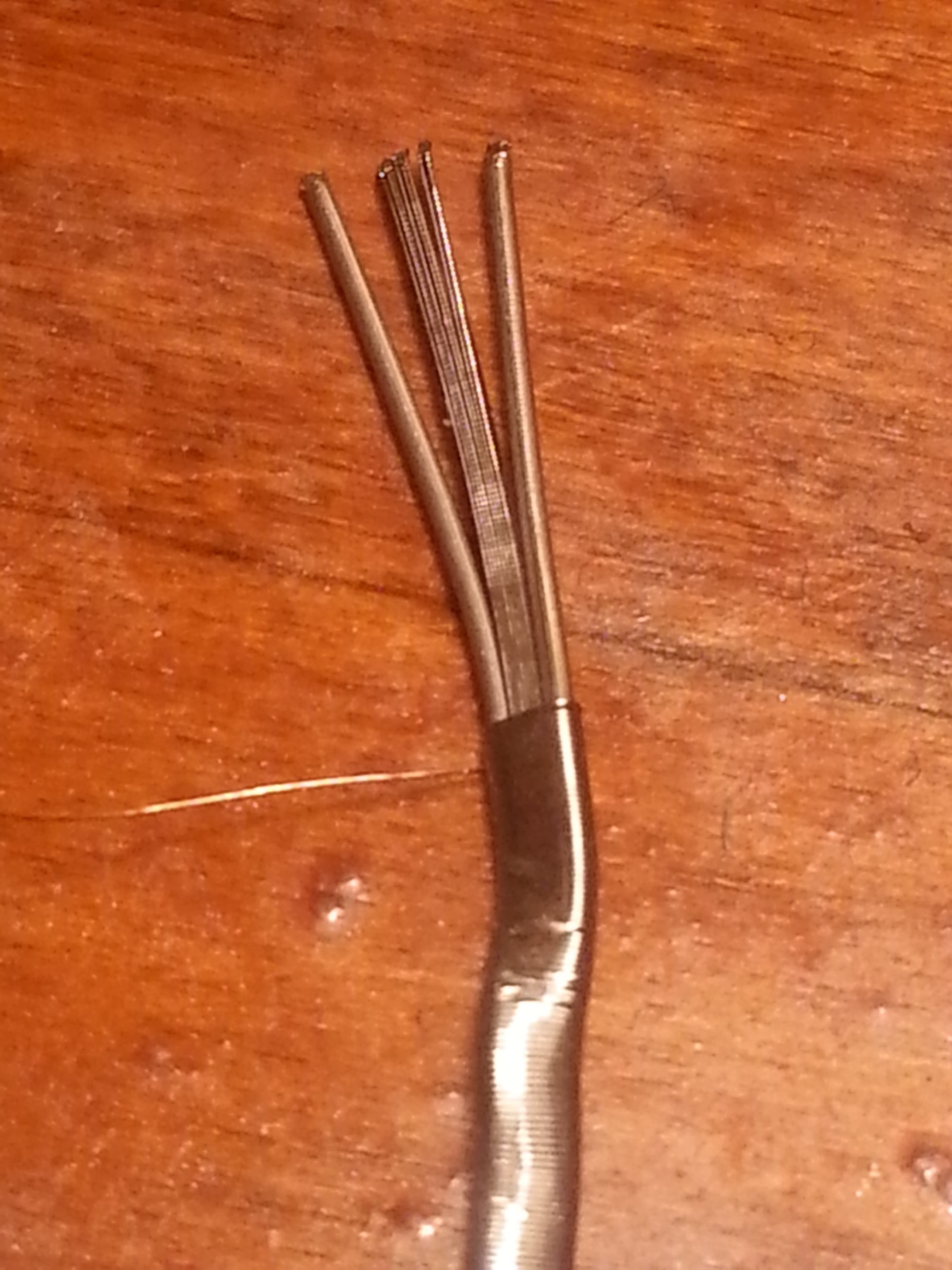

Alien bones and skins, framed staple wire. I should get 6 pairs of aliens and 5 pairs of framed staple coils out of this.



iSubOhm

Silver Contributor
Member For 4 Years
Member For 3 Years
Member For 2 Years
Member For 1 Year
Member For 5 Years
Not really porn yet - more like, porn-to-be?
Alien bones and skins, framed staple wire. I should get 6 pairs of aliens and 5 pairs of framed staple coils out of this.

View attachment 41994
Bruh your wraps be so tight & clean Need to get on my staple game. Anyone have tips for corrugation? I heard about gears? But what kind exactly?

Sent from my Phablet
Instagram: @ohmmage


scarecrowjenkins

Silver Contributor
Member For 4 Years
Unlisted Vendor

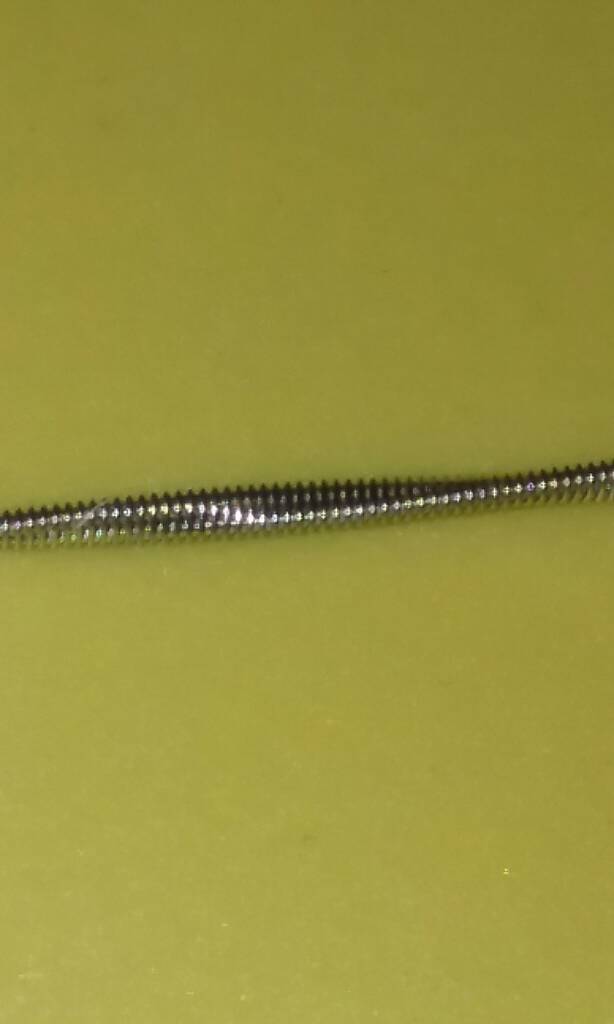

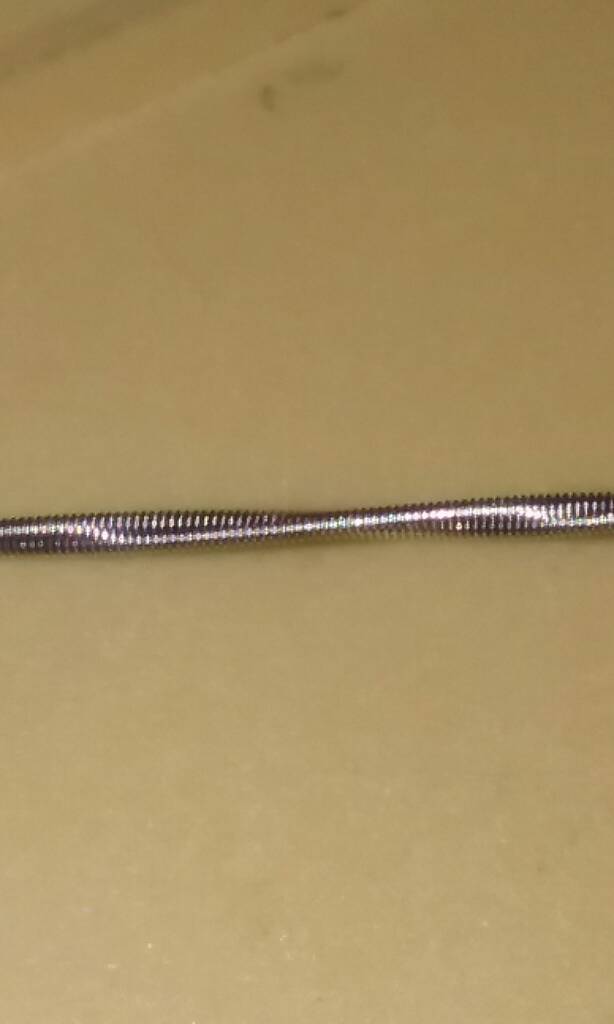

Remind me why i keep trying to do this... 33/38 aliens
i have to go so slow when i wrap these to keep the cores flat. @scarecrowjenkins @CrazyChef, any input?

Sent from my LG-H811 using Tapatalk
With the core and outer wires so close in size the stretch has to be perfect. With the right stretch it'll all go together fine, but it's gotta be spot on or they'll bunch up on you


itsmenotyou

Gold Contributor
Member For 4 Years
Member For 3 Years
Member For 2 Years
Member For 1 Year

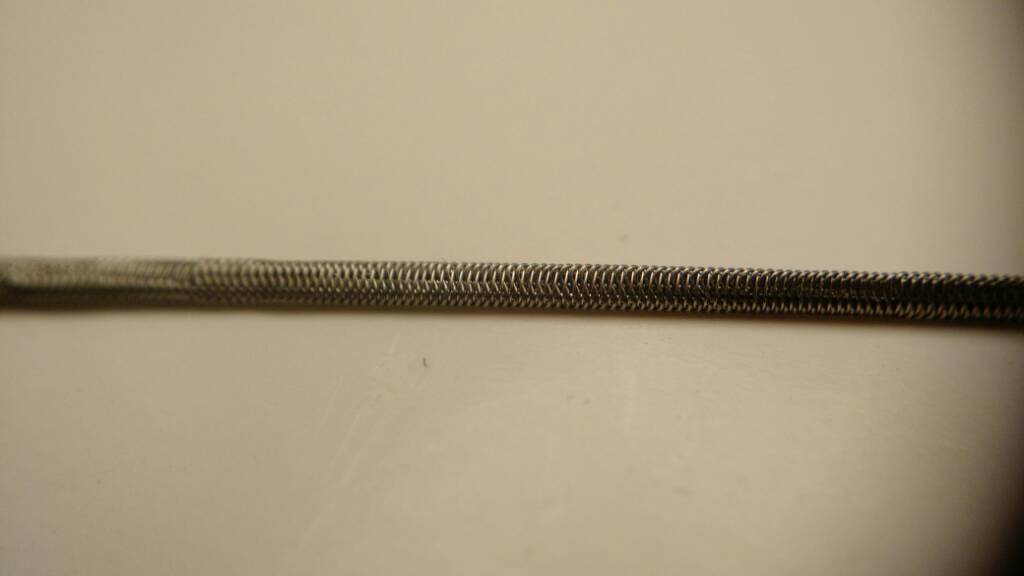

Sorry for the waves. I've gotten into the habit of not straightening them out and letting them do it as I wrap the coils

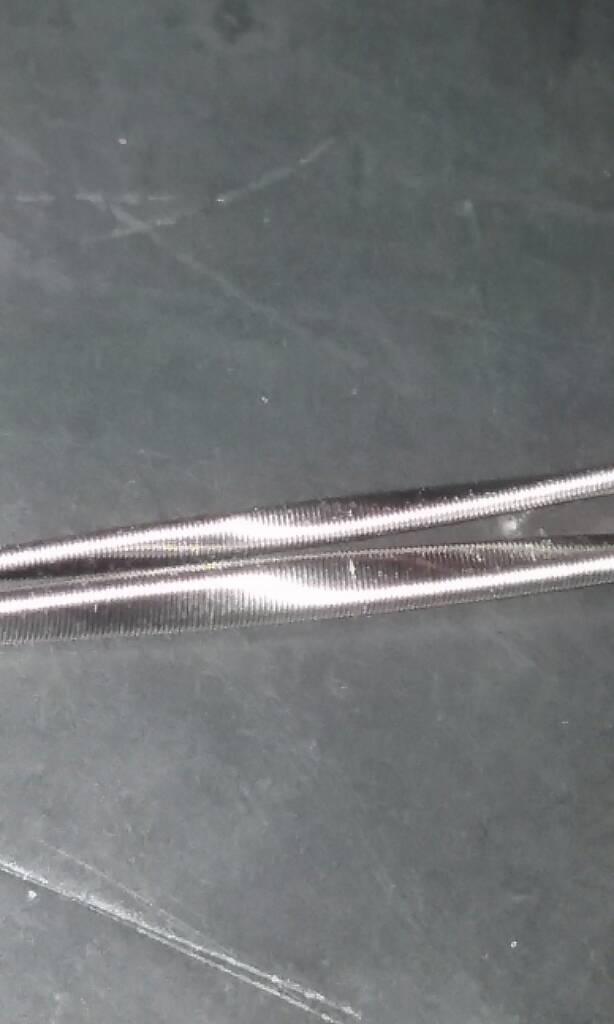

top one is 28n80/38KD
the bottom is 24kA1/38KD

Sent from my SM-J100VPP using Tapatalk


raymo2u

VU Donator
Platinum Contributor
Member For 4 Years
Unlisted Vendor
i gotta start working on my staggered game.
so many coils. so little wire......lol.
That loop method really works well...only wasted 4" of wire using it...instead of wasting the same amount for the entire length for the clapton...


Beeboqueef

Bronze Contributor
Member For 4 Years
Been messing with some .5 x .5 N80.


Sent from outer space via telegraph.


Attachments

  • uploadfromtaptalk1459921895890.jpg
    79.4 KB · Views: 29
  • uploadfromtaptalk1459921961348.jpg
    88.6 KB · Views: 29
  • uploadfromtaptalk1459921973425.jpg
    636.4 KB · Views: 28
  • uploadfromtaptalk1459921986295.jpg
    1.3 MB · Views: 30

mcrazzle54

Member For 3 Years
Member For 2 Years
@CrazyChef
@raymo2u
I have some .6mm x.1mm ribbon I tried to do some framed staple builds but the coils are massive should I reduce my stacks? I had x8 should I drop it to like 4-5. I know the frame isn't an issue its 26g n80. I wish my B&M store carries .4 or even .3 ribbon would be perfect. Just let me k ow what you guys think.


CrazyChef

Custom Hand Crafted Coils - PureCoils.com
VU Vendor
VU Donator
Platinum Contributor
Member For 4 Years
ECF Refugee
Go with 24g for your frames and you should be fine.


raymo2u

VU Donator
Platinum Contributor
Member For 4 Years
Unlisted Vendor
I would suggest using 5 but if you can wrap it and you have something that can fire them then by all means. For dual coil I would expect around .08-.09 and for single .14-.18 Ohms.

I like .3 and .4 ribbon as it wraps with much less force and you wont need large wire for framing if using framed staples. This also allows the resistance to be a bit higher.


mcrazzle54

Member For 3 Years
Member For 2 Years
I would suggest using 5 but if you can wrap it and you have something that can fire them then by all means. For dual coil I would expect around .08-.09 and for single .14-.18 Ohms.

I like .3 and .4 ribbon as it wraps with much less force and you wont need large wire for framing if using framed staples. This also allows the resistance to be a bit higher.

Oh I wrapped it and vaped it yeah dual coil runs right around .08. But I'm really wanting a dual setup to run right around .1-.15 is what I'm shooting for. Lol almost temped to take my snips to the ribbon and trim it down. But the seems like a headache. But thanks for the info guys.


mcrazzle54

Member For 3 Years
Member For 2 Years
My Fuchai can fire as low as .05 in power mode. That's one of the reason why I got this mod. And trust she does it. And it was fairly affordable.


itsmenotyou

Gold Contributor
Member For 4 Years
Member For 3 Years
Member For 2 Years
Member For 1 Year
Just stopping on here to say I love yall! Between this thread the coil porn thread and post your builds, we have so much talent here. I'm so thankful that you guys help make this thread and the others like it a amazing place to learn and pass on what you have learned.

I'll go away with my drunkish emoish ass now.
Thanks again guys!

sent from a dumb operated smart phone


raymo2u

VU Donator
Platinum Contributor
Member For 4 Years
Unlisted Vendor
Just stopping on here to say I love yall! Between this thread the coil porn thread and post your builds, we have so much talent here. I'm so thankful that you guys help make this thread and the others like it a amazing place to learn and pass on what you have learned.

I'll go away with my drunkish emoish ass now.
Thanks again guys!

sent from a dumb operated smart phone
We have you to thanks for this thread :p

My Fuchai can fire as low as .05 in power mode. That's one of the reason why I got this mod. And trust she does it. And it was fairly affordable.
I understand this perfectly...I dont buy Regulated mods that cant fire down to .05 now...there are a few good ones out there...Should look into the hohm Wrecker G2. Its 151w feels atleast 2 times stronger then any 200w mod I own (Snow Wolf, Laisimo L1, Cuboid, ext.) and fires down to .007, even does TC on Kanthal/Nichrome/Any other wire and even them mixed...Its my favorite Reg Box so far...


mcrazzle54

Member For 3 Years
Member For 2 Years
Just stopping on here to say I love yall! Between this thread the coil porn thread and post your builds, we have so much talent here. I'm so thankful that you guys help make this thread and the others like it a amazing place to learn and pass on what you have learned.

I'll go away with my drunkish emoish ass now.
Thanks again guys!

sent from a dumb operated smart phone


I completely agree. That's why I keep coming back to this forum I actually get answers to my questions. I've sent many of messages to those guys on Instagram for tips and not one has replied to me but here I get a ton of info and tips from one question. Really the people make the place great and I would like to thank everyone for just being kind and supportive to all vapers. You all kick ass!


mcrazzle54

Member For 3 Years
Member For 2 Years
We have you to thanks for this thread :p


I understand this perfectly...I dont buy Regulated mods that cant fire down to .05 now...there are a few good ones out there...Should look into the hohm Wrecker G2. Its 151w feels atleast 2 times stronger then any 200w mod I own (Snow Wolf, Laisimo L1, Cuboid, ext.) and fires down to .007, even does TC on Kanthal/Nichrome/Any other wire and even them mixed...Its my favorite Reg Box so far...
I've had my eye on this one just lacking the funds but I'll owe it one day.
