Building a Dual MOSFET Dual Parallel LiPo

Discussion in 'Unregulated (Mechanical) Mods' started by MarkS, Oct 6, 2017.

  1. MarkS

    MarkS Gold Contributor Member For 3 Years

    Blog Posts:
    0
    Joined:
    Jan 14, 2015
    Messages:
    1,640
    My questions in doing this:
    Should I connect the balanced charging plug between the two LiPo cells to keep the cells cross balanced?
    If I do this would it potentially cause a problem (thinking about path of least resistance)?
    Should I put a small resistor in line with each line?


    Sent from my iPhone using Tapatalk

    VapingGuitarist likes this.
  2. art247

    art247 Member For 3 Years

    Blog Posts:
    0
    Joined:
    Mar 15, 2015
    Messages:
    110
    Hi i dont know the answer but im glad you are building more power to you

    Sent from my SM-G900P using Tapatalk

    EMusic likes this.
  3. VapingGuitarist

    VapingGuitarist Silver Contributor Member For 1 Year Unlisted Vendor

    Blog Posts:
    0
    Joined:
    Jan 13, 2017
    Messages:
    1,074
    Sounds like a cool build. As for your question, are you trying to use the balance leads to supply power to the mod? If so, don't do it! Your balance leads are for charging only and not for supplying power. If you're wanting to Y your balance leads for charging, I still wouldn't do it. You'd be much better off and safer to charge each pack seperately or on a multi pack balancing charger. I've been using all types of LiPo's for R/C aircraft and cars since they first came out in the hobby back around 2001 and haved worked in hobby shops long enough to see anything that can go wrong with LiPo's including venting and fire. Not fun!

    Shawn

    hellcatrydr and MarkS like this.
  4. MarkS

    MarkS Gold Contributor Member For 3 Years

    Blog Posts:
    0
    Joined:
    Jan 14, 2015
    Messages:
    1,640

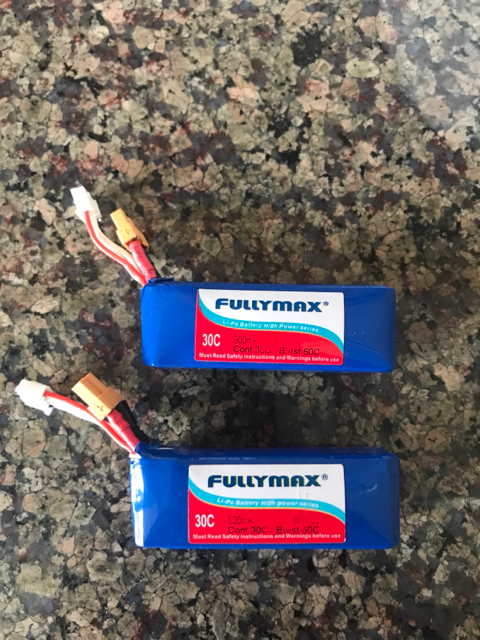

    I plan on using two packs in parallel. I was considering connecting the balanced charging connectors while in the Mod so the joined parallel LiPos would stay balanced with each other during the use cycle. I plan on charging them separately on my balanced charger. I’m thinking I may just put in two separate battery level meters to monitor both cells and not interconnect the packs.


    Sent from my iPhone using Tapatalk

  5. VapingGuitarist

    VapingGuitarist Silver Contributor Member For 1 Year Unlisted Vendor

    Blog Posts:
    0
    Joined:
    Jan 13, 2017
    Messages:
    1,074
    The balance leads are for charging Only!
    You're asking for trouble if you use them for supplying power!

  6. MarkS

    MarkS Gold Contributor Member For 3 Years

    Blog Posts:
    0
    Joined:
    Jan 14, 2015
    Messages:
    1,640

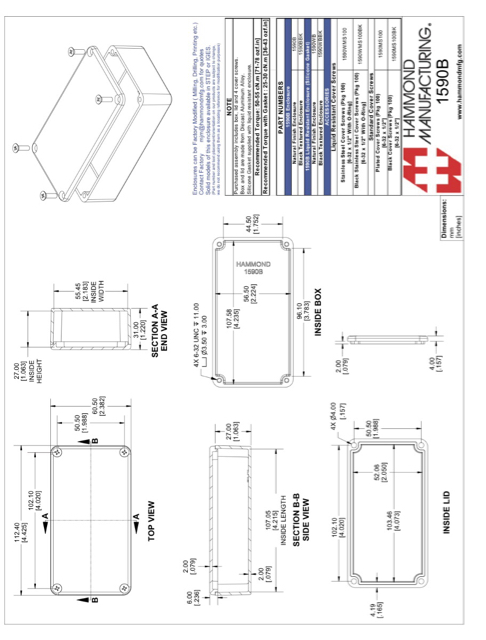

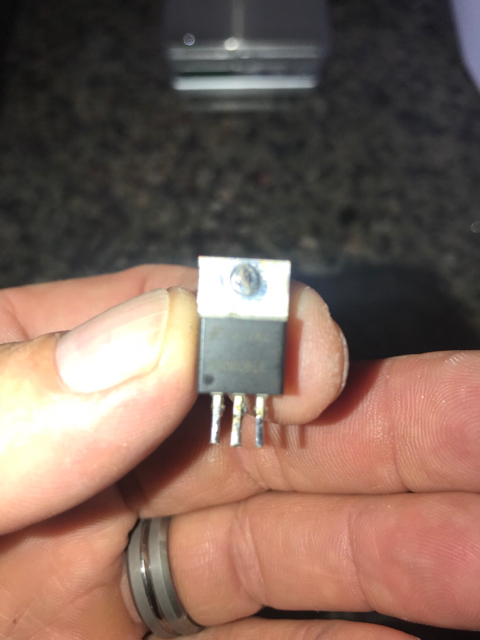

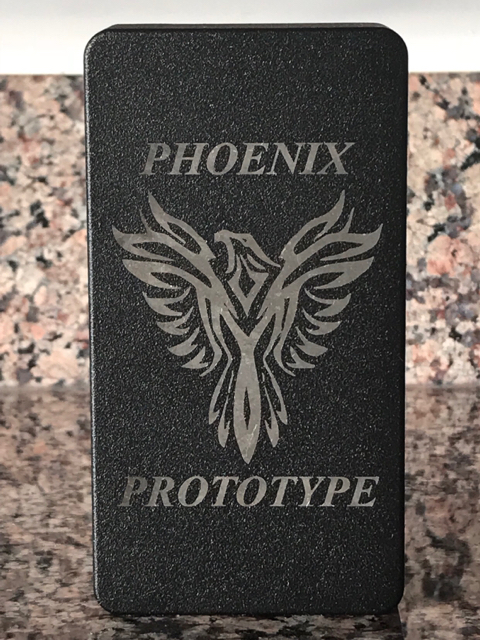

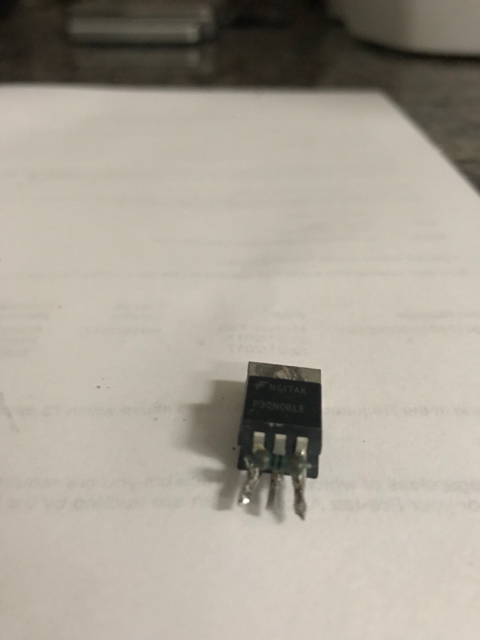

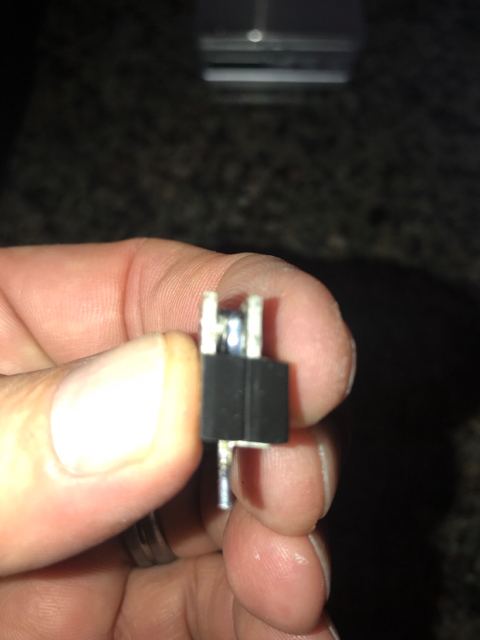

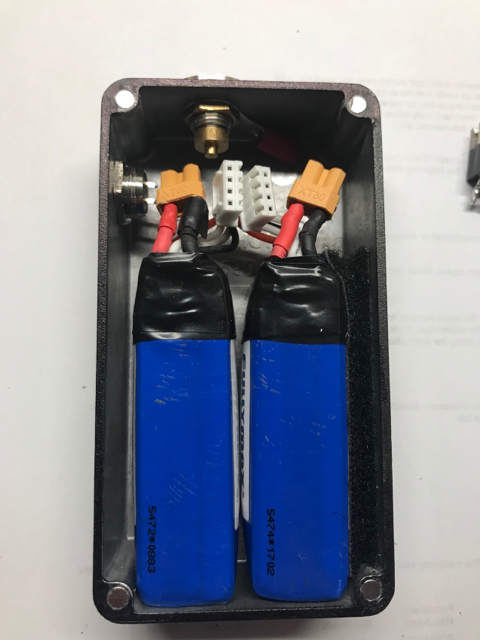

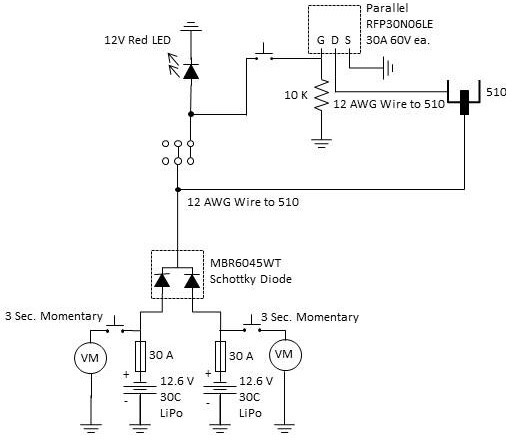

    [​IMG][​IMG][​IMG][​IMG][​IMG][​IMG][​IMG][​IMG][​IMG][​IMG][​IMG][​IMG][​IMG]


    Sent from my iPhone using Tapatalk

    KingPin! likes this.
  7. The Cromwell

    The Cromwell The Frugal Vapist VU Donator Diamond Contributor Member For 2 Years

    Blog Posts:
    0
    Joined:
    Jan 15, 2016
    Messages:
    25,221
    You need a balanced charging circuit.
    Charging lipo cells in parallel is a very bad idea.

  8. MarkS

    MarkS Gold Contributor Member For 3 Years

    Blog Posts:
    0
    Joined:
    Jan 14, 2015
    Messages:
    1,640
    That's why you see two balanced charging plugs. I use an external charger.


    Sent from my iPhone using Tapatalk

    The Cromwell likes this.
  9. MarkS

    MarkS Gold Contributor Member For 3 Years

    Blog Posts:
    0
    Joined:
    Jan 14, 2015
    Messages:
    1,640
    Well... I decided to add the option of being PWM also. Now... to get it all to fit!
    Phoenix Wiring Dual Mode.jpg

    Last edited: Nov 3, 2017
  10. MarkS

    MarkS Gold Contributor Member For 3 Years

    Blog Posts:
    0
    Joined:
    Jan 14, 2015
    Messages:
    1,640

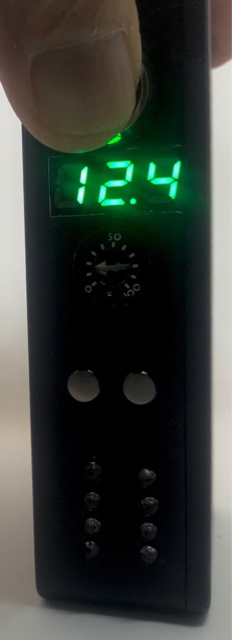

    Putting up a revised drawing. I ran out of room to put everything in the Mod that I wanted. So, I've gone to a three wire LED VM to act as a pilot (Mod on) light reading 0.00, provide a relative voltage (for adjusting) in PWM mode, and actual voltage in unregulated mode when the fire button is pushed. The pilot LED or the LED VM had to be removed from play. Obvious selection for me... bye bye pilot (on indicator) LED. Phoenix Wiring Dual Mode R2.jpg

    Last edited: Nov 10, 2017
    KingPin! and The Cromwell like this.
  11. KingPin!

    KingPin! In my defence, I was left unsupervised ^^ Staff Member Senior Moderator VU Donator Platinum Contributor Member For 1 Year VU Challenge Team Reviewer

    Blog Posts:
    0
    Joined:
    Dec 23, 2016
    Messages:
    6,148
    Nice project MarkS thanks for sharing :cheers:

    MarkS and The Cromwell like this.
  12. MarkS

    MarkS Gold Contributor Member For 3 Years

    Blog Posts:
    0
    Joined:
    Jan 14, 2015
    Messages:
    1,640

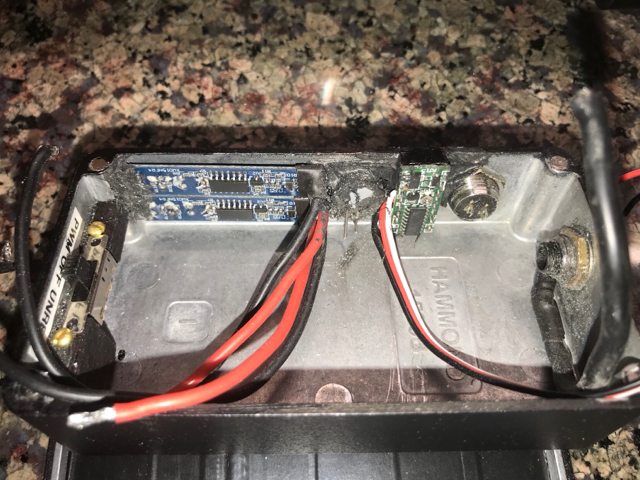

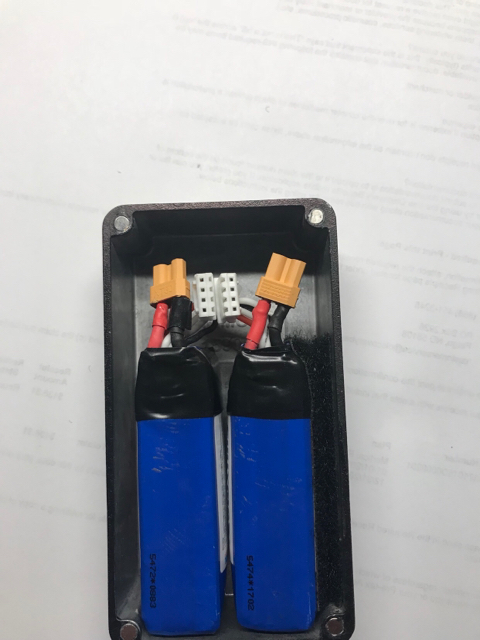

    Progress update. It’s a little rough since I don’t have all the cool tools to do this on a normal basis.

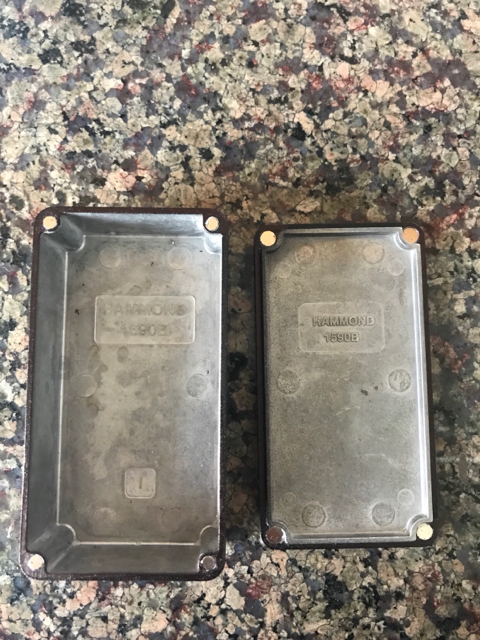

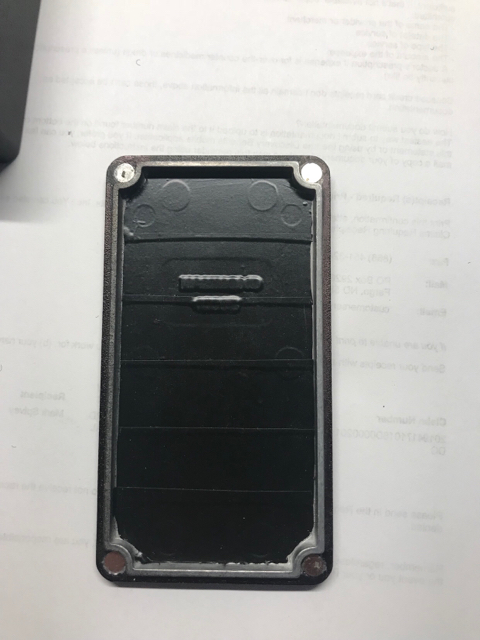

    [​IMG][​IMG]


    Sent from my iPhone using Tapatalk

    The Cromwell likes this.
  13. MarkS

    MarkS Gold Contributor Member For 3 Years

    Blog Posts:
    0
    Joined:
    Jan 14, 2015
    Messages:
    1,640

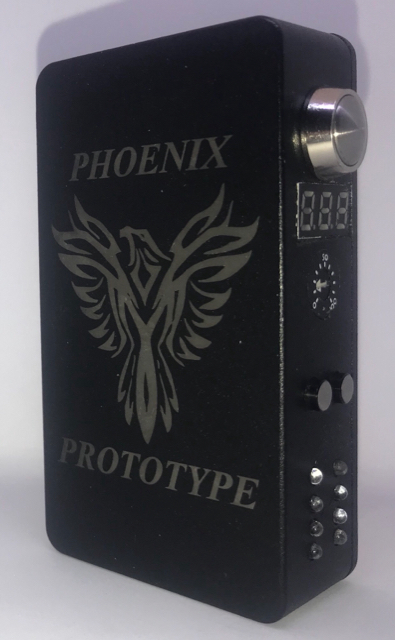

    Finally finished except the cleaning. Had to replace multiple parts multiple times but finally working as it should. Barely able to fit everything into the housing.

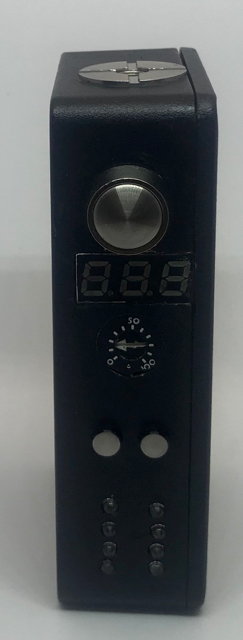

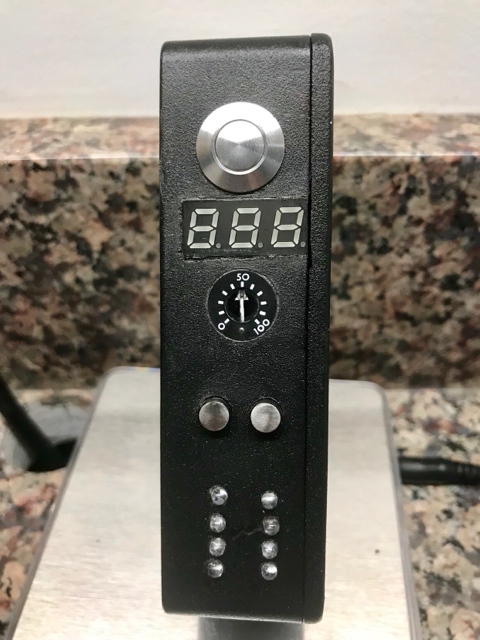

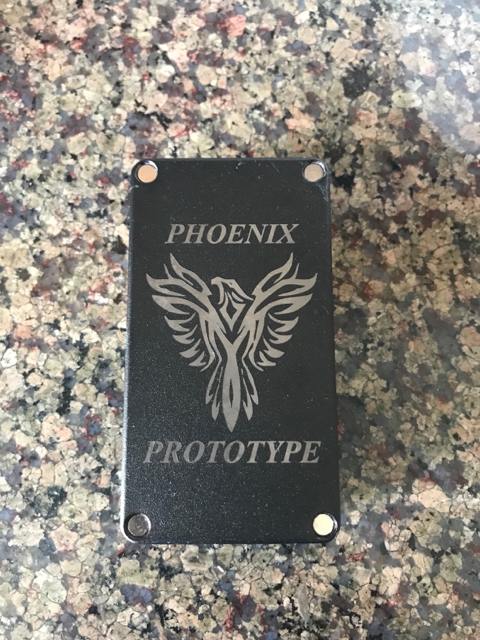

    [​IMG][​IMG][​IMG]


    Sent from my iPhone using Tapatalk

    KingPin! likes this.
  14. MarkS

    MarkS Gold Contributor Member For 3 Years

    Blog Posts:
    0
    Joined:
    Jan 14, 2015
    Messages:
    1,640

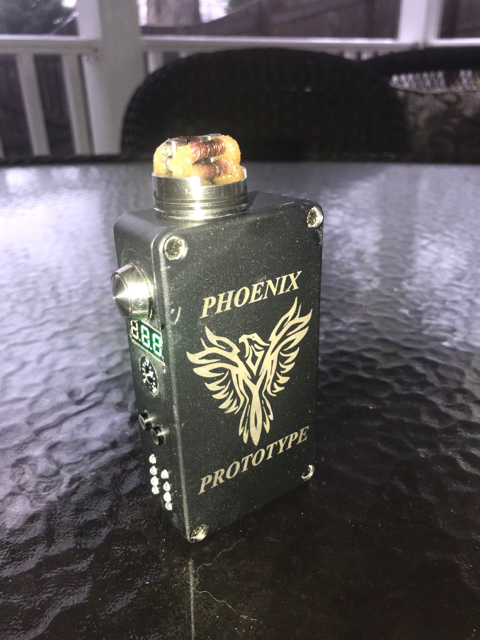

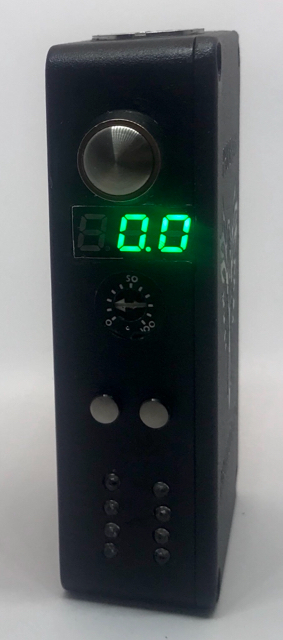

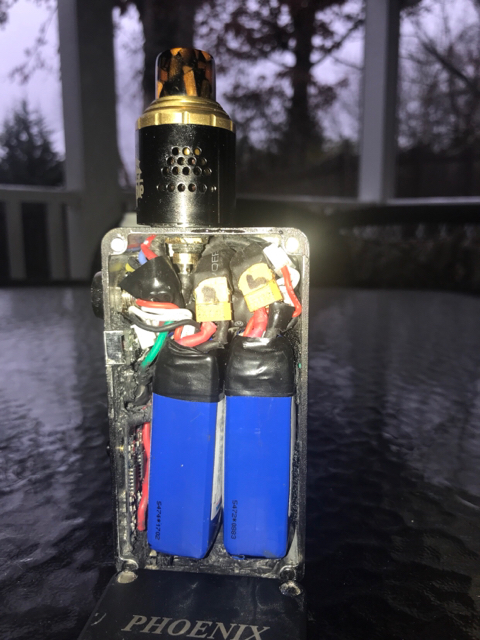

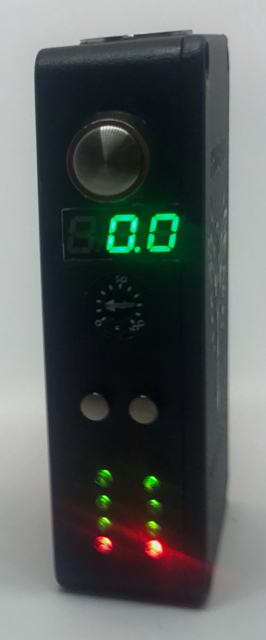

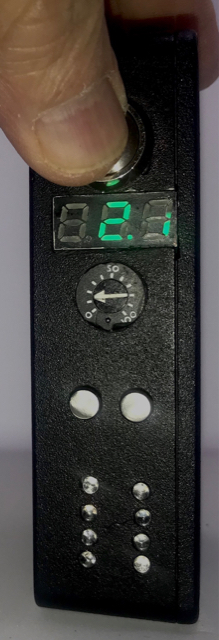

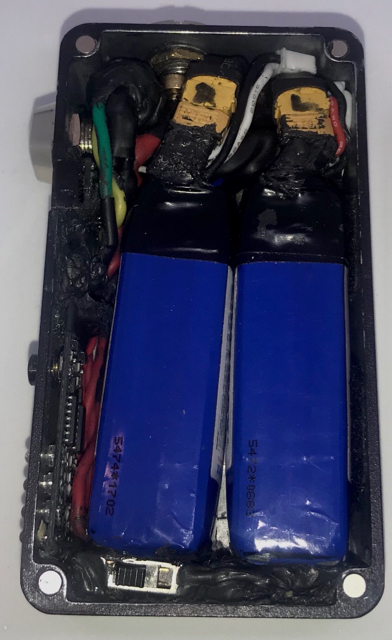

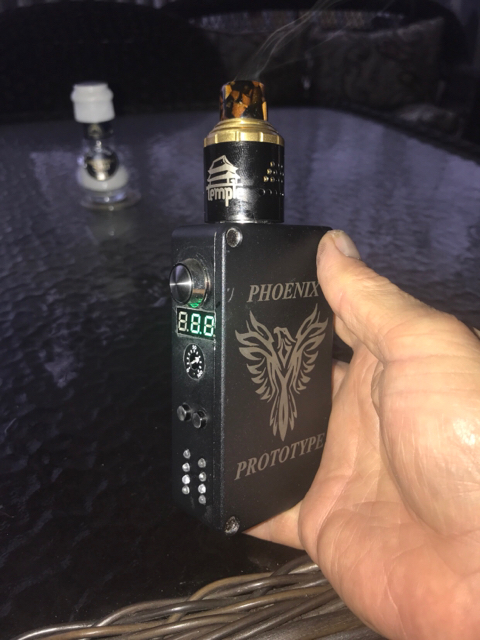

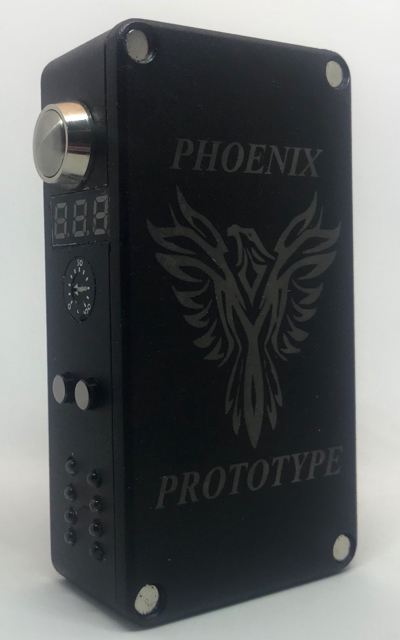

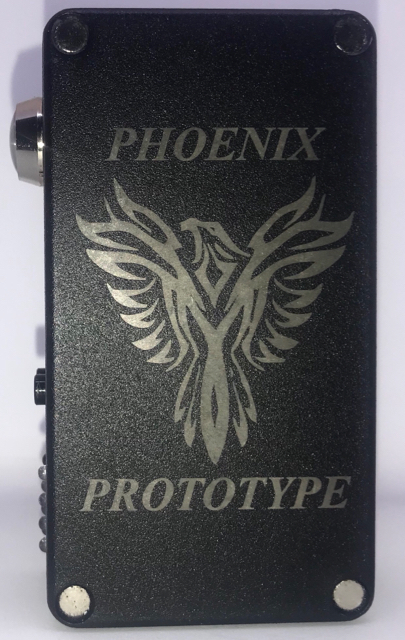

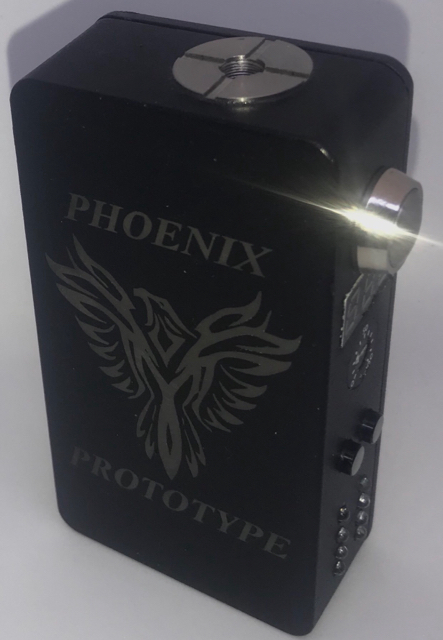

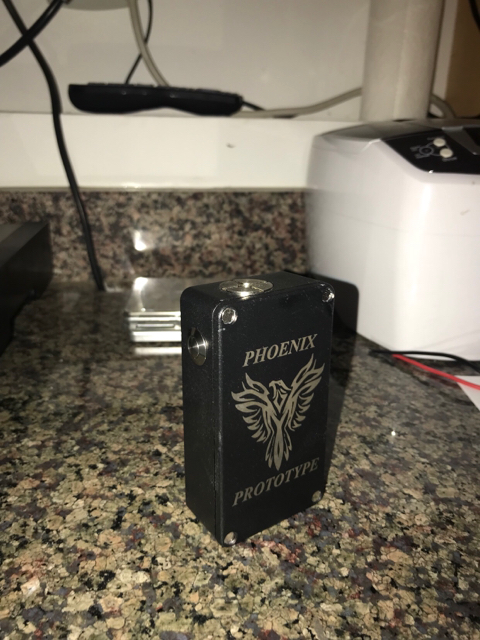

    Well... Here's the latest Pics:[​IMG][​IMG][​IMG][​IMG][​IMG][​IMG][​IMG][​IMG][​IMG][​IMG]


    Sent from my iPhone using Tapatalk

    KingPin! likes this.
  15. MarkS

    MarkS Gold Contributor Member For 3 Years

    Blog Posts:
    0
    Joined:
    Jan 14, 2015
    Messages:
    1,640
    Lessons Learned:
    1) Always test components individually after soldering (from original fire switch failure)
    2) Calibtate the LED DVM before installation (self explanatory)
    3) Don't flex Potentiometer leads, they break easily (self explanatory)
    4) Use the right tool for the job (center punch - couldn't find and freehand drilled holes, wrong Dremel cutting wheel for meter opening, and drill bit just one size too small for replacement button)
    5) Always me mindful to protecting the finish on the Mid Box (protective tape, towel, paper towels, or multiple things to keep from scratching finish)
    6) Laser engraving/etching should be the last thing done, not the first (related to #5 anbe)
    7) Don't use heaver gauge (oversized) wire just because you think bigger is better (it takes up space!)
    8) Case size does matter, allow extra!


    Sent from my iPhone using Tapatalk

    hellcatrydr and KingPin! like this.
