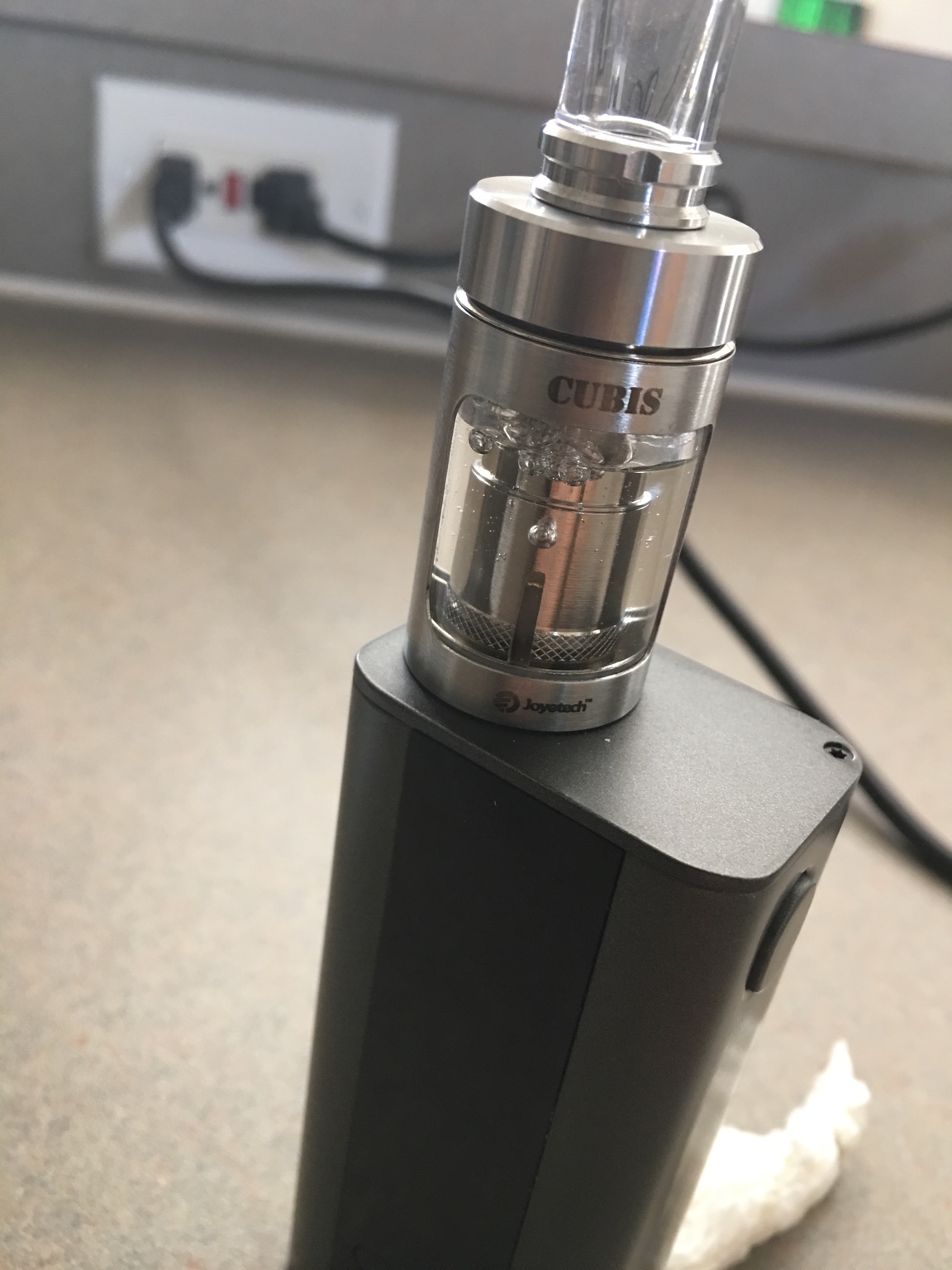

So, I loved the idea of the Cubis, but the coil heads are starved for juice. The inlets are just too small IMO. Particularly for thicker juice. I just 80/20 and have some issues with it.
So I decided to cut one apart to see how they tick, and maybe work out a solution. As some of you may know, looking back at my TFV4 escapades I'm not one to leave things alone. OCD and all.
Here's the result:
So left of center in the first two images you see an intact, new coil-head, with those wee little juice channel Inlets. To the right the one I cut apart (.5ohm 316ss FYI).
The last image shows the path inside the outer casing the juice must travel. From the angle it looks like wick would be right there at the bottom as soon as the juice clears the opening but that's not quite the case.
What I found is that not only does the juice have to make it through those itty-bitty openings at the bottom, it then has to travel UP that tiny channel between the inner and outer casing of the coil-head before it hits wick.
I'm going to take a stab at dremeling a slot from the juice flow opening upwards along the coil-head. That should both allow more juice in quicker, and also decrease the distance it must travel up before it can get past that inner sheath and to the wick.
As a side note, interesting that the coil itself appears to be run in parallel. I'd imagine this is more about achieving the desired resistance than performance though. Also of note, the coil's inner diameter is CRAZY small.
Probably nobody cares 'bout all this madness but I thought I'd share.
K-Stat
Edit: Final (hopefully) Result of slot cut into a new coil. This will either vape very nicely or be a flooded gurgling mess. I'll report back if there's any interest.
DISCLAIMER: This work results in SS dust and you should be careful to clean everything and rinse the cotton thoroughly before using. Really you probably just shouldn't do it.
Sent from my iPhone using Tapatalk
