First quad coil RDA build

Discussion in 'New Builders Corner' started by Vape-kid04660, Nov 29, 2017.

  1. Vape-kid04660

    Vape-kid04660 New Member

    Blog Posts:
    0
    Joined:
    Aug 12, 2017
    Messages:
    51

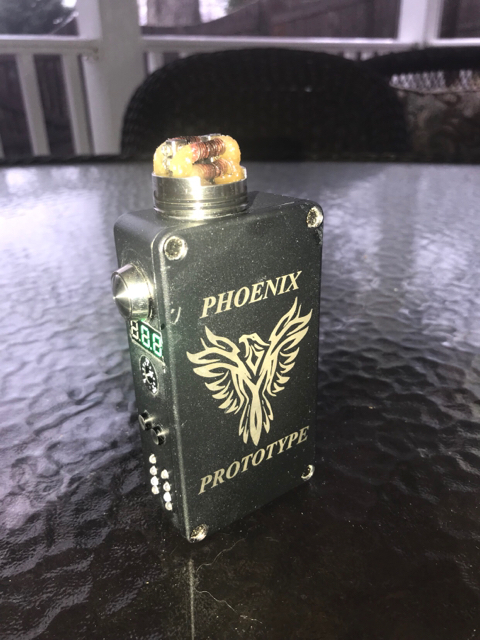

    Just bought this rda and I’m experimenting a little bit. I did a standard dual coil build and it was okay but I wanted to step it up. Did my first quad coil build. I feel like it’s pretty good but I want a professional opinion from someone who has more experience than I do. I know for one it’s a little to much cotton. But what do you think? [​IMG][​IMG]


    Sent from my iPhone using Tapatalk

  2. gbalkam

    gbalkam Silver Contributor Member For 1 Year ECF Refugee

    Blog Posts:
    0
    Joined:
    Jun 10, 2016
    Messages:
    1,345
    Well... coils look pretty good, BUT that cotton is choking your airflow. Which is likely to cause burnt wicking, since there is not enough air to cool the coils or provide a good draw to your vape. As a suggesting.... squeeze your coils closer together (touching is fine) to make a kissing quad coil and wick as if it were a single coil. Lots of air right up through the coil and lots of wick in the juice well. Now if you can solve the airflow through the coils problem... the build should work a lot better.

    MarkS and Pegleg Meg like this.
  3. Zohmbiebuilds

    Zohmbiebuilds Silver Contributor

    Blog Posts:
    0
    Joined:
    Oct 18, 2017
    Messages:
    675
    Here's what I did. Run your cotton from one end to the other. Don't wick them like they are 4 separate coils, wick them like there are 2 coils total. Right thru the middle to the other end. That build is great with Nichrome, I wouldn't dare use kanthal. That ramp up time would piss me off.

    Sent from my Z981 using Tapatalk

    MarkS likes this.
  4. MarkS

    MarkS Gold Contributor Member For 3 Years

    Blog Posts:
    0
    Joined:
    Jan 14, 2015
    Messages:
    1,554

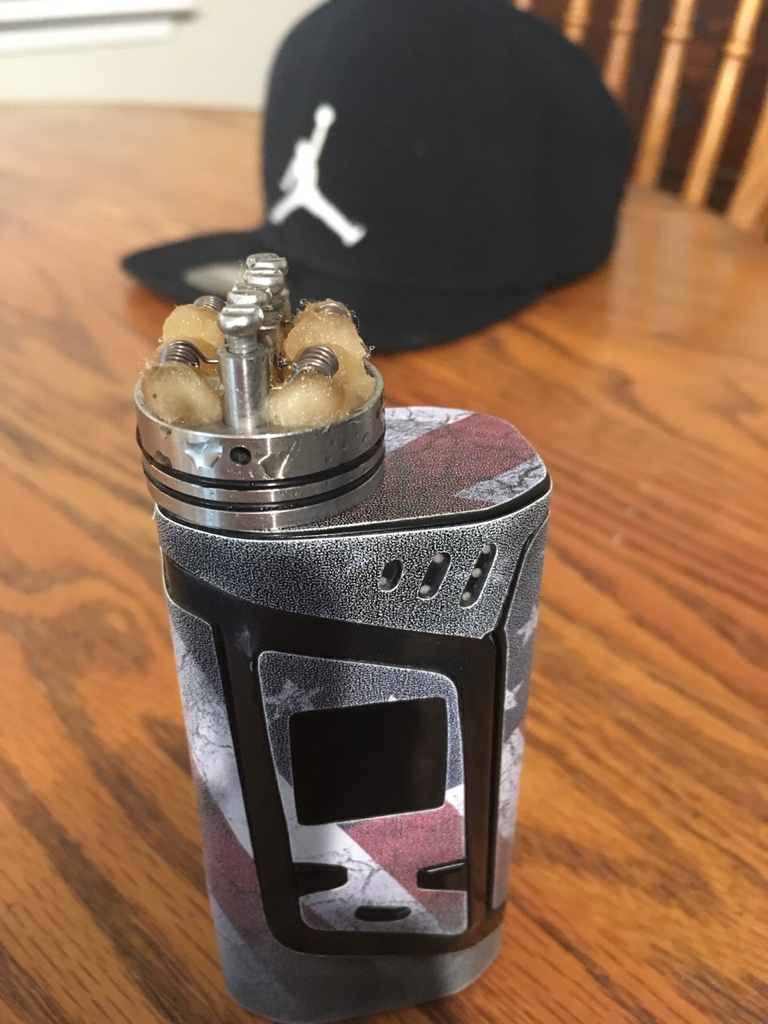

    Here is what I did for my first quad in a Temple RDA (With Kanthal):[​IMG]


    Sent from my iPhone using Tapatalk

  5. gbalkam

    gbalkam Silver Contributor Member For 1 Year ECF Refugee

    Blog Posts:
    0
    Joined:
    Jun 10, 2016
    Messages:
    1,345
    Keep in mind.. quad coils are usually meant for vapor production, mainly cloud chasing. SO... you will be juicing your wick often.. every 2nd or 3rd pull, max.

    MarkS likes this.
