Wire Porn thread

[itsmenotyou]

I haven't seen a wire porn thread. Maybe y'all with macro lenses and all can help make this a hit

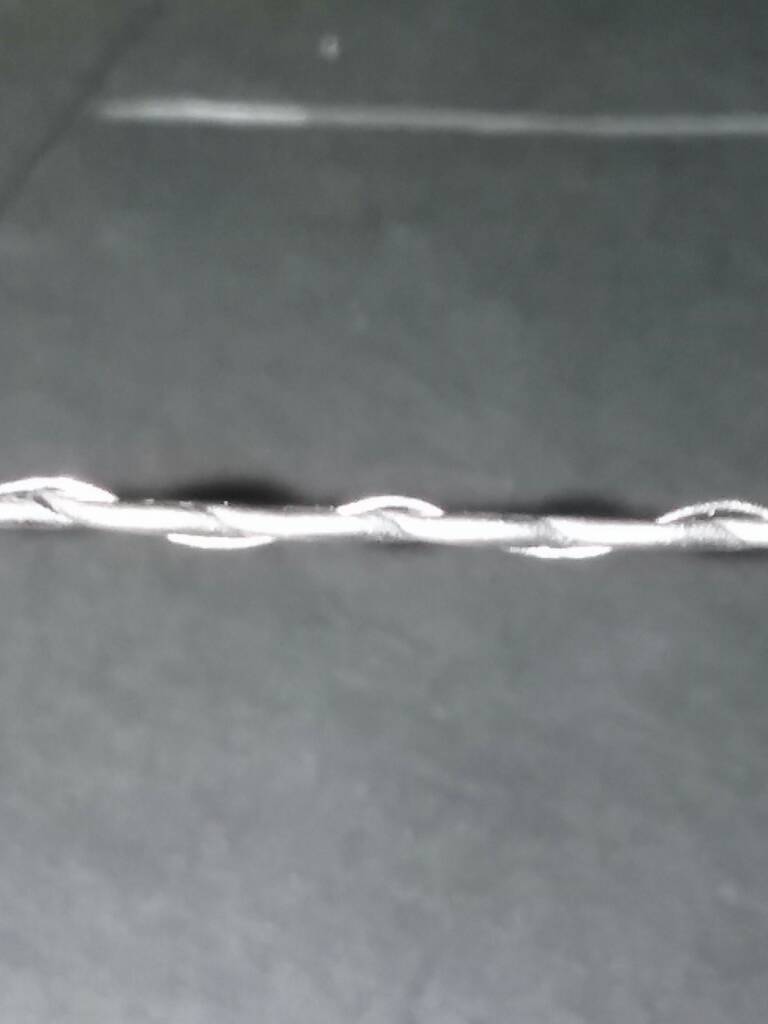

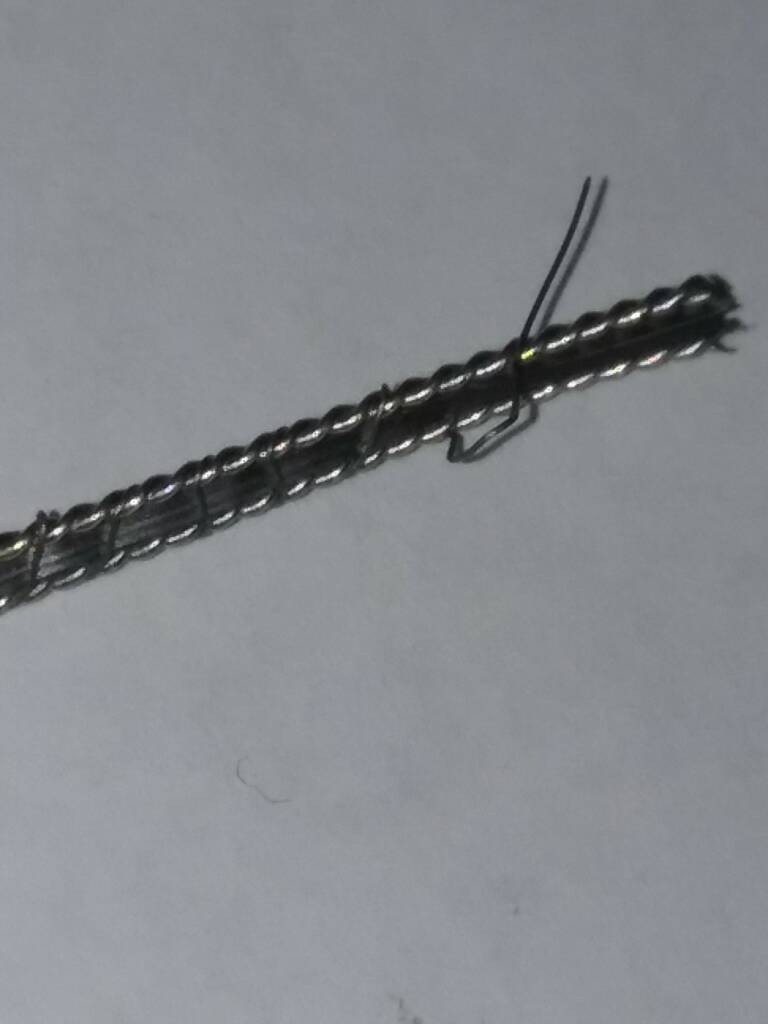

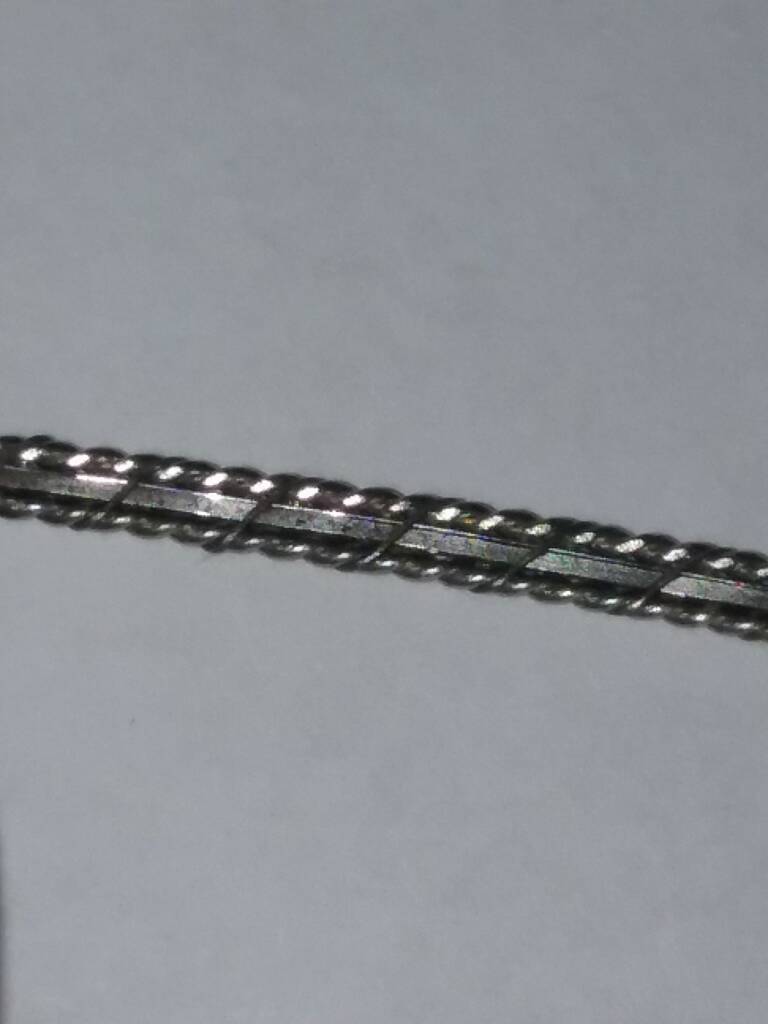

5x.4 ribbon cores twisted 28 frames 36n80 helix (hope that's termed right)

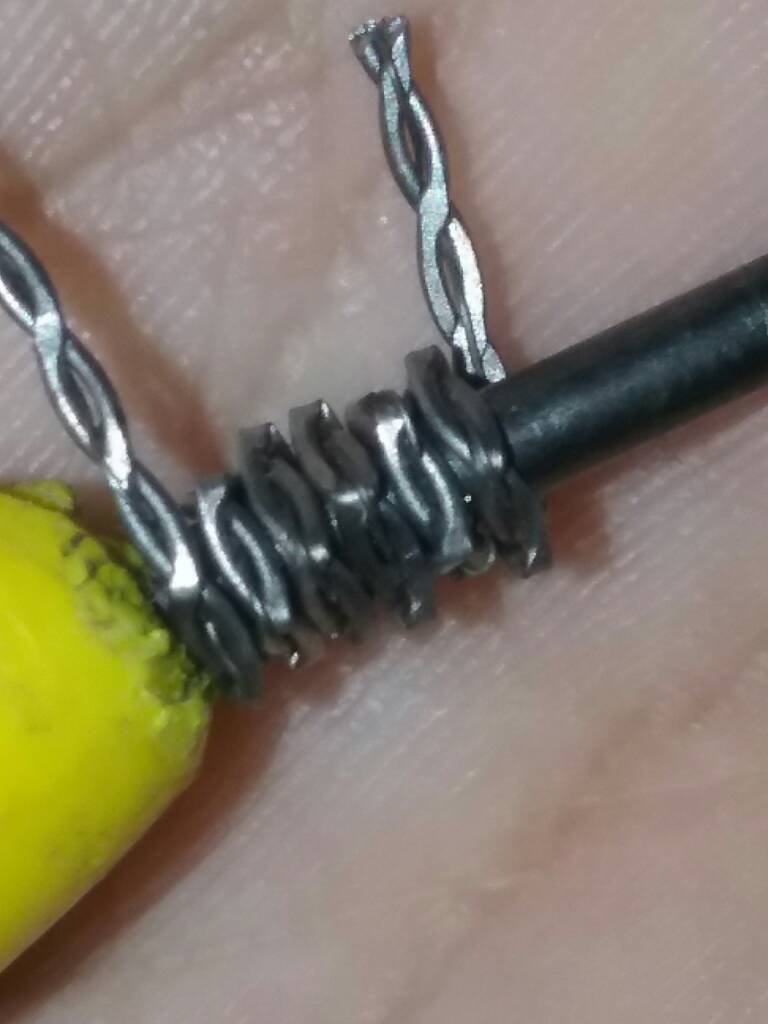

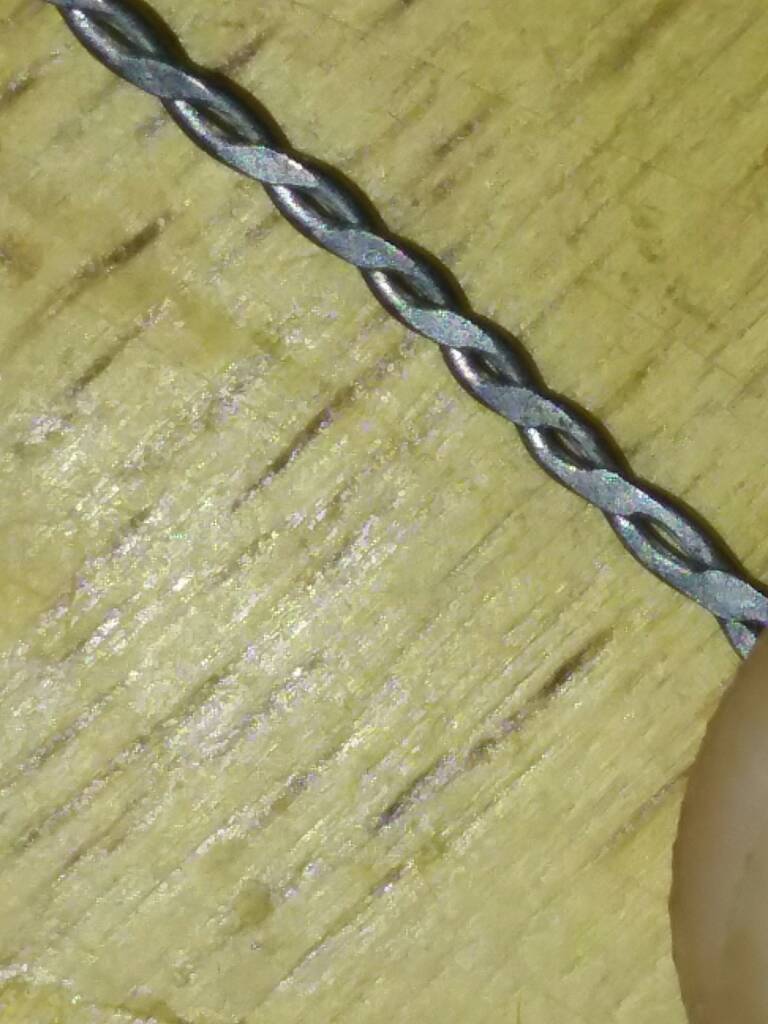

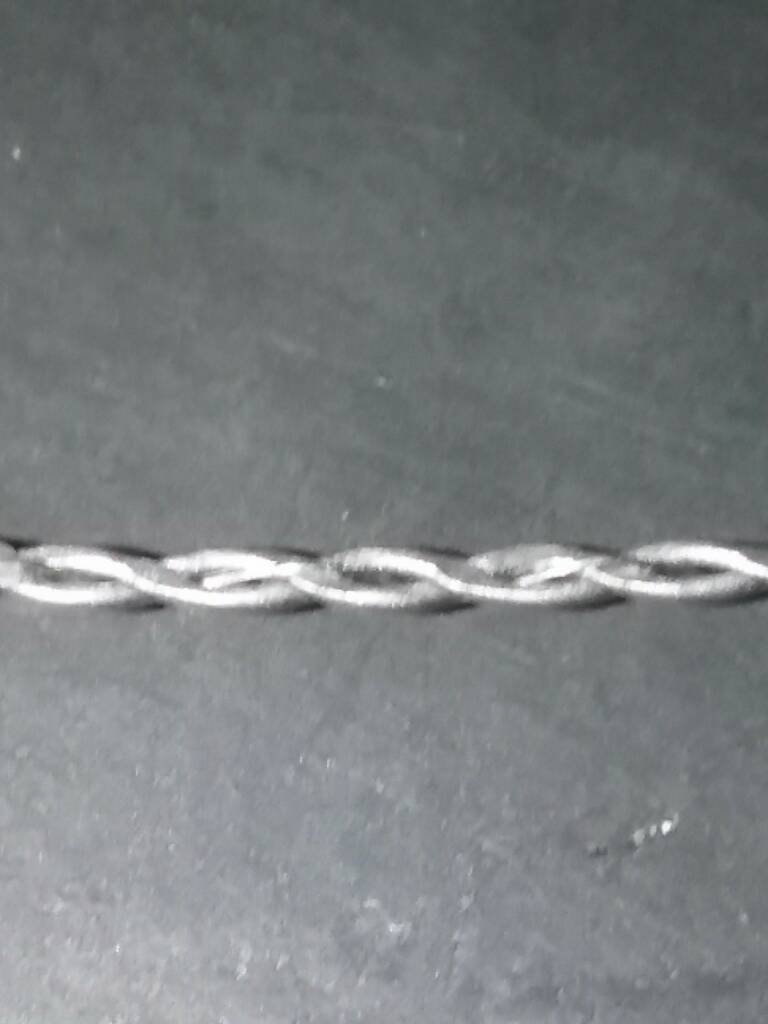

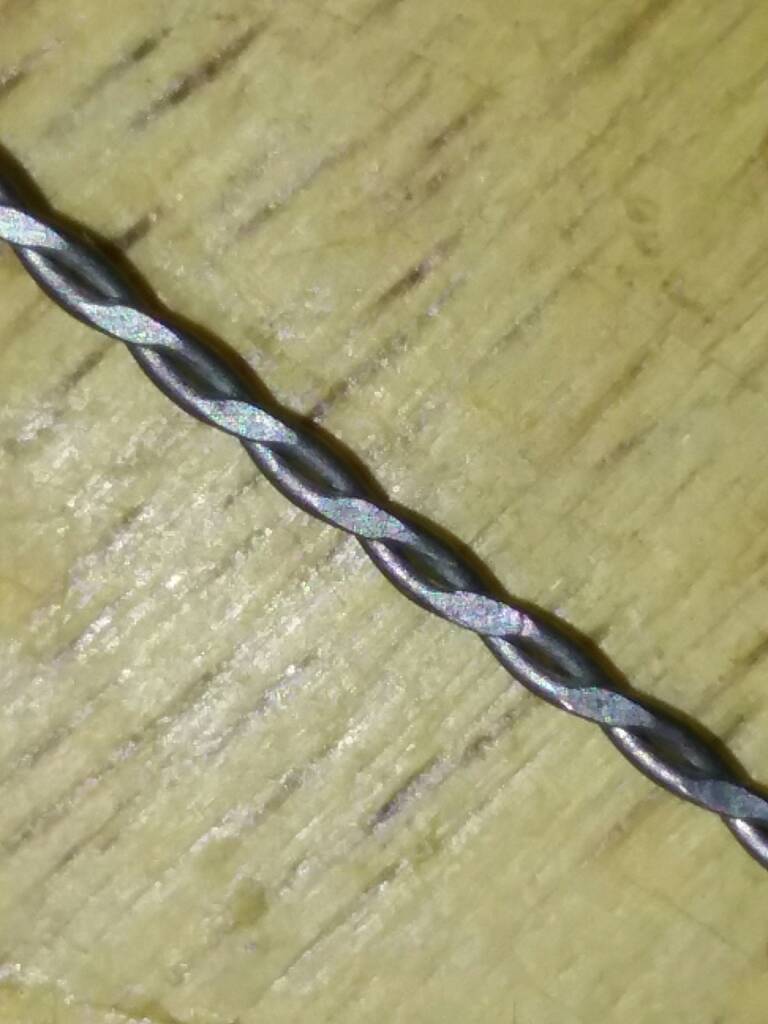

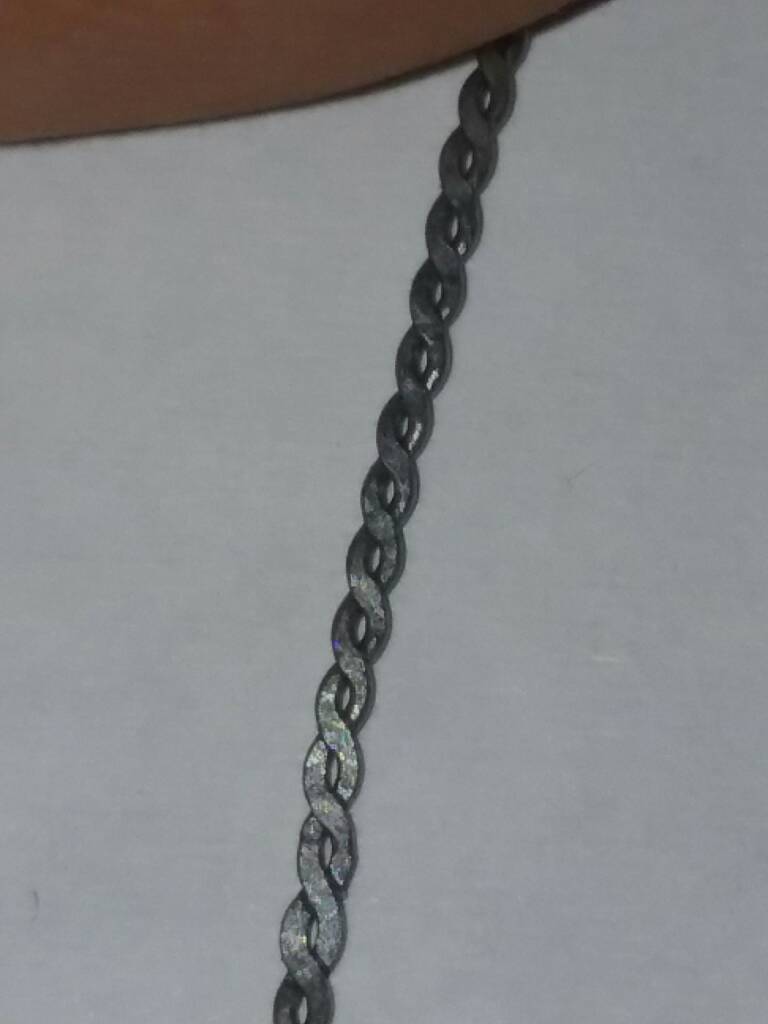

flattened twisted 26 ga

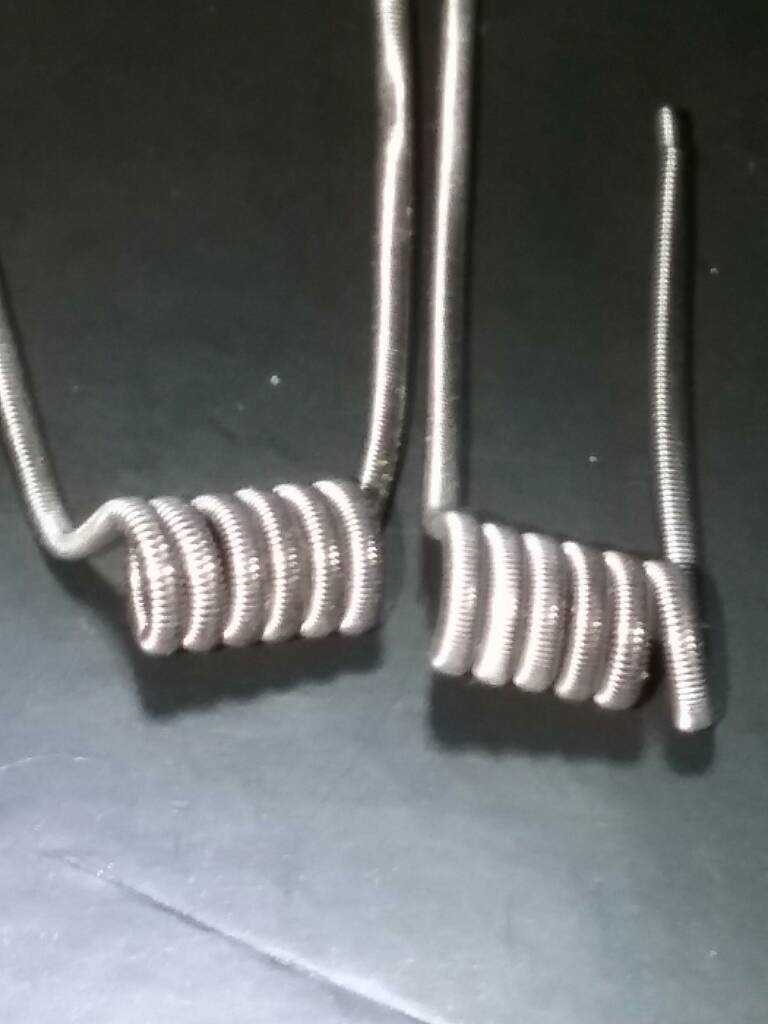

my first sfc once removed from an rda. 26ga cores 32 clapton and 36 fused

sent from a dumb operated smartphone



[CrazyChef]



[itsmenotyou]

View attachment 36973
View attachment 36974
View attachment 36975
View attachment 36976
View attachment 36977
View attachment 36978
View attachment 36979
View attachment 36980
View attachment 36981
View attachment 36982

Holy shit! You are an artist. And have some very serious skills. They are all beautiful.

sent from a dumb operated smartphone



[CrazyChef]



[CrazyChef]



[vapestachio]

Damn chef your on another level mad props man that's some beautiful stuff

Sent from my Z970 using Tapatalk



[CrazyChef]

Thanks @itsmenotyou and @vapestachio
I didn't even realize I had that many pics until I started going through my "Camera Roll" folder in my computer.
I think I may have a problem. I need a life.



[Huckleberried]

Nice work. Some of those pics are frameworthy. As far as just the look of the pic, not the function, this is my fave of those.



[itsmenotyou]

It's a little ugly now that it's all done but ehh

messed the spacing up on the last few wraps

sent from a dumb operated smartphone



[raymo2u]

Some of my Wire Lengths:



[vapestachio]

Is there a guide for these or you guys just youtube ?

Sent from my Z970 using Tapatalk



[raymo2u]

Is there a guide for these or you guys just youtube ?

Sent from my Z970 using Tapatalk

Most of us have been doing it for a good bit, others are learning and still putting out some nice builds on this thread. Most of the builds you see are done out of curiosity or inspiration, some like the Aliens need guidance from videos...



[itsmenotyou]

For some reason I can't see pics on tapatalk now. Bastards lol. Had to go online to see the thread

sent from a dumb operated smartphone



[vapestachio]

Cool yeah I'm new to building, before I joined the forums a friend of mine gave me some wire of unknown gauge said it was nichrome, when I tried a coil it melted, so I twisted some lengths together and they came out pretty good, I did buy some prebuilts recently until I can get the hang of it, going to try simple Clapton's first

Sent from my Z970 using Tapatalk



[itsmenotyou]

Cool yeah I'm new to building, before I joined the forums a friend of mine gave me some wire of unknown gauge said it was nichrome, when I tried a coil it melted, so I twisted some coils and they came out pretty good, I did buy some prebuilts recently until I can get the hang of it, going to try simple Clapton's first

Sent from my Z970 using Tapatalk

Clapton are best with thinner outer wire but for starters try 32 ga or so. Hell my hands don't let me use smaller than 36... yet

sent from a dumb operated smartphone



[raymo2u]

Some More:
4Ft Length of Framed Staple Helix..

Couldnt fit this with the other pics a few posts back but its a better colored pic of the same wires:



[vapestachio]

Yup gonna go with the larger side of the smaller wires for now

Sent from my Z970 using Tapatalk



[raymo2u]

Clapton are best with thinner outer wire but for starters try 32 ga or so. Hell my hands don't let me use smaller than 36... yet

sent from a dumb operated smartphone

I love Fused Claptons with the outer wrap smaller then 40g



[itsmenotyou]

I love Fused Claptons with the outer wrap smaller then 40g

Ass can't wait to be able to use that small shit lol

sent from a dumb operated smartphone



[vapestachio]

Newb ? Difference in fused and regular Clapton?

Sent from my Z970 using Tapatalk



[itsmenotyou]

Newb ? Difference in fused and regular Clapton?

Sent from my Z970 using Tapatalk

Fused is a two core Clapton

sent from a dumb operated smartphone



[vapestachio]

Cool thanks

Sent from my Z970 using Tapatalk



[raymo2u]

Newb ? Difference in fused and regular Clapton?

Sent from my Z970 using Tapatalk

Ramp up faster like a Parallel with the wicking properties claptons are known for



[vapestachio]

Thanks guys I'll stop hijacking the op's thread and lurkndrool for a while lol, maybe I'll get to post a pic soon

Sent from my Z970 using Tapatalk



[itsmenotyou]

Thanks guys I'll stop hijacking the op's thread and lurkndrool for a while lol, maybe I'll get to post a pic soon

Sent from my Z970 using Tapatalk

I don't mind. Anything that can help someone else out is always welcomed in my book

sent from a dumb operated smartphone



[raymo2u]

My Framed Fused Clapton Line Up:
Some of the Highest Gauges of Wire I have ever seen used on VapingUnderground...
Core: 2x26K/52N60 Fused Clapton, Framed with 22K and Wrapped in 40N80:


Core: 2x26K/54N60, Framed with 22K, Wrapped in 46N60:

A Different bigger version, didnt get a wire pic but sexy-nonetheless:



[itsmenotyou]

My Framed Fused Clapton Line Up:
Some of the Highest Gauges of Wire I have ever seen used on VapingUnderground...
2x26K 52N60 Fused Clapton, Framed with 22K and Wrapped in 40N80
View attachment 37025 View attachment 37026

2x26K 54N60, Framed with 22K, Wrapped in 46N60:
View attachment 37027 View attachment 37028

That 54 is mirror finish is it not
Beautiful builds man

sent from a dumb operated smartphone



[raymo2u]

That 54 is mirror finish is it not
Beautiful builds man

sent from a dumb operated smartphone

Even with a Magnifying Glass on a Swivel, it was hard to see it go on, you couldnt even tell it is a wrap unless you feel it.



[itsmenotyou]

2x28ga claptoned with 34 all kanthal

sent from a dumb operated smartphone



[CrazyChef]



[raymo2u]

View attachment 37072
View attachment 37073

Love 48g and up



[CrazyChef]

I was gonna go 50, but I I stuck with 44g because I wasn't sure how the 0.8x0.1 ribbon was gonna act when I went to coil it.



[raymo2u]

I was gonna go 50, but I I stuck with 44g because I wasn't sure how the 0.8x0.1 ribbon was gonna act when I went to coil it.

Next time before you wrap it try flattening it slightly, not to make the wire flat but to make it so it can be wrapped without it waring



[CrazyChef]

Next time before you wrap it try flattening it slightly

The ribbon is vertical. That would kill the Clapton wrap.



[raymo2u]

r

The ribbon is vertical. That would kill the Clapton wrap.

Right, I wasnt thinking it was vertical when typing....same goes for the other thread...



[itsmenotyou]

Need to get a macro lense soon. But here's my attempt with 28/36 Clapton on a swivel

sent from a dumb operated smartphone



[itsmenotyou]

2x22n80/32n80

gettin ready to install her

sent from a dumb operated smartphone



[itsmenotyou]

24/34 fused claptons not so pretty at the end of the wire but shit happens

sent from a dumb operated smartphone



[CrazyChef]

10x0.5K, framed with 2x26K, wrapped with 26N



[itsmenotyou]

10x0.5K, framed with 2x26K, wrapped with 26N

View attachment 37231

You know you want to post a video of you making this for us

sent from a dumb operated smartphone



[CrazyChef]

I can't - no camera. My phone is too awkward to try and make a video with.



[itsmenotyou]

I can't - no camera. My phone is too awkward to try and make a video with.

Well damn! You make some beautiful builds would love to see how you do it.

sent from a dumb operated smartphone



[itsmenotyou]

The start of something new (i hope)
Edited for pics

sent from a dumb operated smartphone



[raymo2u]

The start of something new (i hope)
Edited for pics

sent from a dumb operated smartphone

The start of a Boneyard Coil...Could do spaced clapton wrap for a variant....



[itsmenotyou]

The start of a Boneyard Coil...Could do spaced clapton wrap for a variant....

Was trying to thread 36 ga threw the "holes" In the boneyard for a variant but my spacing sucked

sent from a dumb operated smartphone



[raymo2u]

Was trying to thread 36 ga threw the "holes" In the boneyard for a variant but my spacing sucked

sent from a dumb operated smartphone

Could file out the inner holes and then thread it but it would make it harder to wrap without breaking it, I twisted 34g in with my 2x24g Boneyard...



[itsmenotyou]

Here we go! Now just got to thread the 34 (36 does break to easily) threw the otherway to make it how I want it

sent from a dumb operated smartphone



[itsmenotyou]

Well threading it back didn't work well so I ended up with

sent from a dumb operated smartphone



[raymo2u]

Well threading it back didn't work well so I ended up with

sent from a dumb operated smartphone

This can happen if the middle wraps are not as tight as the outer wraps or vice versa.
Take not how much closer of farther you need the twists to be to make them line up even next time, make sure you take some pliers and pull on each end with some decent force while holding the other end, it will tighten it up and if you can get them aligned then if you have a torched you can torch them to get them to hold in that position afterwards. You could also if your going to toss it try getting it on a smaller bit and tighten it around it, it may get them to line up.
