you guys keep talking amps.
i only know watts.
so, please answer in watts.
in one 2 battery mod, i vape up to 45 watts for a certain flavor.
i should not use 30qs for this?
the rest are 40 watts or under.
This is an excerpt of an explanation I placed on my old blog
Ok, im pretty sure that if you’ve gotten to this point you have a basic idea on what some of the vaping terms and acronyms. But let’s get these out of the way.
Watts- a unit of measurement in electronics to indicate applied power
Volts- a unit of measurement in electronics to indicate pressure applied to current to create power
Resistance- a unit of measurement in electronics to indicate resistance
amperage- a unit of measurement in electronics to indicate current flow
Ohms Law
I have written about ohms law more times than I care to say, however, I am going to try my best to simplify this as much as possible.

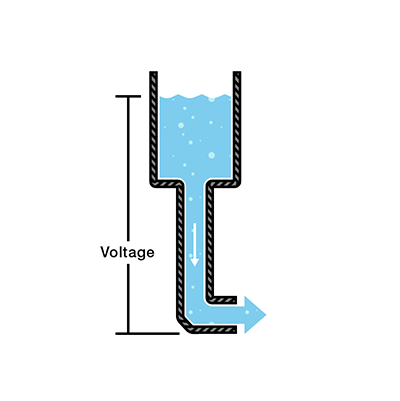

Think of a circuit as a hose. The water flowing through the hose is the electricity or current(amps). The pressure pushing the water is the voltage. Now pinch the hose. Pinching the hose is adding Resistance. The pressure building up is voltage and the current flow has now decreased because you applied resistance.
Now if you take that Voltage or pressure and Multiply it by the Current or Amperage you are given your power or wattage measurement.
The problem comes in when you have a 20a battery but are trying to force it to give you more current than it has to offer.
All 4 parts that make a circuit happen are happening in conjunction with each other and as an added note to the beauty of it, whatever energy is put in must be equal to the energy coming out. What this means is that all you need are two bits of information to determine the others.
Ohms law is basically the relation of those bits of information. If you multiply the resistance applied by the current you are then given your voltage or force applied.
For ease of use the forumulas are
V=IR and P=VI
when:
V= voltage
I=current (amps)
P=power (watts)
R= resistance(ohms)
Why does ohms law matter? Batteries!
Why do you see some of us harp on ohms law? Because batteries. A battery is a limited space to hold energy. This means that we have to work within our limits. You don’t want to overdraw on your batteries. If you do bad things can happen, such as venting a battery or causing a battery to explode.
Make sure you use a battery with a 20 amp limit, meaning that If we assume the voltage after the spike from charging to be between 3.7 and 3.8 volts then the most we want to push the battery is about 75watts with a 0.18 ohm load at best. I try and preach that we stick with 20A batteries from known manufacturers. This essentially narrows down to four.
Samsung 25r, Sony vtc4 AND vtc5, and LGhe4.
What if my mod takes two batteries? In the even that your mod uses multiple batteires, use batteries purchased together from the same manufacturer and keep them together. We call that “married pairs” when one stops working replace them both.
.
