If you use 2 x 30g/38g and stage it with 22g it lines up perfectly even...Like the one below, its appealing and very functional.
Become a Patron!
Post your builds
- Thread starter Vape_geek
- Start date

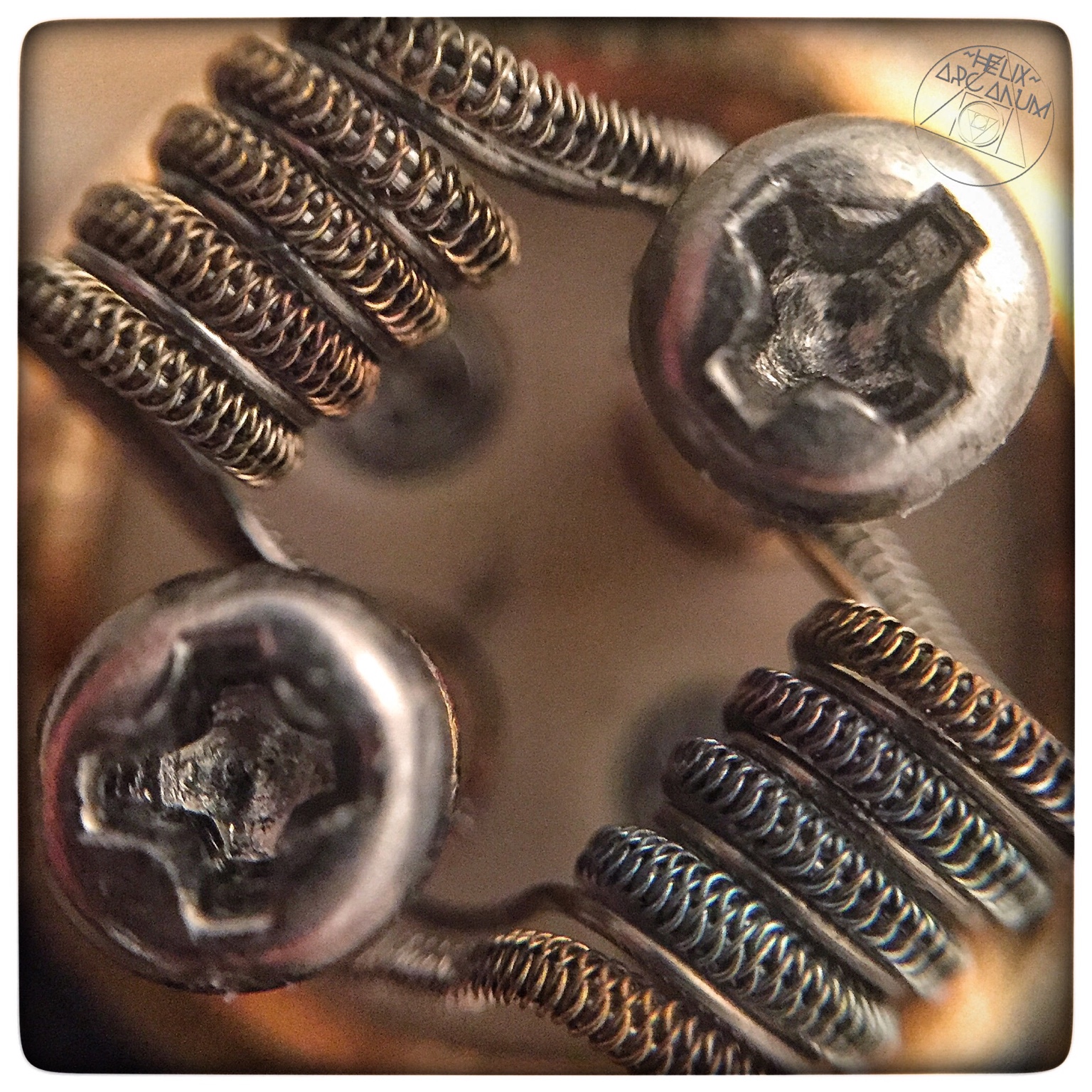

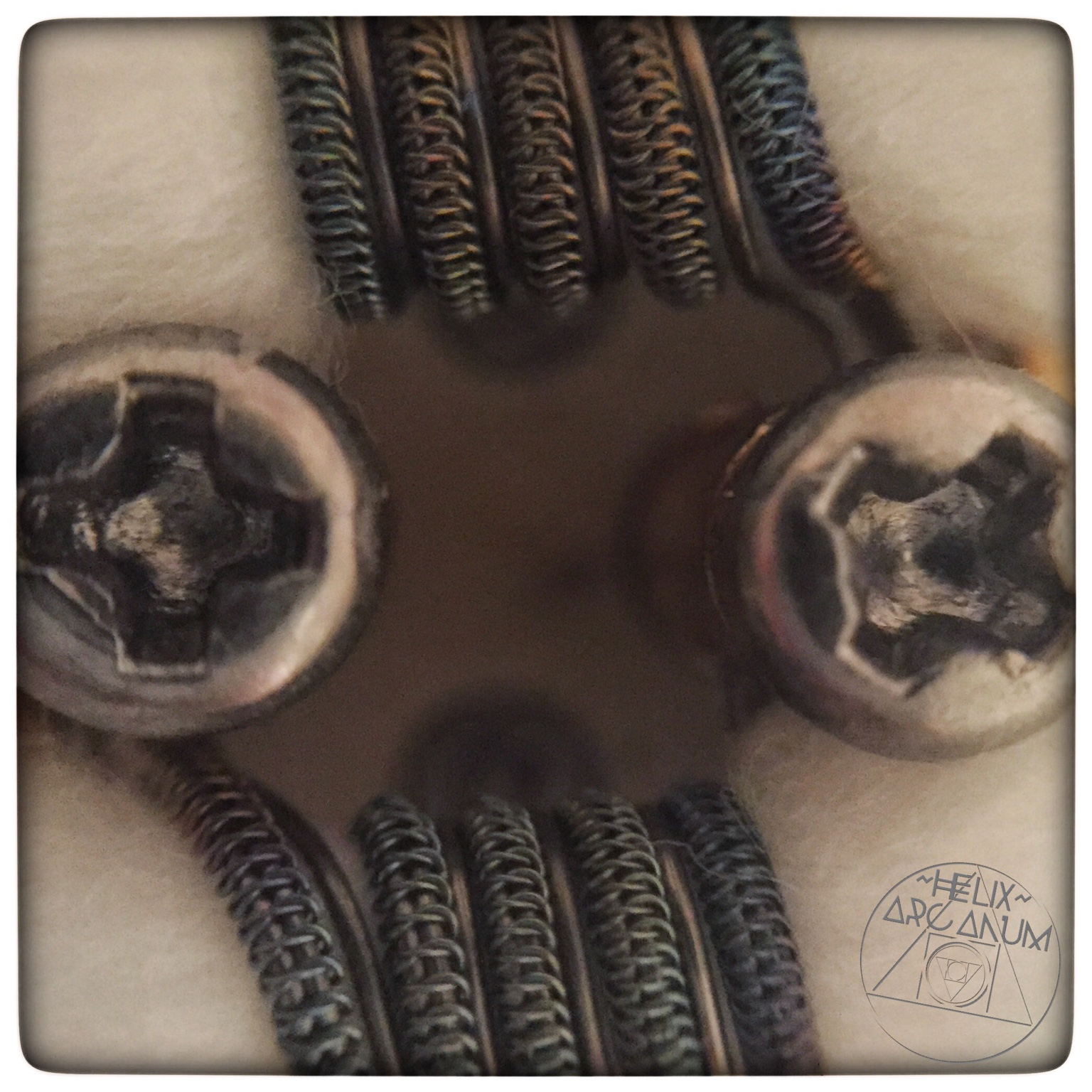

28/36/38 Dual core stitched aliens w/ 26KA1 in parallel. This build certainly renewed my hatred for 36g Aliens. That being said, i wanted to build something in my original dotmod to run on a single 18650 mech, so i gave these a whirl. They came in at .15Ω. They perform quite well, almost identically to staggered fused claptons. For some reason 36g just likes to fight me on every level. As soon as i go up to 38 the aliens just build themselves for me, so i had a heck of a time with these. This was only my second time trying the stitched aliens, and my first try with the dual core variation, not sure if i'll attempt this exact build again, perhaps as a series build at some point. Great vape though. Cheers!
CrazyChef
Custom Hand Crafted Coils - PureCoils.com
VU Vendor
VU Donator
Platinum Contributor
Member For 4 Years
ECF Refugee
I needed to hit a certain resistance level and this was the best fit.
CrazyChef
Custom Hand Crafted Coils - PureCoils.com
VU Vendor
VU Donator
Platinum Contributor
Member For 4 Years
ECF Refugee

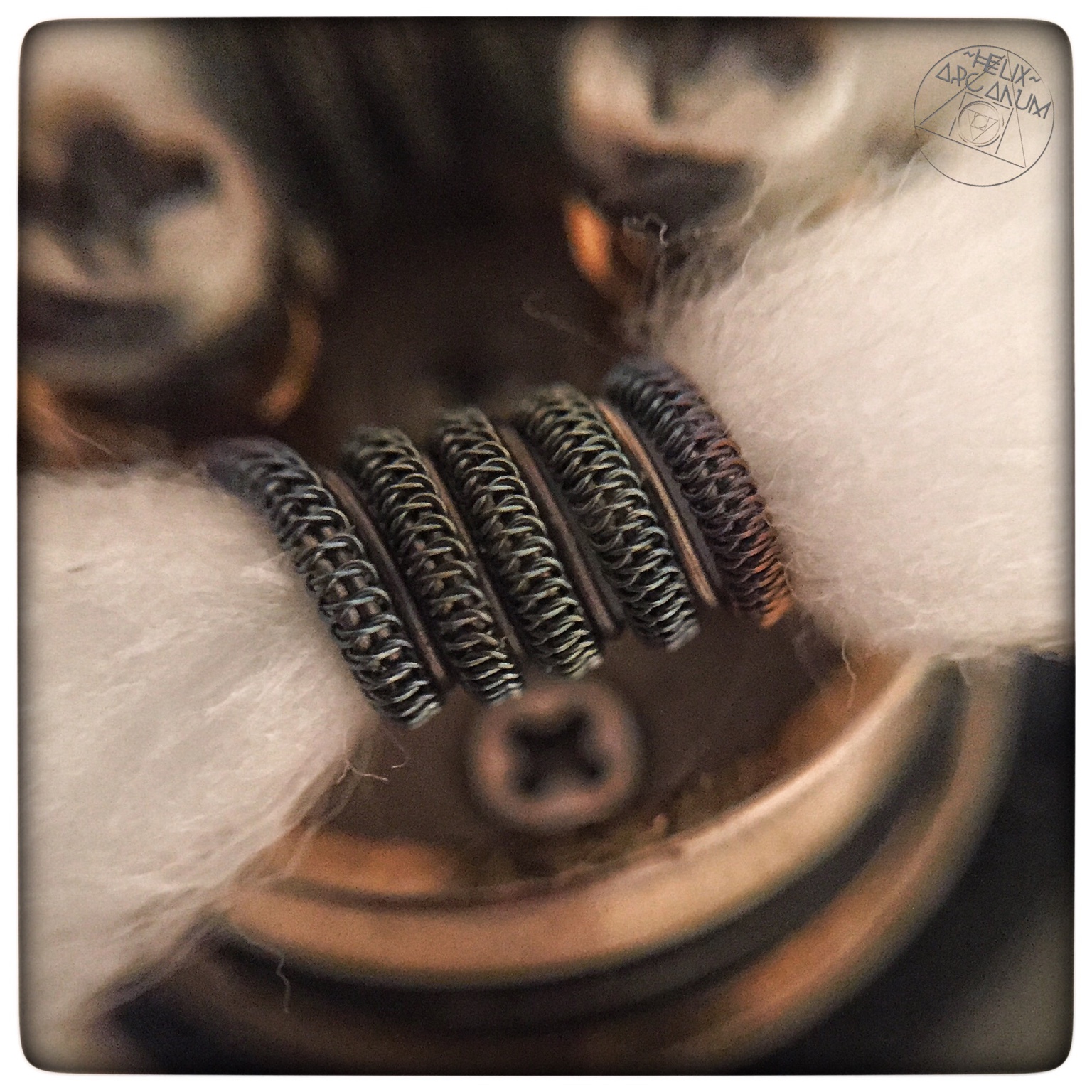

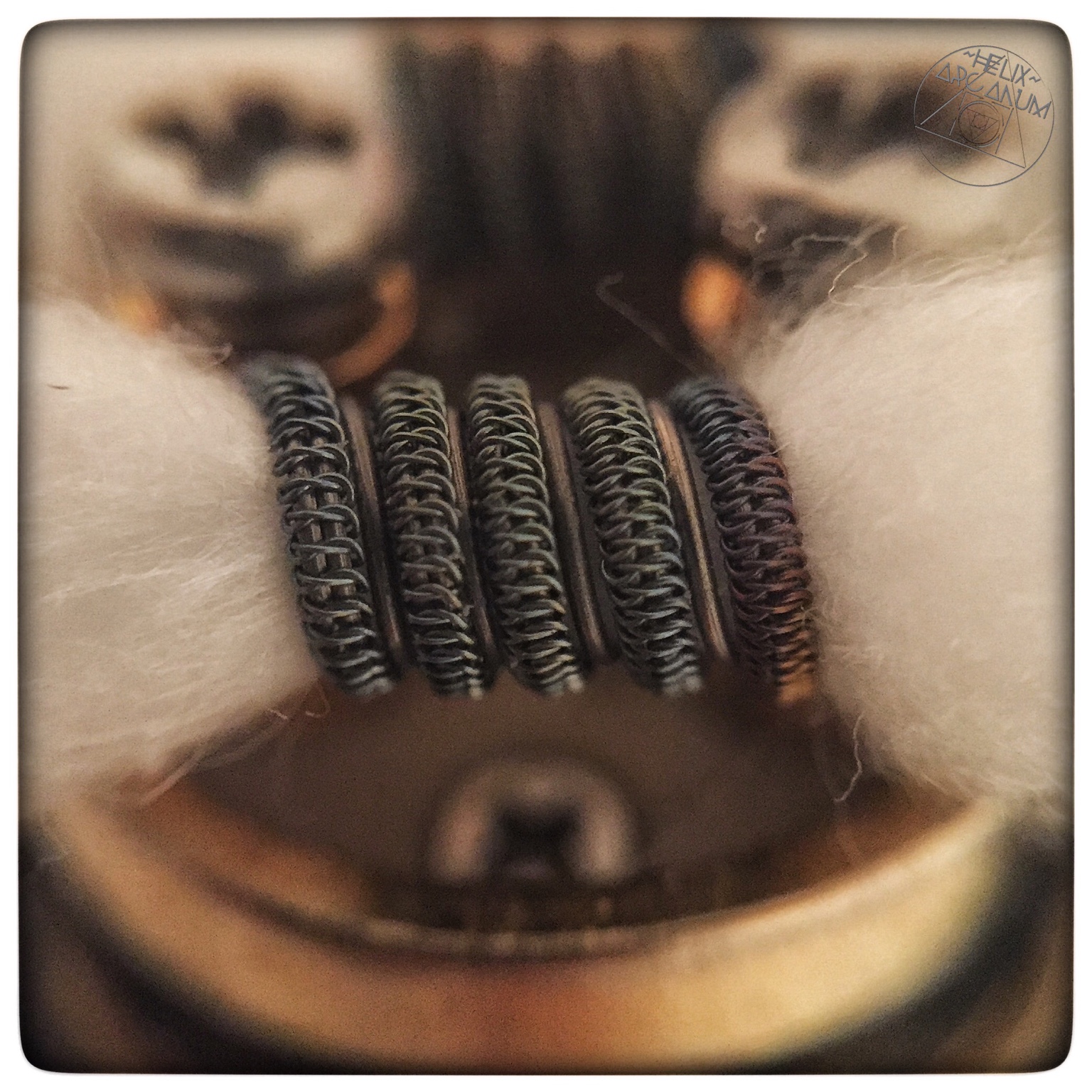

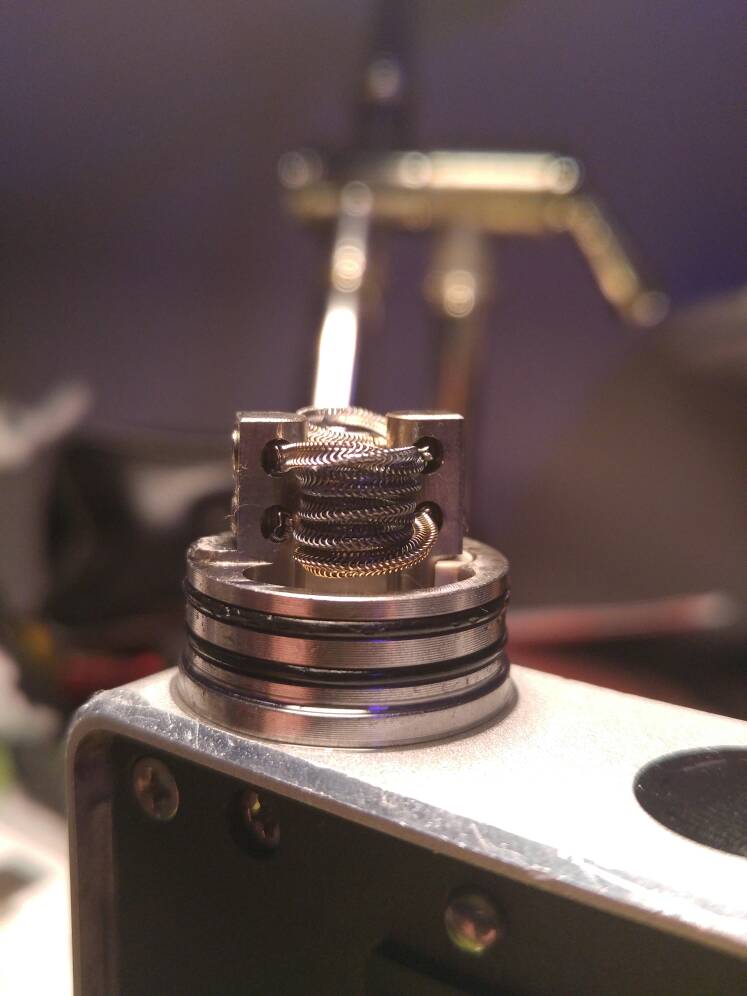

Stitched and framed alien staple coil. I can't remember if I posted this before or not, so I'll put it here.
6 ply 0.5 KA1 ribbon, 2x26N80 frames, 36N80 Alien binding, 38N80 stitch, 0.13Ω
6 ply 0.5 KA1 ribbon, 2x26N80 frames, 36N80 Alien binding, 38N80 stitch, 0.13Ω
Last edited:
Whats the frame?Stitched and framed alien staple coil. I can't remember if I posted this before or not, so I'll put it here.
6 ply 0.5 KA1 ribbon, 2xN80 frames, 36N80 Alien binding, 38N80 stitch, 0.13ΩView attachment 40374
View attachment 40375
View attachment 40376
View attachment 40377
Sent from my LG-H811 using Tapatalk
Im gonna hunt you down and throttle you!
seriously tho, 26?Sent from my LG-H811 using Tapatalk
CrazyChef
Custom Hand Crafted Coils - PureCoils.com
VU Vendor
VU Donator
Platinum Contributor
Member For 4 Years
ECF Refugee
It just says 2xN80...
Seriously, though - it's in the post, and you also quoted it. 26g N80.
Sent from my LG-H811 using Tapatalk
He is blind sometimes...its his age growing on him
Just giving you shit...I think its my turn anyhowHey, I ain't no spring chicken...!
Sorry, dude - yes, they're 26 gauge. Got to edit that right now.
No prob... I tried some 5x.5 core twisted 26 frame 33 helix earlier but it came out horrible. Think im gonna make some of those later, i like doing aliens it helps keep me the right amount of crazyHey, I ain't no spring chicken...!
Sorry, dude - yes, they're 26 gauge. Got to edit that right now.
Sent from my LG-H811 using Tapatalk
CrazyChef
Custom Hand Crafted Coils - PureCoils.com
VU Vendor
VU Donator
Platinum Contributor
Member For 4 Years
ECF Refugee
I love that!
I was actually building the dual core stitched when you were writing this haha
itsmenotyou
Gold Contributor
Member For 4 Years
Member For 3 Years
Member For 2 Years
Member For 1 Year

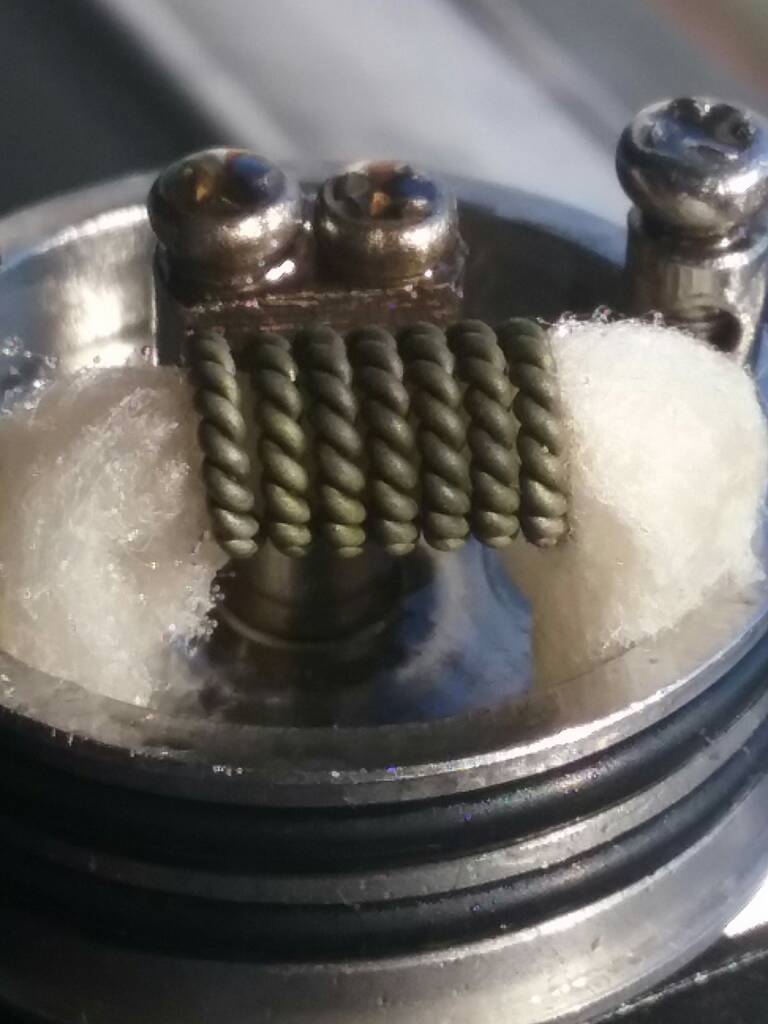

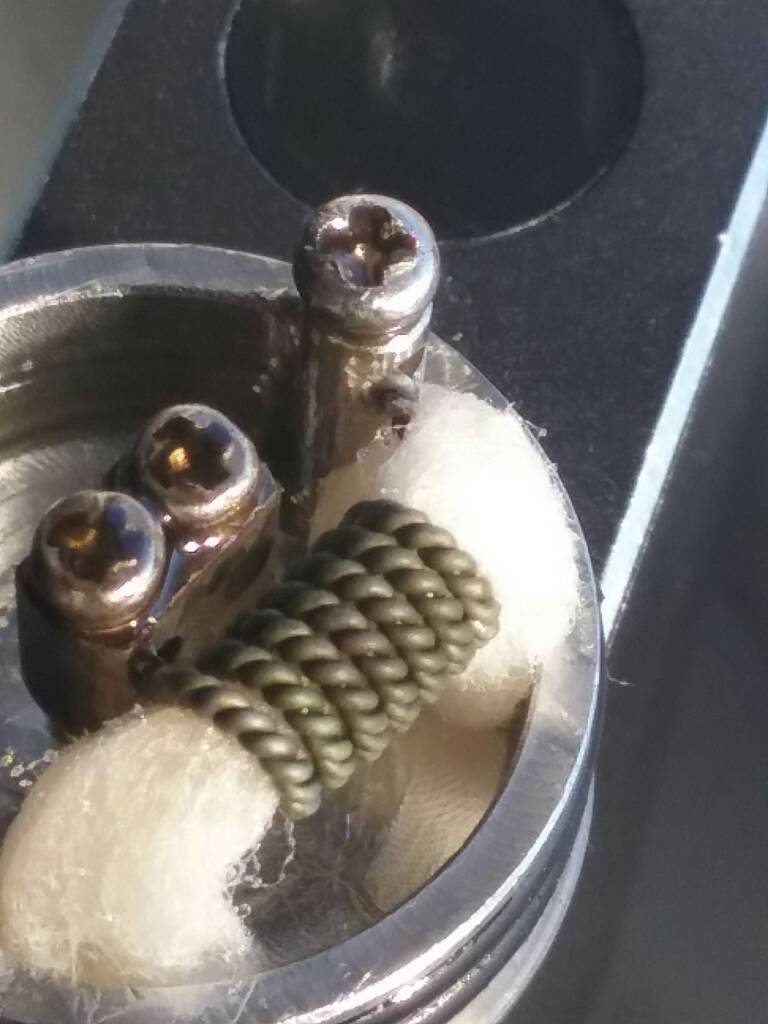

Twisted 22 ga single coil 3mm .31Ohm I wanted something that would give better battery life then my go-to fused claptons
sent from a dumb operated smartphone
sent from a dumb operated smartphone
I also did a Single Coil last night! Same shit Ive been doing all week..Twisted 22 ga single coil 3mm .31Ohm I wanted something that would give better battery life then my go-to fused claptons
sent from a dumb operated smartphone
2 x 22K/32N80 Polished Cat Track, Staged with Polished 22K (4/3 Wraps/4mm ID .19 Ohms @ 115w)
itsmenotyou
Gold Contributor
Member For 4 Years
Member For 3 Years
Member For 2 Years
Member For 1 Year
How hard is cattrack wire to make? I haven't seen anything about it other then what's been posted here but I haven't looked either lol
sent from a dumb operated smartphone
Its a fused clapton, thats hammered and then scrubbed clean and rinsed. It does not sound like alot of work but it is....
How my routine goes for them.
I crank out a 2ft length of 2x22/30g-32g Fused Clapton. I grab my Hammer and My Wrench I flatten wire with and Hammer every peice of the wire length both sides and check over the wire to make sure its all hammered and flattened evenly. I give it a rinse and then I start the polishing treatment with 2000 grit and then 3000 grit. After the polishing is done I use a toothbrush to scrub them with Dawn soap and rinse them again. Then I wrap a coil or 2....
itsmenotyou
Gold Contributor
Member For 4 Years
Member For 3 Years
Member For 2 Years
Member For 1 Year
I know hammering out wire sucks bigones. Thanks for the info on them lol
sent from a dumb operated smartphone
CrazyChef
Custom Hand Crafted Coils - PureCoils.com
VU Vendor
VU Donator
Platinum Contributor
Member For 4 Years
ECF Refugee
I prefer to make the multi-strand Caterpillar tracks like in the TM video above. The juice flow is much better
itsmenotyou
Gold Contributor
Member For 4 Years
Member For 3 Years
Member For 2 Years
Member For 1 Year
Ahh fuck you man lmao. Now I gotta harder process to do!
sent from a dumb operated smartphone
CrazyChef
Custom Hand Crafted Coils - PureCoils.com
VU Vendor
VU Donator
Platinum Contributor
Member For 4 Years
ECF Refugee
It's worth it, trust me. There's a huge difference in both flavor and vapor production than the FC version. Plus, the tracks are much more even, and you can make them as wide as you want.
I didnt have enough thinner wire for multicore....I only have about a 1ft left of 22K and gauges higher then 36g.....Monday Ill have all the wires Im missing in. I wanted to try a 5-8 Core with 32 and 24 for the outer wrap....I want to not be able to see the inner cores and have the outer wire be more flattened across. Like TM's in this pic:
itsmenotyou
Gold Contributor
Member For 4 Years
Member For 3 Years
Member For 2 Years
Member For 1 Year
That dudes an artist though lol i don't see how some of these builders get and keep such clean buildsI didnt have enough thinner wire for multicore....I only have about a 1ft left of 22K and gauges higher then 36g.....Monday Ill have all the wires Im missing in. I wanted to try a 5-8 Core with 32 and 24 for the outer wrap....I want to not be able to see the inner cores and have the outer wire be more flattened across. Like TM's in this pic:
sent from a dumb operated smartphone
Practice, attention to detail, and persistence.
only 45 mins if you watch at 2X speed! sounds silly but really you get used to it quick and saves a ton of time (it's how I watch any guide, I'll slow down if it's an issue for a certain part then speed up again).Cat Track and then Polishing Tuts, thanks @KapitalJ
Its about 1.5 hours worth of work for 2 coils...and thats if you dont smash your fingers to the point they dont function
Thats just the time watching the video, I meant actually building the coils and polishing them takes 1.5 hours for 2 coils...you only get to go as fast as you can without messing up..
CrazyChef
Custom Hand Crafted Coils - PureCoils.com
VU Vendor
VU Donator
Platinum Contributor
Member For 4 Years
ECF Refugee

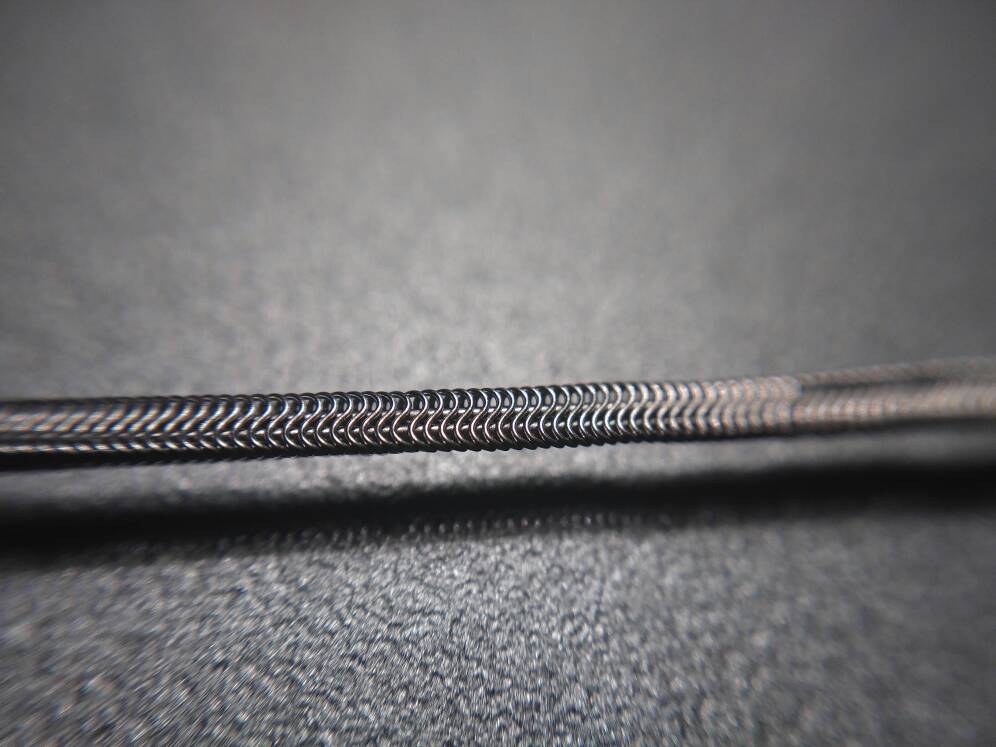

This pic is nowhere near as nice as the ones made by Ken, by they're still a pretty good vape. I have to make some framed Caterpillar track wire for a customer (he wants to make his own coils) later on today. It's gonna be a whopper at 30x34K cores, 2x22K frames and 34K binding. About 18 inches long.
Last edited:
Ahh, my bad. Misread that. Either way, it's a nice way to watch guides.

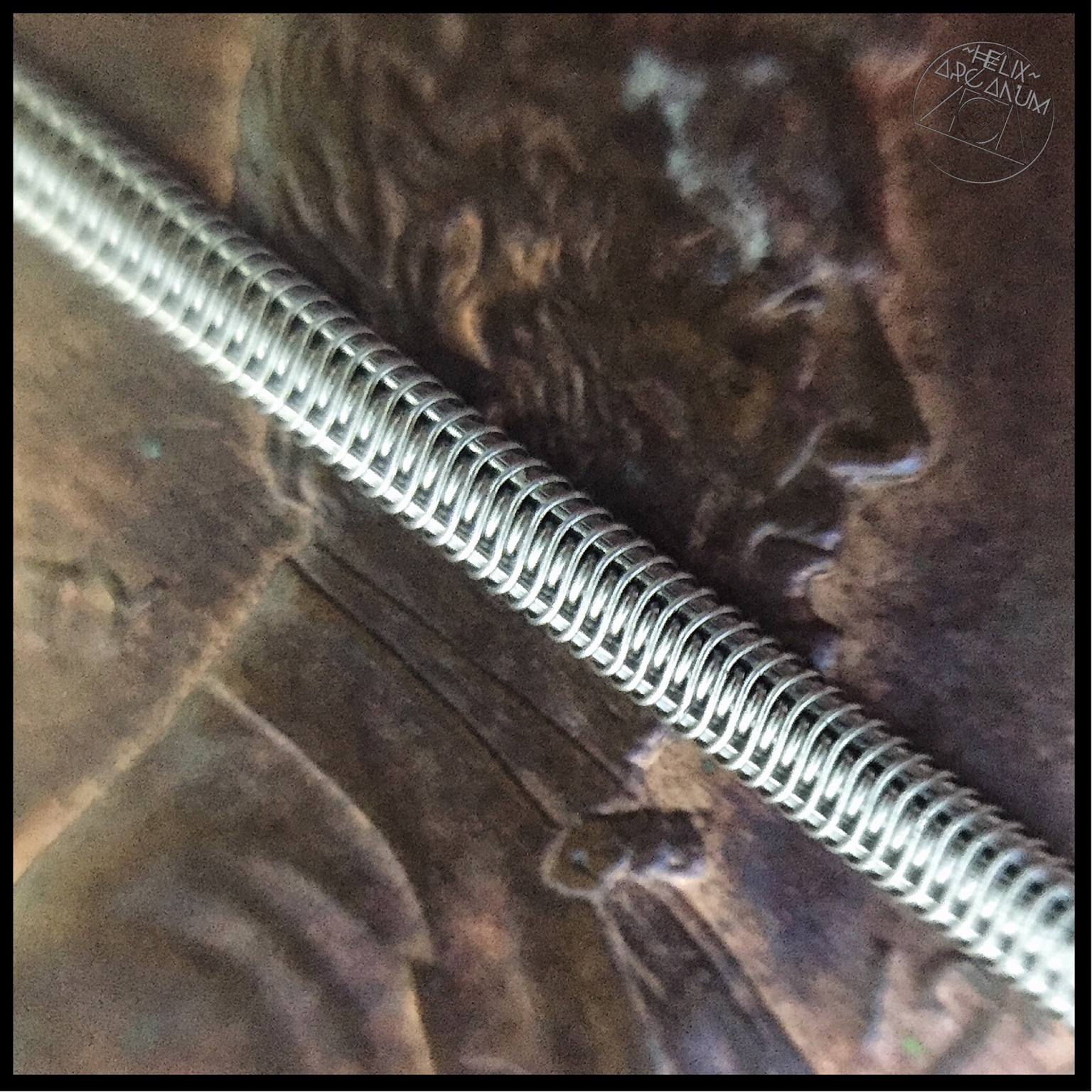

So close.......with a lil' more drill time i'll have this sunofabitch down lol. 28//36//38g staggered center-core alien
What was the issue? They look clean
So close.......with a lil' more drill time i'll have this sunofabitch down lol. 28//36//38g staggered center-core alien
Sent from my LG-H811 using Tapatalk
Looks like it could be used to strap down bridges
So close.......with a lil' more drill time i'll have this sunofabitch down lol. 28//36//38g staggered center-core alien
It looks fucking sick man!
Made a decent build for my new atty.

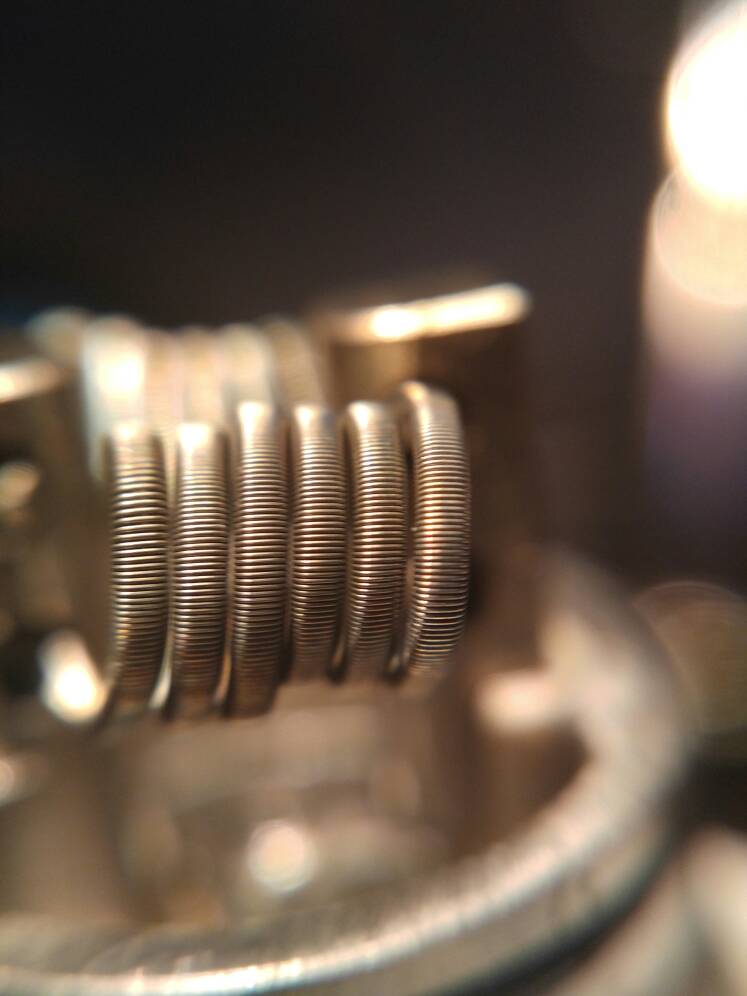

26/30 fused clapton wraped in 28.
Defintly a high powered build. I originally made the same build in n90 fogwire core 32 wrap. But its resistance was .03...... aparently when they say low resistance they mean it. Then i went to recreate it all in kanthal but ran out of 32 halfway down the wire so i had to switch to 30. I need more wire.....
26/30 fused clapton wraped in 28.
Defintly a high powered build. I originally made the same build in n90 fogwire core 32 wrap. But its resistance was .03...... aparently when they say low resistance they mean it. Then i went to recreate it all in kanthal but ran out of 32 halfway down the wire so i had to switch to 30. I need more wire.....
The issue was that i only got enough to cover the penny lol
Haha, thanks man!Looks like it could be used to strap down bridges
Ah. But that's a heluva start! Havent been feeling the build bug lately just building basic claptons to send out to friends (very relaxing) might add this to the try pile
Sent from my LG-H811 using Tapatalk
Got some three core aliens built. Decided, "let's put them in the velocity vertically"
They didn't work. I'd put that into more words but the adult beverages are on board...
settled for FCs. Oh well.
Matt
They didn't work. I'd put that into more words but the adult beverages are on board...
settled for FCs. Oh well.
Matt
I want to make some braided aliens like that chief. Maybe I'll try tonight.
Matt
Matt
I want to see some 54g Alien Framed Staples...That person I would bow to.
Oh, sure, let me get right on it for ya Ray!
I wish I could build even a FC with 50!!!! You could do it Ray! 54g isn't anything to you!Matt
Ive done it a couple times and its such a pain in the ass I really havent even bothered with it since..I play alot with the higher 40's like 46/48 but 50/52/54 Isnt really all that jazz like I once thought of about it...Wrapping the FC's with it was more difficult then any other Fused and some Staple builds Ive done but I couldnt imagine the pain in the ass it would be to decore and stretch it without breaking it and then wrap some aliens with it...FUCK THAT SHIT!Oh, sure, let me get right on it for ya Ray!
Matt
I did a Framed Fused Claptn with 54g though..
Core FC: 2x26K/54N60, Framed in 22K, Wrapped in 46N60
Can you even pick out the details in the Core Fused Clapton Outer Wrap??
My god it looks almost solid.... God damn!!!!
Matt
Matt
Well thats how my shoulder, arms and back felt after I finally got about a foot of wire made for that core fused clapton...you think 38g-44g takes a long time to fused with? Multiply that by exponential amounts of time....per inch!
I can imagine. It takes me a bit longer with 38...
Matt
Matt
Hey Ray...when using 3 cores for aliens how do you keep the alien wrap from creating that sort of "triangle" wrap around the cores?
Matt
