You'd be impressed with yourselves if you pushed yourselves more often, you will find that the limitations you had for yourself were never meant to be...
Well done man
Become a Patron!
Post your builds
- Thread starter Vape_geek
- Start date
Well done man
I did this last night, worked okay but the drill gets hot! Pretty sure @raymo2u mentioned in a video that he killed a drill like this lol
How’d you stagger? Loop, para, eyeball?
Looks sooo cool I gotta try this!
Tsuka Fralien in the Recurve RSA. Kinda hot!
Sent from my SM-G965U using Tapatalk
Awesome. Twisted ribbon looks like girders to me sometimes.

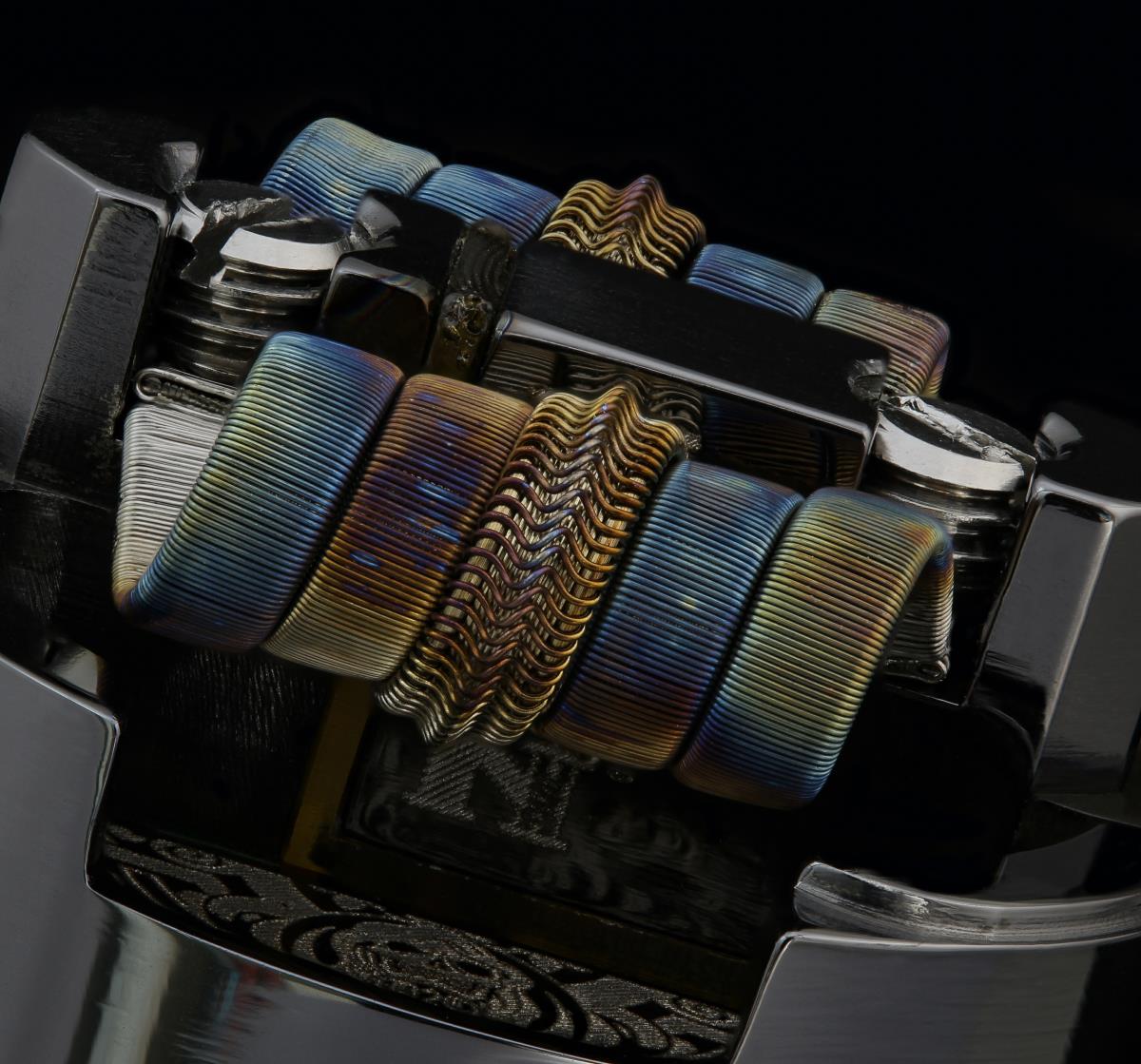

50g Super Staggerton
4ply .3R Staggered Stacks, 3ply .3R Core and 28g Frames....all binded and tied together with some 50g
Awesome. Consistency is the most impressive part, looks like an axonometric illustration rather than a photo
Well my main form of stagging is ussually force fusing. But you cant rly force fuse ribbon. And I've tried to loop with 40 before but the edge on the ribbon always breaks the loop (even with lube). SO I went ahead and just parafused.
https://www.instagram.com/p/BoJsRzWDy7c/?taken-by=the_hat_trix
Is this really the right way to tricore aliens to act i just don't get it they so loud and spitting everywhere. That's why i don't like to use them
Is this really the right way to tricore aliens to act i just don't get it they so loud and spitting everywhere. That's why i don't like to use them
https://www.instagram.com/p/BoJsRzWDy7c/?taken-by=the_hat_trix
Is this really the right way to tricore aliens to act i just don't get it they so loud and spitting everywhere. That's why i don't like to use them
What's your wattage at? Is it 5 wraps? Could do 6 wraps or turn the power down a notch or three
Yeah i know they just do that always not as hard at low wattage but it's not grate vape with low wattage. Aliens supposed to be vaped at 80-140w range for most part. I'm just not satisfied with aliens never been and it's seems like i'm the only one and it's driving me crazy
5 wrap aliens are most popular ones to i just don't get it... Even tried multiple ID's 2.5 up to 3.5. They sound like super angry cat and spit a lot to
Huge parallel aliens in the death trap!
How's the vape?A set of dual Indented Alien coils... I dig building these lol
Sent from my SM-G965U using Tapatalk
Sent from my LM-Q610(FGN) using Tapatalk
Just like an alien without the spitting lol. And as a bonus; only having 2 cores makes the resistance easier for mechs!
Sent from my SM-G965U using Tapatalk
They are honestly IMO the best vaping coil I've tried except a Fralien. But my mechs don't like Fraliens mostly.
Sent from my SM-G965U using Tapatalk
Meg, my bifocals barely get along with 40g much less 52g lmao! Best of luck with it. I'm sticking around in the 36-40 clubhouse lol
Sent from my SM-G965U using Tapatalk
A set of dual Indented Alien coils... I dig building these lol
Sent from my SM-G965U using Tapatalk
Okay I’m definitely trying these tomorrow lol
Made my biggest alien yet, 8x30g/36g.
All SS316l, 3.5 wraps 3.8mm id, 0.14 ohms.
20g decore for super swoosh.
All SS316l, 3.5 wraps 3.8mm id, 0.14 ohms.
20g decore for super swoosh.
lovely
what are the specs? hows it vape? i have a similar build in my deathtrap, but its always felt like its a bit small at 4mm. been meaning to try something else in that...for months
@WPMac @VAPEROXX whats the trick for the indent?
lovely
@WPMac @VAPEROXX whats the trick for the indent?
Two 4x28/36 aliens, 2.5 wraps around an 8mm screwdriver. About .13 ohms I think. I was vaping at about 150 watts, 200w burned my lip lol. It’s an okay vape but takes forever too cool down. It revs up slow and then just keeps hissing after you let go of the fire.
Edit: all ss316l
Last edited:
Don't take my word for it as I've never done one but I believe it's either a 3 or 4 core alien that's had the middle core(s) removed. That's how it looks anywaylovely
@WPMac @VAPEROXX whats the trick for the indent?
Sent from my MI MAX 2 using Tapatalk
I did a Framed Staple Alien and removed the ribbon cores. Then stamp the indent.
Sent from my SM-G965U using Tapatalk
Oh right :/ I was along the lines. Might have to give this a try myself
Sent from my MI MAX 2 using Tapatalk
Just a simple set of 4 core aliens. Nothing fancy. Setup in the modfather RTA (Clone). Still trying to find a decent mech build for this to go on top of the cartel 26650 Clone I purchased along with it. Anyone got any pointers on a hotter, quicker ramp up vape? Or even the best 26650 for mech?
Sent from my MI MAX 2 using Tapatalk
Sent from my MI MAX 2 using Tapatalk
Just a simple set of 4 core aliens. Nothing fancy. Setup in the modfather RTA (Clone). Still trying to find a decent mech build for this to go on top of the cartel 26650 Clone I purchased along with it. Anyone got any pointers on a hotter, quicker ramp up vape? Or even the best 26650 for mech?
Sent from my MI MAX 2 using Tapatalk
I think @mach1ne knows your plight, here, very well
Hope he's got some pointers for me lol. Quickest ramp up I've had to now is plain 3 core aliens, all ss316l, 28g cores but it wasn't warm enough for me. The search will continue though haha
Sent from my MI MAX 2 using Tapatalk
i have been experimenting with 30mm atomizers on single battery mechs a lot this year. the ijoy 26650 is the way to go (or it was the last time i looked). the challenge (imo) is efficiency. most of my 30mm atomizers are tanks that work best with larger builds, and i like to try to balance it out so i can get at least one tank-full of juice out of one battery charge cycle.
my 'the tank'/chi you megan combo has 3x27 n80 aliens in it, at 5.5 3.5mm wraps its .15 ohms and it can do a 5ml tank on one battery. ramp up is not as instant as a smaller set of coils at the same resistance, but its a nice mellow vape in 'the tank' and i really like it.
i just posted an alien framed staple build a couple days ago on the aromamizer plus for 21700 tube and it sucked. ramp up was so slow that it killed efficiency and it took almost two batteries to finish 5ml tank. i replaced it with a framed multistrand alien with 2x28 n80/13 x 42 ss316/40 n80 at 4.5 4mm wraps it comes to almost .2 ohms. it can do a whole tank on one charge, ramps up quite a bit faster than the last build, but still a tiny bit slow/cool for me. they are good, but not great.. im gonna try it with maybe 20 x 42 ss316 next time, or maybe with 27 n80 frames. either change should bring it down to closer to .15 without adding a ton of mass. hopefully the extra few watts makes them light up better and doesnt kill efficiency.

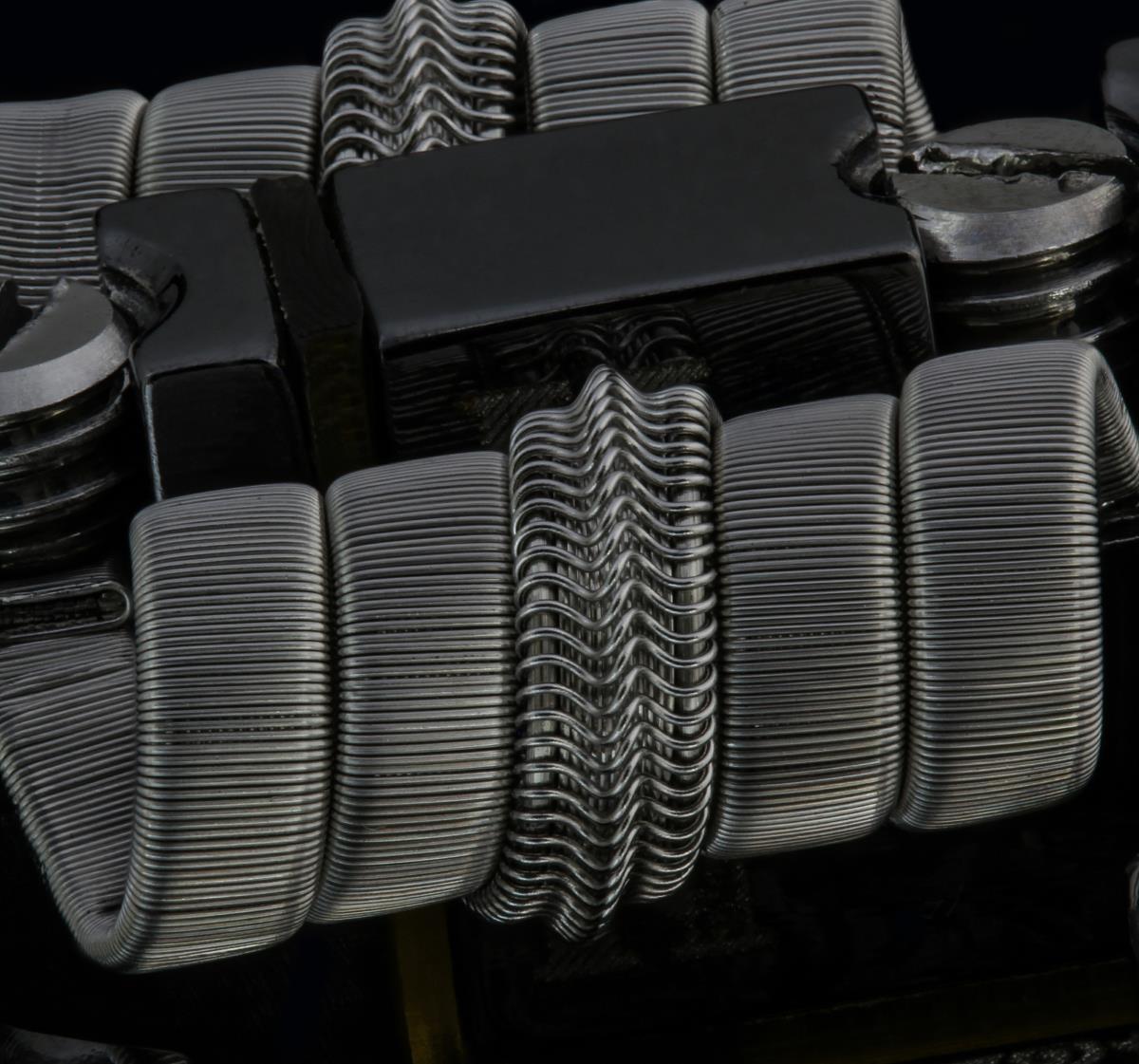

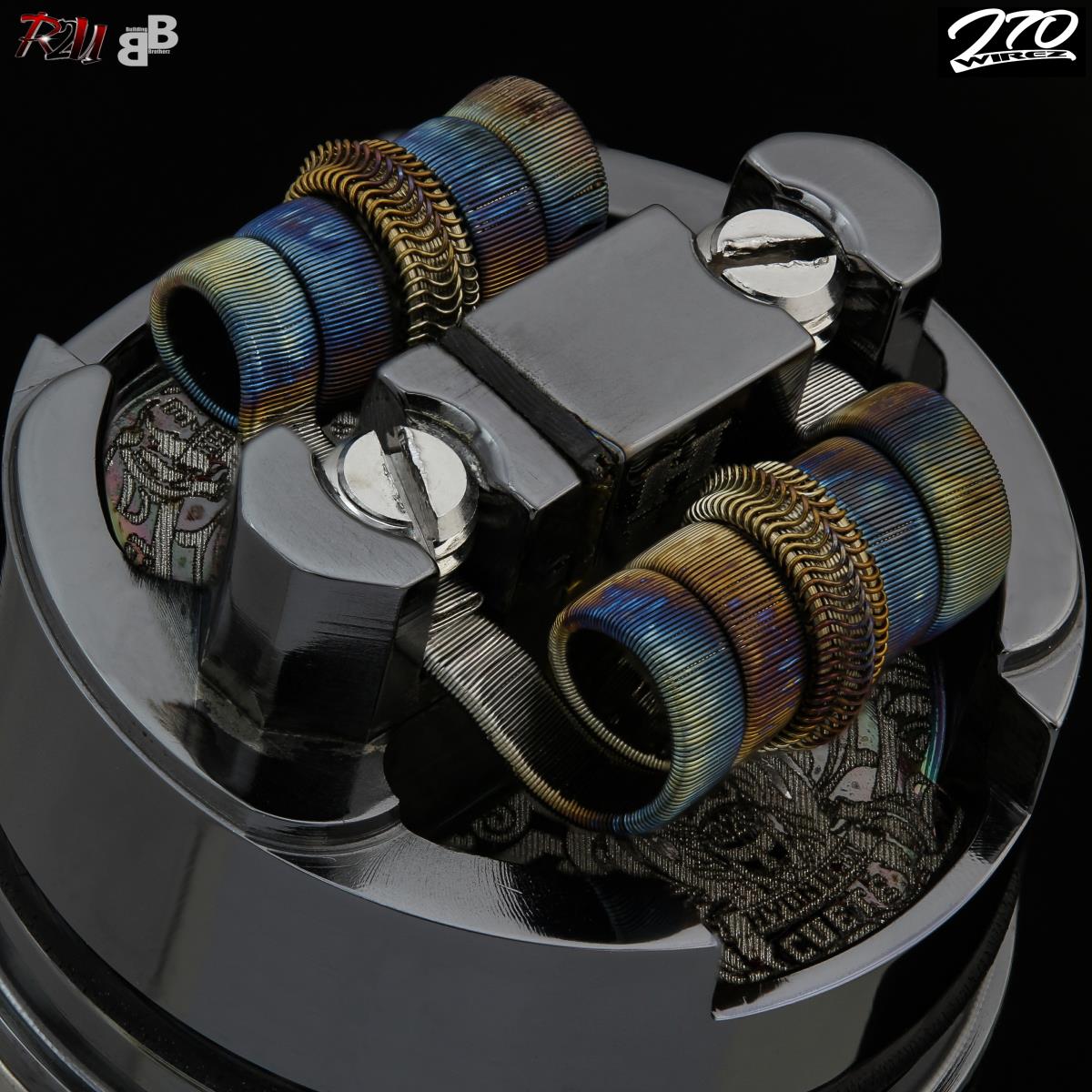

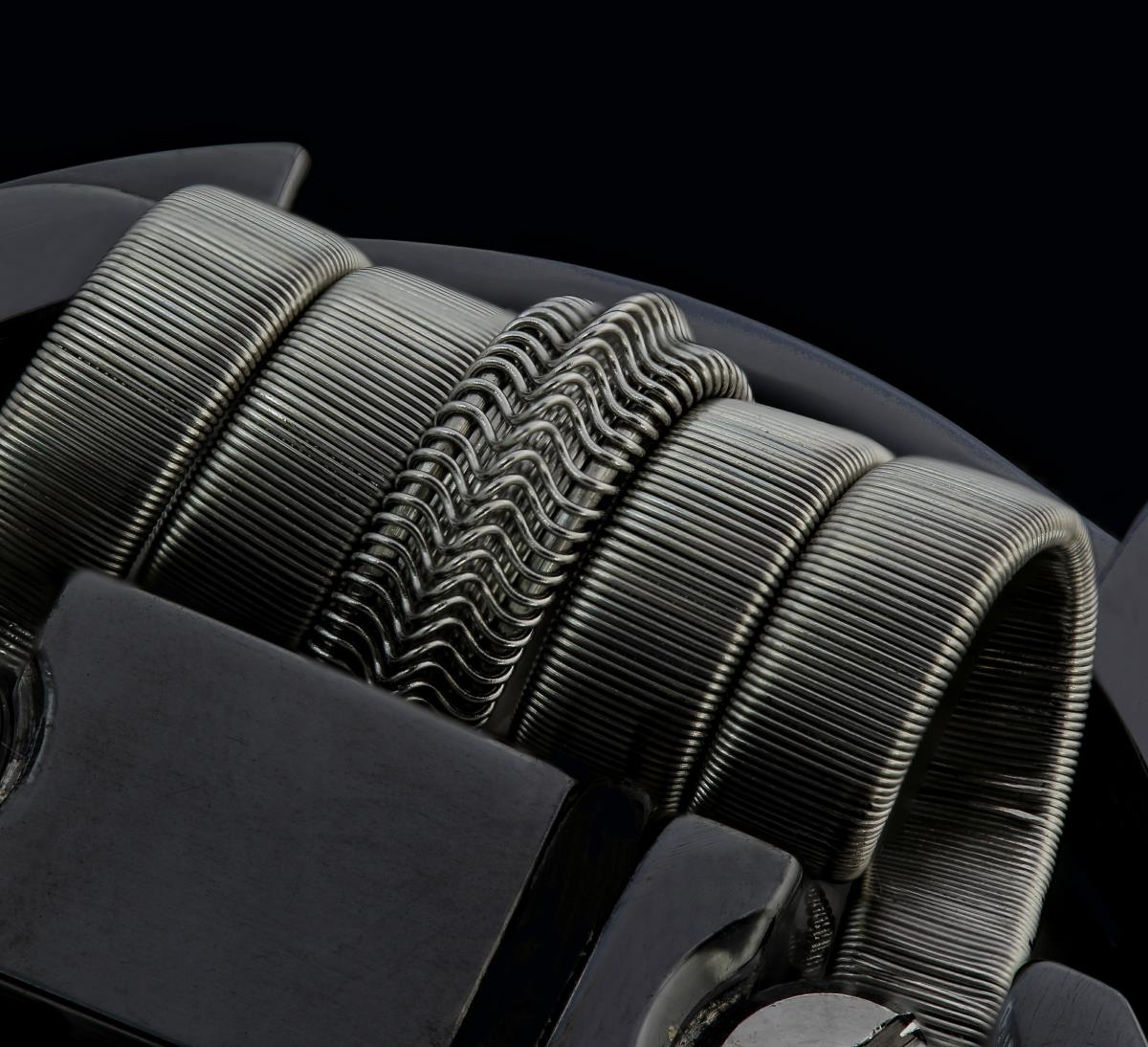

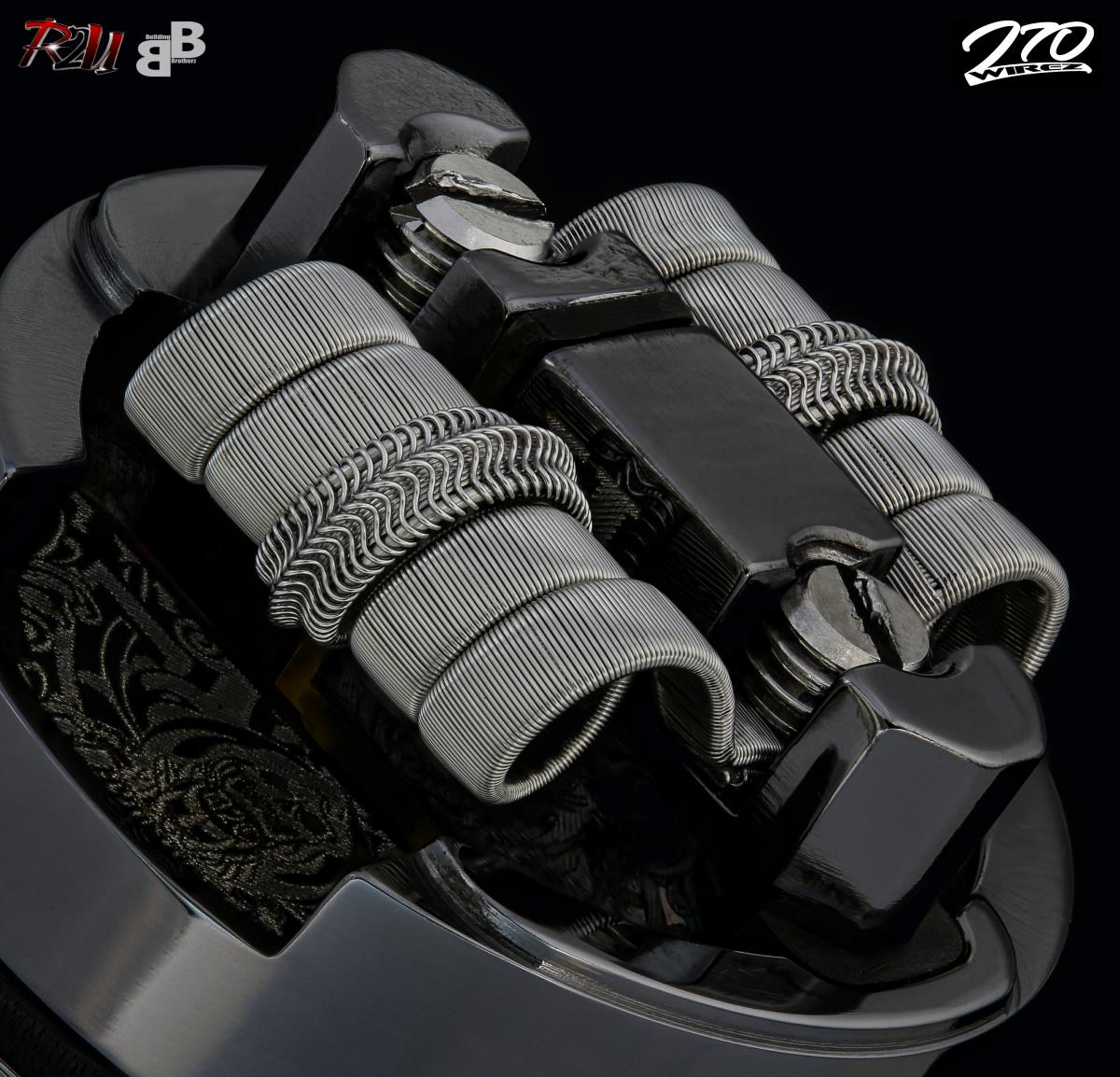

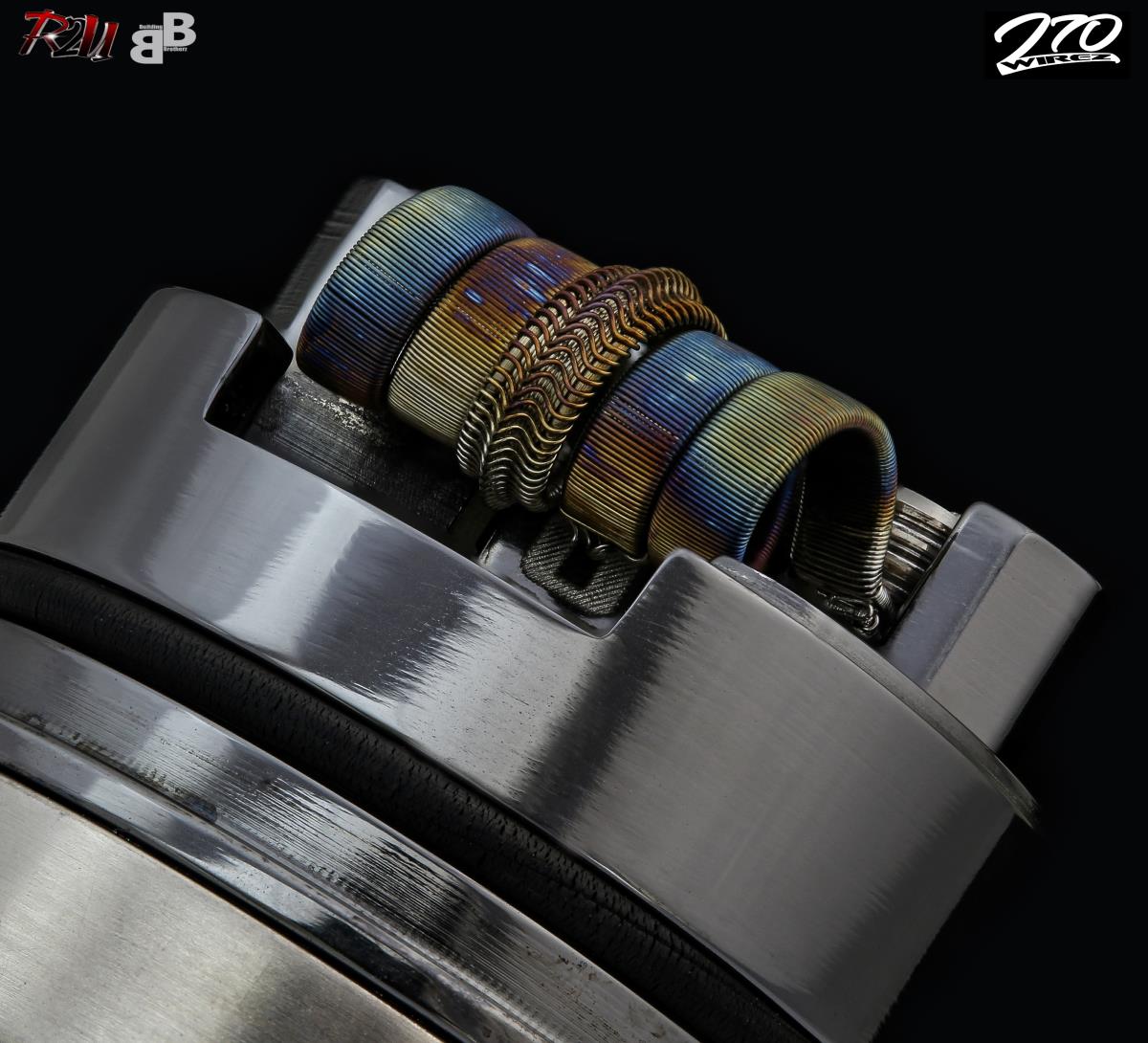

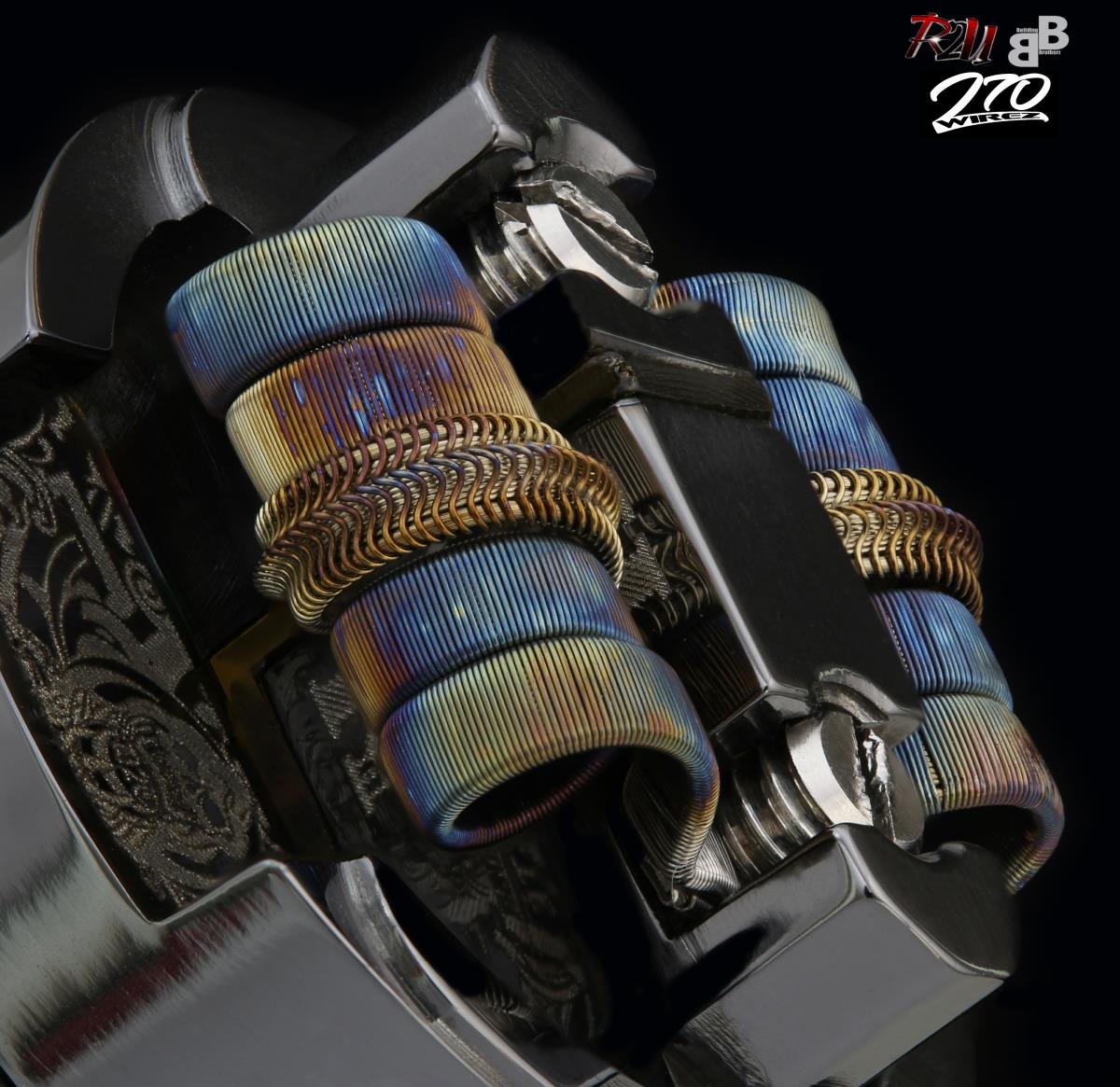

Some Hybrids I tossed into the Cuete' RDA
10ply .3R + 28g/40g and 38g
Call it overreacting if you want to I don't care but that, to me, is mind boggling. How on earth do you do that? My hats off to all of you in here that can do such as the builds I see in here. Really. I haven't even tried to do a simple clapton yet. This to me is like Jeff Dunham and Peanut ... Yeaoooowwww!!! Over my head.
Thanks for the insight there @mach1nei have been experimenting with 30mm atomizers on single battery mechs a lot this year. the ijoy 26650 is the way to go (or it was the last time i looked). the challenge (imo) is efficiency. most of my 30mm atomizers are tanks that work best with larger builds, and i like to try to balance it out so i can get at least one tank-full of juice out of one battery charge cycle.
my 'the tank'/chi you megan combo has 3x27 n80 aliens in it, at 5.5 3.5mm wraps its .15 ohms and it can do a 5ml tank on one battery. ramp up is not as instant as a smaller set of coils at the same resistance, but its a nice mellow vape in 'the tank' and i really like it.
i just posted an alien framed staple build a couple days ago on the aromamizer plus for 21700 tube and it sucked. ramp up was so slow that it killed efficiency and it took almost two batteries to finish 5ml tank. i replaced it with a framed multistrand alien with 2x28 n80/13 x 42 ss316/40 n80 at 4.5 4mm wraps it comes to almost .2 ohms. it can do a whole tank on one charge, ramps up quite a bit faster than the last build, but still a tiny bit slow/cool for me. they are good, but not great.. im gonna try it with maybe 20 x 42 ss316 next time, or maybe with 27 n80 frames. either change should bring it down to closer to .15 without adding a ton of mass. hopefully the extra few watts makes them light up better and doesnt kill efficiency.
a fair bit to think about but I think I will try out the ijoy batteries to start with and try either finer gauge core wires or more of them, or even a mix of metals to see if that helps. Haven't been an avid user of mechs really so this is still kind of new ground for me, trying to find a build to hit a wattage range for a particular atomiser so your vape experience is satisfying. I mean the builds are quite decent on my captain pd270 and the tank itself has been my routine user for a few weeks now, I just think it looks the mutts nuts on the cartel, even if it is a Clone Sent from my MI MAX 2 using Tapatalk
another thing to consider is that most of the 26650 stuff is 'old', and often not as efficient as current stuff. i have a notorious 26650 clone with such bad v drop (right out of the box, brand new), that i thought my build sucked, my batteries were getting old etc. i started testing the build on other mods, and other atomizers on the notorious, and i found that the build and battery were fine, and that nothing worked well on the notorious. i dunno if its the design (the switch/contacts/threading/ 510 etc) showing its age compared to more modern hardware, or if its just a really bad clone, but its virtually useless as a result.Thanks for the insight there @mach1nea fair bit to think about but I think I will try out the ijoy batteries to start with and try either finer gauge core wires or more of them, or even a mix of metals to see if that helps. Haven't been an avid user of mechs really so this is still kind of new ground for me, trying to find a build to hit a wattage range for a particular atomiser so your vape experience is satisfying. I mean the builds are quite decent on my captain pd270 and the tank itself has been my routine user for a few weeks now, I just think it looks the mutts nuts on the cartel, even if it is a Clone
Sent from my MI MAX 2 using Tapatalk
i have a cartel clone too, but i have barely tried it out. i got it around the same time i got two of my 26650 'unicorn' mods and it got benched as a result. i should give it a try with 'the tank' and see how it feels compared to the chi you.
edit --- 'the tank' on the cartel boss clone feels fine. dunno if we have the same clone, but with some luck yours is gonna be fine too
Last edited:
Yes sir!!! Not just a pretty build. I am thoroughly enjoying mine as well. It may be my new "go to".Another Indented Alien coil in the Tobhino. Perfect for it being so small. A little cooler vape and no spitting!
Sent from my SM-G965U using Tapatalk
here is the multistrand framed alien i put in the aromamizer. its about to get replaced, and i didnt take a pic of it when i made it, so here is a quick unstacked/single pic of it..2x28n80/13x42ss316/40n80 4.5 4mm wraps .19 almost great on a single 21700
and heres a little set of aliens i made for a friend last night
and heres a little set of aliens i made for a friend last night
Alien stagg, 5x28g/36g. 3mm, 4.5 wraps.
NICE!!! I can't do these. I've put a good amount of time into trying to space by hand/eye. Just not something I can pull off.Alien stagg, 5x28g/36g. 3mm, 4.5 wraps.
great workAlien stagg, 5x28g/36g. 3mm, 4.5 wraps.
For those that want to try hybrids start off with something easy to get a grasp on whats going on.
Make a 3 core alien length but then remove (2) 1 inch sections about 6 inches away from each other, then clapton the bare wire. Clip off the ends of the wrap (alien and clapton) on the same side, this will be the "bittom" of the wire - inside of the coil.
It should look something like this afterwards:
On a 3mm Bit,1" is 2 Wraps, each wrap is .5". Its a great way to still use failed builds as long as you have 1" clean somewhere on your wire.
Ideas to try:
Make a 3 core alien length but then remove (2) 1 inch sections about 6 inches away from each other, then clapton the bare wire. Clip off the ends of the wrap (alien and clapton) on the same side, this will be the "bittom" of the wire - inside of the coil.
It should look something like this afterwards:
On a 3mm Bit,1" is 2 Wraps, each wrap is .5". Its a great way to still use failed builds as long as you have 1" clean somewhere on your wire.
Ideas to try:
