Kylin mini and 0.6ohm coil

A

Andrew553

Hey im new to this i just ordered Kylin mini and GeekVape N80 ( 30*3+38 AWG) Fused Clapton wire 4-5 wraps would give me 0.6ohms,will the kylin run good on 0.6ohms?It may sound stupid but im pretty new to this so i wanna know.
Thanks.

bx10r

bx10r

Platinum Contributor
Member For 4 Years
kokarj666 said:
Hey im new to this i just ordered Kylin mini and GeekVape N80 ( 30*3+38 AWG) Fused Clapton wire 4-5 wraps would give me 0.6ohms,will the kylin run good on 0.6ohms?It may sound stupid but im pretty new to this so i wanna know.
Thanks.
Click to expand...
Thats really low...imo
What mod? Itll prob cause a shutdown

Sent from my SM-G950U using Tapatalk

bx10r

bx10r

Platinum Contributor
Member For 4 Years

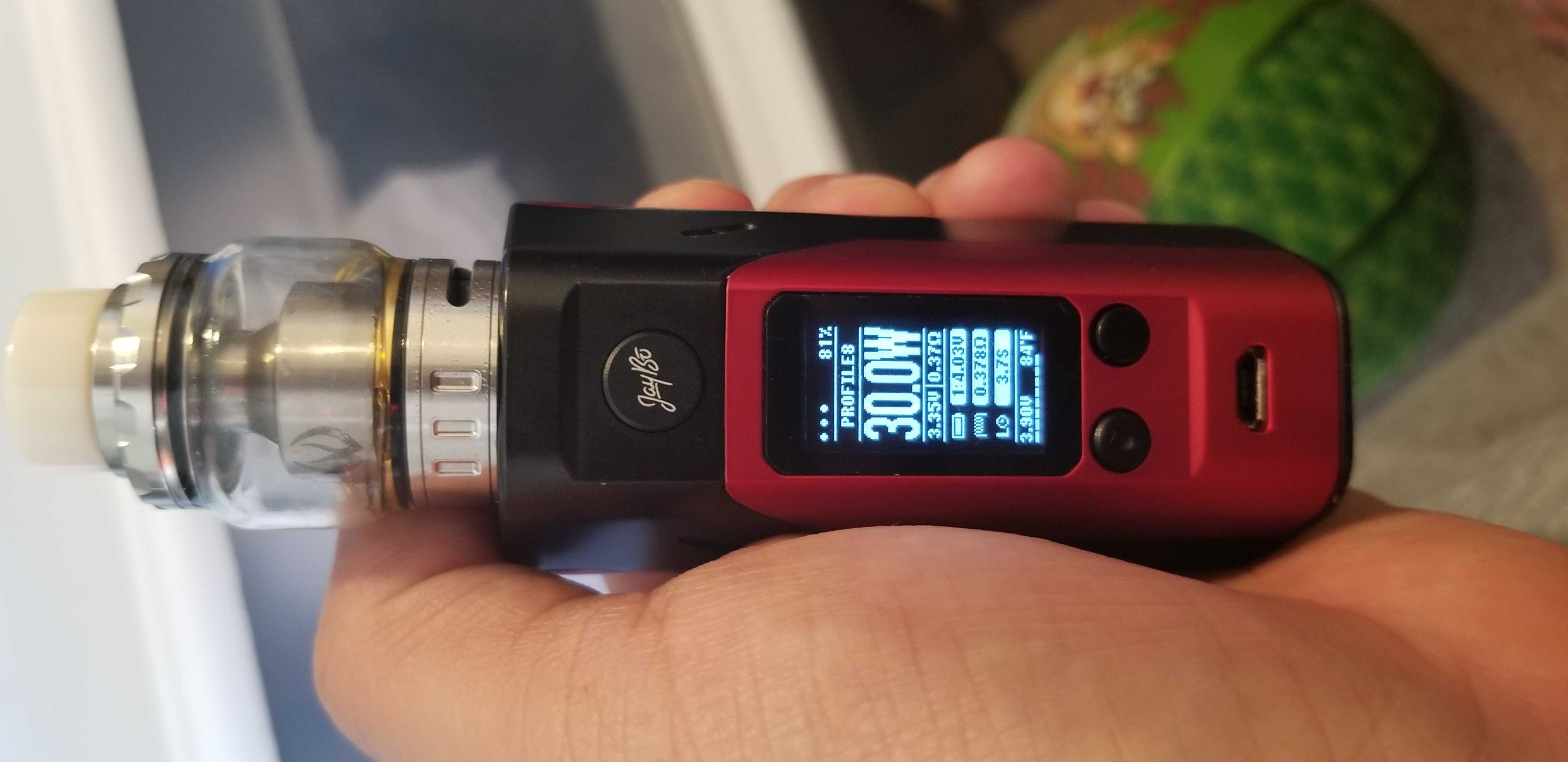

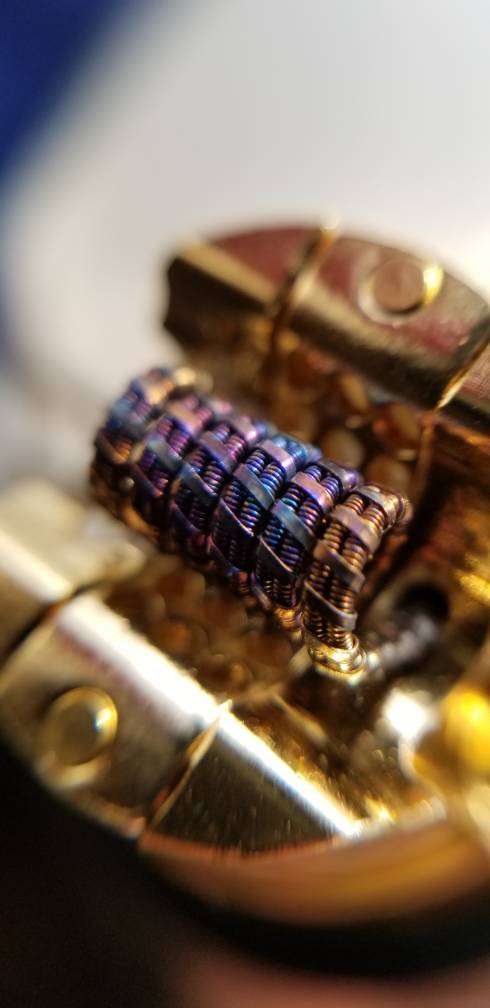

Kylin mini is single..is your calc set to single or dual coil? My mini is .37 and its a beast


Sent from my SM-G950U using Tapatalk

A

Andrew553

bx10r said:
N80 cores ss fuse and flat...i make my own though. U have a vape calc?

Sent from my SM-G950U using Tapatalk
Click to expand...
Yeah steam engine but 30*3+38 AWG confuses me so i dont know how to use it,i feel dumb by saying this..
btw will the ikuun to the job with the kylin also?

bx10r

bx10r

Platinum Contributor
Member For 4 Years

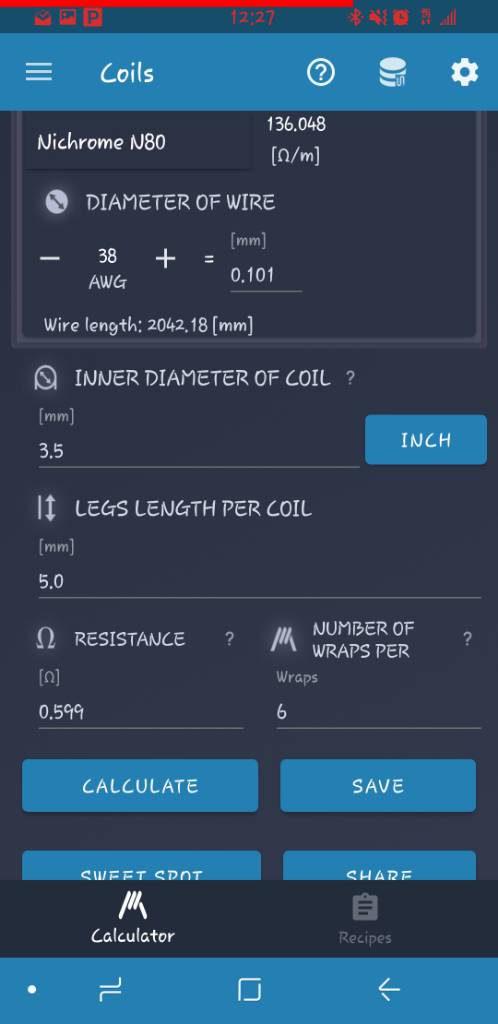

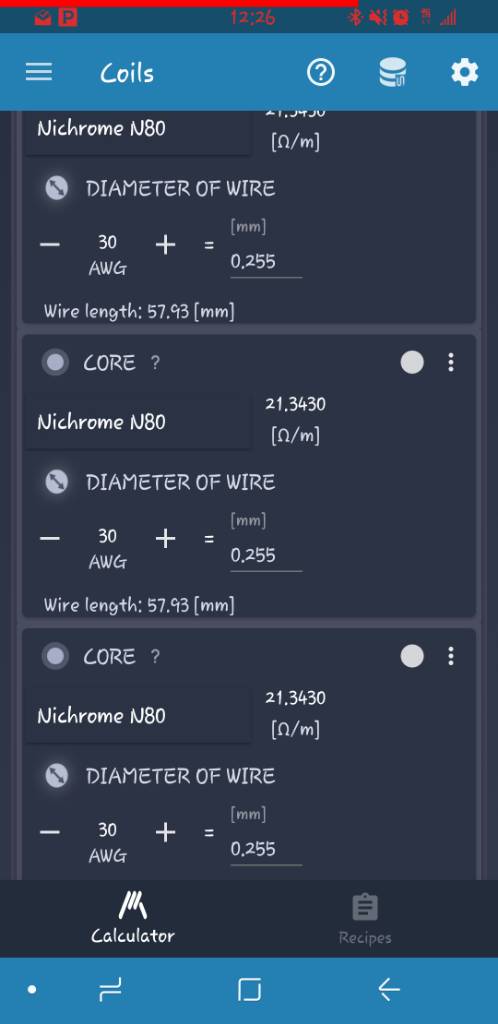

Sonethings wrong with your build..heres vape calcs result using your specs


Sent from my SM-G950U using Tapatalk

bx10r

bx10r

Platinum Contributor
Member For 4 Years
I see no reason why your mod wont run that rta

Sent from my SM-G950U using Tapatalk

A

Andrew553

bx10r said:
Sonethings wrong with your build..heres vape calcs result using your specs


Sent from my SM-G950U using Tapatalk
Click to expand...
Well i was told by a friend that hes getting 0.6ohms with 4-5 wraps i did not calculate anything,can i still make good build with this wire?or i have to order new one?atm i have GeekVape N80 Fused Clapton,im just waiting for the kylin mini to come.

bx10r

bx10r

Platinum Contributor
Member For 4 Years
No your good but im confused now...in the op u said .06 now u say .6
Two different worlds there...

Sent from my SM-G950U using Tapatalk

Vape Fan

Vape Fan

_evil twin_
Staff member
Senior Moderator
VU Donator
Platinum Contributor
Press Corps
Member For 5 Years
kokarj666 said:
Yeah steam engine but 30*3+38 AWG confuses me so i dont know how to use it,i feel dumb by saying this..
btw will the ikuun to the job with the kylin also?
Click to expand...
Steam engine wire wizard can be pretty straight forward.
You have 3 cores and a wrap.
Wire Builder:
Set to clapton, which is also used for alien.
Core:
You have more that 1 so setting this to parallel allows for 2 cores and then click the + to add 1.
Wires:
Set the type and size for your cores and wrap.
At top left of page under Coil Setup---
-For Kylin MIni I use 3id and find that's the sweet spot for me, for mounting and the amount of wick. I think that's a good place to start with this particular atty. 4mm leg length is good. 5 is a little high and 3 is too short. Then you can see how many wraps for the resistance you want. Hover your mouse over the 'wraps' field and it will tell you that for legs pointing in the same direction (as in the Mini) use 1/2 wraps.
5.5 wraps is a good length for the AF. If they are spaced a little that's ok too. And at bout .5Ω your 4600Mah mod will most likely last the day.

https://www.steam-engine.org/wirewiz.html

Wicking KM can be a toughy to learn. There's a fine line between great flavor, leaking, and dry hits. Stay with it and you'll be rewarded with it's performance. There's more than 1 way to wick it and here's a good place to start.
Vandy Vape Kylin Mini RTA Review by KingPin! (inc. wicking guide)

Have a look at your manual for mod specs. The atomizer doesn't care what coil you put in it. Firing it is all about the mod and batteries.
(Resistance range: 0.05-1.5ohm (TC modes)-------0.1-3.5ohm (VW mode) )

The Official Steam Engine Thread is a great place to get to know Steam Engine


Last edited:
A

Andrew553

Vape Fan said:
Steam engine wire wizard can be pretty straight forward.
You have 3 cores and a wrap.
Wire Builder:
Set to clapton, which is also used for alien.
Core:
You have more that 1 so setting this to parallel allows for 2 cores and then click the + to add 1.
Wires:
Set the type and size for your cores and wrap.
At top left of page under Coil Setup---
-For Kylin MIni I use 3id and find that's the sweet spot for me, for mounting and the amount of wick. I think that's a good place to start with this particular atty. 4mm leg length is good. 5 is a little high and 3 is too short. Then you can see how many wraps for the resistance you want. Hover your mouse over the 'wraps' field and it will tell you that for legs pointing in the same direction (as in the Mini) use 1/2 wraps.
5.5 wraps is a good length for the AF. If they are spaced a little that's ok too. And at bout .5Ω your 4600Mah mod will most likely last the day.
View attachment 129955

https://www.steam-engine.org/wirewiz.html

Wicking KM can be a toughy to learn. There's a fine line between great flavor, leaking, and dry hits. Stay with it and you'll be rewarded with it's performance. There's more than 1 way to wick it and here's a good place to start.
Vandy Vape Kylin Mini RTA Review by KingPin! (inc. wicking guide)

Have a look at your manual for mod specs. The atomizer doesn't care what coil you put in it. Firing it is all about the mod.
(Resistance range: 0.05-1.5ohm (TC modes)-------0.1-3.5ohm (VW mode) )

The Official Steam Engine Thread is a great place to get to know Steam Engine
Click to expand...
Thanks for the wicking guide,im pretty optimistic that i will do the wicking fine from 1 try watched like 100 guides :D,will update this topic when my kylin arrives.
