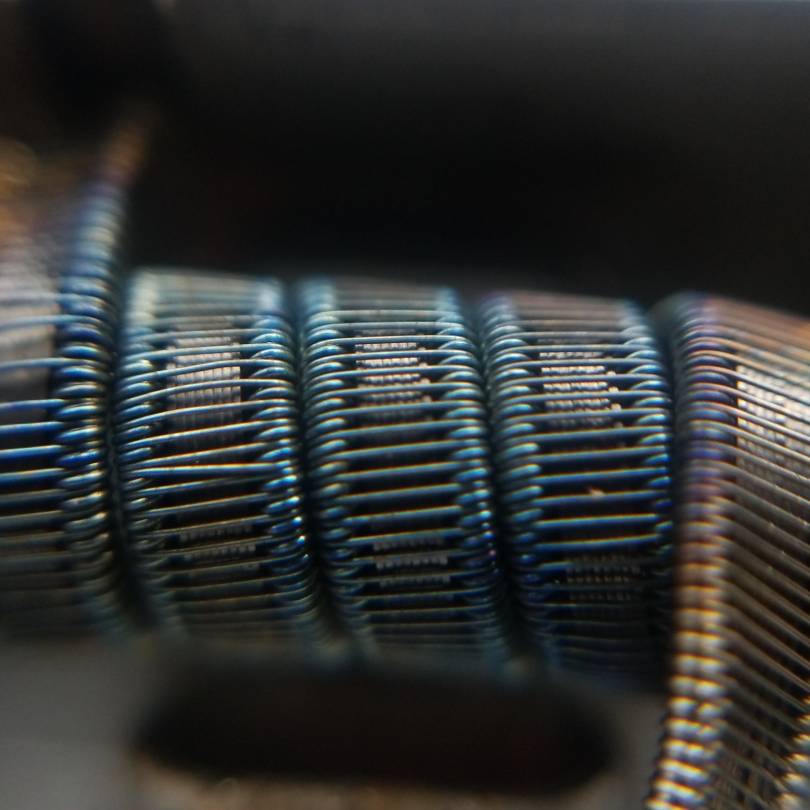

dual coil 6×30×38
that looks like a flapton.Cute little alien clapton
Sent from my SM-G935V using Tapatalk
Sent from my SM-G955U using Tapatalk
Premade vapefly "alien".. not super alien to me. But yeah flat core Clapton to me too. Lpl
Sent from my SM-G935V using Tapatalk
Sent from my SM-G935V using Tapatalk
BoostedTrini
Member For 4 Years
Got someone to take a much better photo than I can of one of the spec Alien Framed Staples I do.
6 ply of 0.3 x 0.1 ribbon, Framed with 30g and wrapped with 36g. All NI80, 3mm ID, 0.13 ohms a pair and vapes very nicely at 125-150w
6 ply of 0.3 x 0.1 ribbon, Framed with 30g and wrapped with 36g. All NI80, 3mm ID, 0.13 ohms a pair and vapes very nicely at 125-150w
danielabas
Member For 1 Year
I ordered some nichrome wire yesterday at your suggestion @Shredtravolta , so I can make any kindsa coils and get pretty, bright colors if i get bored
Last edited:
They look perfect. Really well done.
I prefer all N80 coils Meg. I'm an N80 maniac!
I prefer all N80 coils Meg. I'm an N80 maniac!
Had to edit my post, I meant make coils out of different wire types
Finally made more 46 spools,
got out my microscoop to try SS and temperature control, it works
2x30 ss /46k
Last edited:
I use N80 exclusively as well shred. well, occasionally I'll toss in random KA1 if I need the resistance up, but it's very very rare.I prefer all N80 coils Meg. I'm an N80 maniac!
Sent from my SM-G955U using Tapatalk
10x.3 + 29 SS / 46
Believe it or not...I used a hand drill for the final fusing and it didn't take very long at all (maybe 5 minutes) because I didn't have to back up, hand drill is great for this stuff
Believe it or not...I used a hand drill for the final fusing and it didn't take very long at all (maybe 5 minutes) because I didn't have to back up, hand drill is great for this stuff
Last edited:
I have GOT to remember to get a hand drill, I imagine fusing would be much easier on stagger variants with one.. btw, you've got the peglegerton (was that what was decided on as its name?? lol) down good..
Sent from my SM-G955U using Tapatalk
...and then I remembered why I said I'd do it in a little while. it was because my drill was dead and I needed to put the battery on charge. Apparently batteries dont charge if you forget to put them on the charger, who knew right?? so now I wait...
Sent from my SM-G955U using Tapatalk
Sent from my SM-G955U using Tapatalk
oh, peg, what do you attach your wrap wire to with the clamps?? I've been kinda snagging it into the mouth of the clamp after its closed, but it's kinda janky
Sent from my SM-G955U using Tapatalk
Sent from my SM-G955U using Tapatalk
I havent been using the clamps, but if I do I either poke it in beside the cores, or just tape it onto the clamp...I usually tape the wrap wire end to the drill
had a couple double fuses, need better lighting in my build area. All in all, came out pretty good. by far the best ssfc I've made.
Sent from my SM-G955U using Tapatalk
edit: oops.. 26g / 38g N80 framing 8*.4x.1 KA1 fused with 40g N80
Sent from my SM-G955U using Tapatalk
edit: oops.. 26g / 38g N80 framing 8*.4x.1 KA1 fused with 40g N80
had a couple double fuses, need better lighting in my build area. All in all, came out pretty good. by far the best ssfc I've made.
Sent from my SM-G955U using Tapatalk
edit: oops.. 26g / 38g N80 framing 10*.4x.1 KA1 fused with 40g N80
Whoa dude, that turned out super
thanks my queen
it's actually 8ply instead of 10, forgot coil builder says 10 is a bit low. but yeah, it came out clean. Sent from my SM-G955U using Tapatalk
edit: maybe I shoulda checked steam engine instead, coulda prolly used 12 or so :/ idk, I changed my mind so many times I cant remember what I was thinking. originally wanted to run a 28g in the center, then a 30g twist.. haven't quite figured out how much ribbon affects final resistance like I have round wire
Last edited:
thanks my queen
Sent from my SM-G955U using Tapatalk
edit: maybe I shoulda checked steam engine instead, coulda prolly used 12 or so :/ idk, I changed my mind so many times I cant remember what I was thinking. originally wanted to run a 28g in the center, then a 30g twist.. haven't quite figured out how much ribbon affects final resistance like I have round wire
That's why I love 0.3 kanthal, I can pretty much stack as many as I want
lucky I don't want to stack up 20 or more lol
my .3 is n80 lol .4 kanthalThat's why I love 0.3 kanthal, I can pretty much stack as many as I wantlucky I don't want to stack up 20 or more lol
Sent from my SM-G955U using Tapatalk
thanks my queen
My ex used to call me that, me and all the other women he was trying to date at the time
I'm not royalty, I'm a pirate arrrrr
oh..errr... then I shall call you my cap'n...cap'nMy ex used to call me that, me and all the other women he was trying to date at the time
Sent from my SM-G955U using Tapatalk
So I just threw together a 40 over 26 alien coil (my first 40g alien). 6-3mm wraps. And I'm vaping a DIY sweetened Strawberry juice. The sweet notes and tart notes are more pronounced than off a 36 wrapped alien. Normal @Pegleg Meg? You use a lot of that tiny wire; right?
Sent from my SM-G955U using Tapatalk
Sent from my SM-G955U using Tapatalk
Last edited:
great to see some @Drake m builds after a tough day at work. nice work as always dude, welcome back
@BoostedTrini im glad to see you posting your builds as well. great builds so far man
@william.osendott i call her captain, but she is the queen of pirates imo lol
@Pegleg Meg great work as always i see people calling you peg, meg etc (queen, superhero). i feel like i should start calling you leg just to be different...
@BoostedTrini im glad to see you posting your builds as well. great builds so far man
@william.osendott i call her captain, but she is the queen of pirates imo lol
@Pegleg Meg great work as always
i see people calling you peg, meg etc (queen, superhero). i feel like i should start calling you leg just to be different...congrats. thats hard as fook to get the hang of...and yeah imo it vapes a little differently than something as big as 36. there seems to be a point of diminishing return as you go smaller though, as its easier to gunk up with sweetener/coil crust...
Last edited:
I once heard someone explain sexism like this. If you wouldn’t say it to Dwayne the rock Johnson, don’t say it to a woman. Lol
An alien on my new wasp nano. Love this rda, the whistle isn’t louder than my pulse 24 with a single coil.
4x26/36 Alien, 4 wraps, N80, 0.15 ohms
22g decore for waviness
4x26/36 Alien, 4 wraps, N80, 0.15 ohms
22g decore for waviness
I would absolutely call him queen.. perhaps not MY queen, but... lol anyways, I wasnt being sexist (I dont think)
Sent from my SM-G955U using Tapatalk
So I just threw together a 40 over 26 alien coil (my first 40g alien). 6-3mm wraps. And I'm vaping a DIY sweetened Strawberry juice. The sweet notes and tart notes are more pronounced than off a 36 wrapped alien. Normal @Pegleg Meg? You use a lot of that tiny wire; right?
Sent from my SM-G955U using Tapatalk
Yes, I DIY too and noticed my flavors come out all the way with 40g aliens and 46 staples the best - I also think the little droplets are smaller, so they don't seem to spit as much as with lower gauge wraps, and finally Morten Oen says higher gauge wraps will let air slide around the coil better than "coarse claptons" which act almost like a wall to the air, he specifically said 42 and up but I think 40 is where I'm gonna stay for aliens lol
would you like to join the cult err umm club? yeah the club of meg?It's builds like this that make you.. a SUPERHERO!
Sent from my SM-G955U using Tapatalk
Trying something like a "mesh" coil, this one isn't really vapeaple because of the broken wrap and over-heating, but I like rainbow colors
The spacing is intentional
Gonna vape it anyway, For Science - 69 watts
Ermagerd, this thing is cloudy and tasty!!! It holds a lotttt of e-liquid, definitely going to try again without breaking things or overoxidizing
The spacing is intentional
Gonna vape it anyway, For Science - 69 watts
Ermagerd, this thing is cloudy and tasty!!! It holds a lotttt of e-liquid, definitely going to try again without breaking things or overoxidizing
Last edited:
BoostedTrini
Member For 4 Years
Has anyone thought about giving wattages attached to builds they've used. In my testing I've learnt that no one likes a wattage...only a temp and an output volume. What I have noticed is that higher gauge wraps perform better lower down but that can be explained by lower mass. So the closest reliable way I've come to judge builds is to test where the coils like to be(watt wise) as opposed to what I like and then make a change and see where that version likes to be and then judge the performance. An example would be a 6 ply of 0.4 framed in 28g and Aliened with 36g...with an ID of 3mm and 5(5.5) wraps...a pair of them, with my testing, likes to be in the 180-210w range depending on the liquid and not restricted by airflow. Same coil with 40g Alien and it likes to be 150-180 under the same conditions...but the 36g outperforms it if not limited by wattage(using it where it likes to be vs where I like to vape).
That's a great idea. That 22x.3 staple single coil up there works great at just 69 watts,
my 8x30/40 alien - 60-70 watts single coil
Dual coils I usually use between 60-88 watts, depending on how thick they are
I've been really impressed with fat kanthal 0.3 staples or lots of small gauge round cores, they heat up much faster than I'm used to with kanthal
Last edited:
BoostedTrini
Member For 4 Years
I'll give it a go with the most common specs I do for shops:
Triple 28/38 Alien, 3mm, 5 wraps- 75-95w a pair...6 wraps - 90-110 a pair
Triple 27/36 Alien, 3mm, 5 wraps- 95-115 a pair...6 wraps - 110-135 a pair
Alien Framed Staple- 6 ply 0.3, 30g frames, 36g Alien, 3mm, 5 wraps- 125-145 a pair
Triple 26/36 Alien, 3mm, 5 wraps - 140-170 a pair...6 wraps- 160-190 a pair
I already gave the other Alien Framed Staple before.
BoostedTrini
Member For 4 Years
From my experience, Kanthal needs the least power, then Nichrome80 then SS316L, for the same spec of coil on regulated devices.
BoostedTrini
Member For 4 Years
I don't have much experience in single coils as there are extremely few atties I like there....but with the Zeus(the best I've used), 4mm works better than 3.5 and that works better than 3 and the best so far I've used is 4mm triple 26/36 Aliens with 5 wraps. 80-90w it is a very nice vape. Triple 27/36, 3.5mm with 5 wraps, very nice at 60-70w. My comfort zone is 130-140w with dual coils in a Supreme Plus and 120-130w with dual coils in a Drop...same builds in each...
My single coils are also 4mm, and I almost always use 3mm for dual coils and either 4 or 5 wraps depending on how wide they are
I don't know how it works, but I even like a single coil in the Drop
Getting a 75w squonker kinda forced me to experiment with single coils, and man I dig it. I'm trying to test out the theory that higher gauge wrap wire gunks up faster, also - been over a week with a sweet caramel custard and this coil is looking better than the cotton
I used to swear I only liked bottom airflow and dual coils, but somehow I've been using one coil in the Drop for like 2 weeks, every day
Last edited:
BoostedTrini
Member For 4 Years
My single coils are also 4mm, and I almost always use 3mm for dual coils and either 4 or 5 wraps depending on how wide they are
I don't know how it works, but I even like a single coil in the Drop
Getting a 75w squonker kinda forced me to experiment with single coils, and man I dig it. I'm trying to test out the theory that higher gauge wrap wire gunks up faster, also - been over a week with a sweet caramel custard and this coil is looking better than the cotton
View attachment 112655
I used to swear I only liked bottom airflow and dual coils, but somehow I've been using one coil in the Drop for like 2 weeks, every day
From what I've done so far I find that gunking is dictated more by liquid used...then by wattage set...then by wrap size for the same cored coil. There is a zone, that I haven't figured out yet, that coils take longer than "usual" to gunk up.
this is correct. KA1 has the highest resistance followed by N80 then 316L having the lowest resistance. lower resistance heats up fast but pulls more amps from the battery thus using more power.
Sent from my SM-G955U using Tapatalk
staples
one bad spot and it's all I see lol
2*26g / 38g N80 framing 8*.4x.1KA1 fused with 40g N80
Sent from my SM-G955U using Tapatalk
edit: shit, just found another :/ bonus points if you can find both
edit 2: bonus points if you find all three.. son of a bitch lol
2*26g / 38g N80 framing 8*.4x.1KA1 fused with 40g N80
Sent from my SM-G955U using Tapatalk
edit: shit, just found another :/ bonus points if you can find both
edit 2: bonus points if you find all three.. son of a bitch lol
Last edited:
may be too hot for my taste
Sent from my SM-G955U using Tapatalk
Sent from my SM-G955U using Tapatalk
one bad spot and it's all I see lol
2*26g / 38g N80 framing 8*.4x.1KA1 fused with 40g N80
Sent from my SM-G955U using Tapatalk
edit: shit, just found another :/ bonus points if you can find both
edit 2: bonus points if you find all three.. son of a bitch lol
Don't count...that never helps things lol
hahaha well I only see 3, so I'm getting better.. 3 is less than 5,000,000,000
that one though, damn, just sticks right out there like "f*ck your coil, build another!"
Sent from my SM-G955U using Tapatalk
I've got to stop with sfc variants, but you can do so much...
started with just have 30g decores (off a 22g core) in the center, but I couldn't keep control of them so I had to stick another 30g through them :/ final spec:
26g N80 / 38g N80 framing 3*30g KA1 wrapped with 30g KA1 22g decores fused with 40g N80 *shew*
I have a feeling fusing is gonna have issues, maybe shoulda flattened those 30g things....
Sent from my SM-G955U using Tapatalk
edit: or left the frames bare and fused the gaps of those stretched cores. eh, learned something...
started with just have 30g decores (off a 22g core) in the center, but I couldn't keep control of them so I had to stick another 30g through them :/ final spec:
26g N80 / 38g N80 framing 3*30g KA1 wrapped with 30g KA1 22g decores fused with 40g N80 *shew*
I have a feeling fusing is gonna have issues, maybe shoulda flattened those 30g things....
Sent from my SM-G955U using Tapatalk
edit: or left the frames bare and fused the gaps of those stretched cores. eh, learned something...
..aaaaaannndddd failed.. 40g broke when wrapped it :/
Sent from my SM-G955U using Tapatalk
kinda waaaaay too wide anyways lol back to the drawing board
Sent from my SM-G955U using Tapatalk
kinda waaaaay too wide anyways lol back to the drawing board
