......i call it the "trans-siberian Tiger coil" it chucks unlike anything i've seen, the flavor is better than anything ive ever experienced, and i'm bursting at the seams with pride. (and petty-ness)
Well you could post it on YouTube but I don't know if you can patent a coil build .....or trademark it


Johnny2Much

Member For 4 Years
Member For 3 Years
Member For 2 Years
Member For 1 Year
ok ok, i'll put one up. i seriously gotta figure out how to get it off my phone and onto here, my girl does all that shit for me lol. i'll describe it in the interim. look up the youtube video for the transformer coil. it's very similar BUT......its two tiger coils (twisted ribbon and kanthal 30g.) loosely claptoned over with more ribbon, with twisted lightly flattened 28g kanthal in parallel. i got the idea looking at the video, he was saying it doesn't wick so well and i remember a previous build i made with tiger coil and how well that sucked up the juice. claptons do too,and ribbon does some interesting stuff when you twist it and i happened to have some nice pieces of tiger laying around, and i put it together ( took over an hour to get it right even though i had most of the parts made already). 4 wraps, .16 ohms, the coils sucks up juice beautifully! i also twist every strand of kanthal before i start building. i did not come up with the transformer coil, Koojax from Vapor Hut is the creator. and he had a great idea. im still tweaking my design but im waiting for more wire, i just ordered more today. so........yeah


scarecrowjenkins

Silver Contributor
Member For 4 Years
Unlisted Vendor

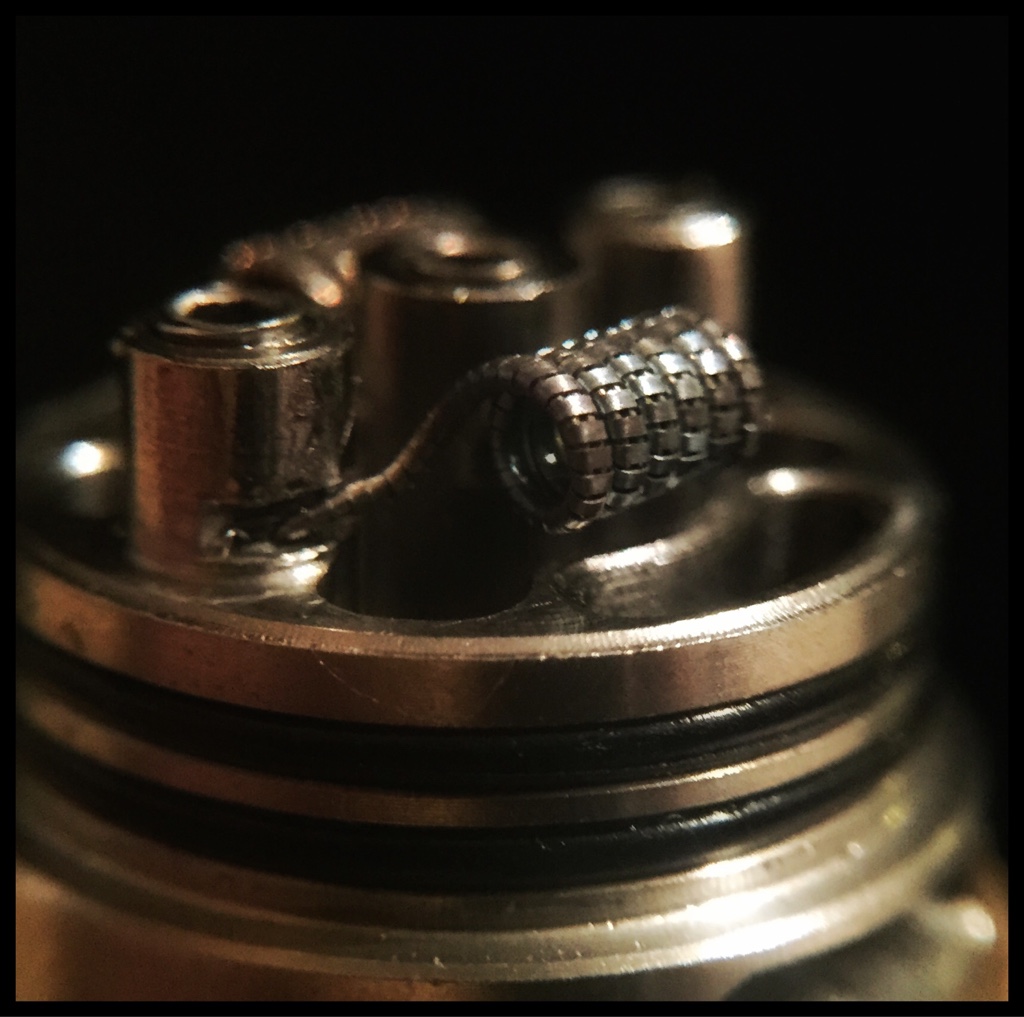

Wanted to start using the last of my .3mm ribbon wire since i got some more coming this week. Fun lil pair of ribbon-fused claptons on the Freakshow Mini. Great flavor and vapor as well :p

.3mm ribbon wire dual 28g N80 core.
6 wraps 2.4mm inner diameter, .245 ohms


RodThaVapenRat

Gold Contributor
Member For 4 Years
Member For 3 Years
Member For 2 Years
ok ok, i'll put one up. i seriously gotta figure out how to get it off my phone and onto here, my girl does all that shit for me lol. i'll describe it in the interim. look up the youtube video for the transformer coil. it's very similar BUT......its two tiger coils (twisted ribbon and kanthal 30g.) loosely claptoned over with more ribbon, with twisted lightly flattened 28g kanthal in parallel. i got the idea looking at the video, he was saying it doesn't wick so well and i remember a previous build i made with tiger coil and how well that sucked up the juice. claptons do too,and ribbon does some interesting stuff when you twist it and i happened to have some nice pieces of tiger laying around, and i put it together ( took over an hour to get it right even though i had most of the parts made already). 4 wraps, .16 ohms, the coils sucks up juice beautifully! i also twist every strand of kanthal before i start building. i did not come up with the transformer coil, Koojax from Vapor Hut is the creator. and he had a great idea. im still tweaking my design but im waiting for more wire, i just ordered more today. so........yeah
So um ......about that picture?


RodThaVapenRat

Gold Contributor
Member For 4 Years
Member For 3 Years
Member For 2 Years
Wanted to start using the last of my .3mm ribbon wire since i got some more coming this week. Fun lil pair of ribbon-fused claptons on the Freakshow Mini. Great flavor and vapor as well

.3mm ribbon wire dual 28g N80 core.
6 wraps 2.4mm inner diameter, .245 ohms
I have been wanting a freakshow mini for a while...... I have a freakshow (1st edition) is the flavor and all hoop and hoora really any different in the mini?


scarecrowjenkins

Silver Contributor
Member For 4 Years
Unlisted Vendor
I have been wanting a freakshow mini for a while...... I have a freakshow (1st edition) is the flavor and all hoop and hoora really any different in the mini?
The mini is the only Freakshow i have unfortunately. The flavor is pretty good, not the best i've ever had, but with the airflow blocked off about halfway and the right coils it's easily right up there with the derringer. Great atty for $30 in my opinion


f1r3b1rd

https://cookingwithlegs.com/
Staff member
Senior Moderator
VU Donator
Diamond Contributor
VU Challenge Team
Member For 5 Years
VU Patreon

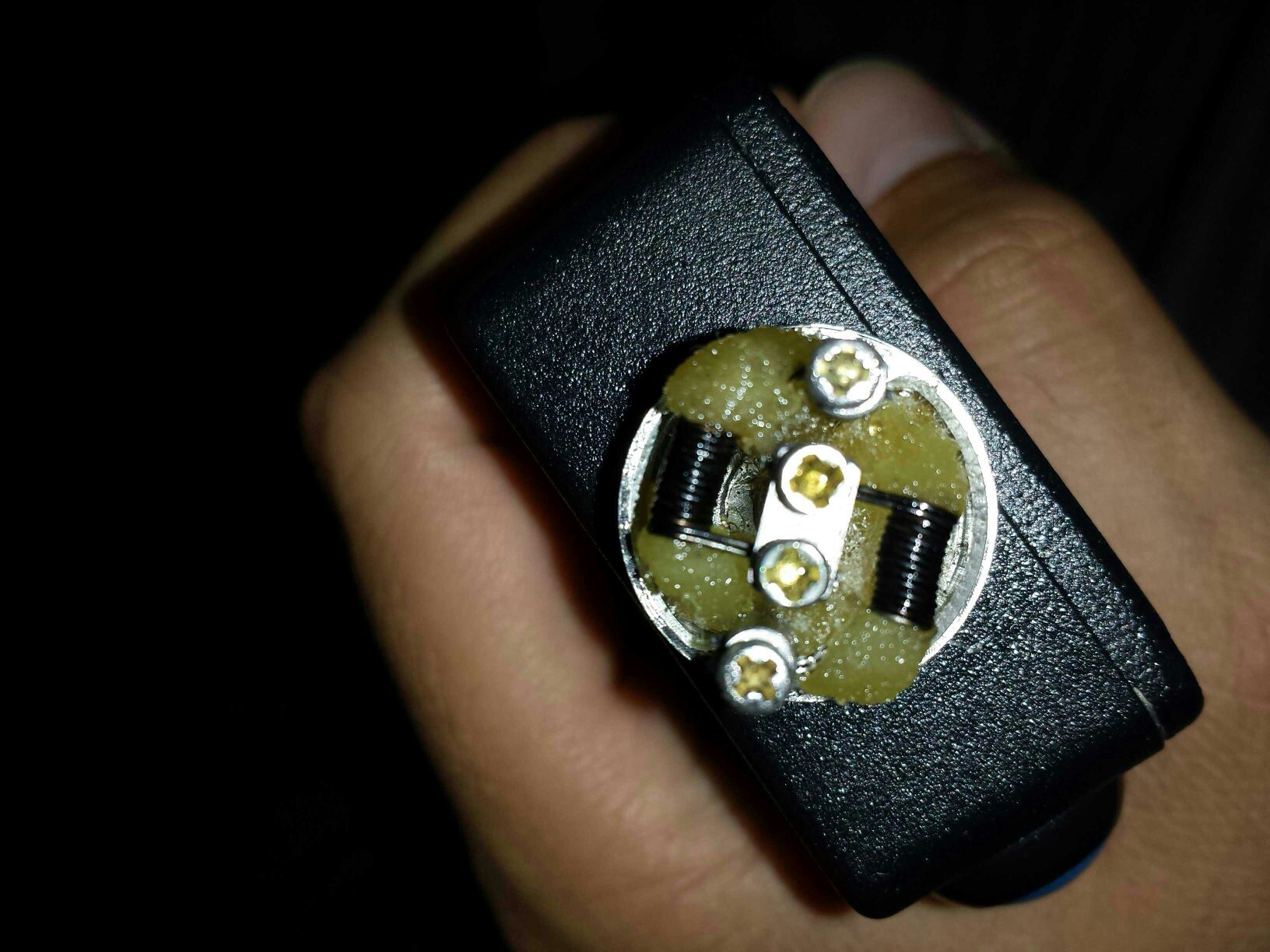

Dual parallel 28g/24g- 0.21 ohm in a Kennedy Comp



Johnny2Much

Member For 4 Years
Member For 3 Years
Member For 2 Years
Member For 1 Year

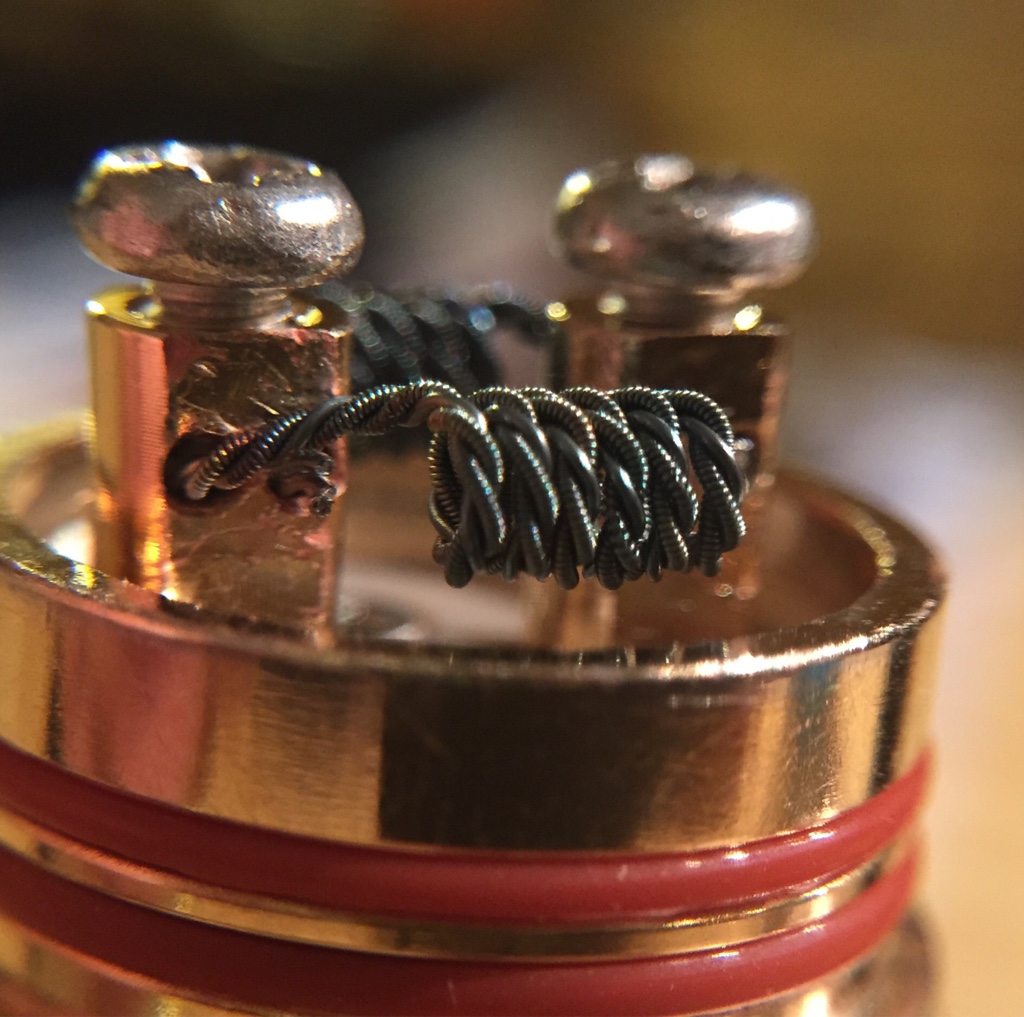

Trans-siberian tiger coil!! its sloppy, next time the tiger coils will be tighter as well as the clapton ribbon over said tiger coils. i actually have wire on the way, and i have the final build planned out. it'll be sick (i hope) btw, after posting this i started following twisted messes, blue eyed goon, etc and never mind. however great my coil may be, i got nothing on those lunatics lol


Johnny2Much

Member For 4 Years
Member For 3 Years
Member For 2 Years
Member For 1 Year


Attachments

  • 11269115_10206835731795537_192510989_n.jpg
    88.6 KB · Views: 29

Johnny2Much

Member For 4 Years
Member For 3 Years
Member For 2 Years
Member For 1 Year
now someones gonna be all "that's already (blah blah) coil. everyone knows that one dumbass" lol. did i mention i've been building coils and vaping less than 2 months?


scarecrowjenkins

Silver Contributor
Member For 4 Years
Unlisted Vendor

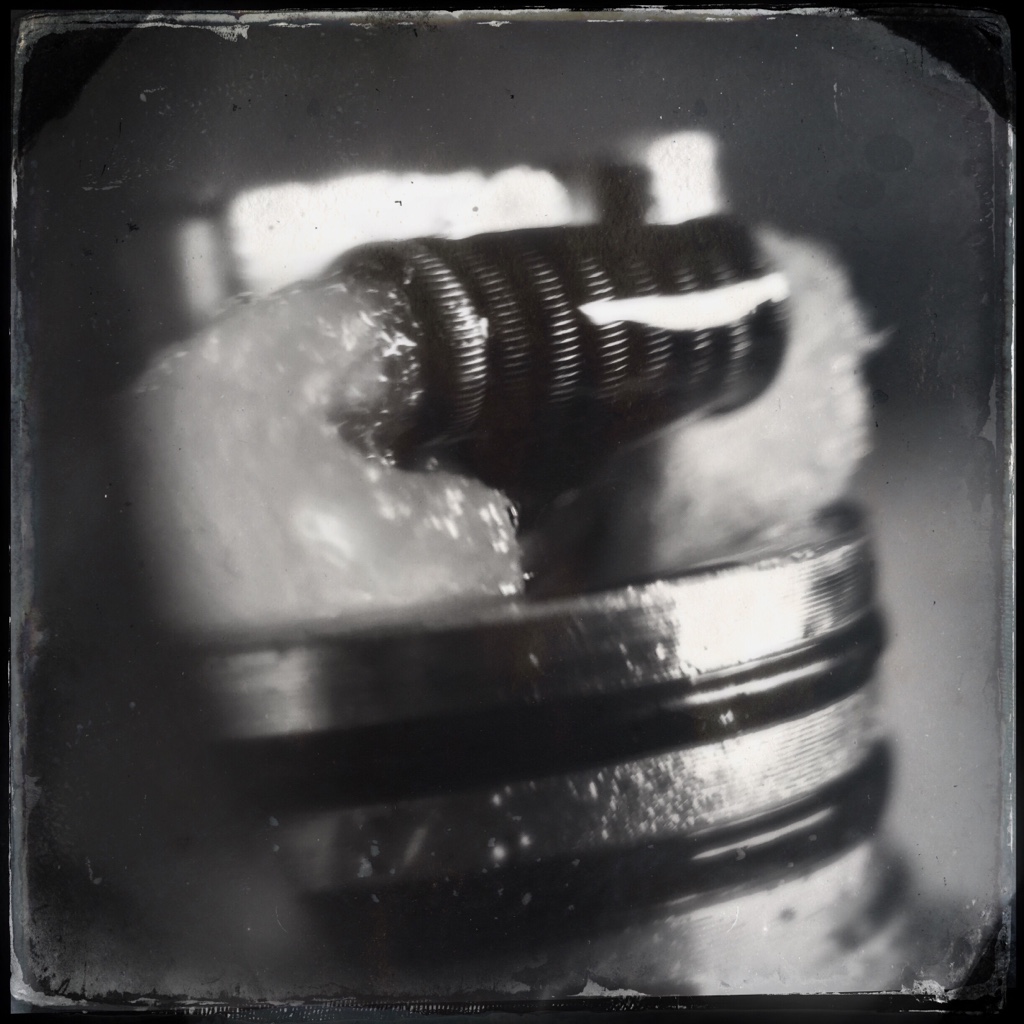

22g/38g Nichrome 80 Claptons in the Dotmod Petri.
Dual 9 wraps clocks in at .178. I absolutely hate wrapping these coils, but it's one of my favorite builds for the Petri. Super warm and flavorful :p


Everpresentnewb

Bronze Contributor
Member For 4 Years
Member For 3 Years
ECF Refugee
NOthing as origional as that TranssiberianIcantbuildthat" but just a simple dual twisted 24G 8 wraps around a 1/8 drill .34 ohm wicked with KoGenDoh in my new Twisted Messes RDA. Takes a second or two to really heat up, but once it does I really like this build.



Everpresentnewb

Bronze Contributor
Member For 4 Years
Member For 3 Years
ECF Refugee
Had to redo the coils.. the 24G had to long of a ramp up time and once warm the vape was full of spitback.

New coils are 28G twisted wrapped 9 times around a 3/32 rod duals for a .63ohm build. little cooler, ramp up is zilch, and there is darn near no spitting. All in all a much better vape experiance.



Had to salvage the 28G kanthal from a set of fubar'd clapton wires I built yesterday thinking I was gonna make a monster coil. it was two strands of twisted 24G wrapped together with the 28g. was to wide to fit into most of my RDA's. I did get a single coil into my new RDA, but I could only fit a 3 wrap and it was just under .1 ohm. didnt even fire it. So I unwrapped the 28G and built these twisted coils instead.


scarecrowjenkins

Silver Contributor
Member For 4 Years
Unlisted Vendor

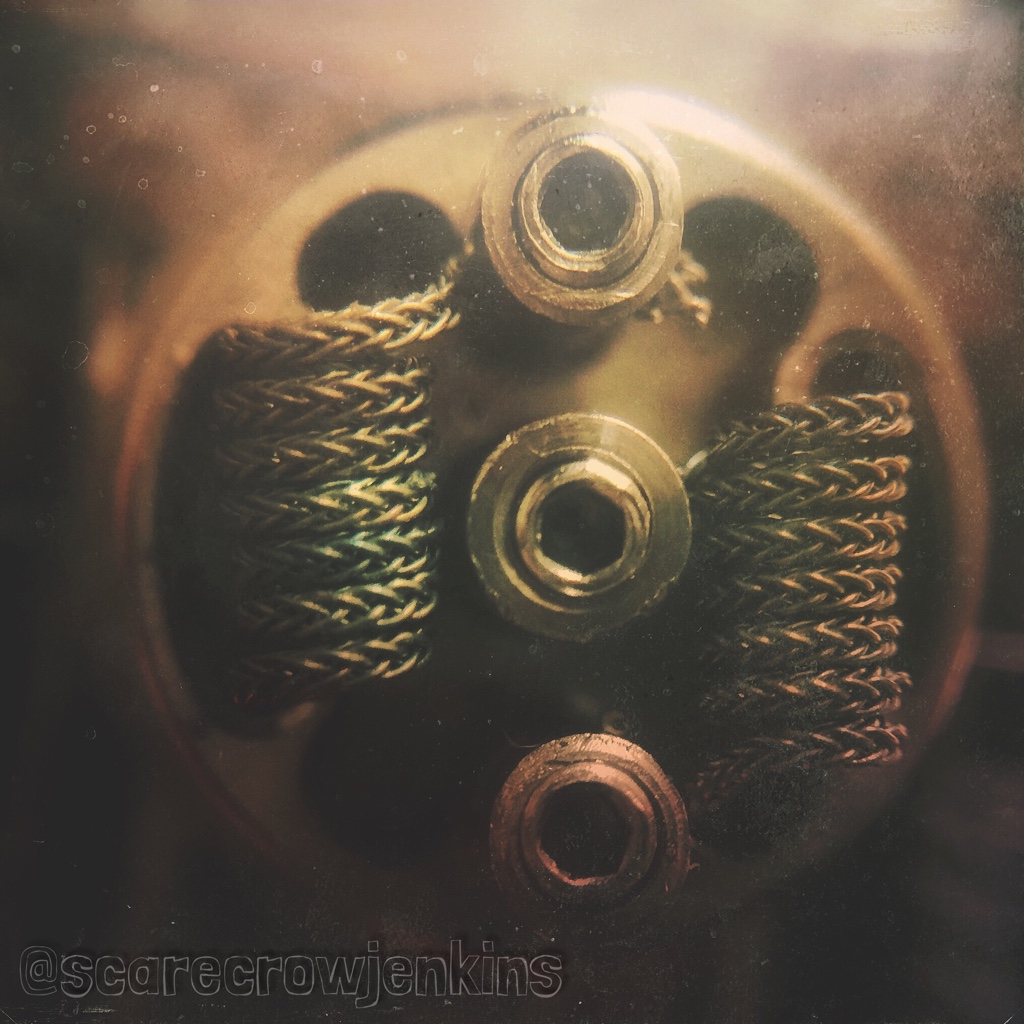

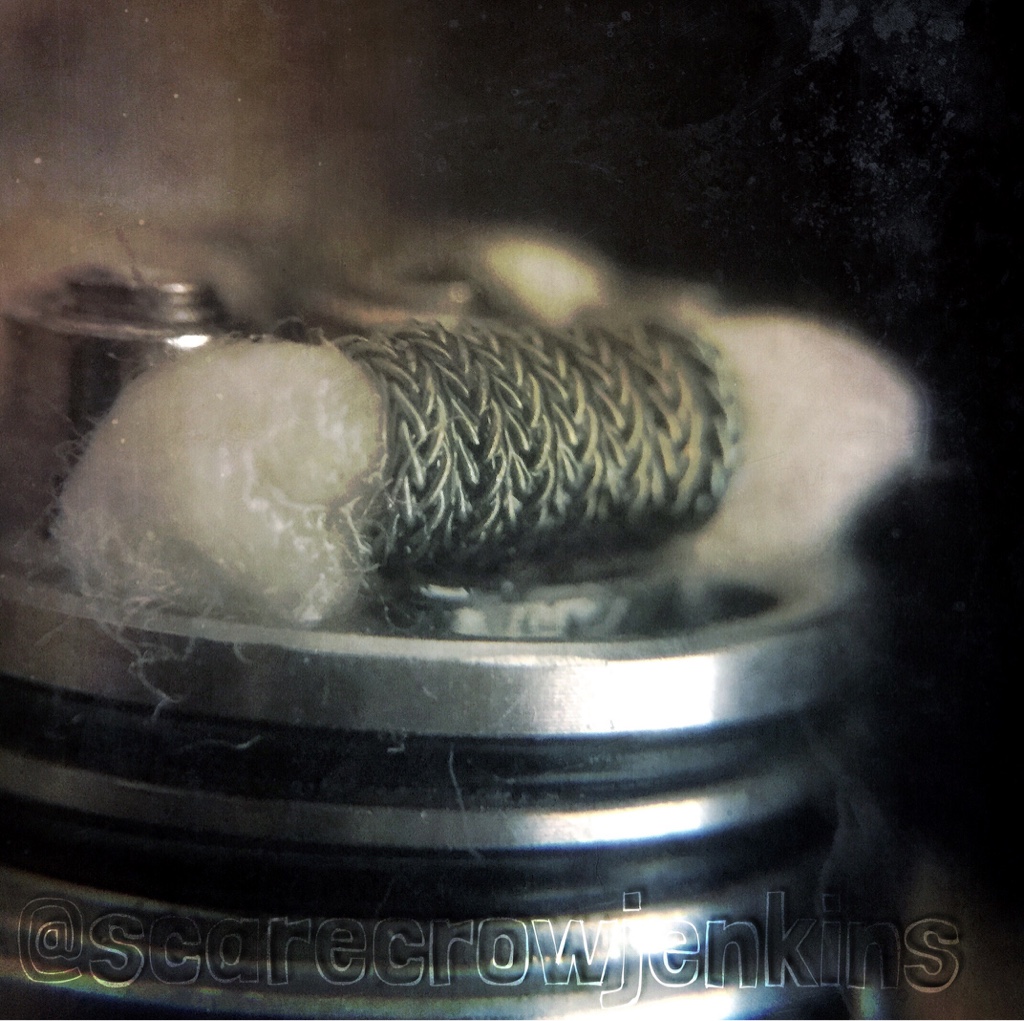

32g Nichrome 80 5-loop Vertabraid in the Freakshow Mini.
Dual 7 wrap build .18ohms w/ 2.4mm inner. Great flavor on these Vertabraids, but they are a little harsh for the first hour or so (for me). Once they break in though it's a pretty freakin' awesome experience. I honestly like making these more than i like vaping on them, and i love the way they look. 32g N80 is perfect, soft enough to braid without any problems, but thick enough that they don't snap or tear your hands up too badly.


Everpresentnewb

Bronze Contributor
Member For 4 Years
Member For 3 Years
ECF Refugee
I braided 5 loops of 28. Once. Bare handed. I still have cuts and stuff on my fingers. But man they do look NICE! Very jealous of that build.


scarecrowjenkins

Silver Contributor
Member For 4 Years
Unlisted Vendor
I braided 5 loops of 28. Once. Bare handed. I still have cuts and stuff on my fingers. But man they do look NICE! Very jealous of that build.
Thanks man, I appreciate it! 28g kanthal would be tough, the nichrome is much softer. One of it's many awesome qualities haha


VaporIQ

Member For 4 Years
Member For 3 Years
Member For 2 Years
Member For 1 Year

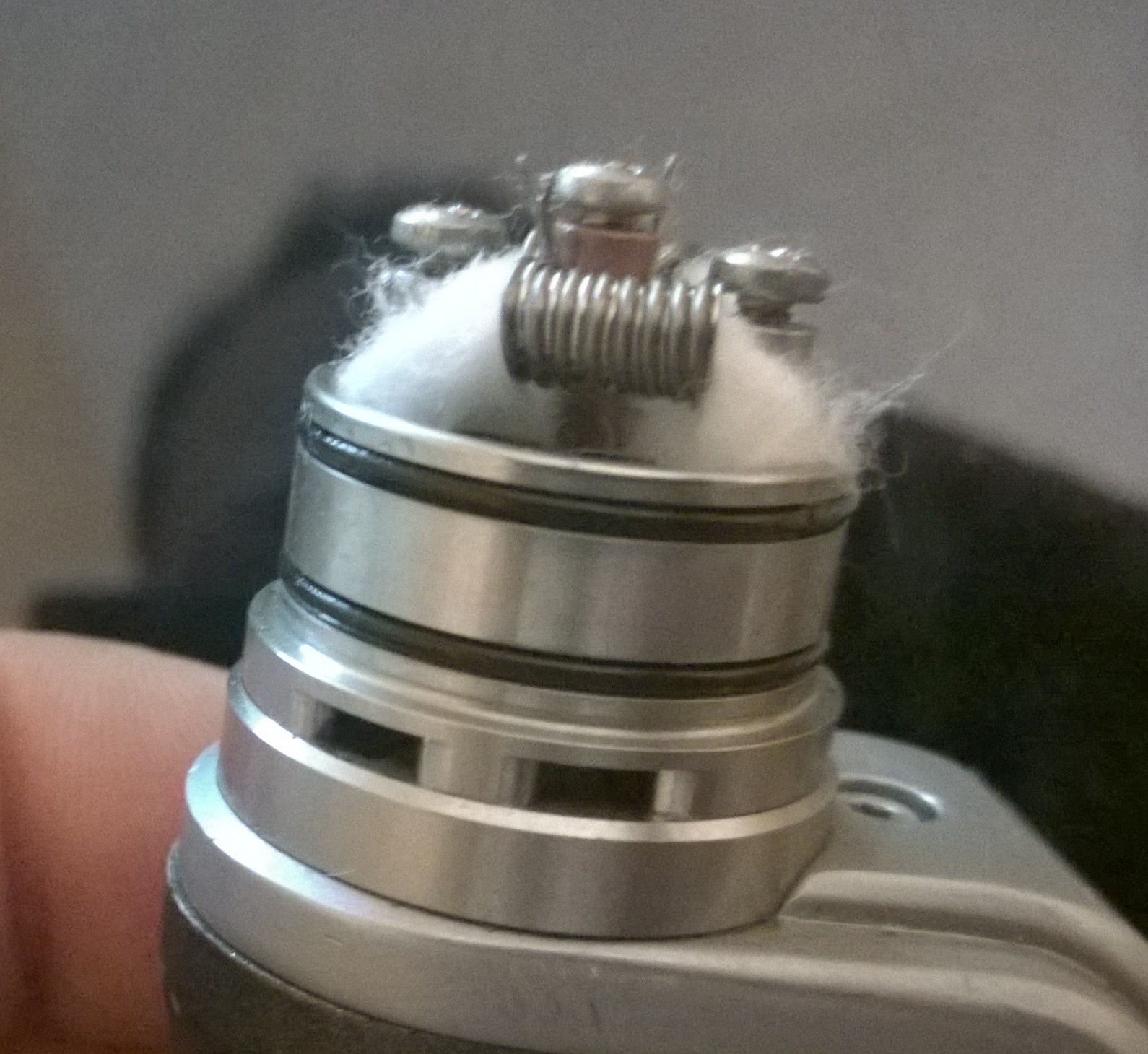

24 gauge
3mm inter diameter
dual parallel
6 1/2 wrap
0.195 ohms

Built on a WoToFo Troll
Good flavor and chucks clouds like a ninja:cool::cool:


Attachments

  • 20150529_065840.jpg
    528.6 KB · Views: 36
Last edited:

Everpresentnewb

Bronze Contributor
Member For 4 Years
Member For 3 Years
ECF Refugee

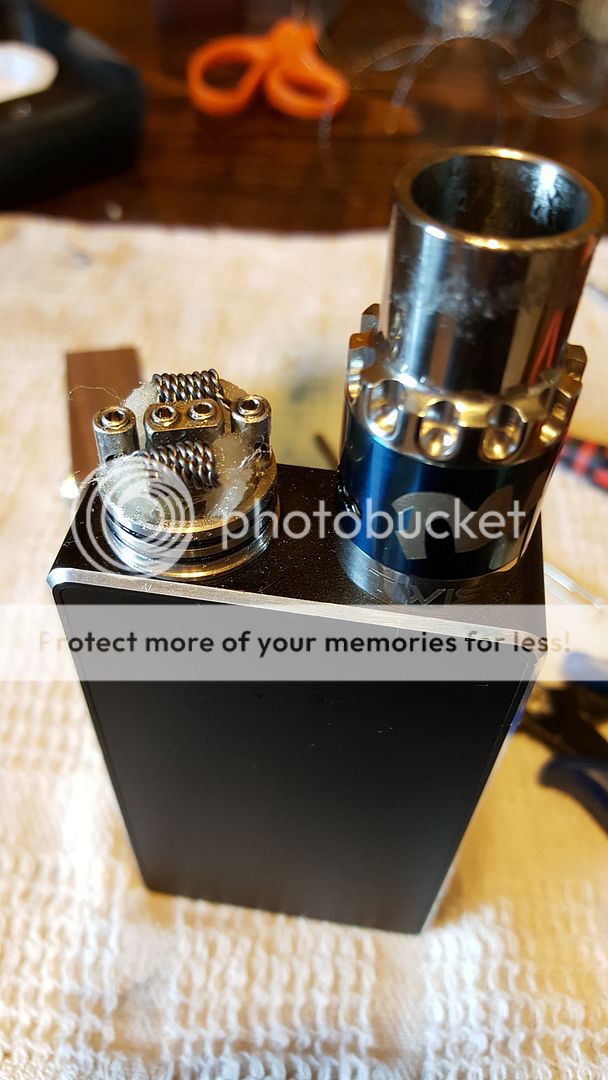

So I finally did it. a couple weeks ago someone posted about the Twisted Messes RDA and in the pic there was this awesome looking coil installed. I bought the RDA that day and finally built that first coil I saw installed in it.

This coil is twisted 28G / 5 strips of .5mm flat stacked / twisted 28G then stapled with 32G. twisted 4 times on a 1/8 drill. Clocks in at .22 ohms. takes about 1.5 seconds to heat up on my Sigelei 100+ set at 80W. Flavor is freaking phenomenal and vapor is pretty darn good as well.





Took about 20 mins to make the coil but it was well worth it.


scarecrowjenkins

Silver Contributor
Member For 4 Years
Unlisted Vendor
So I finally did it. a couple weeks ago someone posted about the Twisted Messes RDA and in the pic there was this awesome looking coil installed. I bought the RDA that day and finally built that first coil I saw installed in it.

This coil is twisted 28G / 5 strips of .5mm flat stacked / twisted 28G then stapled with 32G. twisted 4 times on a 1/8 drill. Clocks in at .22 ohms. takes about 1.5 seconds to heat up on my Sigelei 100+ set at 80W. Flavor is freaking phenomenal and vapor is pretty darn good as well.





Took about 20 mins to make the coil but it was well worth it.
Damn, that's even prettier than mine was! Great job! With the complex coils like that N80 is the way to go. Mine hit 4th of July status in about half a second haha. But it's nice to see someone else here give it a try! Rock n' roll!


Everpresentnewb

Bronze Contributor
Member For 4 Years
Member For 3 Years
ECF Refugee
well I have some N80 26G, but everything else I have is Kanthal. Just realized that I wrapped the staple wire the wrong way and it isnt flowing with the twisted wire. Think Im going to rebuid it with 26G N80 and pay more attention with the stapling....


Swerved

Bronze Contributor
Member For 4 Years
Ok.. my first attempt at a staggered clapton. It's a 26 awg Kanthal core wire, wrapped with a 29 awg Kanthal wire, and parallel wrapped with a single 26 awg Kanthal wire. Came in at .37 ohms, but takes a while to heat (my mod only does 60w). Hits like a champ otherwise and flavor is great.

staggered_clapton_sm1.jpg staggered_clapton_firing1.jpg


I suppose this is the part where I realize I'm gonna need a bigger mod.. lol

Last edited:

Everpresentnewb

Bronze Contributor
Member For 4 Years
Member For 3 Years
ECF Refugee
Always!! lol. about a week after I got my Sigelei 100+ I realized I should have bought the SMY God 180... Oh well. Shinyitis is a beast....


scarecrowjenkins

Silver Contributor
Member For 4 Years
Unlisted Vendor

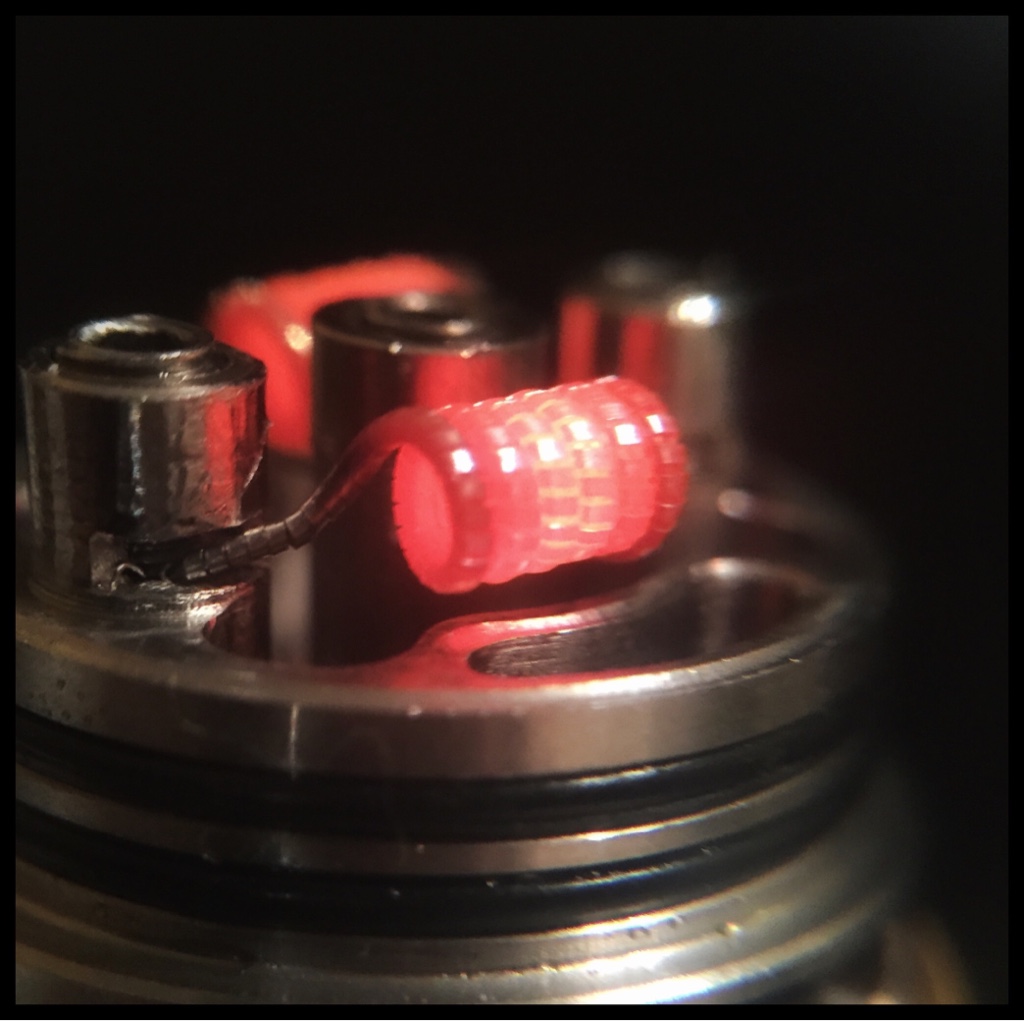

Dual 8 wrap 26/38g N80 fused claptons built by Twisted Messes himself today on my Twisted Messes RDA. He is such a fast, clean builder. He banged this out in almost half the time it takes me. Anyways, flavor and vapor are awesome as i have come to enjoy in a fused clapton :D


bigboilik

Member For 4 Years
Member For 3 Years
Member For 2 Years
Member For 1 Year
Tri coil build on the onslaught with the tesla m2 mod vapes like a beast


Attachments

  • IMAG0250.jpg
    480.2 KB · Views: 38
  • IMAG0251.jpg
    460.1 KB · Views: 34
  • IMAG0274.jpg
    413.3 KB · Views: 35

bigboilik

Member For 4 Years
Member For 3 Years
Member For 2 Years
Member For 1 Year
Quad coil on igo w6


Attachments

  • IMAG0170.jpg
    435.5 KB · Views: 34

martinelias

Silver Contributor
Silver Contributor
Member For 4 Years
Member For 3 Years
Member For 2 Years
Member For 1 Year

Dual parallel 26g 7 wraps forget the ohmage but around .2 on troll rda


martinelias

Silver Contributor
Silver Contributor
Member For 4 Years
Member For 3 Years
Member For 2 Years
Member For 1 Year
Love the troll! What was the id on your build 3mm?
I never know the id since i use this thing. The middle size bar is what i do most of my building on including the troll build.

Oh and its .22

22g 7 wrap sleeper on the doge v2


scarecrowjenkins

Silver Contributor
Member For 4 Years
Unlisted Vendor
Not exactly a picture perfect build, so i post this with a little hesitation. Been having some really delicious experiments with 32/38g N80 twisted claptons. They perform wonderfully, this is 32g core, 38g wraps with a single 28g helix, all nichrome. Yummy, though the wraps didnt line up as photogenic as i would have liked :p

Next set will be prettier, i promise


bigboilik

Member For 4 Years
Member For 3 Years
Member For 2 Years
Member For 1 Year
Parralel coil 4wraps 24 gauge on the plume veil


Attachments

  • 14331327914911098552480.jpg
    539.2 KB · Views: 40
  • 1433132864121546169697.jpg
    501.9 KB · Views: 39
  • 1433133478595-1463948626.jpg
    513 KB · Views: 42
