Man i havent had time to build in a while! Finding the time to sit down and work on something hard is well...hard. I did make some trusty tri-core claptons that seem to be my go to. 3x28g k / 38g ni80 / 6 wraps on 3.5mm. I wanted to build a series coil for my cricket so i mounted it in the rafale x using the neutral post and it ohms out to 1 ohm! Way higher than i expected. To get the warm vape I want i have it on the rx200 @75w its pushing 8.75v. The other pic is a single core clapton (26/36 ni80) loosely twisted up with some 26g k, 2.5mm id, 6 wrap. Its not bad flavor wise which surprised me. This photo was taken before i cleaned it. Seeing the pic provoked that!
0227172300a_HDR.jpg 0227172354b_HDR.jpg


PhantomOp

VU Donator
Gold Contributor
Member For 3 Years
Member For 2 Years
Practice ... more practice ... and patience has finally paid off. I was able to do a full 36" length of 28g/36g fused clapton run tonight. ZERO failures and the wrap is nice and tight. Once I was able to perfect the 5" - 6" runs I figured it was time to try longer runs again.

Last time I tried anything over 12" was a complete disaster. :bomb:


IMG_20170301_234634193 (Large).jpg IMG_20170301_234733982 (Large).jpg IMG_20170301_234822980 (Large).jpg


mach1ne

Gold Contributor
Member For 4 Years

mach1ne

Gold Contributor
Member For 4 Years
Now I just have to grow some balls and at least attempt an alien coil... I keep watching the videos ... over and over and over... but just can't get the "courage" to attempt it... :mad:
do it man. the only way to make your first aliens is to try to make your first aliens. there are only two things different from regular claptons to worry about: the cores twisting up, and the stretch. aside from those, its the same as making that huge strip of fused claptons you just made when it boils down to it. dont psych yourself out :cheers: failure is a requirement to learning. go wreck some wire son :blowkiss:


scarecrowjenkins

Silver Contributor
Member For 4 Years
Unlisted Vendor

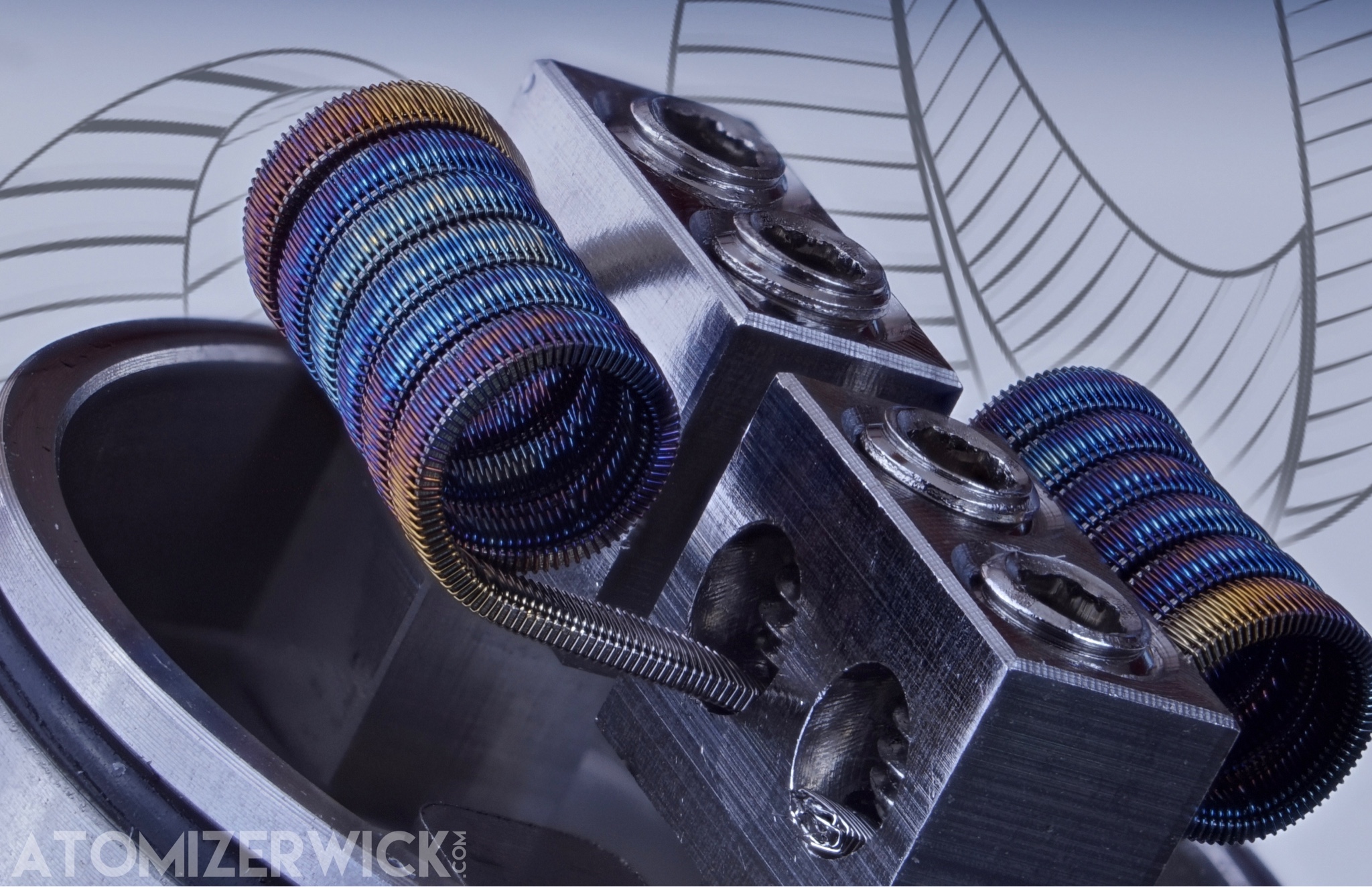

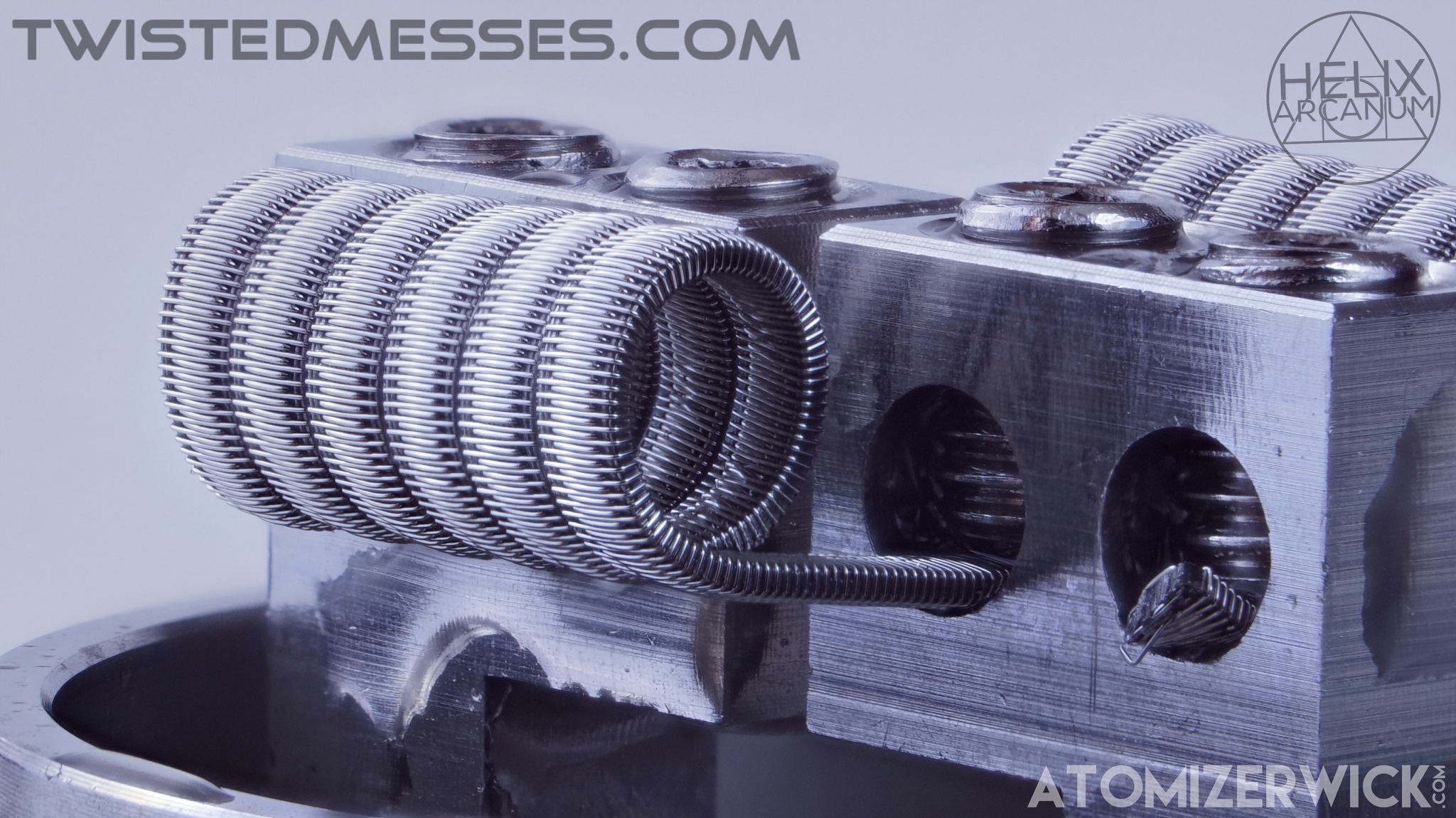

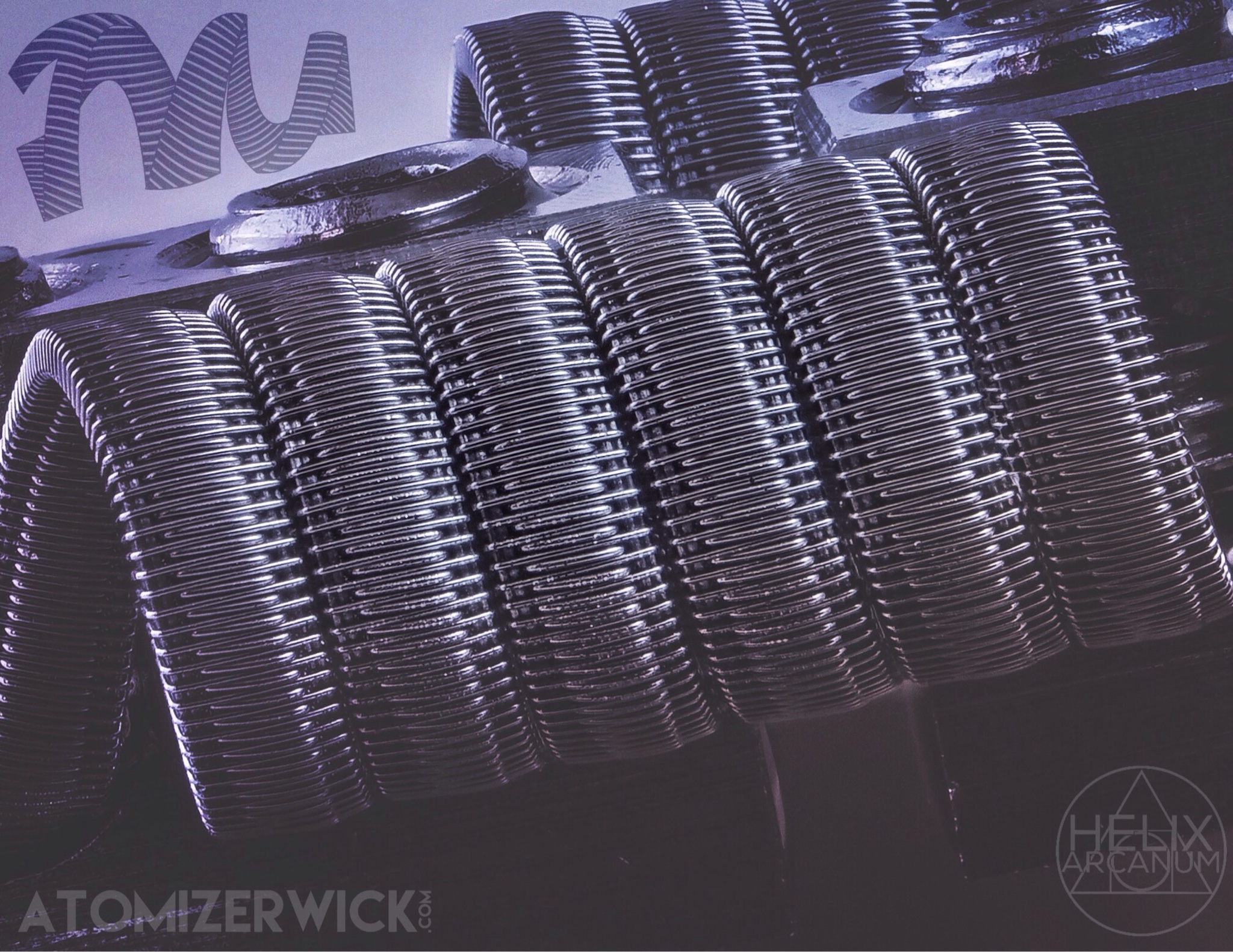

More Staggerton action, this time in the TM24

•Ribbon~framed Staggertons•
•8x.3mm//40g//4x.3mm frames•








Cores are all Atomizerwick kanthal. It clocked in much higher than i was expecting, at .17 ohms after dry firing. Still a fantastic vape, but a little too high for me to run in mech mode. It'll get me by until my next build session though for sure, which will hopefully be tomorrow. Cheers!


Sent from my iPhone using Tapatalk


KingPin!

In my defence, I was left unsupervised ^^
VU Donator
Platinum Contributor
Member For 4 Years
VU Challenge Team
Reviewer
More Staggerton action, this time in the TM24

•Ribbon~framed Staggertons•
•8x.3mm//40g//4x.3mm frames•








Cores are all Atomizerwick kanthal. It clocked in much higher than i was expecting, at .17 ohms after dry firing. Still a fantastic vape, but a little too high for me to run in mech mode. It'll get me by until my next build session though for sure, which will hopefully be tomorrow. Cheers!


Sent from my iPhone using Tapatalk
How do you get such even spacing scarecrow?


KingPin!

In my defence, I was left unsupervised ^^
VU Donator
Platinum Contributor
Member For 4 Years
VU Challenge Team
Reviewer
Now I just have to grow some balls and at least attempt an alien coil... I keep watching the videos ... over and over and over... but just can't get the "courage" to attempt it... :mad:

Do it buddy just placed the order for my bits ...gonna give it a go as well ;) settled on the below for my first try(s) went for higher ohm as gonna try and make dual coils for my augvape boreas

Gonna try both a standard alien using
3x28g Kanthal A1 core
38g Ni80 wrap ...
3mm diameter 6/7 wraps should be about 0.5ohm per coil

Also gonna try a framed staple alien
4 x Stacked 0.4x0.1mm Kanthal ribbon
2x 28g kanthal A1 flames
38g NI80 wrap....
3mm diameter 6/7 wraps should be about 0.4ohm per coil

Normal place i order from in uk sold out of NI80 so found somewhere else never used them before hope they are ok:(

I fully expect this to be a bloody nightmare first time round lol


mach1ne

Gold Contributor
Member For 4 Years
@Johnny VapeStand you can set up any build on steam engines wire wizard and tinker with wraps and diameter and cores until you get your target resistance.

@KingPin! those are both solid builds man. just a bit of warning though, smaller cores get harder and harder for aliens. you might want to try 26g on your first try, if you have any around, just to learn the alien specific techniques (decore, stretch, minor differences wrapping it back up etc) without having to fight the twisting cores so much. fighting twisting cores is almost a building technique in itself which requires a lot of experimentation (in my experience).


KingPin!

In my defence, I was left unsupervised ^^
VU Donator
Platinum Contributor
Member For 4 Years
VU Challenge Team
Reviewer
@Johnny VapeStand you can set up any build on steam engines wire wizard and tinker with wraps and diameter and cores until you get your target resistance.

@KingPin! those are both solid builds man. just a bit of warning though, smaller cores get harder and harder for aliens. you might want to try 26g on your first try, if you have any around, just to learn the alien specific techniques (decore, stretch, minor differences wrapping it back up etc) without having to fight the twisting cores so much. fighting twisting cores is almost a building technique in itself which requires a lot of experimentation (in my experience).

Thanks machine if the core wire clump up will I get a Mohawk alien out of it? LoL

I have some 26g SS316L about can always use that if I'm struggling already placed the order now :rolleyes:


mach1ne

Gold Contributor
Member For 4 Years
will I get a Mohawk alien out of it?
thats a thing i was thinking of asking in here myself. i saw a tutorial recently where a guy literally clumps the cores up in his drill before he starts, and thats how he makes a mohawk alien...but i have accidentally (not stretched enough) made them with my cores remaining flat, and im pretty sure @raymo2u has flat cores in his mohawks and enigmas too. i wasnt a big fan of the vape i got from my accidental set, so i never set out to make them again.


Carambrda

Platinum Contributor
ECF Refugee
Member For 5 Years
Do it buddy just placed the order for my bits ...gonna give it a go as well ;) settled on the below for my first try(s) went for higher ohm as gonna try and make dual coils for my augvape boreas

Gonna try both a standard alien using
3x28g Kanthal A1 core
38g Ni80 wrap ...
3mm diameter 6/7 wraps should be about 0.5ohm per coil

Also gonna try a framed staple alien
4 x Stacked 0.4x0.1mm Kanthal ribbon
2x 28g kanthal A1 flames
38g NI80 wrap....
3mm diameter 6/7 wraps should be about 0.4ohm per coil

Normal place i order from in uk sold out of NI80 so found somewhere else never used them before hope they are ok:(

I fully expect this to be a bloody nightmare first time round lol
Be sure to check out this post by @gakudzu. The keyring trick helped me tremendously. With three 28 Ni80 cores I found I had to move it in very small steps at a time, not more than an inch seemed to work best. If you got the stretch right, most important is to keep the angle between the core wires and your lead at 92-93 degrees, also don't pull your drill too hard but just enough to keep the core wires snug, and the same applies to your lead. If you do all that together it essentially wraps itself.

Personally I was told to use Ni80 for the cores as opposed to Kanthal/SS. Faster ramp-up and cooldown time in conjunction with better flavor production is why... can't say I disagree with that stance, but that's only my own opinion (there's something about Ni80 that Kanthal/SS just can't reproduce in terms of flavor IMO). Choosing 28 for the cores, 38 for the alien wrap will make your wraps narrow enough to fit 7 wraps in a 25 mm diameter atomizer. Also I was told wrapping your coil around a 3.5 mm screwdriver/bit (as opposed to only 3 mm) will help with the wicking so it reduces the risk of dry hits as well as will help with flavor because surface area is your friend. My $.02.


KingPin!

In my defence, I was left unsupervised ^^
VU Donator
Platinum Contributor
Member For 4 Years
VU Challenge Team
Reviewer
Be sure to check out this post by @gakudzu. The keyring trick helped me tremendously. With three 28 Ni80 cores I found I had to move it in very small steps at a time, not more than an inch seemed to work best. If you got the stretch right, most important is to keep the angle between the core wires and your lead at 92-93 degrees, also don't pull your drill too hard but just enough to keep the core wires snug, and the same applies to your lead. If you do all that together it essentially wraps itself.

Personally I was told to use Ni80 for the cores as opposed to Kanthal/SS. Faster ramp-up and cooldown time in conjunction with better flavor production is why... can't say I disagree with that stance, but that's only my own opinion (there's something about Ni80 that Kanthal/SS just can't reproduce in terms of flavor IMO). Choosing 28 for the cores, 38 for the alien wrap will make your wraps narrow enough to fit 7 wraps in a 25 mm diameter atomizer. Also I was told wrapping your coil around a 3.5 mm screwdriver/bit (as opposed to only 3 mm) will help with the wicking so it reduces the risk of dry hits as well as will help with flavor because surface area is your friend. My $.02.

Deffo gonna try that keyring trick cheers buddy and Gaku;)

1 thing I thought of not seen anyone talk about is lining up the three cores and placing a bit of solder on each of the ends...since your gonna be snipping that off anyway doesn't matter right obviously I wouldnt use any bit of the coil that had solder on hence snipping it away? give it a chance to cool then chuck has something to bite onto as well? Or is that a no go ...can imagine I'm gonna get a load of don't be a noob responses to this idea lol still would keep wires in check better than tape

Last edited:

Iliketurtles

Silver Contributor
Member For 4 Years
Now I just have to grow some balls and at least attempt an alien coil... I keep watching the videos ... over and over and over... but just can't get the "courage" to attempt it... :mad:
Everyone in here has wasted a decent amount of wire even Ray had a problem with getting them right, there is a ton of knowledge in this thread that will make it easier than it used to be to learn. If it's your thing then although it can be frustrating it's also fun, I wasted tons of wire on aliens in my time first on just making them and then once I could make them on trying to make a jig that would do it for me, it was always fun - every time.

Practice ... more practice ... and patience has finally paid off. I was able to do a full 36" length of 28g/36g fused clapton run tonight. ZERO failures and the wrap is nice and tight. Once I was able to perfect the 5" - 6" runs I figured it was time to try longer runs again.

Last time I tried anything over 12" was a complete disaster. :bomb:


View attachment 75570 View attachment 75571 View attachment 75572

Are you using any clips or tools to get the wrap on perfectly or just a lot of slow as you go hold the spool as it goes down the wire?


Sent from my iPhone using Tapatalk


Carambrda

Platinum Contributor
ECF Refugee
Member For 5 Years
Deffo gonna try that keyring trick cheers buddy and Gaku;)

1 thing I thought of not seen anyone talk about is lining up the three cores and placing a bit of solder on each of the ends...since your gonna be snipping that off anyway doesn't matter right obviously I wouldnt use any bit of the coil that had solder on hence snipping it away? give it a chance to cool then chuck has something to bite onto as well? Or is that a no go ...can imagine I'm gonna get a load of don't be a noob responses to this idea lol still would keep wires in check better than tape
Just cut the middle core wire longer than the outer two, and then attach only the middle one to your swivel. The keyring should hold the outer two in place, and if it doesn't, try putting two pieces of masking tape around the keyring (one on each side of the core wires) as that will help prevent the keyring from wanting to slide off center under its own weight. (It's important to keep the center of gravity of your keyring positioned where your core wires are... as you'll pick up speed with your drill.) At the other end put a 90 degree bend in all three core wires, and then put all three ends in the same position in the chuck of your drill while taking your time to make sure that it's fastened nice and center. (A piece of masking tape rolled up around the cores that goes halfway into the chuck may help to get it center as well as may help prevent the middle core wire from breaking off in that position due to too much pressure applied from fastening the chuck.) Next, grab the three ends that are sticking out of the side of the chuck, and bend them in the direction that your drill is going to turn to make the alien wrap (opposite direction of how you made your clapton). Now you can attach your lead to those ends. (There's usually a small piece of decored clapton at the end of your lead that you didn't stretch because that's where you were holding it with your fingernail pressed while you were doing the stretching... you can stretch that small piece, completely, but without making it break in half... so that you can tie that to the side of the chuck.) Let the lead wire wrap over itself a few times around your cores at the start (enough to bind the core wires together at the start). Pinch it with your pliers so the cores will stay flat. Throw everything you aren't going to need out of the way, put your lead on a large enough, clean table so your lead doesn't crawl up on itself or catch anything. That's it. Just remember to start gently each time, watch it so it catches. Then pick up your speed and forget about everything in the universe excepting the 92-93 degree angle. No soldering or hot glue required. It's very therapeutical IMO! :D


KingPin!

In my defence, I was left unsupervised ^^
VU Donator
Platinum Contributor
Member For 4 Years
VU Challenge Team
Reviewer
Just cut the middle core wire longer than the outer two, and then attach only the middle one to your swivel. The keyring should hold the outer two in place, and if it doesn't, try putting two pieces of masking tape around the keyring (one on each side of the core wires) as that will help prevent the keyring from wanting to slide off center under its own weight. (It's important to keep the center of gravity of your keyring positioned where your core wires are... as you'll pick up speed with your drill.) At the other end put a 90 degree bend in all three core wires, and then put all three ends in the same position in the chuck of your drill while taking your time to make sure that it's fastened nice and center. (A piece of masking tape rolled up around the cores that goes halfway into the chuck may help to get it center as well as may help prevent the middle core wire from breaking off in that position due to too much pressure applied from fastening the chuck.) Next, grab the three ends that are sticking out of the side of the chuck, and bend them in the direction that your drill is going to turn to make the alien wrap (opposite direction of how you made your clapton). Now you can attach your lead to those ends. (There's usually a small piece of decored clapton at the end of your lead that you didn't stretch because that's where you were holding it with your fingernail pressed while you were doing the stretching... you can stretch that small piece, completely, but without making it break in half... so that you can tie that to the side of the chuck.) Let the lead wire wrap over itself a few times around your cores at the start (enough to bind the core wires together at the start). Pinch it with your pliers so the cores will stay flat. Throw everything you aren't going to need out of the way, put your lead on a large enough, clean table so your lead doesn't crawl up on itself or catch anything. That's it. Just remember to start gently each time, watch it so it catches. Then pick up your speed and forget about everything in the universe excepting the 92-93 degree angle. No soldering or hot glue required. It's very therapeutical IMO! :D
Well here it goes haven't got my other wire yet so using all 316L to practice on lol bloody stuff springy as hell ...who cares right

stage 1 clapton and decore complete 38g
Stage 2 got my wire 28g in alignment gonna mount it up believe it or not I'm out of bloody masking tape! Gonna wrap 38g round it form a clump to hold it tight instead sod it this is a test run anyway

Hands are shaking too much at the moment came out for a vape instead lol it's stage 3 I'm not looking forward to trying to find a spare keyring at the moment to be honest might use another bit of wrap around the wire and move it up as I go like the vid above fingers crossed here we go!


KingPin!

In my defence, I was left unsupervised ^^
VU Donator
Platinum Contributor
Member For 4 Years
VU Challenge Team
Reviewer
Well that's was fun! Wire method works really well to keep the cores straight I'll use that next time as well, the cores didn't try to bunch up once it was my wrap that let me down

So here is my first ever attempt at an alien few things I've learnt
1) the initial clapton has to be spot on any sort of kink is gonna fuck the wrapping cause you get one shot ...mine was not perfect I actual find fused claptons easier to wrap the single claptons go figure
2) need to work on my spacing had it to far forward need just off 90 degrees as you guys said hence my spacing is shocking was concentrating to much on everything instead of watching just that
3) go fairly slow on the drill medium speed max lol
4) don't hold the clapton wrap too tight it's actually easier to wind on than I thought it would be just kind of does it itself
5) When pushing up the keyring or wire wrap ( the peice holding cores in place) check your clapton wrap run hand down it as its twisting naturally when coiling...I didn't notice it was happening until half way through and could only get one coil out of it cause it all went in a tangled mess (no it wasn't snagged on my leg ) :(

Still pretty pleased with this 3x28g core 38g wrap 316L


PhantomOp

VU Donator
Gold Contributor
Member For 3 Years
Member For 2 Years
Are you using any clips or tools to get the wrap on perfectly or just a lot of slow as you go hold the spool as it goes down the wire?
Sent from my iPhone using Tapatalk
I'm using a power drill on one end and ball bearing clasps on the other. I ran that 36" stretch at full throttle after the first 3/8" of good wrapping.

IMG_20170303_173559224 (Large).jpg IMG_20170303_173526109 (Large).jpg IMG_20170303_173428884 (Large).jpg


KingPin!

In my defence, I was left unsupervised ^^
VU Donator
Platinum Contributor
Member For 4 Years
VU Challenge Team
Reviewer
Better than me you are! --- I gotta order all the correct wire to do it.
Looking at how good your claptons are mate you should be good to go ....honest the wrapping bit isn't as bad as you think it's gonna be it just goes on itself...if you get that 1st bit right jobs a gooden

Also when stretching out the de-core stop every now and then and measure against your cores i noticed on a vid I watched it should sit pretty much in between 2 ridges that's when it's stretched enough ...

Think my drill is too powerful I mean it'll go through anything my trusty Dewalt DCD985 its got fast, max impulse and warp speed really hard to be consistent on it to be honest it's like trying to drive a muscle car at 30mph, it groans at me like it's saying press the button ya bastard


PhantomOp

VU Donator
Gold Contributor
Member For 3 Years
Member For 2 Years
Looking at how good your claptons are mate you should be good to go ....honest the wrapping bit isn't as bad as you think it's gonna be it just goes on itself...if you get that 1st bit right jobs a gooden

Also when stretching out the de-core stop every now and then and measure against your cores i noticed on a vid I watched it should sit pretty much in between 2 ridges that's when it's stretched enough ...

Think my drill is too powerful I mean it'll go through anything my trusty Dewalt DCD985 its got fast, max impulse and warp speed really hard to be consistent on it to be honest it's like trying to drive a muscle car at 30mph, it groans at me like it's saying press the button ya bastard
I have an expensive Milwaukee that I was trying to use. It was the same damn way (with a concave chuck) ... I had to go get a cheap ass Black & Decker with the good chuck. This thing is working perfectly. She gets a little hot after a full out 36" run, but she'll get over it. She's supposed to get hot and sweaty... :devil:


KingPin!

In my defence, I was left unsupervised ^^
VU Donator
Platinum Contributor
Member For 4 Years
VU Challenge Team
Reviewer
I have an expensive Milwaukee that I was trying to use. It was the same damn way (with a concave chuck) ... I had to go get a cheap ass Black & Decker with the good chuck. This thing is working perfectly. She gets a little hot after a full out 36" run, but she'll get over it. She's supposed to get hot and sweaty... :devil:

Yeah think I'll purchase one as well when missus let's me ...button need to be soft press and non concave chuck which meets fully at the end ... my hand clamps up after trying to lightly press my drill
after 36" hence my hands were shaking earlier lol

Plus don't want to knacker my good drill wrapping wire cost too much money!


PhantomOp

VU Donator
Gold Contributor
Member For 3 Years
Member For 2 Years
Yeah think I'll purchase one as well when missus let's me ...button need to be soft press and non concave chuck which meets fully at the end ... my hand clamps up after trying to lightly press my drill
after 36" hence my hands were shaking earlier lol

Plus don't want to knacker my good drill wrapping wire cost too much money!
Here is the one I picked up




mach1ne

Gold Contributor
Member For 4 Years
nice work @KingPin! it looks like you got the stretch on your first try. the rest is just a matter of experience. your spacing is off because you were dividing your attention too many ways. youll learn what to watch and what to ignore very quickly. as for tension and drill speed, i find that whole 'wraps itself' feeling comes from speed, and that going slow is almost a promise of failure. cant count the times i was going very slow and careful, get a mistake, back up, fix it (still looks sloppy), continue, mistake....fuckit full speed on the drill in pure frustration, the rest of the build comes out 100%. the only bad part was the two inches i spent twenty minutes agonizing over. for me, this is most common on aliens and anything stagger fused, so now i go fast by default and within the first half inch or so i will find the tension and angle (these are minute adjustments) that works, and hold that until its all done.

nicely done @Johnny VapeStand :cheers:


KingPin!

In my defence, I was left unsupervised ^^
VU Donator
Platinum Contributor
Member For 4 Years
VU Challenge Team
Reviewer
nice work @KingPin! it looks like you got the stretch on your first try. the rest is just a matter of experience. your spacing is off because you were dividing your attention too many ways. youll learn what to watch and what to ignore very quickly. as for tension and drill speed, i find that whole 'wraps itself' feeling comes from speed, and that going slow is almost a promise of failure. cant count the times i was going very slow and careful, get a mistake, back up, fix it (still looks sloppy), continue, mistake....fuckit full speed on the drill in pure frustration, the rest of the build comes out 100%. the only bad part was the two inches i spent twenty minutes agonizing over. for me, this is most common on aliens and anything stagger fused, so now i go fast by default and within the first half inch or so i will find the tension and angle (these are minute adjustments) that works, and hold that until its all done.

nicely done @Johnny VapeStand :cheers:

Thanks buddy means a lot ;)


Whiskeywarrior

Silver Contributor
Member For 3 Years
Member For 2 Years
Member For 1 Year
Nah - I got a little too cautious and over-stretched them.
I always under stretch them a bit and adjust with tension on the skin. I also lick my fingers a bit to make them slightly slick to keep it from binding. And one more trick is try to keep your guide han at least a foot away from the cores, it allows better angle control. If you are 3" away a 1/4" is a hell of alot of angle, if you are a foot away not so much.


Johnny VapeStand

Bronze Contributor
Member For 4 Years
Yeah, I'm generally about 12-15" back. But 40g has a bad habit of tangling on me if I under-stretch and apply even a little pressure while re-wrapping it. So I tend to overcompensate.


Carambrda

Platinum Contributor
ECF Refugee
Member For 5 Years
{snip}
1) the initial clapton has to be spot on any sort of kink is gonna fuck the wrapping cause you get one shot ...mine was not perfect I actual find fused claptons easier to wrap the single claptons go figure
{snip}
Alright then, I'll share my little noob secret. (I'm a noob because I'm only 7 weeks into vaping, but even noobs can have secrets too! :D )

Have you ever heard about the "button trick", that's normally used to make spaced claptons? There's a vid of it on youtube... it works for regular claptons too if you attach the little piece of wire not across your lead like you would for spaced claptons, but resting on top of the second last and third last regular clapton'd windings that you already started freehand. I use a piece of masking tape (yeah... you really need that masking tape, man! :p ) to hold the button in place as I'm putting the little piece of wire through the holes in the button, and I tie the button down by pulling both ends of the little piece of wire as far away from eachother as possible whilst twisting them snugly around eachother. It should be done tight enough to keep the button hanging really very very closely against your initial clapton'd part after you peel off the tape, i.e. it should be tied in such a way that there's barely enough slack in there to still be able to gently wiggle it across the grooves of your clapton... so that you can then move it into the groove between your second last and third last winding of your clapton. Next, I tie a small weight to the little piece of wire by twisting both ends again, leaving a little bit of clearance between the button and weight. The added weight will keep it from wanting to jump out of the groove, but if it's too heavy it will break the wire in half before you've reached the end of your clapton so you'll have to start all over. Go easy on the drill, and keep your lead vertical. (I leave the spool dangling underneath the table and let the wire naturally untwist itself because any twist in the wire might disturb the clapton once you decore it.)


PhantomOp

VU Donator
Gold Contributor
Member For 3 Years
Member For 2 Years
Well -- First attempt at Staggered Fused Claptons

I used Ni80 26g Core & Ni80 32g Wrap
-- Why? Because that is what I had laying around that I didn't mind wasting. :)

Initial Spacing using the "button trick" (turned out damn nice I thought)
IMG_20170304_012309156 (Large).jpg

Then it came time to put the second wrap in --- OMG, what a pain in the ass.
1) I found that I can bairly see the damn thing. Apparently need magnifying glasses (wtf... i'm getting old) :facepalm:
2) I couldn't get the second wrap to "just fall in place" until about the middle of the strand.

I got a total of 6.5" of usable wire out of a 12" run.
Pic1 -- Just off the drill chuck
Pic2 -- Couple inches after the chuck
Pic3 -- Middle section that turned out good

IMG_20170304_015708953 (Large).jpg IMG_20170304_015922843 (Large).jpg IMG_20170304_015748846 (Large).jpg

Feedback and tips much appreciated.


KingPin!

In my defence, I was left unsupervised ^^
VU Donator
Platinum Contributor
Member For 4 Years
VU Challenge Team
Reviewer
Alright then, I'll share my little noob secret. (I'm a noob because I'm only 7 weeks into vaping, but even noobs can have secrets too! :D )

Have you ever heard about the "button trick", that's normally used to make spaced claptons? There's a vid of it on youtube... it works for regular claptons too if you attach the little piece of wire not across your lead like you would for spaced claptons, but resting on top of the second last and third last regular clapton'd windings that you already started freehand. I use a piece of masking tape (yeah... you really need that masking tape, man! :p ) to hold the button in place as I'm putting the little piece of wire through the holes in the button, and I tie the button down by pulling both ends of the little piece of wire as far away from eachother as possible whilst twisting them snugly around eachother. It should be done tight enough to keep the button hanging really very very closely against your initial clapton'd part after you peel off the tape, i.e. it should be tied in such a way that there's barely enough slack in there to still be able to gently wiggle it across the grooves of your clapton... so that you can then move it into the groove between your second last and third last winding of your clapton. Next, I tie a small weight to the little piece of wire by twisting both ends again, leaving a little bit of clearance between the button and weight. The added weight will keep it from wanting to jump out of the groove, but if it's too heavy it will break the wire in half before you've reached the end of your clapton so you'll have to start all over. Go easy on the drill, and keep your lead vertical. (I leave the spool dangling underneath the table and let the wire naturally untwist itself because any twist in the wire might disturb the clapton once you decore it.)
Awesome trick!


KingPin!

In my defence, I was left unsupervised ^^
VU Donator
Platinum Contributor
Member For 4 Years
VU Challenge Team
Reviewer
Also found another awesome trick I'm gonna try as well as button method above...one of the things I struggle with is holding my spool without it snagging on my hand along the way when wrapping a clapton it constantly happens! Ordered my one of these of Amazon "Fishing Line Spooler"

Compact-Lightweight-Fishing-Line-Winder-Reel-Spool-Spooler-System-Tackle-Aluminum-Tensioner-Contorl.jpg


Gonna take that bottom suction cap off and find something I can attach it to a pole with so I can maintain tension on the warp and move it along as I go ...what I've got in my head is something like the below obviously only a horizontal post one side !


Or just turn it around and attach something the wire feeds though on the suction cap end so I can hold it myself as I go ...probably just do that

Saw a vid from TheRussian Vaper using this

Also a single coil tutorial from him

Last edited:

Carambrda

Platinum Contributor
ECF Refugee
Member For 5 Years
{snip}
Then it came time to put the second wrap in --- OMG, what a pain in the ass.
1) I found that I can bairly see the damn thing. Apparently need magnifying glasses (wtf... i'm getting old) :facepalm:
I used two pairs of reading glasses that magnify 3x each and stacked them together, but had to take a break often to relax my eyes. Been thinking of getting a Carson Optical "LumiVisor LV-10" magnifier.
2) I couldn't get the second wrap to "just fall in place" until about the middle of the strand.
When you align your two spaced claptons against eachother, try aligning them such a way that the spaces of one spaced clapton are matching the wraps of the other one because you want the second wrap to go like /\/ as opposed to like N. When I built my staple staggered fused claptons (that was my 1st build, pic below) I made the mistake of folding a single long spaced clapton around the hook of my swivel, and that's what made it impossible for me to adjust the alignment so took from noon till morning to finish my build. (It vapes wonderfully in my The Troll RDA 2, though.)
