Two builds, one an unsuccessful at twisting some twisted 28g ka1 together with 26g n80 on my Freakshow Mini, and a successful dual parallel on my Velocity with twisted 28g ka1 and 24g ka1. Ohms came out to .12. Can never get the nichrome/kanthal combos to work right.FullSizeRender (3).jpg FullSizeRender (4).jpg


AndyRoundhead

Member For 4 Years
Member For 3 Years
Member For 2 Years
Member For 1 Year

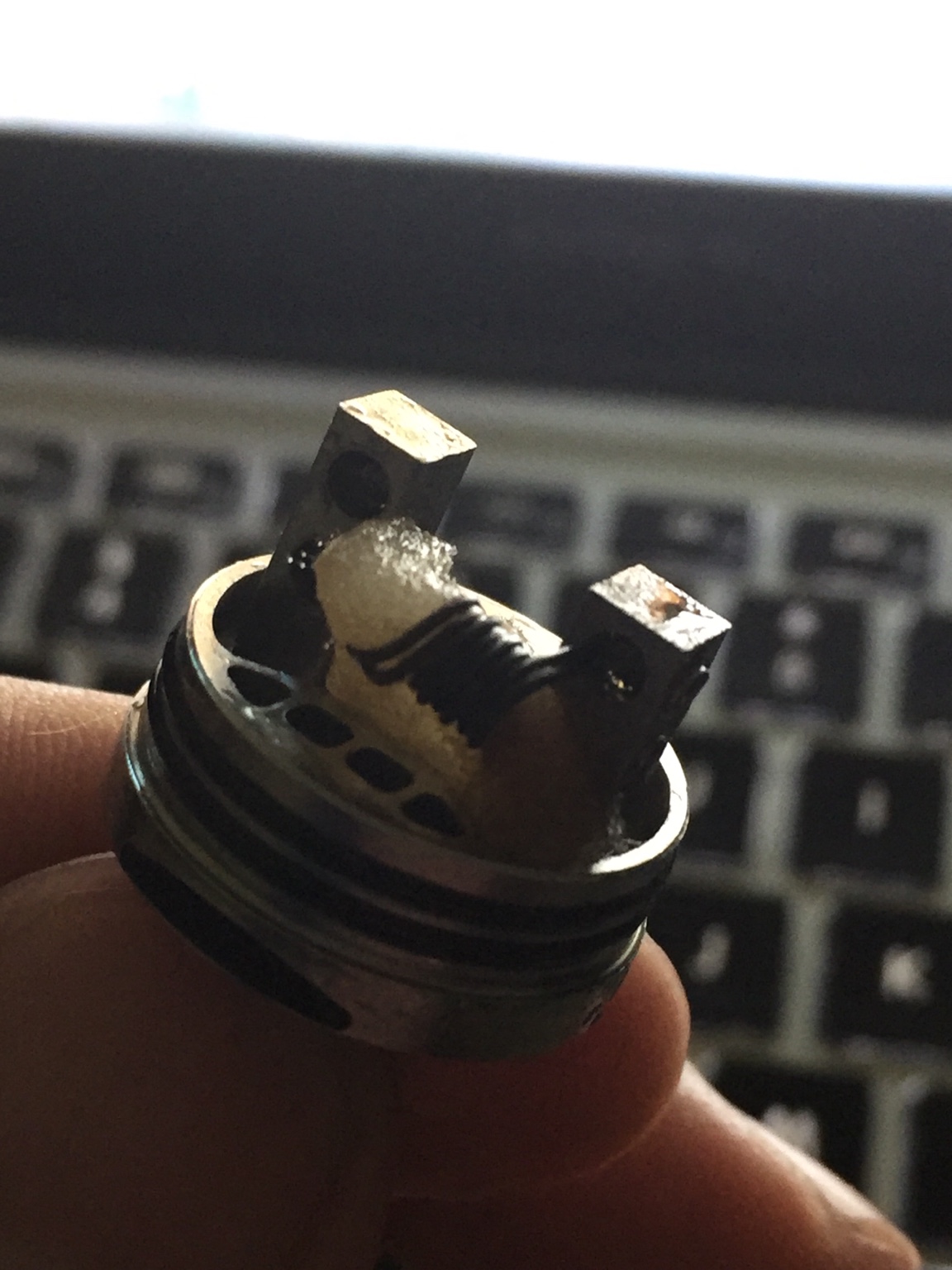

god I need to get macro for my phone. But this is my first usable fused Clapton 24 g nichrome with 30ka1. .20 ohms

Sent from my Z995 using Tapatalk


KayOhBe

Bronze Contributor
Member For 4 Years
Member For 3 Years
Member For 2 Years
Member For 1 Year
Good ol HTC One M7 with CyanogenMod camera (it's a little dated now). I don't use any macro mode - just snap it, crop it, apply some lighting effects and way to go!

Sent from my CM 12.One using Tapatalk [:=


hondo701

Member For 4 Years

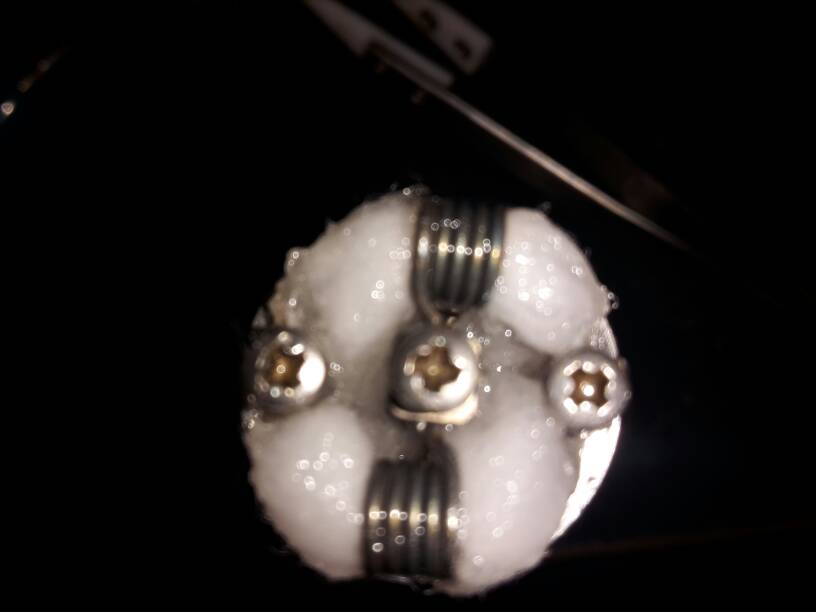

This is basic compared to most on here. 2 twisted 32 gauge Kanthal wires that I then twisted together. Its a total of 4 wires. Dual 5 wrap at 3 mm for 0.5 ohms in Marquis RDA. 25-40 watts depending on juice.





AndyRoundhead

Member For 4 Years
Member For 3 Years
Member For 2 Years
Member For 1 Year
This is basic compared to most on here. 2 twisted 32 gauge Kanthal wires that I then twisted together. Its a total of 4 wires. Dual 5 wrap at 3 mm for 0.5 ohms in Marquis RDA. 25-40 watts depending on juice.



Nice. Is that a clone or authentic?

Sent from my Z995 using Tapatalk


Sir Vapesalot

Bronze Contributor
Member For 4 Years
Member For 3 Years
Member For 2 Years
Member For 1 Year
god I need to get macro for my phone. But this is my first usable fused Clapton 24 g nichrome with 30ka1. .20 ohms

Sent from my Z995 using Tapatalk
I don't know if it's the picture, but your center post looks like it's twisted a bit...

Sent from my SAMSUNG-SM-G870A using Tapatalk

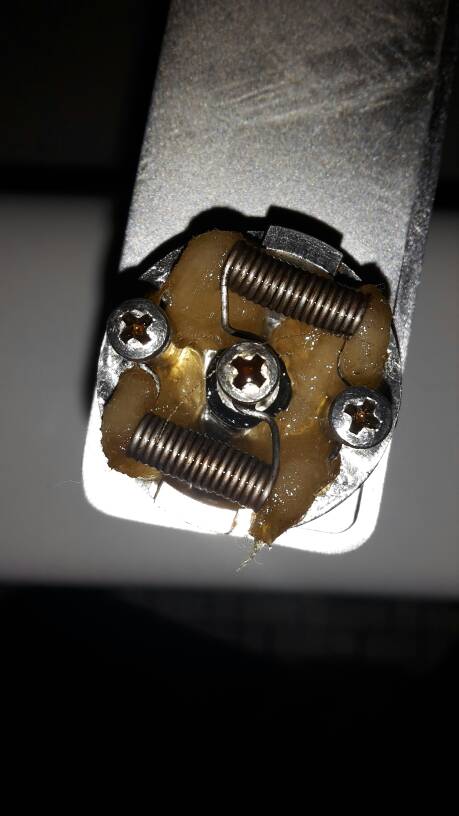

22g on a blunt needle
8 wraps
28g wrapped into the grooves
0.12ohm in dual

Cotton on the outside


Attachments

  • 20150905_124042-1.jpg
    482.7 KB · Views: 48

KayOhBe

Bronze Contributor
Member For 4 Years
Member For 3 Years
Member For 2 Years
Member For 1 Year
Where would you line up your airflow for that?

Sent from my CM 12.One using Tapatalk [:=


KayOhBe

Bronze Contributor
Member For 4 Years
Member For 3 Years
Member For 2 Years
Member For 1 Year
Nice! I couldn't figure out in my head how you'd work it so I had to ask [:=

While stripping my wire to make my first SFC build (posted a few days ago) I decided to set aside a length of wire which has spacing between the 32g
this didn't turn out to be all that great nor did it hold up very good. (My apologies for the image quality, must've messed something up whilst fine tuning the lighting effects)

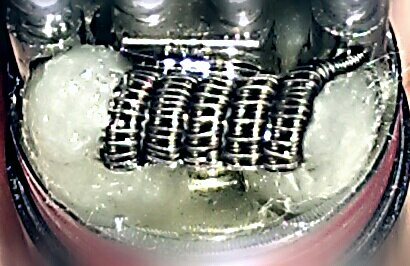

First attempt at a coil with spacing between each wrap
2x 32g/26g 6 wraps ID 3mm 0.3Ω.
I wrapped two Clapton's parallel then rotated until they came apart to achieve equal spacing but that basically went out the window during installation d:=
They wouldn't fire evenly so I removed one, wrapped two more, sperated them, then chose the better of the two (LAWL)

This is just something to get my "build fix" until Friday when I get my very first mech mod and can fire dual SFC's (saved my previous one and will construct another identical one when I get it)

Sent from my CM 12.One using Tapatalk [:=

Last edited:

juicy76

Silver Contributor
Member For 4 Years
Member For 3 Years
View attachment 28802

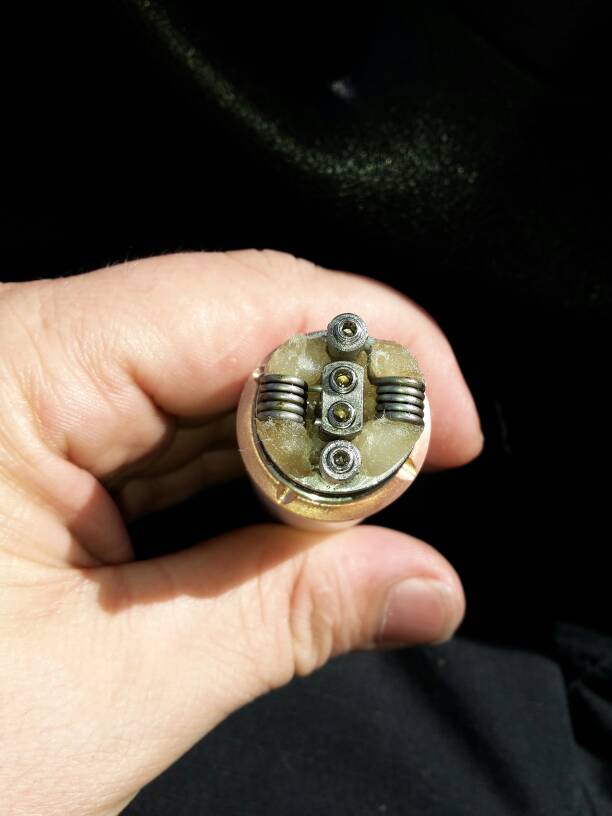

First time building with n80. Beautiful colors, comes in at .18 ohms. This is 26g n80 parallel with twisted 28g ka1, 8 wraps each side with a 2mm ID on the Troll. You know, if I could find grub screws to fit this thing, I'd be really happy.
You can order the 3 main sizes 1mm grub screws 2's. And 3's on eBay or Amazon just make sure that you get 5mm long


KayOhBe

Bronze Contributor
Member For 4 Years
Member For 3 Years
Member For 2 Years
Member For 1 Year

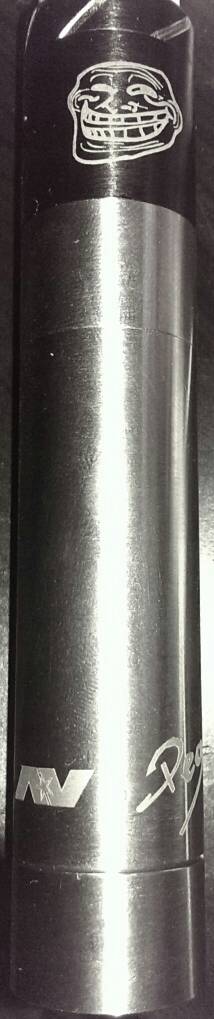

Alrighty! Got my first mech mod!
Here's what I got in there
dual SFC's 32g on 26g 6 wraps ID 3mm reading ~0.15Ω

Sent from my CM 12.One using Tapatalk [:=

Last edited:
Just made this last night. Fused Clapton with 24g inner with a 28g wrap. I think i went to thick of a gauge for my wrap. But all around i like it. First coil build! No joke. Id love some feedback


Attachments

  • IMG_20150917_214505.jpg
    59 KB · Views: 48

scarecrowjenkins

Silver Contributor
Member For 4 Years
Unlisted Vendor
Just made this last night. Fused Clapton with 24g inner with a 28g wrap. I think i went to thick of a gauge for my wrap. But all around i like it. First coil build! No joke. Id love some feedback
Nice!!! All the best results i've had are with 36g wraps and above. Every aspect of the coil is dramatically enhanced with the smaller gauge outer wire-so much that it vapes nothing like a coil with large outer wire. Great job on the first build though!!! Enjoy it! :p

Nice!!! All the best results i've had are with 36g wraps and above. Every aspect of the coil is dramatically enhanced with the smaller gauge outer wire-so much that it vapes nothing like a coil with large outer wire. Great job on the first build though!!! Enjoy it! :p
Thanks man! I will defintly have to use a smaller outer wire next time. The heat up time was just to long for me with that thicker wire. Just a quick question. What coil would you recommend for chucking clouds? My buddy conviced me to sign up for our local cloud comp and im just trying to find the perfect coil. Any suggestion?


KayOhBe

Bronze Contributor
Member For 4 Years
Member For 3 Years
Member For 2 Years
Member For 1 Year
So I cleaned them off

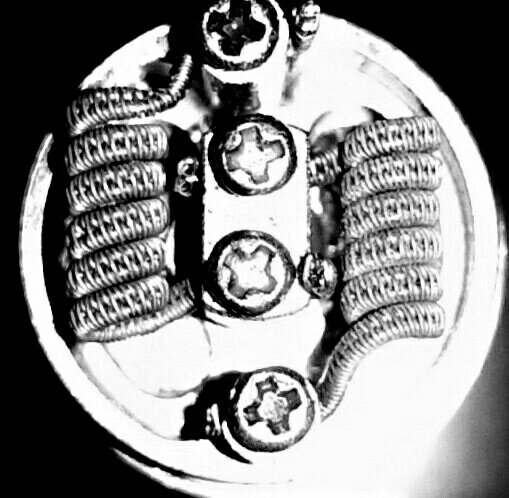

Dirty

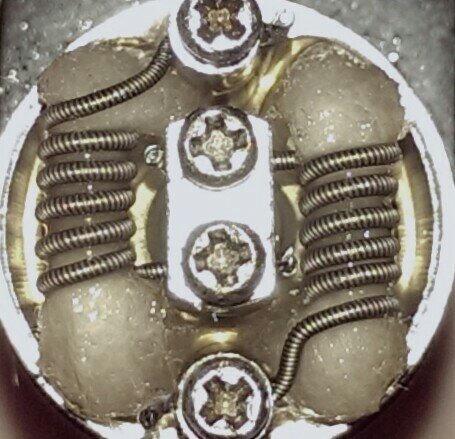

Clean


Sent from my CM 12.One using Tapatalk [:=


scarecrowjenkins

Silver Contributor
Member For 4 Years
Unlisted Vendor
Thanks man! I will defintly have to use a smaller outer wire next time. The heat up time was just to long for me with that thicker wire. Just a quick question. What coil would you recommend for chucking clouds? My buddy conviced me to sign up for our local cloud comp and im just trying to find the perfect coil. Any suggestion?
Man, hard to say exactly. If i were to enter one myself i would probably go with 24/38g fused claptons right at about .11 ohms. Always been a great producer for me. You need heat and surface area-and you need to get there safely. I would say parallel 24g nichrome 80, 5 wraps on each side for a simpler version of that. Possibly 6 wraps on each side depending on your inner diameter. Definitely parallel and definitely nichrome 80. 24g is probably gonna give you the best results. Kanthal is not gonna give you enough surface area to produce the density you want because you'll be using less wraps on any build versus the same resistance in nichrome. Hope that helps!!

Man, hard to say exactly. If i were to enter one myself i would probably go with 24/38g fused claptons right at about .11 ohms. Always been a great producer for me. You need heat and surface area-and you need to get there safely. I would say parallel 24g nichrome 80, 5 wraps on each side for a simpler version of that. Possibly 6 wraps on each side depending on your inner diameter. Definitely parallel and definitely nichrome 80. 24g is probably gonna give you the best results. Kanthal is not gonna give you enough surface area to produce the density you want because you'll be using less wraps on any build versus the same resistance in nichrome. Hope that helps!!
That helps a ton man! I appreciate all the help! Vape On!


s20700134

Member For 4 Years
Member For 3 Years
Member For 2 Years
Member For 1 Year
Nice! I couldn't figure out in my head how you'd work it so I had to ask [:=

While stripping my wire to make my first SFC build (posted a few days ago) I decided to set aside a length of wire which has spacing between the 32g
this didn't turn out to be all that great nor did it hold up very good. (My apologies for the image quality, must've messed something up whilst fine tuning the lighting effects)

First attempt at a coil with spacing between each wrap
2x 32g/26g 6 wraps ID 3mm 0.3Ω.
I wrapped two Clapton's parallel then rotated until they came apart to achieve equal spacing but that basically went out the window during installation d:=
They wouldn't fire evenly so I removed one, wrapped two more, sperated them, then chose the better of the two (LAWL)

This is just something to get my "build fix" until Friday when I get my very first mech mod and can fire dual SFC's (saved my previous one and will construct another identical one when I get it)

Sent from my CM 12.One using Tapatalk [:=

I personally prefer some spacing myself. For me, I noticed the flavor is very muted with a really tight clean Clapton, but with the spacing, the flavor is phenomenal.


CrazyChef

Custom Hand Crafted Coils - PureCoils.com
VU Vendor
VU Donator
Platinum Contributor
Member For 4 Years
ECF Refugee
Nothing fancy, I just liked the way it came out. 8/9 wraps around a 2.5mm post, 22g kanthal reading @ 0.24Ω. Tremendous flavor and respectable clouds at 85 watts.


Last edited:

Vapingbeauty

Gold Contributor
Member For 4 Years
Member For 3 Years
Member For 2 Years
Member For 1 Year
Nothing wrong with the classics. I still run them and chuck clouds daily :)

Sent from my SM-G900T using Tapatalk
Hey haven't seen you to to much @CTFX how have you been my friend

Sent from my SM-N910V using Tapatalk


Vapingbeauty

Gold Contributor
Member For 4 Years
Member For 3 Years
Member For 2 Years
Member For 1 Year
I've been very good l. Just got back from vacation :)

Sent from my SM-G900T using Tapatalk
Sweet vacations are always awesome and iam sure well deserved and needed...lol

Sent from my SM-N910V using Tapatalk


AndyRoundhead

Member For 4 Years
Member For 3 Years
Member For 2 Years
Member For 1 Year
I don't know if it's the picture, but your center post looks like it's twisted a bit...

Sent from my SAMSUNG-SM-G870A using Tapatalk
Yeah it's the picture. Because it's at an angle and the screw comes up a bit it gives it that look.

Sent from my Z995 using Tapatalk


scarecrowjenkins

Silver Contributor
Member For 4 Years
Unlisted Vendor
26/40g Fused Claptons on the Phenotype-L atty. Just a simple flavor build to get me through the upcoming work week. Probably my favorite go-to build when i'm not in the mood to think too much. The 40g really works wonders for the flavor, something about the way it traps the juice in the wire just never seems to disappoint me. Sitting on the Sigelei 150 TC box at .16 ohms it's a buttery smooth vape at 85 watts (3.6v).





HoosierVape

Member For 4 Years
Member For 3 Years
Member For 2 Years
Got bored so whipped up a parallel coil. 4 wraps of 24g Kanthal running at .22ohms. Like this build a lot!



Sent from my iPhone using Tapatalk


CTFX

Platinum Contributor
Member For 4 Years
Member For 3 Years
Member For 2 Years
Member For 1 Year
Nice deck! Velocity?

Sent from my SM-G900T using Tapatalk


HoosierVape

Member For 4 Years
Member For 3 Years
Member For 2 Years
Nah it's the Stro mini v2! Love the look of the velocity though, this was an impulse buy but I love it haha


Sent from my iPhone using Tapatalk


CrazyChef

Custom Hand Crafted Coils - PureCoils.com
VU Vendor
VU Donator
Platinum Contributor
Member For 4 Years
ECF Refugee
My first Clapton. 28g kanthal wrapped around 22g kanthal. 4 wraps. Comes in at 0.26Ω
I built it for DIY juice tasting, so I'm leaving it wickless. The 2nd pic shows it positioned close to the deck so I can just tilt it for a bit more juice.




Cloudz4Days

Member For 4 Years
Member For 3 Years
Member For 2 Years
Member For 1 Year
Member For 5 Years
Some of my builds I've done recently


20g ni80 3.5mm ^

18g a1 3.5mm ^

20g a1 3mm^

Twisted 26g ni80/22g a1 3mm^ I cleaned this one up and made it look pretty

Last edited:

KayOhBe

Bronze Contributor
Member For 4 Years
Member For 3 Years
Member For 2 Years
Member For 1 Year
Got lazy while waiting for my SFC's to soak in solution for cleansing and wrapped the outer 32g by hand to fuse two Clapton's (2 parallel 32g's over 1 26g) together

Dual 5 wraps ID 3mm 0.15Ω

Edit: forgot to mention I kept the outermost 32g away from the ends of the leads as they made the finished wire too big to fit in my post holes.

Sent from my CM 12.One using Tapatalk [:=

Last edited:
