whatever it is, it sure doesn't look like a high discharge battery. It would probably pop the protection circuit on the first vape, wouldn't it?


VapeRN

Bronze Contributor
Member For 4 Years
Member For 3 Years
Member For 2 Years
Member For 1 Year
whatever it is, it sure doesn't look like a high discharge battery. It would probably pop the protection circuit on the first vape, wouldn't it?
Yes. It most certainly would. That's a flashlight battery. One toot and it'll go poof.


Sent from my iPhone using Tapatalk


raymo2u

VU Donator
Platinum Contributor
Member For 4 Years
Unlisted Vendor
whatever it is, it sure doesn't look like a high discharge battery. It would probably pop the protection circuit on the first vape, wouldn't it?
It would do something LOL I wouldnt want to be around for what happens though. I highly recommend not buying that for anything except its listed uses....It is not safe!


@Gear101 Buy some Samsung 25Rs, LG HE2/4's, Sony VTC3/4/5's and not have to worry about it, most builds will still have headroom with any of these in a parallel mech, and better results in a regulated mod. They re also cheap, I saw that Interstate Battery is almost 10 bucks by itself...You could get 2 of them 25R's or HE2/4's for that!


raymo2u

VU Donator
Platinum Contributor
Member For 4 Years
Unlisted Vendor
OOooo and the price isnt bad either, Ill have to order some. Still waiting for my tax return so I can get some nice new stuff, Ill add it to the list though


Model_A_Ford

Bronze Contributor
Member For 4 Years
Member For 3 Years
Member For 2 Years
Member For 1 Year
I sort of want to get a few LG HB4, they can pump out some serious shiggity-boo-yah!

But, I don't ev
en have a mech mod yet, so sorta pointless for regulated maybe.


raymo2u

VU Donator
Platinum Contributor
Member For 4 Years
Unlisted Vendor
I sort of want to get a few LG HB4, they can pump out some serious shiggity-boo-yah!

But, I don't even have a mech mod yet, so sorta pointless for regulated maybe.
I want to grab some more HB6's I have 2 but I dont want to kill them anytime soon since I went to great lengths to get them...I would like to get some REAL VTC3 and 4's also...All I see are fakes and Liionwholesale.com has them and are authentic its just Ive been happy with the 25R5's that I havent bought anything other then those...


raymo2u

VU Donator
Platinum Contributor
Member For 4 Years
Unlisted Vendor
https://www.imrbatteries.com/lg-hb6-18650-1500mah-30a-flat-top-battery/
They have 2 in stock

Sent from my LG-H811 using Tapatalk
Im sure they are not Authentic. The Authentic HB6 were only made and sold to one company and they didnt sell singles, only packs for specific devices. Those batteries would have had to come from a premade battery pack if those are real....This is why you dont see any at Liionwholesale or other places that only carry Authentic batteries.
I am sure if they are decent then they would be HG2 Rewraps


Schmucko

Silver Contributor
Member For 4 Years
Im sure they are not Authentic. The Authentic HB6 were only made and sold to one company and they didnt sell singles, only packs for specific devices. Those batteries would have had to come from a premade battery pack if those are real....This is why you dont see any at Liionwholesale or other places that only carry Authentic batteries.
I am sure if they are decent then they would be HG2 Rewraps
From the website:

"We have just a few left of the HB6 - all are display batteries from trade shows and may be imperfect in aesthetics, but none have been used."

Sent from my LG-H811 using Tapatalk


raymo2u

VU Donator
Platinum Contributor
Member For 4 Years
Unlisted Vendor
From the website:

"We have just a few left of the HB6 - all are display batteries from trade shows and may be imperfect in aesthetics, but none have been used."

Sent from my LG-H811 using Tapatalk
I may have to order some and do a comparison vs the ones I own...
Im also ordering some VTC3's and HB2's from LWS right now, Ill add those HB6's to the list


Schmucko

Silver Contributor
Member For 4 Years
I may have to order some and do a comparison vs the ones I own...
Im also ordering some VTC3's and HB2's from LWS right now, Ill add those HB6's to the list
Thats why i shot ya the link, probably of little interest to most since hb2's are out there too and they only have 2

Sent from my LG-H811 using Tapatalk


kickboxerwalker

Member For 4 Years
Member For 3 Years
Member For 2 Years
Member For 1 Year
i just ordered a couple vtc3's to go with an Origin clone and Patriot RDA clone i ordered. never used a mech mod but i am excited to try. looking forward to furthering my skills. aside from not building below 0.13 ohms, does anyone have any advice for me?


raymo2u

VU Donator
Platinum Contributor
Member For 4 Years
Unlisted Vendor
i just ordered a couple vtc3's to go with an Origin clone and Patriot RDA clone i ordered. never used a mech mod but i am excited to try. looking forward to furthering my skills. aside from not building below 0.13 ohms, does anyone have any advice for me?
Buy a Ohm Reader, its a must for building to check for Shorts/Resistances
Make sure to keep your contacts clean on every piece
Only use Hybrid Mods with Protruding Positive Pinned RDAs
Do not build lower then .3 Ohms for a Tube Mod (atleast until you are more advanced)
Start slow, try some easier builds to get the hang of how a mech works...your build is the wattage/voltage control and your results will be your baseline to adjust.


kickboxerwalker

Member For 4 Years
Member For 3 Years
Member For 2 Years
Member For 1 Year
Buy a Ohm Reader, its a must for building to check for Shorts/Resistances
Make sure to keep your contacts clean on every piece
Only use Hybrid Mods with Protruding Positive Pinned RDAs
Do not build lower then .3 Ohms for a Tube Mod (atleast until you are more advanced)
Start slow, try some easier builds to get the hang of how a mech works...your build is the wattage/voltage control and your results will be your baseline to adjust.
thanks. i already have an ohm meter, and multimeter. any particular builds you would recommend to start?


raymo2u

VU Donator
Platinum Contributor
Member For 4 Years
Unlisted Vendor
thanks. i already have an ohm meter, and multimeter. any particular builds you would recommend to start?
If you can I would suggest Dual Coil- 2 x 22G/40g-46g Fused Claptons, 3mm ID/6 Wraps.
Its one of my personal favorites..
Its in my Griffin RTA and in my Twisted Messes RDA, they gunk up slowly and clean up nicely. I have a pair that have been used everyday for almost 5 months now.
Griffin New and 2 weeks old:
Griffin Build.jpgGriffin Build Old.jpg
TM Rda New and almost 4 months on this build:
22K 46N60 .jpg 22K 46N60 Old.jpg


CrazyChef

Custom Hand Crafted Coils - PureCoils.com
VU Vendor
VU Donator
Platinum Contributor
Member For 4 Years
ECF Refugee
If you can I would suggest Dual Coil- 2 x 22G/40g-46g Fused Claptons, 3mm ID/6 Wraps.
On an Origin clone? Aren't they single battery tubes?
That build, using 2x22K/40N (or 46N) draws about 47 amps...


kickboxerwalker

Member For 4 Years
Member For 3 Years
Member For 2 Years
Member For 1 Year
On an Origin clone? Aren't they single battery tubes?
That build, using 2x22K/40N (or 46N) draws about 47 amps...
putting it in the steam engine it says the build should be 0.16 ohms and pull 26.25 amps
nevermind, it only showed one coil. yeah, thats way too low.


raymo2u

VU Donator
Platinum Contributor
Member For 4 Years
Unlisted Vendor
On my Snow Wolf with Dual 5 wrap 2x22K/46N60 Fused Claptons shows .13 Ohms (32.31A), unless your running a Parallel mod, Regulated or own LG HB2/HB6'sor Sony VTC3/4's on a Tube, Single 18650 Mod

If your running a Tube Mod change the 22g to 2 x 26g or 2 x 28g as there a bit more mild in current needed.


kickboxerwalker

Member For 4 Years
Member For 3 Years
Member For 2 Years
Member For 1 Year
i put the build in my royal hunter on the sigelei 150w. came out to 0.2 ohms and pulls 21 amps at 88.2 watts. that should make a good first coil to start. i may make a dragon skin and try that since it has such a high resistance.


BrattVapes

Silver Contributor
Member For 4 Years
Member For 3 Years
Member For 2 Years

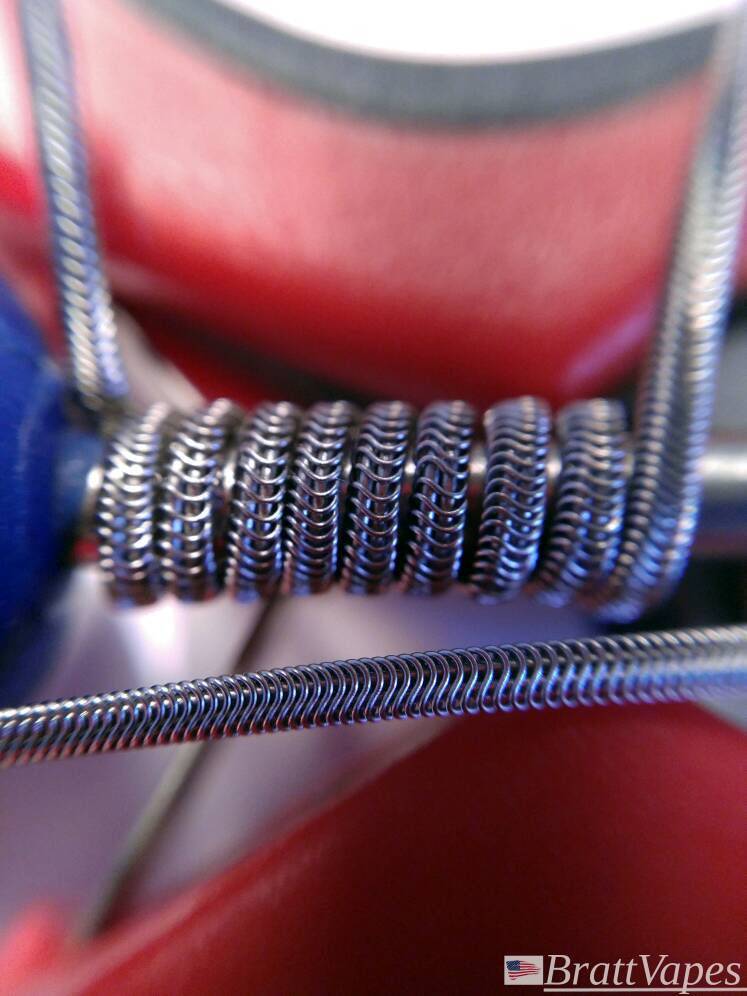

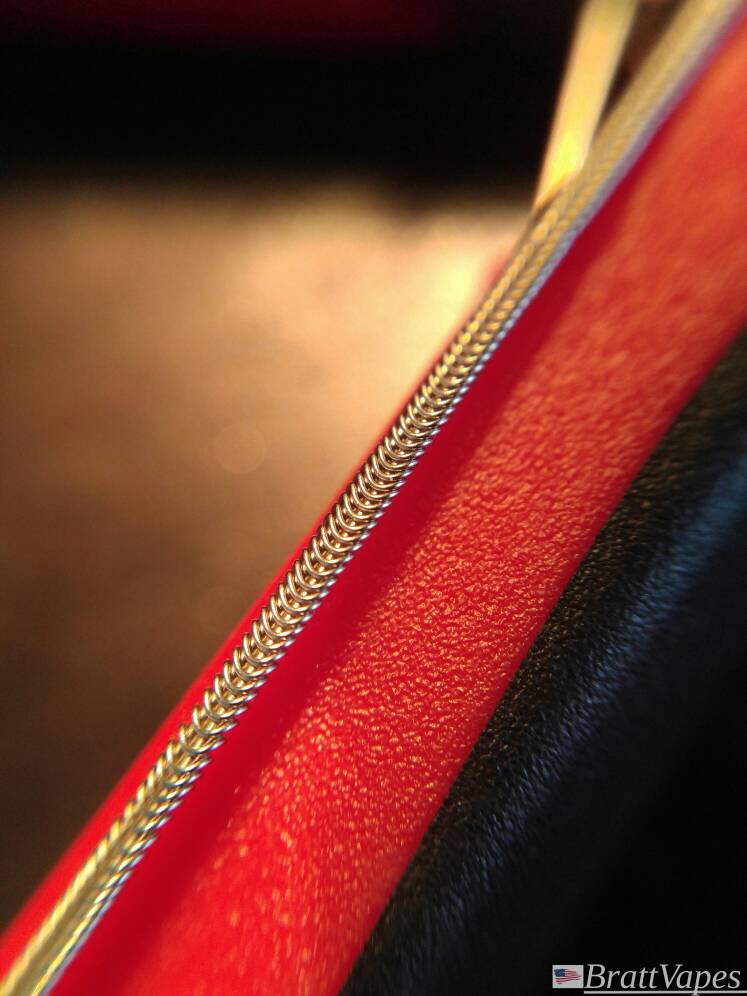

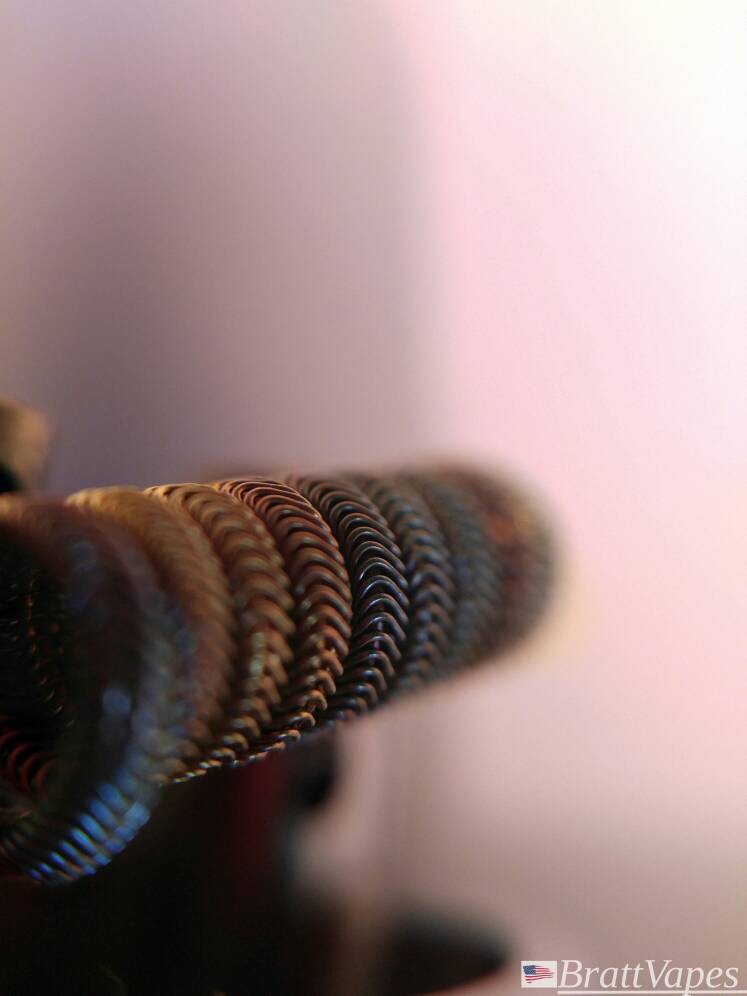

I FUCKING DID IT!

yeahhh maybe the f word isn't necessary... Hell .. Yes it is! I fought this damn build for a week! I GOT IT! HAHA! I made that alien wire MY bitch.

Took Schmucko's advice this time.. Thanks buddy.

Only did two cores, 34 gauge not 38 alien.. But I DID IT. Now that I can do it right, I'll work my way to three cores and 38 but I need more 26 Gauge after all that trial and error...

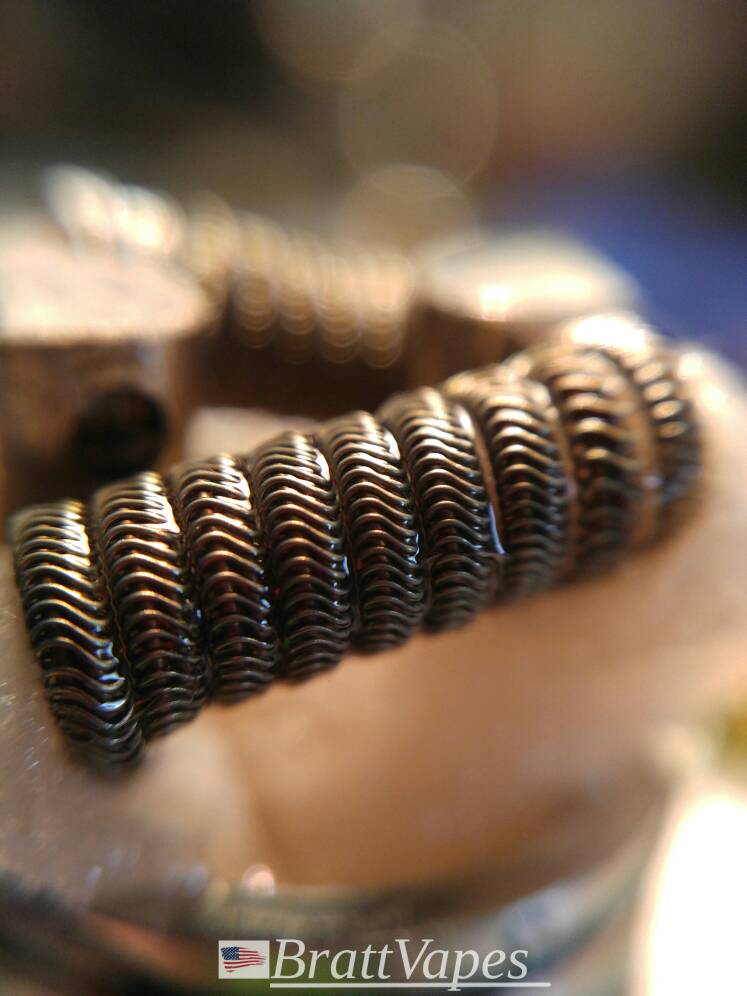

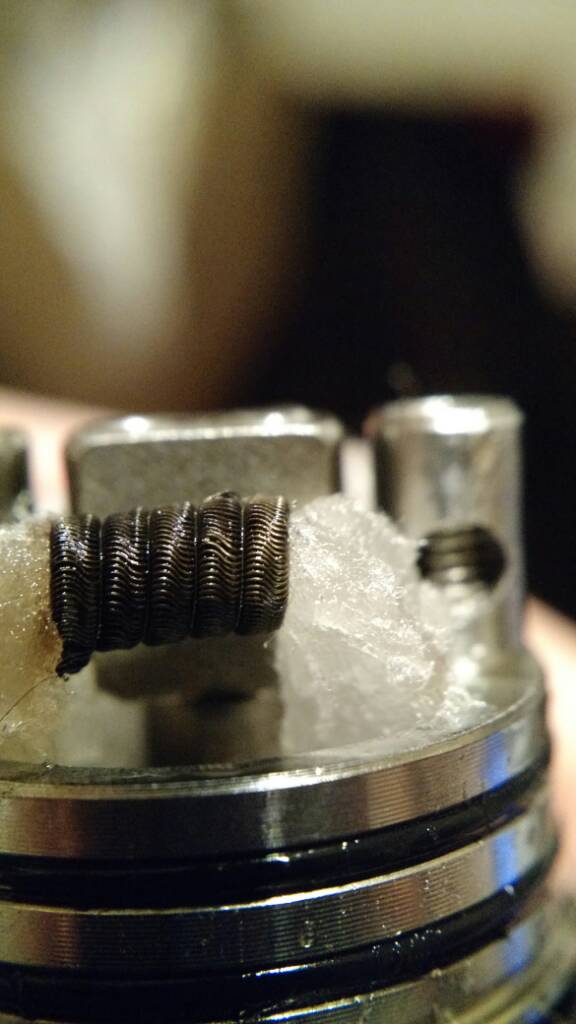

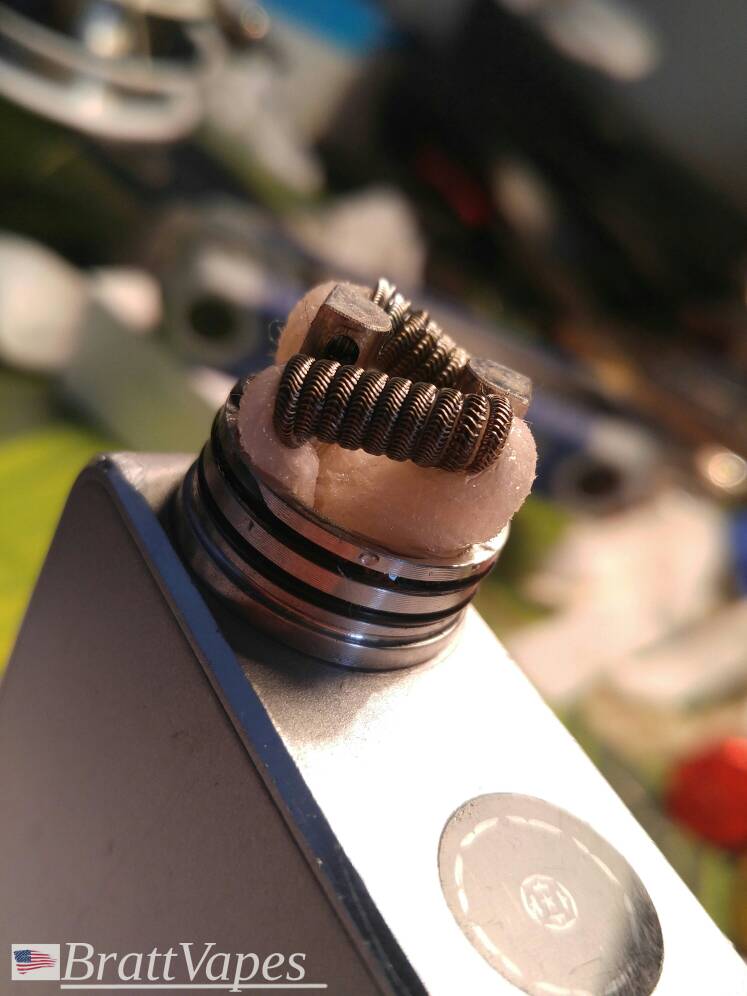

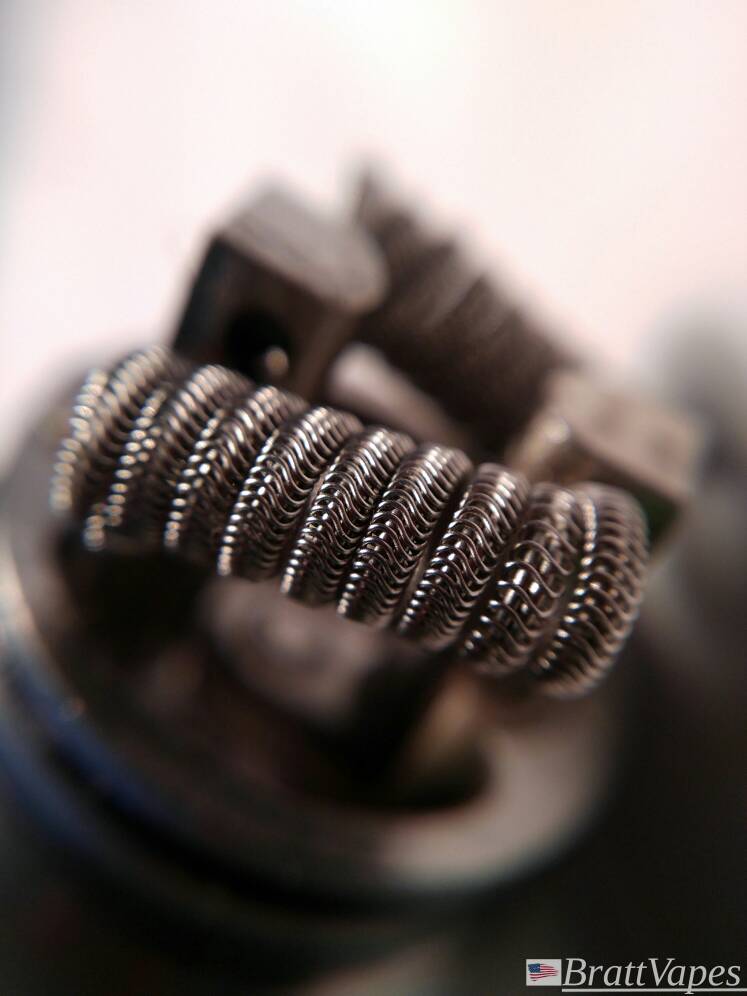

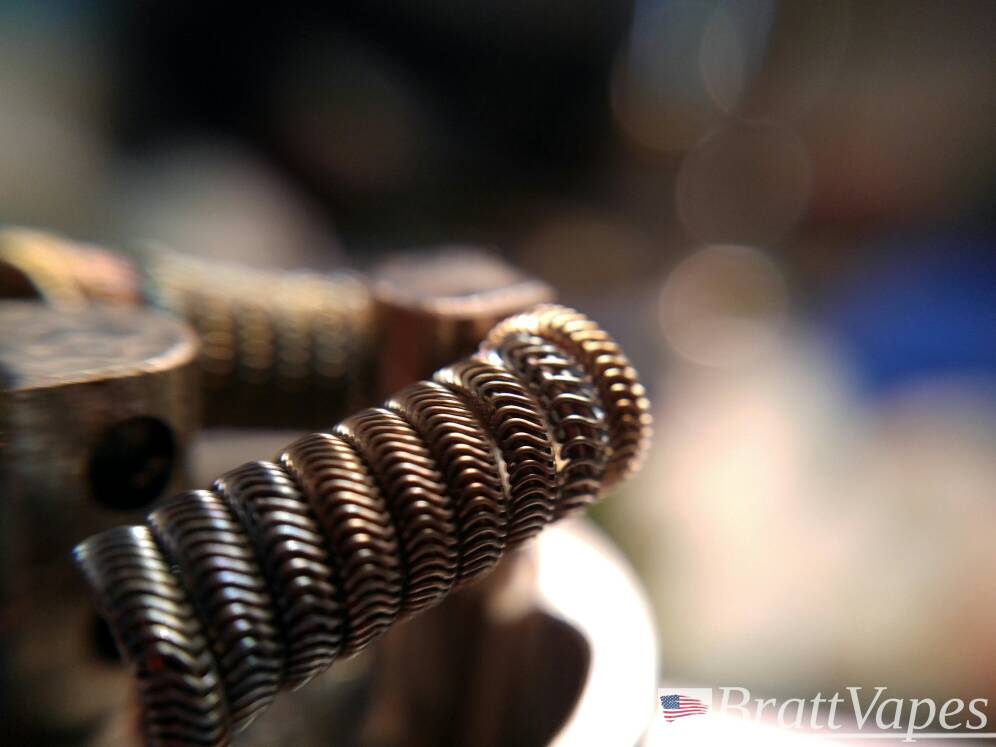

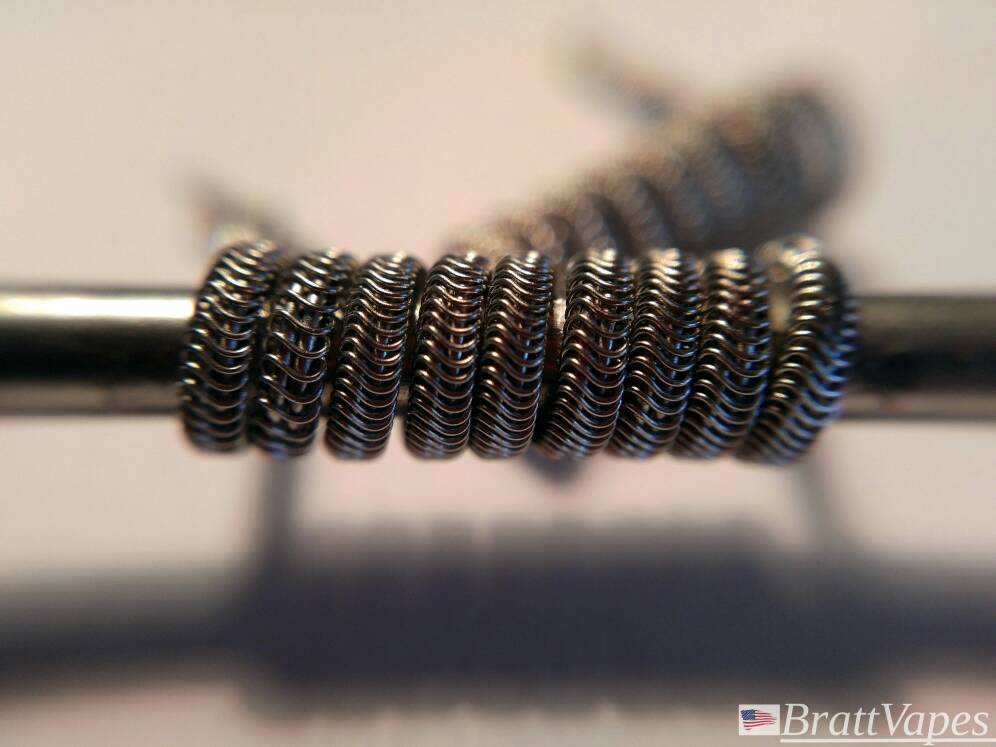

Took too many photos. Here you go..

















Matt


raymo2u

VU Donator
Platinum Contributor
Member For 4 Years
Unlisted Vendor
I FUCKING DID IT!

yeahhh maybe the f word isn't necessary... Hell .. Yes it is! I fought this damn build for a week! I GOT IT! HAHA! I made that alien wire MY bitch.

Took Schmucko's advice this time.. Thanks buddy.

Only did two cores, 34 gauge not 38 alien.. But I DID IT. Now that I can do it right, I'll work my way to three cores and 38 but I need more 26 Gauge after all that trial and error...

Took too many photos. Here you go..

















Matt
Well done....I gotta get on that game when I get some mid-30g wire in, all I have is 30g and 38g left (well enough for something like this)....I want a dual 2 core alien build in my griffin....


BrattVapes

Silver Contributor
Member For 4 Years
Member For 3 Years
Member For 2 Years
Well done....I gotta get on that game when I get some mid-30g wire in, all I have is 30g and 38g left (well enough for something like this)....I want a dual 2 core alien build in my griffin....
It took me forever. But after I got it done I feel better!!! Time to experience the vape for a while hope it's worth it.

Matt


BrattVapes

Silver Contributor
Member For 4 Years
Member For 3 Years
Member For 2 Years
I had 9 wraps on it... It didn't fit in my velocity! Had to remove one to get it to fit. Too hot on the noisy cricket so it's sitting on the IPV at 95-115 watts. Flavor isn't anything amazing right now.. That may be the coffee overpowering it though.

Matt


C4rlosuk

Member For 4 Years
Member For 3 Years
Member For 2 Years
That's where I'm having trouble they jus don't line up that way unless I pullthem into place which I usually end up smashing the coils or breaking the legs when I do that ... Any tips or tricks ?

Sent from my LG-ls990 using Tapatalk
Hi, not sure if anyone has already said this in the next 100+ posts as ive not got that far yet but wanted to help with your issue.

You are putting the legs of the coil through the positive and negative holes on the same side which will make it very hard to position it over the air intake.

You need to posotion the left negative to right positive or right negative to left positive. This will help you keep the coil over the centre of the holes.

When you build the coils leave the negative longer, put legs of coil in posts and posotion the coil over the air holes.

Tighten down the positive then adjust the negative leg to suit and pull through any slack before tightening it down.

Hope this is of some help.

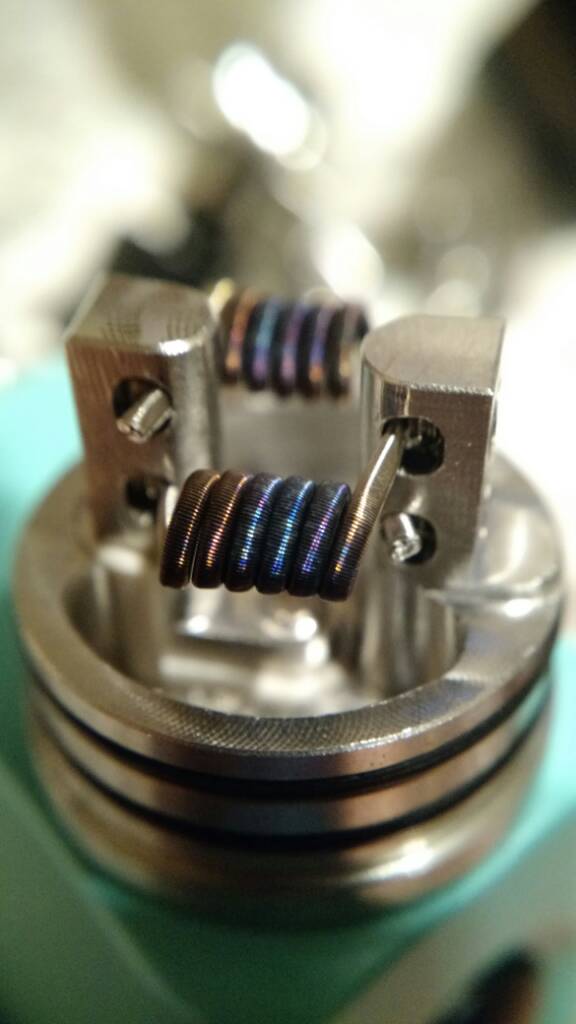

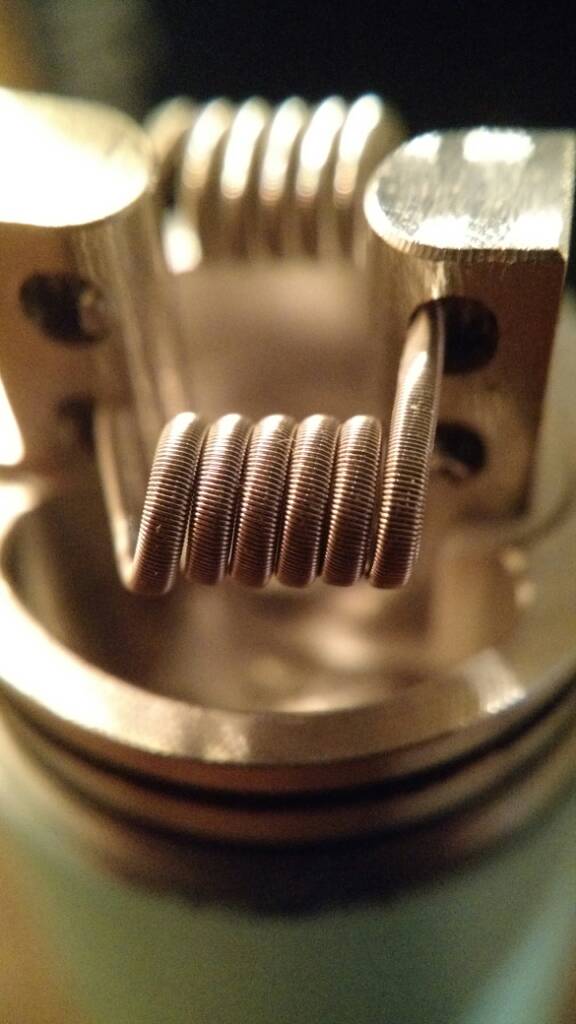

I got a macro lens for Christmas and am loving it, its total night and day. Excuse the dirty aliens lol

And some color on the velocity

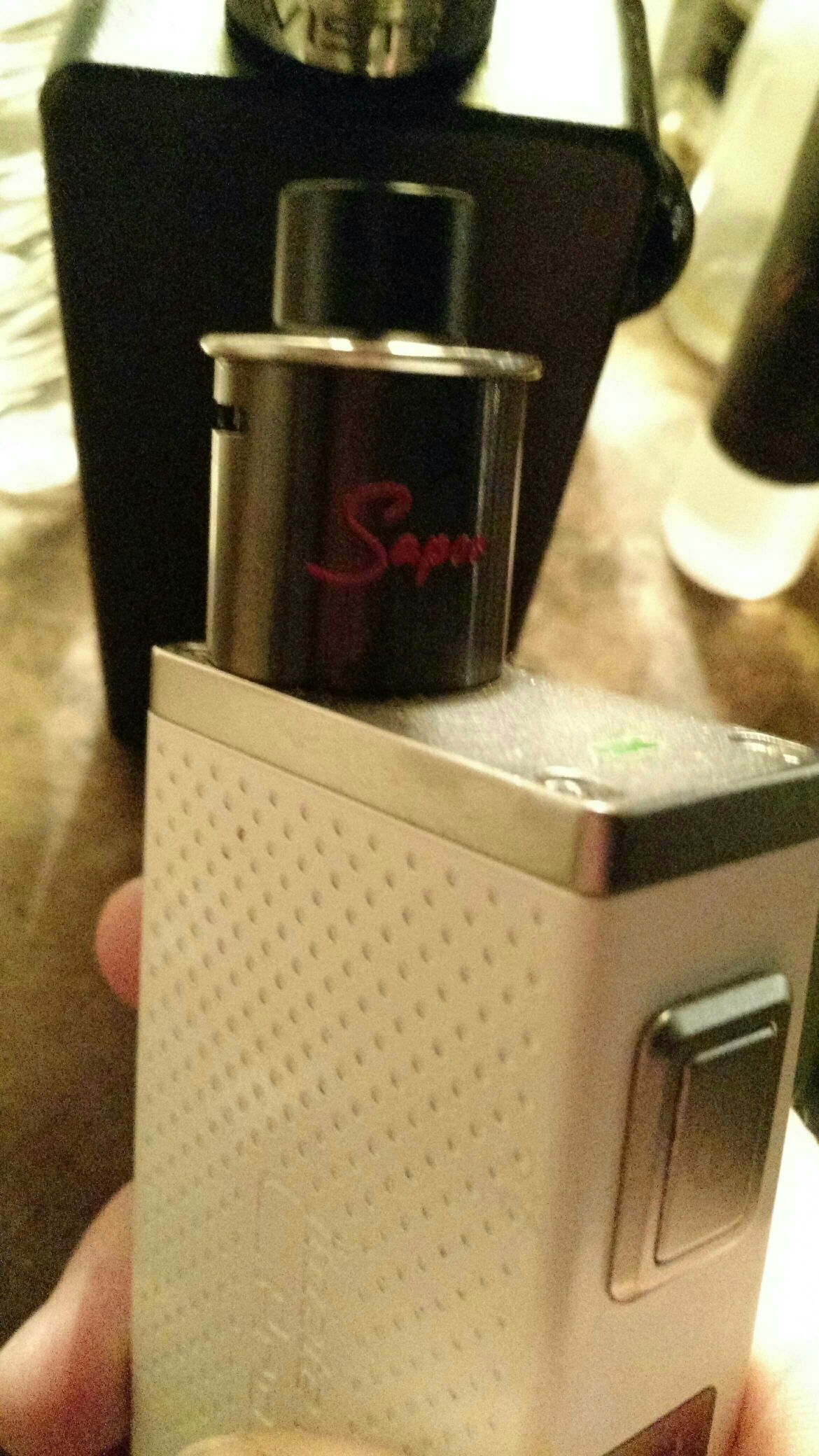

Also the gf got me this:

It's an absolute dream, all the pluses of a full size rda and most of the benefits of a mini

Sent from my XT1095 using Tapatalk


Sent from my GT-I9195 using Tapatalk


kickboxerwalker

Member For 4 Years
Member For 3 Years
Member For 2 Years
Member For 1 Year
I FUCKING DID IT!

yeahhh maybe the f word isn't necessary... Hell .. Yes it is! I fought this damn build for a week! I GOT IT! HAHA! I made that alien wire MY bitch.

Took Schmucko's advice this time.. Thanks buddy.

Only did two cores, 34 gauge not 38 alien.. But I DID IT. Now that I can do it right, I'll work my way to three cores and 38 but I need more 26 Gauge after all that trial and error...

Took too many photos. Here you go..

















Matt
congrats dude. fantastic job. as for the flavor and vapor, a few fewer coils centered by the air holes should help a great deal. keep at it and experiment some more. keep it up.


Dawn0810

Gold Contributor
Member For 4 Years
Member For 3 Years
I have a question could anyone do anything with about 6lbs of 18gauge 316L SS wire long story short I messed up when I ordered it


Sent from the iPad in the basement of vapement


raymo2u

VU Donator
Platinum Contributor
Member For 4 Years
Unlisted Vendor
I have a question could anyone do anything with about 6lbs of 18gauge 316L SS wire long story short I messed up when I ordered it


Sent from the iPad in the basement of vapement
If you can make smaller amount spools you could sell them.....


Dawn0810

Gold Contributor
Member For 4 Years
Member For 3 Years
If you can make smaller amount spools you could sell them.....
I just didn't know if it was vapable because of how big the wire is so I figured I would ask you guys what you thought about it


Sent from the iPad in the basement of vapement


Dawn0810

Gold Contributor
Member For 4 Years
Member For 3 Years
What could I add to it to higher the resistance


Sent from the iPad in the basement of vapement


BrattVapes

Silver Contributor
Member For 4 Years
Member For 3 Years
Member For 2 Years
What could I add to it to higher the resistance


Sent from the iPad in the basement of vapement
You could increase your ID... But nothing really to add as far as other wire goes for increasing the resistance... It's unfortunate, that's the same reason I still have about 200' of 20G Kanthal sitting at home... Can't use it on anything regulated in my possession, and building it to get resistance high enough for it is too much..


The problem with these large gauges at least for me is the wire itself is so large that at least before I got my velocity I didn't have a deck large enough to increase my ID and even adding wraps was near impossible.


But I love 20G when I just wanna throw clouds around and set off my smoke detectors.



Matt


CrazyChef

Custom Hand Crafted Coils - PureCoils.com
VU Vendor
VU Donator
Platinum Contributor
Member For 4 Years
ECF Refugee
A single coil build at 7.5 wraps, 3.0mm ID would put you at about 0.11Ω pulling approximately 38 amps.


raymo2u

VU Donator
Platinum Contributor
Member For 4 Years
Unlisted Vendor
Could use a Snow Wolf in Power mode...Fires down to .05 Ohms :D


BrattVapes

Silver Contributor
Member For 4 Years
Member For 3 Years
Member For 2 Years
And doesn't SS work in TC mode? I am not experienced in TC but it is my understanding that TC mode fires considerably lower resistances. Maybe you can use it after all?

Matt


Poppa (K)

Bronze Contributor
Member For 4 Years
Member For 3 Years
Member For 2 Years
Member For 1 Year
i got my wire order today. i have now entered the world of absurdity......
STM hell.JPG
build#027
Sub Tank Mini RBA
Fused Clapton Parallel
24K/30K38Kfuse
4wr/2.5mm
.26ohm
fused staple max.JPG

build#027
Velocity
Framed Staple
10x.5K/26K/38Kfuse
5wr/3mm
.14ohm

i'm done for the night, lol.

Last edited:

martnargh

Silver Contributor
Member For 4 Years
Member For 3 Years
So I have a fused inside of the double vision, the noisy cricket vape harder than my Sig 150. Just unbelievable.
Whats that ohm at? I got a .3 24n80/32n80 dual coil and its a freakin monster.... havent touched any other mod since i got it a week or 2 ago...

Sent from my SM-N920T using Tapatalk


EndDetour

Bronze Contributor
Member For 4 Years
Fuchai doesnt have ss setting for tc tho

Sent from my LG-H811 using Tapatalk
I may have misquoted...I meant in reference to the minimum firing resistance parallel between the snow wolf and the fuchai at .05... I have yet to work with ss, although I am intrigued at the claims of a "cleaner" taste. So to clarify, Ss is only usable in power mode on the fuchai and not on its nickel or titanium temp settings, but the snow wolf has this capability. And if so, wouldn't adding a wee bit of ni to your coil setup allow the fuchai to recognize the ni and unlock that setting allowing you to A: use ss in tc, and B: potentially build lower than .05?


-every animal has an adequate amount of gray matter in its cranium to tan and preserve its own hide-


Schmucko

Silver Contributor
Member For 4 Years
I may have misquoted...I meant in reference to the minimum firing resistance parallel between the snow wolf and the fuchai at .05... I have yet to work with ss, although I am intrigued at the claims of a "cleaner" taste. So to clarify, Ss is only usable in power mode on the fuchai and not on its nickel or titanium temp settings, but the snow wolf has this capability. And if so, wouldn't adding a wee bit of ni to your coil setup allow the fuchai to recognize the ni and unlock that setting allowing you to A:use ss in tc, and Botentially build lower than .05?


-every animal has an adequate amount of gray matter in its cranium to tan and preserve its own hide-
Not really sure... Ive only run ni in tc mode in my herekles on the ipv4 and it sucked. Running ss in power mode now and it is definitely much crisper. But the value for the koopor i couldnt pass it up

Sent from my LG-H811 using Tapatalk
