Raymo2u's Build Thread
You could use the SS round wire as frames and if you can find some 36g/38g/40g SS then you could use it for outer wrap, I use Nichrome 80 for mine though.
Yup, that's what I've been using... Im waiting for the new native wicks platinum blend to come out... Supposed to be amazing.
Sent from my HTC One_M8 using Tapatalk
Alleria RTA Mini Fraples Build:
Magma Reborn Build, 2 x 22KA1/40KD 6 Wraps/3mm ID:
Twisted Messes Squared Build..one of the coils touch the barrel with the last build and obliterated....so I redid the Fraples inside...Also showing Materials used.
Diablo RTA build for @BPROSEK!
2 x 24N80/42N80 Fused Claptons (6 Wraps/3mm ID):
Magma Reborn Build, 2 x 22KA1/40KD 6 Wraps/3mm ID:
Twisted Messes Squared Build..one of the coils touch the barrel with the last build and obliterated....so I redid the Fraples inside...Also showing Materials used.
Diablo RTA build for @BPROSEK!
2 x 24N80/42N80 Fused Claptons (6 Wraps/3mm ID):
Last edited:
www.advancevapesupply.com
Check these guys out for SS. My go to place for premade wire and coils. They r going to be carrying SS flat and other grades of SS wire.
Sent from my SGH-M919 using Tapatalk
Check these guys out for SS. My go to place for premade wire and coils. They r going to be carrying SS flat and other grades of SS wire.
Sent from my SGH-M919 using Tapatalk
So here's some of the Latest Builds...They are large and crazy, the RDA's Ive gotten lately have been large so the builds needed to be just as big to fill them up!
Size Comparisons!
22mm, 24mm, 30mm, and 40mm!
Coo TS 30mm:
I did a Staple Build with 20G Staged Heating but it wasnt heating like I wanted it to so I tossed it and made some 2 x 20KA1/40KD Fused Claptons...They are both 3.5mm ID and I did the Fuse Claptons with 9 Wraps so they werent too low but they provide a great vape, this RDA can hold some juice and blow right through it...Im guessing atleast 7ml's when filled and cotton soaked...
Well I wasnt as impressed with the last 2 builds because they weren't warm enough I though, even with 150w its wasnt as hot as I wanted. I was going to do a Dual Caged Build but I first wanted to use up some wire I made the other day, Ill do a Dual Caged sometime soon, tomorrow if I decide I dont like this build...
Now for the Quad Fused Clapton Build...2 different Fused Clapton Pairs...
I wanted to make sure everything would heat together so I had to add a few wraps to the coils on the top pair and I wanted to keep the bottom pair the same as what my last build was.
Top to bottom:
2 x 22N80/40N80 Fused Claptons (11 wraps)
2 x 20KA1/40KD Fused Claptons (9 Wraps)
Size Comparisons!
22mm, 24mm, 30mm, and 40mm!
Coo TS 30mm:
I did a Staple Build with 20G Staged Heating but it wasnt heating like I wanted it to so I tossed it and made some 2 x 20KA1/40KD Fused Claptons...They are both 3.5mm ID and I did the Fuse Claptons with 9 Wraps so they werent too low but they provide a great vape, this RDA can hold some juice and blow right through it...Im guessing atleast 7ml's when filled and cotton soaked...
Well I wasnt as impressed with the last 2 builds because they weren't warm enough I though, even with 150w its wasnt as hot as I wanted. I was going to do a Dual Caged Build but I first wanted to use up some wire I made the other day, Ill do a Dual Caged sometime soon, tomorrow if I decide I dont like this build...
Now for the Quad Fused Clapton Build...2 different Fused Clapton Pairs...
I wanted to make sure everything would heat together so I had to add a few wraps to the coils on the top pair and I wanted to keep the bottom pair the same as what my last build was.
Top to bottom:
2 x 22N80/40N80 Fused Claptons (11 wraps)
2 x 20KA1/40KD Fused Claptons (9 Wraps)
Now the Mason 40mm's Turn!
My, My, My....This thing is enormous! I was pretty excited that it came in and I had a spool of Alien wire made to make some coils for this beast...I ran into the room and grabbed the spool...only to find mice chew the spool and some of the god damn wire...I didnt have enough 36g to make more so after cooling down and throwing poison pellets everywhere I decided to go with what I could do in little time... Fused Claptons, I will soon remove them and toss some Framed Staples or Aliens in it but for now this works....and looks crazy, and it heats up much better then it did with those FC's I had in the Coo TS.

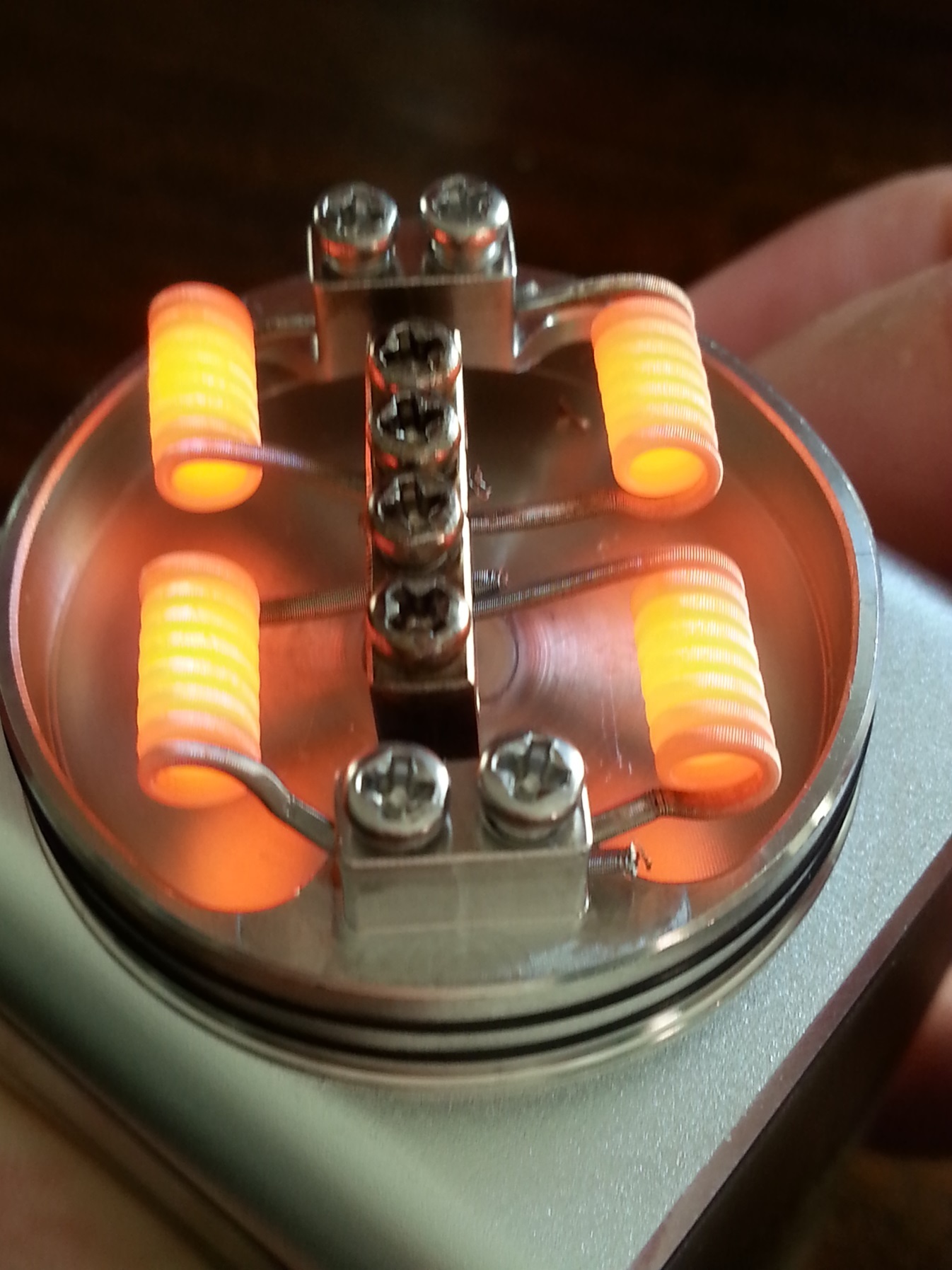

(4) 2 x 24N80/40N80 Fused Claptons (6 Wraps/3.5mm ID):
Overhang! lol
My, My, My....This thing is enormous! I was pretty excited that it came in and I had a spool of Alien wire made to make some coils for this beast...I ran into the room and grabbed the spool...only to find mice chew the spool and some of the god damn wire...I didnt have enough 36g to make more so after cooling down and throwing poison pellets everywhere I decided to go with what I could do in little time... Fused Claptons, I will soon remove them and toss some Framed Staples or Aliens in it but for now this works....and looks crazy, and it heats up much better then it did with those FC's I had in the Coo TS.
(4) 2 x 24N80/40N80 Fused Claptons (6 Wraps/3.5mm ID):
Overhang! lol
I took out the Series Build in the Goon and wanted to try doing something odd today for it. I wanted to do that "Green Mamba" Build but a variant of it. After spinning my wire I realized I didnt spin it enough and since I didnt really have time I just used it the way it was. I laid a piece of Ribbon on both sides of the Core wires before fusing the Wire. After I had it all together I noticed a weird design similar to a Shrub Trimmers Blade, I decided to quickly Flatten the Wire length and I thought it was pretty cool. I wrapped it up and tried it out and I can say Im pretty damn impressed with it..It ramps extremely quickly and the flavor is pretty intense, the vapor output is also dense and on a Unregulated Mech/Parallel Box its similar to a Series Build around .4.
I put it on the Full Brass Diablo Mod...an All Brass Setup that hits like a Thug in the Trap on *************** and Crack!
The Shrub Trimmers Blade
2 x 24N80 Cores, 2 x .3 Ribbon , 2 x 34KA1 Twisted Outer Wrap (6 Wraps/3mm ID @ .1 Ohms)
I put it on the Full Brass Diablo Mod...an All Brass Setup that hits like a Thug in the Trap on *************** and Crack!
The Shrub Trimmers Blade
2 x 24N80 Cores, 2 x .3 Ribbon , 2 x 34KA1 Twisted Outer Wrap (6 Wraps/3mm ID @ .1 Ohms)
Im trying to fill all the empty RDA's with different style builds so they arent rocking all the same thing...Maybe some really odd variants to come?
Dragon/Gargoyle Skinned Beast
3 x 26N80/34N80 (6 wraps/3mm ID @ .18 Ohms)
Dragon/Gargoyle Skinned Beast
3 x 26N80/34N80 (6 wraps/3mm ID @ .18 Ohms)
How in the actual ffffff you do that incredible coil?Im trying to fill all the empty RDA's with different style builds so they arent rocking all the same thing...Maybe some really odd variants to come?
Dragon/Gargoyle Skinned Beast
3 x 26N80/34N80 (6 wraps/3mm ID @ .18 Ohms)
View attachment 45215 View attachment 45214 View attachment 45218 View attachment 45217 View attachment 45216
Enviado desde mi D5106 mediante Tapatalk
Its surprisingly easy, its mostly twisted wire...
You need a length of 22g and clapton it with 34g, then decore the 34g and stretch it to 2 times its original size. Then thread in some 26 and cut it into 3 pieces, then twist all 3 lengths together. Afterwards you need to use flat jaw pliers to smooth out the wire and then you done.
This build looks insane!! @raymo2u you never cease to amaze me!!!Im trying to fill all the empty RDA's with different style builds so they arent rocking all the same thing...Maybe some really odd variants to come?
Dragon/Gargoyle Skinned Beast
3 x 26N80/34N80 (6 wraps/3mm ID @ .18 Ohms)
View attachment 45215 View attachment 45214 View attachment 45218 View attachment 45217 View attachment 45216
Adding to the Collection Again!
While waiting for the Geekvape Tsunami this morning I made some Staggered Fused Claptons for it. I havent made these in some time and for being out of practice with them I think I did a pretty good job on the first run!
2 x 24N80/34N80 Staggered Fused Claptons (6 Wraps/3mm ID @ .1 Ohms)
While waiting for the Geekvape Tsunami this morning I made some Staggered Fused Claptons for it. I havent made these in some time and for being out of practice with them I think I did a pretty good job on the first run!
2 x 24N80/34N80 Staggered Fused Claptons (6 Wraps/3mm ID @ .1 Ohms)
Last edited:
Took out the fused claptons in the TM Squared and wanted to replace it with something else...Im pretty set on making a different build for every RDA I have...
3 x 24N80/34N80 Tri Core Flattened Staggered Fused Claptons (4 Wraps/3mm ID @ .05 Ohms)
3 x 24N80/34N80 Tri Core Flattened Staggered Fused Claptons (4 Wraps/3mm ID @ .05 Ohms)
Some Wicked/Nice Coils man!!
Your coils are insane!!
Im just gettin' started!
Its not the usual build as the build I made for it wouldnt fit...it was just TOO BIG. This will give you a warm to hot vape, ramp up insanely quickly and has more surface area then most dual coil builds...
3x24 316L Squared SS/40N80 Fused Clapton (5 Wraps/3mm ID @ .09 Ohms):
Firing on Dual Parallel Box:
https://drive.google.com/file/d/0ByjxYyTSvEyBWFBiUExCV3ZBVTg
3x24 316L Squared SS/40N80 Fused Clapton (5 Wraps/3mm ID @ .09 Ohms):
Firing on Dual Parallel Box:
https://drive.google.com/file/d/0ByjxYyTSvEyBWFBiUExCV3ZBVTg
While waiting for the HOG V2 I decided to make a build thats a bit higher in resistance then I originally wanted to make for it but Im sure it'll be too hott for me already. This build is massive and most RDA's could even handle a 1/3 of each coil inside them...With the hohm Wrecker G2 at max wattage it barely glows....Remember the 151w that the Hohm Wrecker puts out feels twice as powerful as most 200w mods I own...It should be beastly with 8.4V pushing 352w at it...
Mason 40mm RDA
2 x 22KA1/42N80 Fused Claptons (11 Wraps/4mm ID @ .2 Ohms)
Click to see this Build in Action!
Mason 40mm RDA
2 x 22KA1/42N80 Fused Claptons (11 Wraps/4mm ID @ .2 Ohms)
Click to see this Build in Action!
Last edited:
This is on that TM atty?
Yep
Mine should be in today. Must try this...
Made these for ZamaZam this morning, I may post a Customer Portfolio Thread Someday....I have enough pictures right now but I think Ill wait until I become a Vendor or something.
(3) 5 x 32KA1/30KA1 Cat Tracks (6 Wraps/3mm ID)
(2) 6 x .6R/26N80/38KD Framed Staple Coils (6 Wraps/3mm ID)
The Framed Staples are thick and were pretty tough when wrapping them I was worried they would fold but they wrapped just fine....I may try making some Naked Ribbon Coils later...\
(3) 5 x 32KA1/30KA1 Cat Tracks (6 Wraps/3mm ID)
(2) 6 x .6R/26N80/38KD Framed Staple Coils (6 Wraps/3mm ID)
The Framed Staples are thick and were pretty tough when wrapping them I was worried they would fold but they wrapped just fine....I may try making some Naked Ribbon Coils later...\
Man Ray you can get the $18.00 a pair for these unique and almost impossible coils! Dude the value of anything is what someone will pay for the item/services, what you're doing can't be just put together by anyone, heck there's probably very few people that can put coils together at the precision you're doing. Get what your value is before you go back to PS3 cause your burnt out or something. Your not going to get anyone complain when they see how your shit performs and probably outlast any coils out there, they are beastmode bro. Very very impressive!
More Craziness....
Dual Fused Clapton/ Clapton Inception Coils...yup. I took a ton more pictures but they arent as nice looking..
2 x 24N80/40N80 Fused Clapton (8 Wrap/4mm ID) housing 24N80/34N80 Claptons (11 Wrap/1.5mm ID)
Wicked and firing....
Dual Fused Clapton/ Clapton Inception Coils...yup. I took a ton more pictures but they arent as nice looking..
2 x 24N80/40N80 Fused Clapton (8 Wrap/4mm ID) housing 24N80/34N80 Claptons (11 Wrap/1.5mm ID)
Wicked and firing....
Last edited:
Okay so some more build images for you guys to enjoy....
I took out the Series Build in the Mason 40mm and tossed these in....now its great on the HOG V1 and it ramps up just as fast as the Series Build did...Im just playing with things to see what I like or not in it...
2 x 22N80/40KD Fused Claptons Staged with Twisted 24N80 (7/6 Wraps/4mm ID)
I took out the Series Build in the Mason 40mm and tossed these in....now its great on the HOG V1 and it ramps up just as fast as the Series Build did...Im just playing with things to see what I like or not in it...
2 x 22N80/40KD Fused Claptons Staged with Twisted 24N80 (7/6 Wraps/4mm ID)
Sick shit Ray!!!!
Sent from my SM-G925P using Tapatalk
Sent from my SM-G925P using Tapatalk
This is sheer sexiness!
I'm sure you are!Im just gettin' started!
Lol Ray!
Sent from my SM-G925P using Tapatalk
Sent from my SM-G925P using Tapatalk
I sent a few pictures of your builds to a store owner friend of mine and he said, who is this guy?
My response..... Was superman, who else. Dude they are getting better and better every day!
Sent from my SM-T237P using Tapatalk
My response..... Was superman, who else. Dude they are getting better and better every day!
Sent from my SM-T237P using Tapatalk
Some stuff I did this morning for Instagram...Follow me! Raymo_2_u
24N80/22KA1/24N80 Fused Clapton being Wrapped by 40KD
That FC from above Caged in Multiple Claptons Twisted Wire and 2 Stands of 22KA1:
Im not sure if I want to change my build out but I may get another Goon RDA to use these!
24N80/22KA1/24N80 Fused Clapton being Wrapped by 40KD
That FC from above Caged in Multiple Claptons Twisted Wire and 2 Stands of 22KA1:
Im not sure if I want to change my build out but I may get another Goon RDA to use these!
Last edited:
Staggered Framed Staple...
I know it will just fold and warp...so its just wire porn
14 x .8R/24N80/36N80
Threw this monster in the Goon:
Fused Clapton Dou Single Coil (.05 Ohms)
24N80/22KA1/24N80*40N80 Tri Corr Fused Clapton (4 Wraps/3mm ID)
Staged with 2 x 24N80/40N80 Fused Clapton (3 Wraps/3mm ID)
I know it will just fold and warp...so its just wire porn
14 x .8R/24N80/36N80
Threw this monster in the Goon:
Fused Clapton Dou Single Coil (.05 Ohms)
24N80/22KA1/24N80*40N80 Tri Corr Fused Clapton (4 Wraps/3mm ID)
Staged with 2 x 24N80/40N80 Fused Clapton (3 Wraps/3mm ID)
Ive been playing with Ideas for some Hybrid Coils....
Guatch from IG has made me rack my brain on what can be done using hybrids and I decided to get my toes wet, granted Im no Guatch or anything..
Hybrid Specs:
Outer Coil Wraps: 5 x .8R/24N80/40N80 Framed Staple
Inner Coil Wraps: 6 x .8R/2 x 22KA1/36N80
Guatch from IG has made me rack my brain on what can be done using hybrids and I decided to get my toes wet, granted Im no Guatch or anything..
Hybrid Specs:
Outer Coil Wraps: 5 x .8R/24N80/40N80 Framed Staple
Inner Coil Wraps: 6 x .8R/2 x 22KA1/36N80
What I am referring to from now on as "The Guatch Build"! It was easier then I thought it would granted I didnt initially do what i first wanted to pull off but this gave me a good impression. Perfect Opposing Hybrid Coils. The next set I try out will be what I wanted to do at first, Inside to outside: Staggered Fused Claptons/Framed Staple, Fused Clapton....I need more wire first though...
Hybrid Specs
Outer Coil Wraps: 5 x .8R/24N80/40N80 Framed Staple
Inner Coil Wraps: 6 x .8R/2 x 22KA1/36N80
Wire Itself for second coil. you can see I even went a step further and tried corrugating the Ribbon this time...
Hybrid Specs
Outer Coil Wraps: 5 x .8R/24N80/40N80 Framed Staple
Inner Coil Wraps: 6 x .8R/2 x 22KA1/36N80
Wire Itself for second coil. you can see I even went a step further and tried corrugating the Ribbon this time...
First try at something Corrugated...Ill get this down, I just need more Ribbon...This coil came out like shit when I wrapped it since all I had was .8 KA1 ribbon and I have some .3 N80 Ribbon on its way...Im sure it will be 100x's times better with the .3 N80 Ribbon...
Do not buy .8 or .9 Ribbon, especially if its KA1 Ribbon....Its garbage and its hard to do anything with it...
Do not buy .8 or .9 Ribbon, especially if its KA1 Ribbon....Its garbage and its hard to do anything with it...
I actually already do have one coming
I actually already do have one coming
Is it the 46mm one? It looks badass
Thats the 24mm Alliance deck...not the 46mm
