Post your builds

[raymo2u]

Weird. Steam Engine puts it at 0.15Ω per coil with a 2mm leg length.

Yea I dont use steam for build like that...It always says its way lower then it actually turns out to be..even with the used wires or not. On the Hohm Wrecker it says its a .1



[CrazyChef]

a 2mm leg length.

This auto link stuff is gettin' on my nerves...



[Oggy]

Im running 24 ss fused with 36 kanthal 5 wraps 3.5 mm and it is .1 ohms. Im running it on a DNA 200 at 80 watts



[Schmucko]

Weird. Steam Engine puts it at 0.15Ω per coil with a 2mm leg length.

Yeah, thats where i was on that one

Sent from my LG-H811 using Tapatalk



[CrazyChef]

Okay, so this is what I got for 2x22KA1/40N80.
Pre-fired on the left, post-fired on the right.



[CrazyChef]

This is what I get with Wire Builder...

What are your specs for ID, leg length, and wraps?



[raymo2u]

What are your specs for ID, leg length, and wraps?
View attachment 42262

To the top of the Picture and to the Left bud
BTW I changed Leg Length from,5 to 10 to 2 and the stats didnt change...



[raymo2u]

Wierd Ill do the same build in a minute and throw it on the 521...



[iLiptiKal]

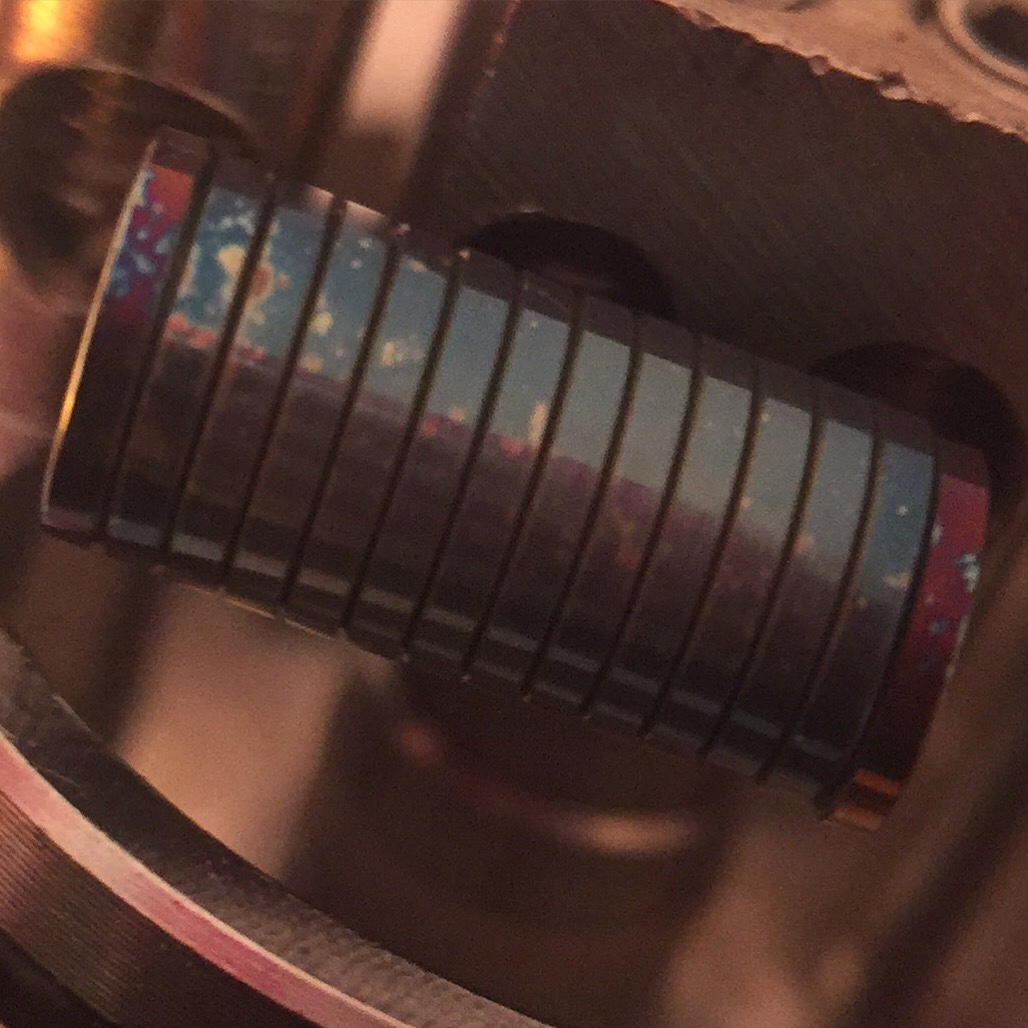

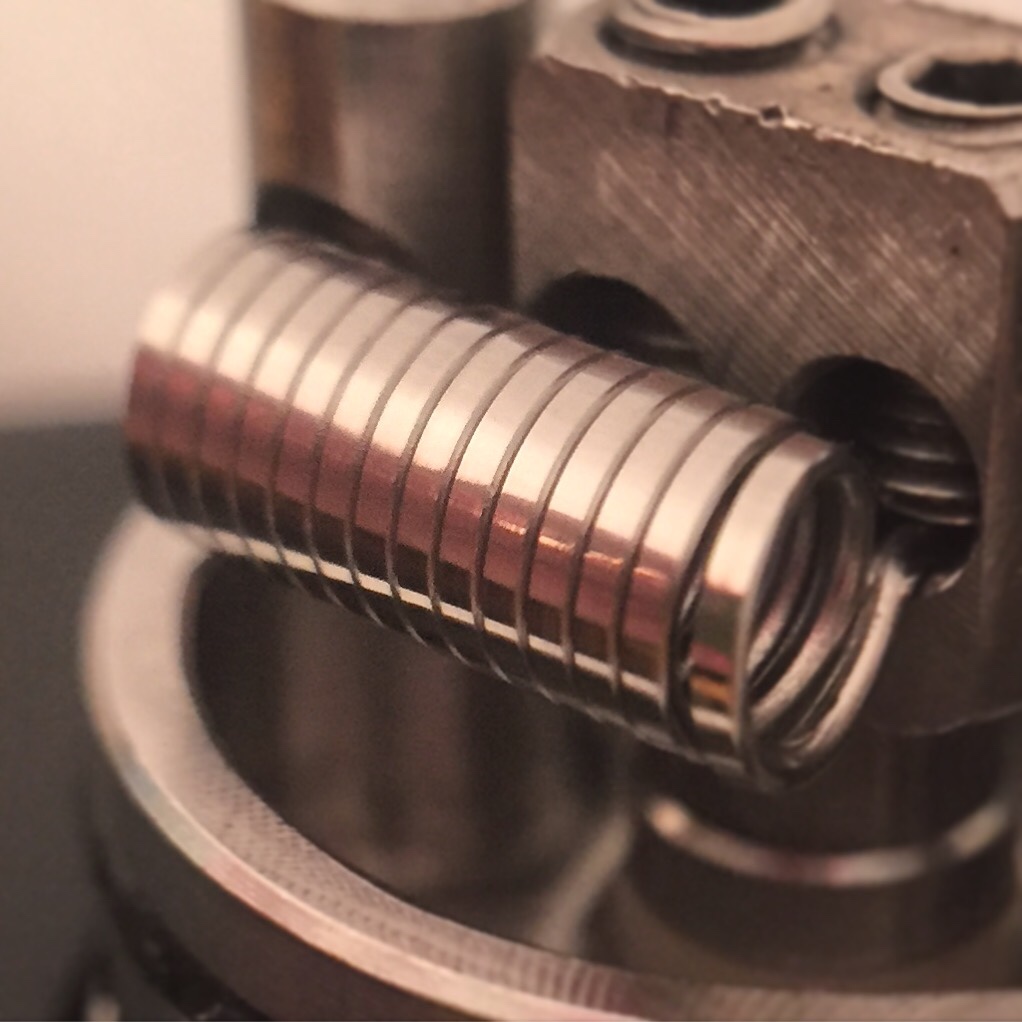

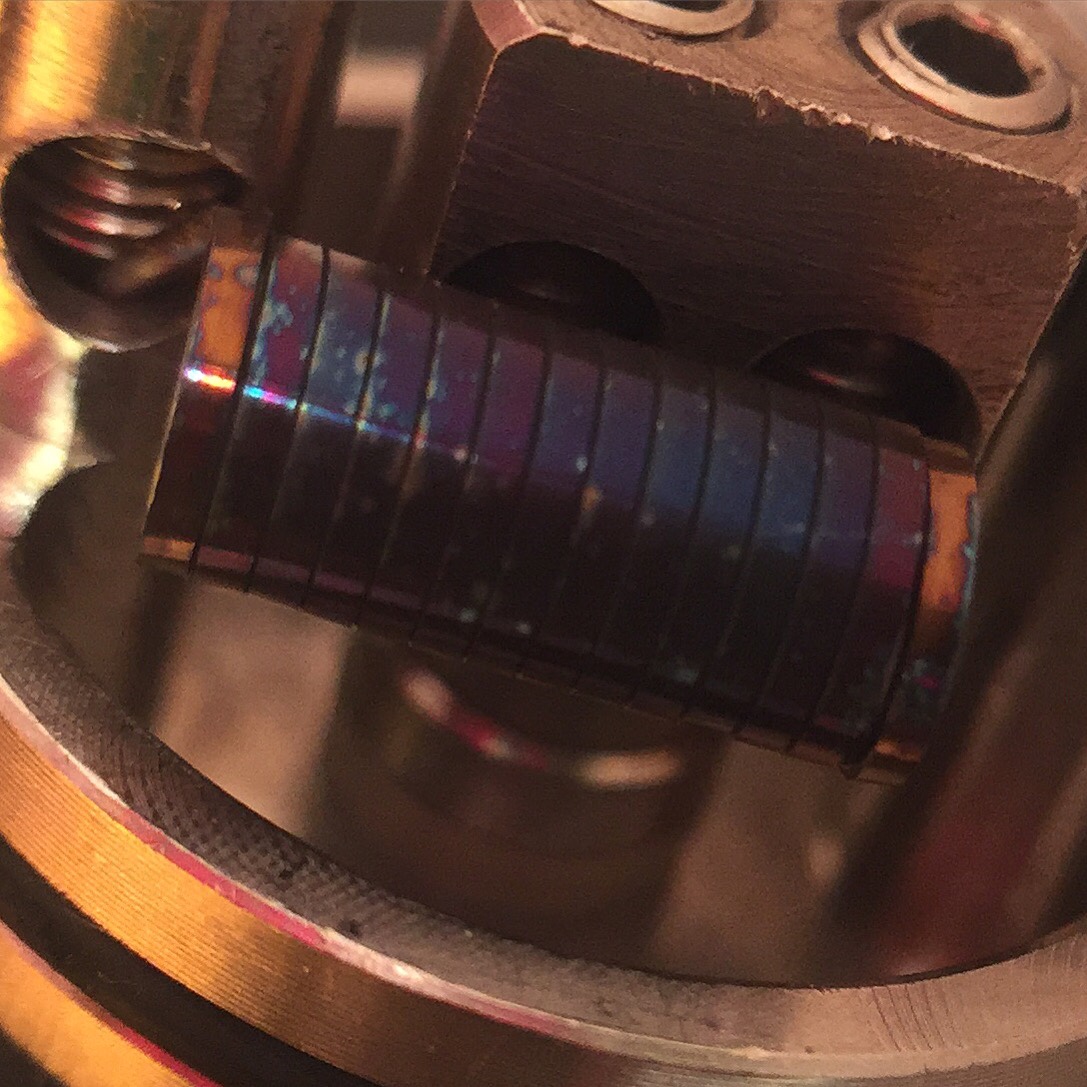

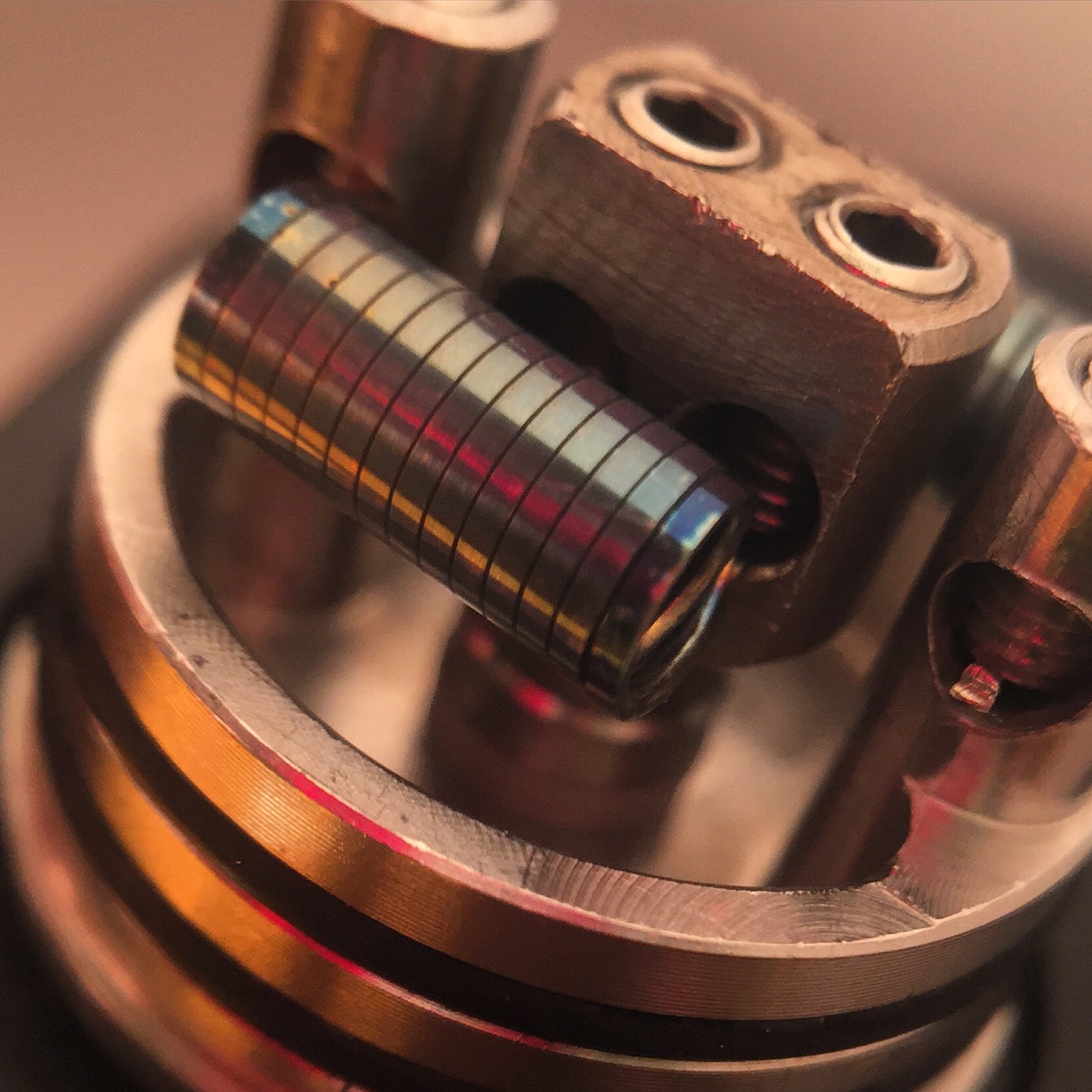

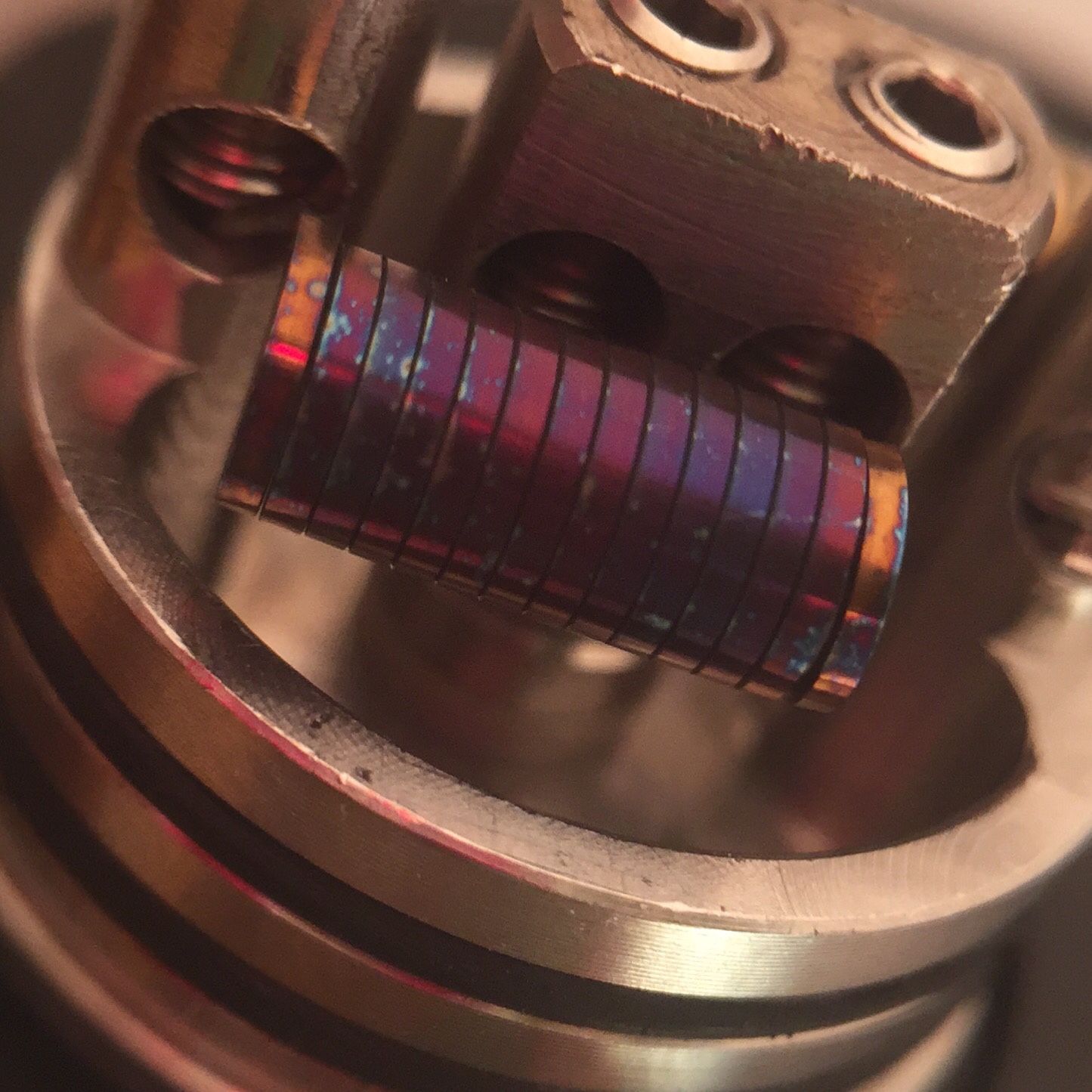

Finally got around to a polished build. Been waiting on wire for what seems like forever, but I had to sit down to build something.

Aggressively polished 22gN80, 14 wrap on 3mm.
I used 220, 320, 600, 1500, and 2000 grit paper, and a wet sand with 2000 after that.

Overall I'm pretty happy with how it turned out. The way colours came out are what made it all worth it.

Sent from my iPhone using Tapatalk



[CrazyChef]

BTW I changed Leg Length fro,5 to 10 to 2 and the stats didnt change...

I got 0.167Ω on 10mm and 0.15Ω on 2mm. You have to click outside of the box to get it to update the resistance. Or use the arrows to change the length. Either/or will work.



[CrazyChef]

Finally got around to a polished build.

Dude, those are GORGEOUS!!!



[iLiptiKal]

Dude, those are GORGEOUS!!!

Thanks so much!


Sent from my iPhone using Tapatalk



[brassic]

Finally got around to a polished build. Been waiting on wire for what seems like forever, but I had to sit down to build something.

Aggressively polished 22gN80, 14 wrap on 3mm.
I used 220, 320, 600, 1500, and 2000 grit paper, and a wet sand with 2000 after that.

Overall I'm pretty happy with how it turned out. The way colours came out are what made it all worth it.

Sent from my iPhone using Tapatalk

I really hate you in the best possible way. Those coils are fucking amazing I won't lie about being just a tad jelly of your building skills



[AnthonyLouis]

You know when I first saw that TMV2 I thought it wouldnt be any better then the V1 but as I ponder on it more it makes perfect sense and I understand why they did it (atleast the Deck). I am looking forward to seeing if I can make a nice 2x26g 316L/44N80 Fused Clapton Dual Coil on it since the reason I am excited now is the thought of not only using it like the V1 but you can use just the outer most holes if you want for long coils....That would be like using just then negative posts on the V1 for coils...that adds some options, also you could use the center holes just for the Staged Heating wires if you wanted or do something similar to Guatch on IG....The more I think about it the more Im glad I ordered it...
I WILL be using the Double Vision Top Cap on it though...or the Twisted Messes Mini Top Cap, for increased flavor and round/non whistley airflow...
I wish they just sold the deck or I hope it gets cloned soon so I can buy more for the decks and then use other topcaps on them...

That's the whole reason why I'm so happy I didn't grab the tm v1 (decided a few days ago that's the one I was gonna get). I love making big long coils so I can get around .4-.5 ohm and have max surface area. Being able to use just the outter post is an amazing option . ... But now I'm stuck between the Tmv2 and the goon rda .... I know u said it'll be a pain to build on but Idk theres something about it thats just calling my name

Sent from my HTC One_M8 using Tapatalk



[iLiptiKal]

I really hate you in the best possible way. Those coils are fucking amazing I won't lie about being just a tad jelly of your building skills

thanks man, I appreciate the love.


Sent from my iPhone using Tapatalk



[brassic]

thanks man, I appreciate the love.


Sent from my iPhone using Tapatalk

Haha no worries, one question I was considering trying to do this now with some 24g Titanium I have and you've given all the grit levels you used which is nice thanks for that. My one question is how the hell did you clean it after sanding the shit out of it? I would assume you'd have to clean it since there would be tons of metal flake and sandpaper residue on the coils.....or am I just looking to far into this and just run it under some water etc and done.



[raymo2u]

Haha no worries, one question I was considering trying to do this now with some 24g Titanium I have and you've given all the grit levels you used which is nice thanks for that. My one question is how the hell did you clean it after sanding the shit out of it? I would assume you'd have to clean it since there would be tons of metal flake and sandpaper residue on the coils.....or am I just looking to far into this and just run it under some water etc and done.

Rinse It, Brush it with a Toothbrush and Dawn Soap, Re Rinse, Then Air Dry



[AnthonyLouis]

So I think the $20 price difference just made my decision for me.... Probably gonna order the goon

Sent from my HTC One_M8 using Tapatalk



[brassic]

Rinse It then Brush it with a toothbrush and Dawn Soap

Well that's much easier then what I was expecting as the answer.



[raymo2u]

Well that's much easier then what I was expecting as the answer.

If you have Ultra Sonic Cleaner then you could just use that..



[iLiptiKal]

I do a combination of both actually. Ultrasonic and used a tooth brush with dish soap.


Sent from my iPhone using Tapatalk



[scarecrowjenkins]

Well I never knew that, I always assumed compvape was a made in USA authentic for a solid price, thanks for the info then. Still not sure I'll bother picking on up though, the biggest benefit seems to be for series builders like you that can use the outer two screw holes.

Sent from my XT1095 using Tapatalk

I was wrong, compvape is chicago based, i would assume he had legit reasons for using a different manufacturer this time. I don't know him well enough to ask, but i do know that a lot of stateside machinists have a hard time keeping up with demand. I'm only speculating though



[blakemorder]

I was wrong, compvape is chicago based, i would assume he had legit reasons for using a different manufacturer this time. I don't know him well enough to ask, but i do know that a lot of stateside machinists have a hard time keeping up with demand. I'm only speculating though

I'm glad you came back and corrected that, i figured from a little research a while back they were USA based but wasn't going to argue with someone like yourself over it lol.

Sent from my XT1095 using Tapatalk



[CrazyChef]

Compvape is now in Florida. Right near where I used to live. Bastards.



[Boattlebot]

Made this for a friend.

Framed clapton. 28 core 34 wrap 28 frame 34 wrap. 8 wrap single coil at .6 ohms.



[CrazyChef]

I keep seeing those being mentioned - what is a "framed Clapton"?



[C4rlosuk]

I keep seeing those being mentioned - what is a "framed Clapton"?

Im picturing 3 cores wraped but i guess we will find out soon.

Sent from my GT-I9195 using Tapatalk



[CrazyChef]

I sell those - I call them "Earthling Coils" on my website.



[raymo2u]

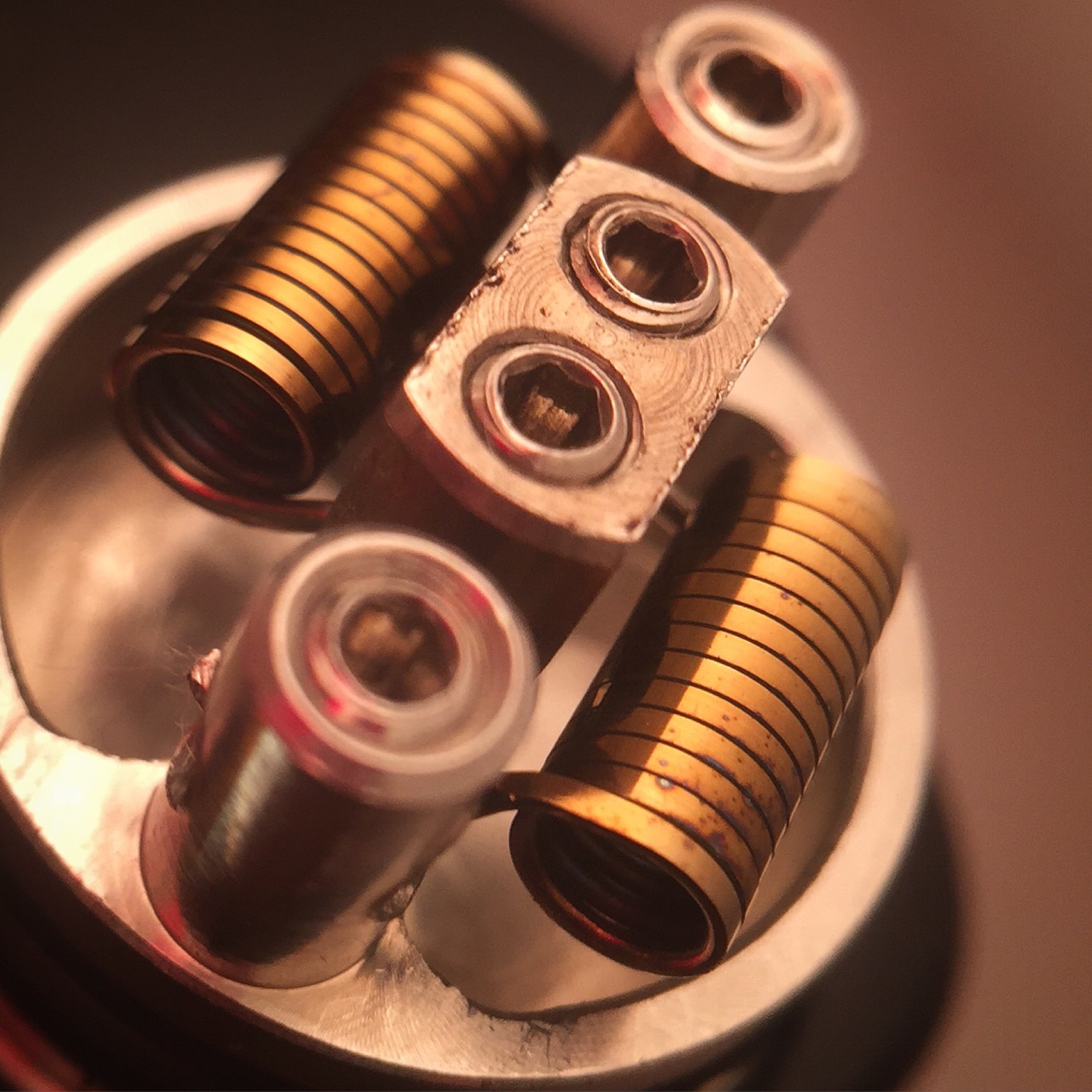

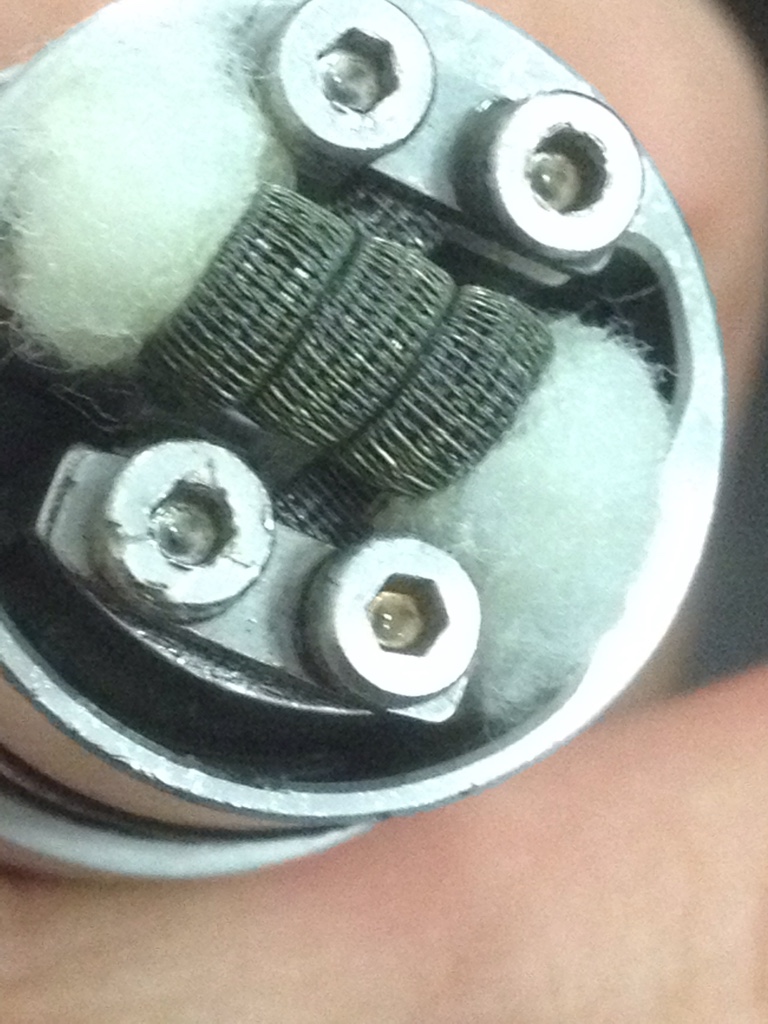

Single Coil...Haven't used RDA's like this in some time and I figured I would tonight. This is the Coil I made last night and decided to throw it into a Double Vision RDA
10 x .6 Ribbon/ 26KA1/ 40N80 Framed Staple (.16 Ohms and Great @ 140w)



[raymo2u]

I keep seeing those being mentioned - what is a "framed Clapton"?

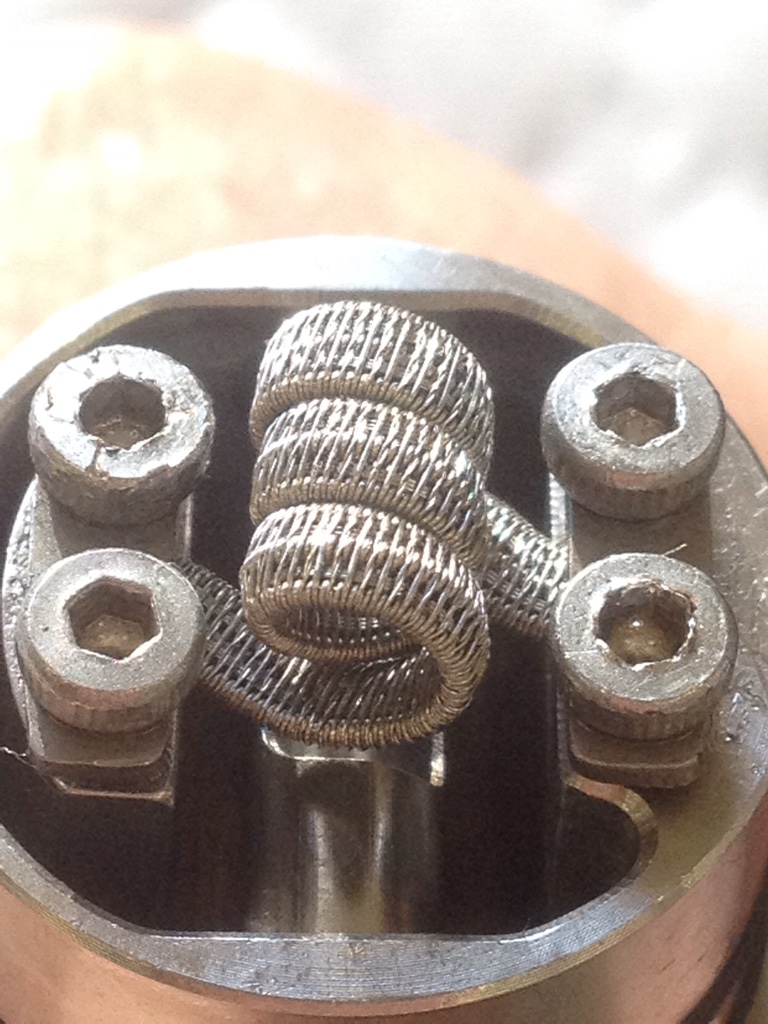

I thought those coils I made with Fused Clapton Cores with Frames and the Outer Wrap Biding everything was deemed a Framed Fused Clapton...You, @iLiptiKal and others suggested naming them that as I called them a Staple Fused Clapton....Remember any of this??
This is the Framed Fused Clapton:



[Boattlebot]

I keep seeing those being mentioned - what is a "framed Clapton"?

Like a framed staple but instead of a staple wire, it's a clapton. It's a nice vape.



[iLiptiKal]

@raymo2u Nice I like it. Original.
I'd call it a "spaced clapton framed fused clapton"


Sent from my iPhone using Tapatalk



[raymo2u]

@raymo2u Nice I like it. Original.
I'd call it a "spaced clapton framed fused clapton"


Sent from my iPhone using Tapatalk

You guys are some forgetful people LOL You guys are the reason I called it a Framed Fused Clapton...You said to call it that!!! Somewhere in Pages 50-60



[iLiptiKal]

You guys are some forgetful people LOL You guys are the reason I called it a Framed Fused Clapton...You said to call it that!!! Somewhere in Pages 50-60

Haha yeah maybe. Either way I like your originality, I haven't seen this done by anyone else so hats off.

Makes me wonder what an alien wrap would do around that, might fill out a mohawk variation nicely...


Sent from my iPhone using Tapatalk



[raymo2u]

This are the Pics from the Post:

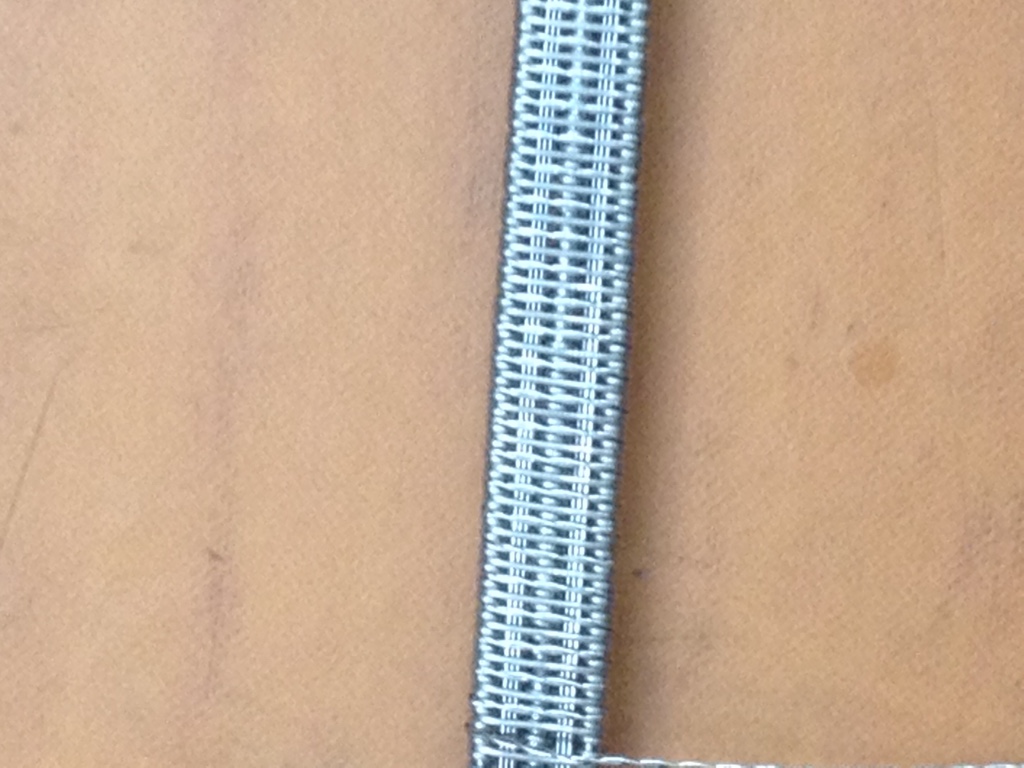

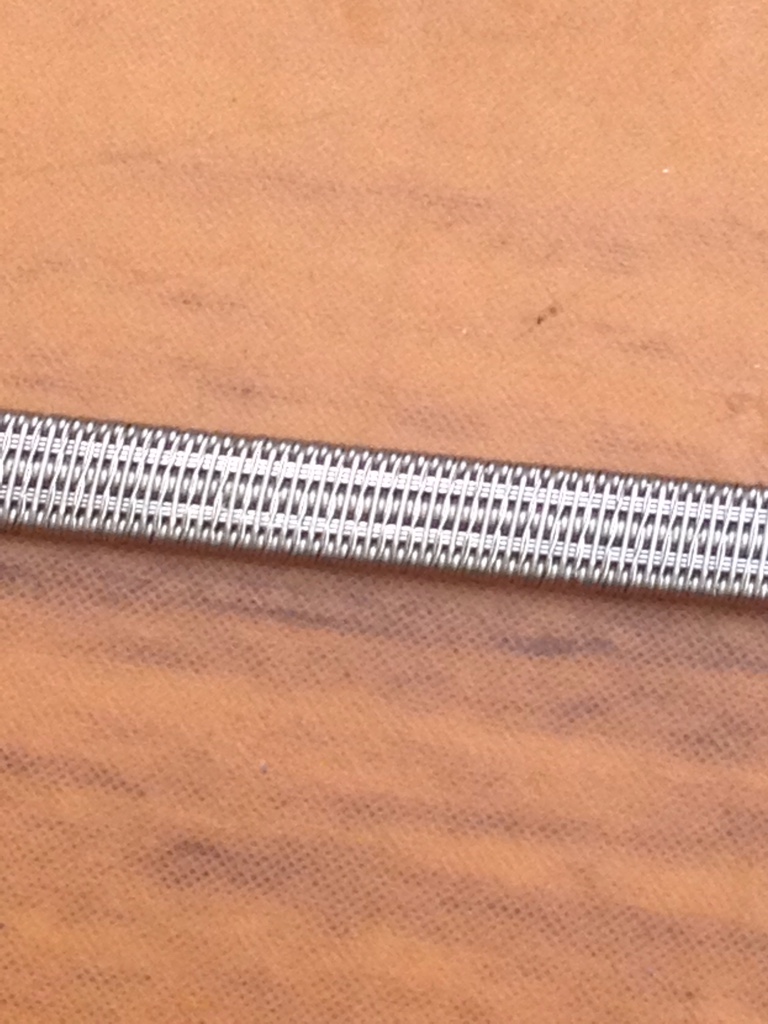

Core FC is 2x26K/54N60, Framed with 22K, Wrapped in 46N60 and the other is
Core FC Is 2x26K/52N60, Framed with 22K, Wrapped in 40N80



[raymo2u]

Haha yeah maybe. Either way I like your originality, I haven't seen this done by anyone else so hats off.

Makes me wonder what an alien wrap would do around that, might fill out a mohawk variation nicely...


Sent from my iPhone using Tapatalk

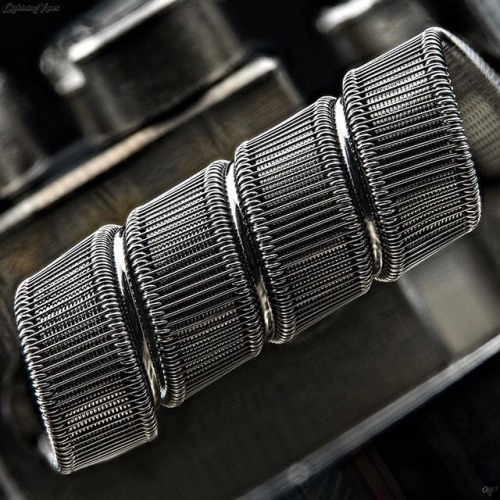

I was thinking it would look nice the way the pic below are done but with a nice 3-4 core 26K/ .3 Ribbon Fused Clapton As the Core, maybe without the surrounding core Ribbon shown...

So above minus the Ribbon Cores, with this as the Core (with 3/4 cores wide though) :



[Boattlebot]

This are the Pics from the Post:
Core FC is 2x26K/54N60, Framed with 22K, Wrapped in 46N60 and the other is
Core FC Is 2x26K/52N60, Framed with 22K, Wrapped in 40N80

View attachment 42282 View attachment 42283 View attachment 42284 View attachment 42285 View attachment 42287 View attachment 42288 View attachment 42289 View attachment 42290

Holy crap those look nice.

Now that I'm starting to play with framed builds, I have a question. How do I keep the frames on the outside of the coil when I'm doing the final wrap? I find when I'm wrapping the frames go all over the place and don't really stay with the core to well. I'm u seing swivels if it helps



[blakemorder]

I keep seeing those being mentioned - what is a "framed Clapton"?

I think it's a Clapton framed by two pieces of wire, say a 28/38 Clapton framed with 26 then all wrapped in 40g

Sent from my XT1095 using Tapatalk



[raymo2u]

Holy crap those look nice.

Now that I'm starting to play with framed builds, I have a question. How do I keep the frames on the outside of the coil when I'm doing the final wrap? I find when I'm wrapping the frames go all over the place and don't really stay with the core to well. I'm u seing swivels if it helps

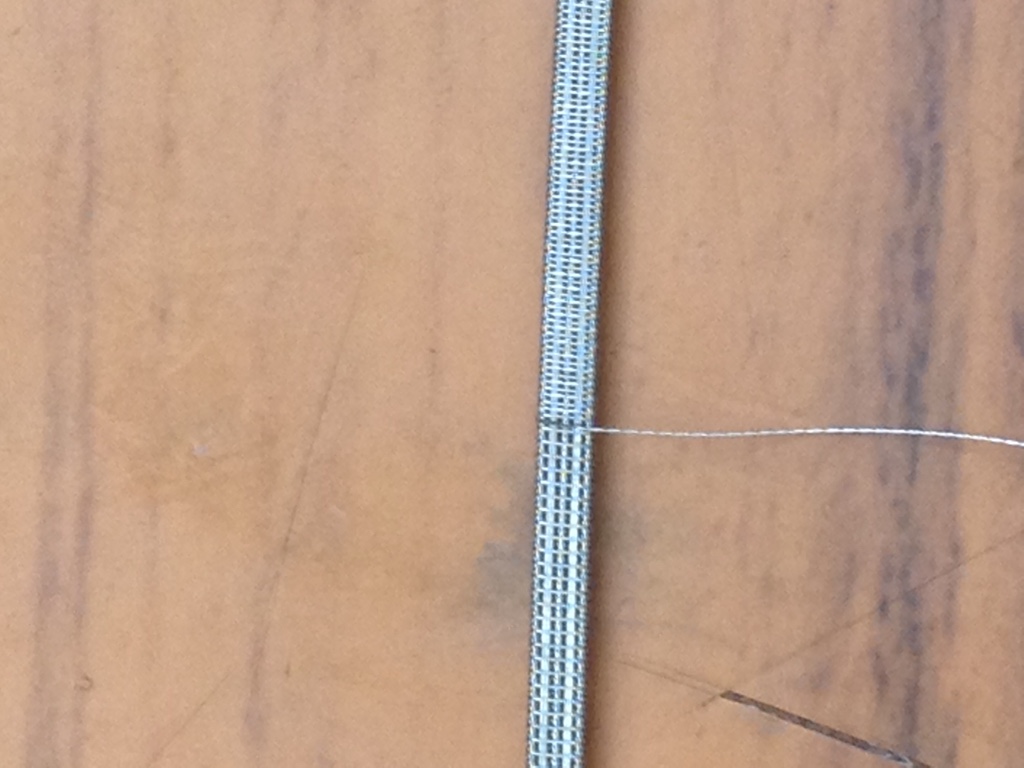

I use Wire Crimp Bits and wrap a thin wire around them to keep everything flat and seated.



[Boattlebot]

Intresting



[CrazyChef]

I've had pretty good success with wire only to support the ribbon and frames.
I need to make a better video with better lighting.



[EndDetour]

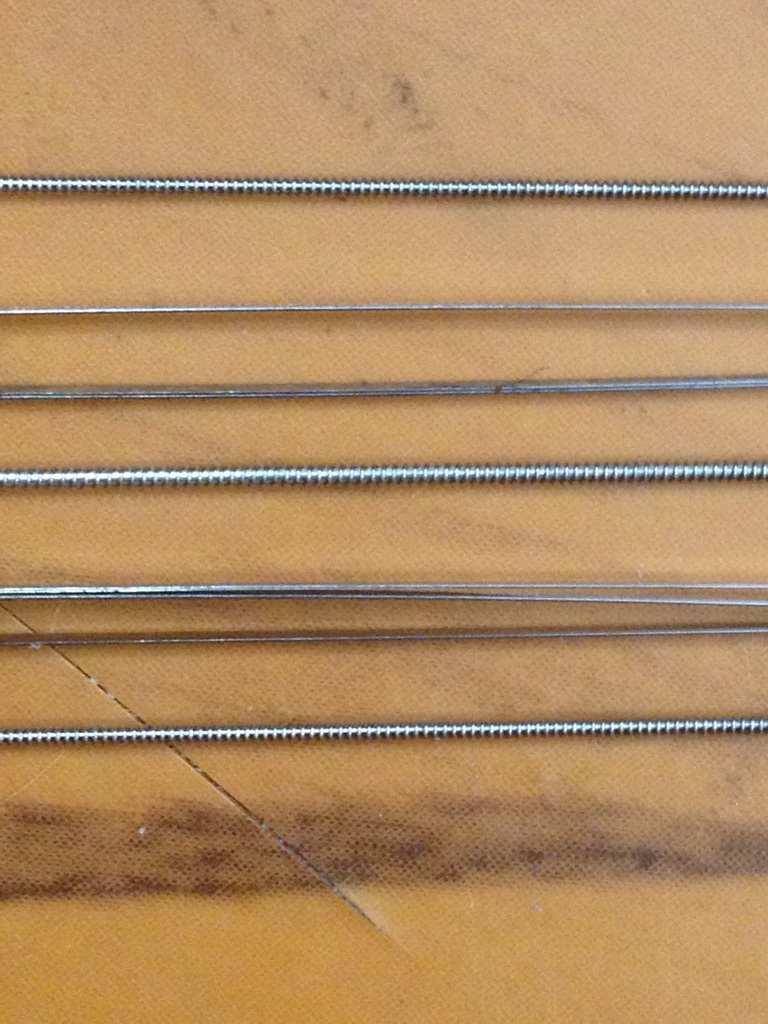

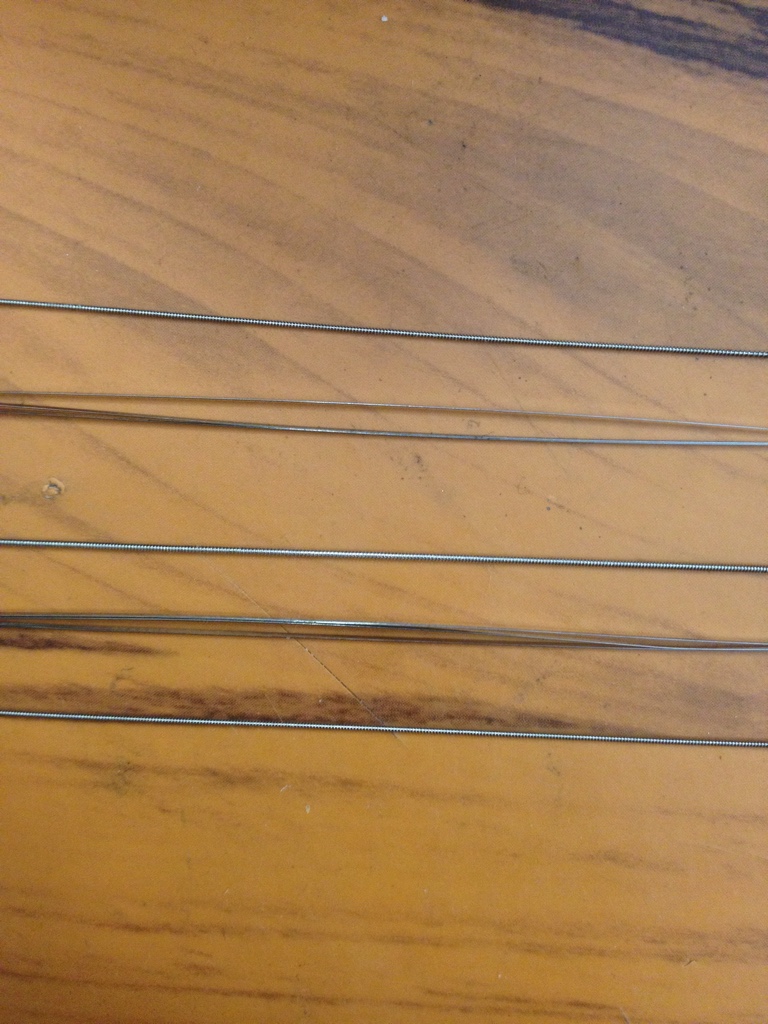

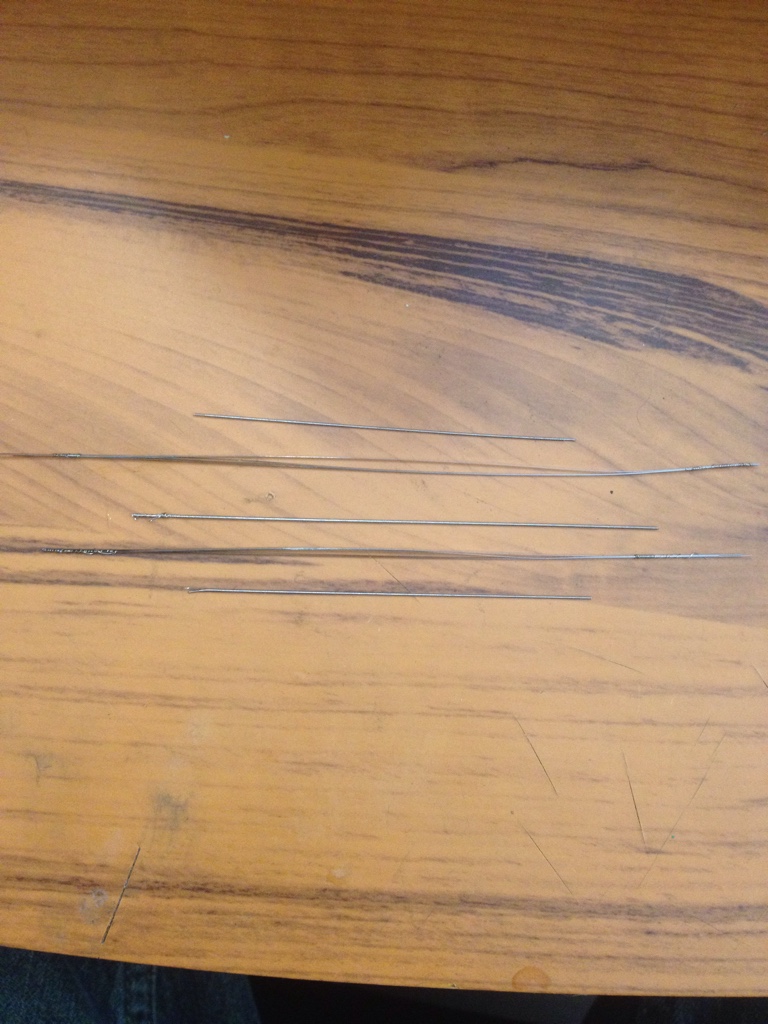

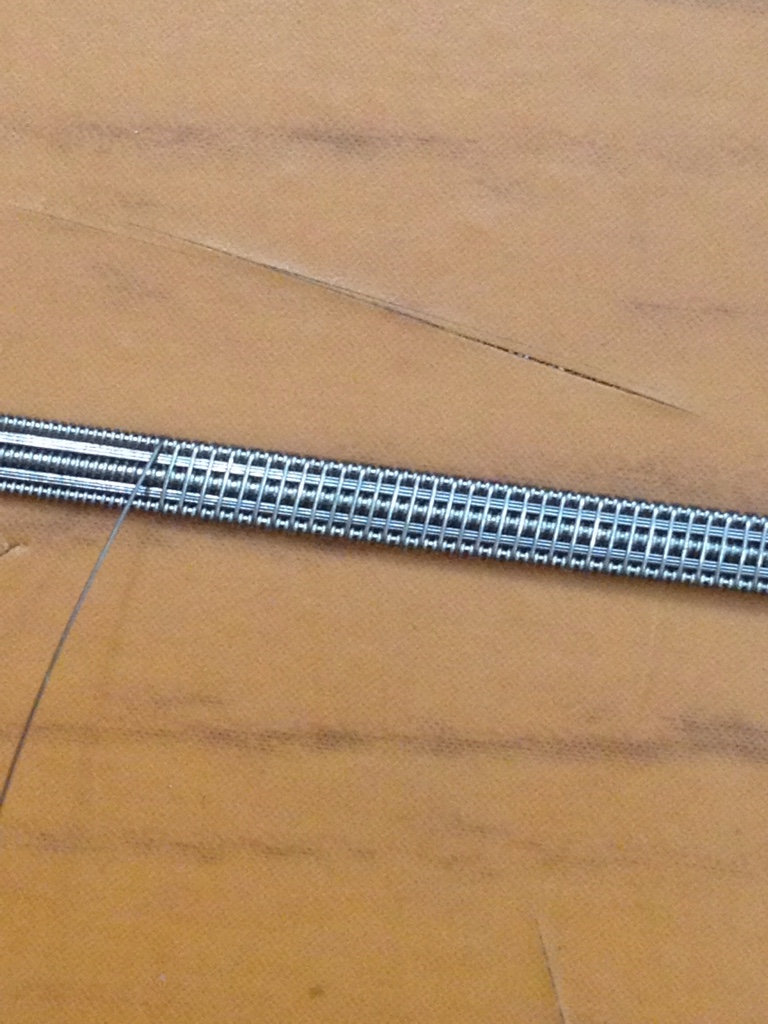

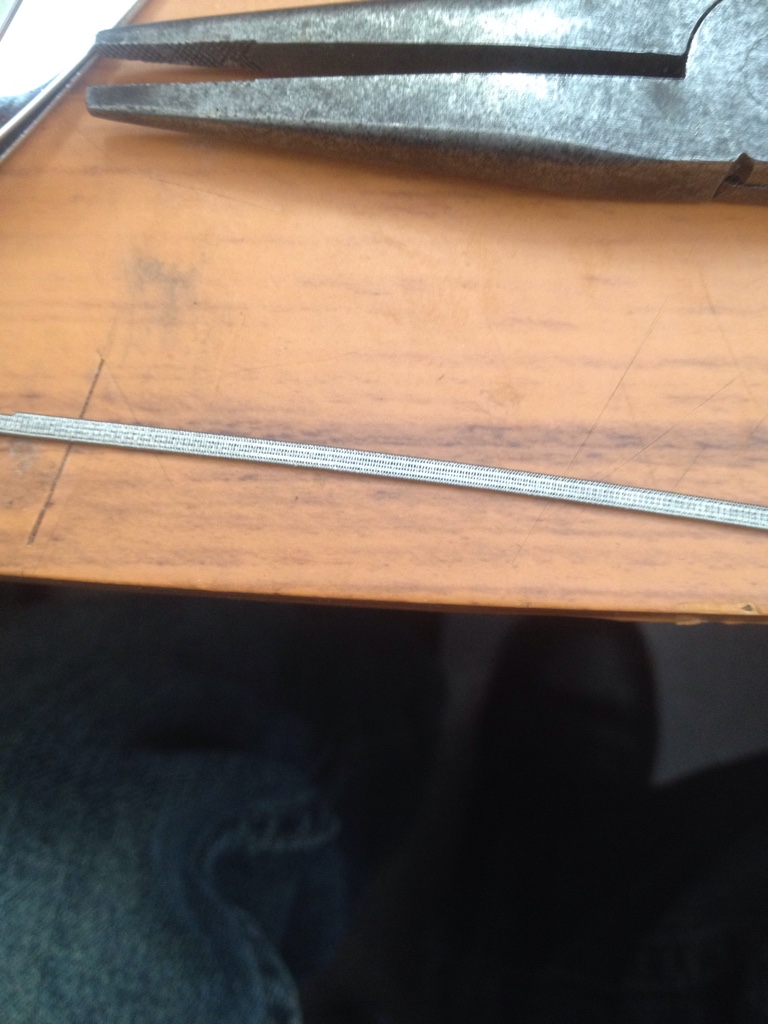

Top to bottom:
28kA1 staggered in 36n80
3x.5kA1
26n80 staggered in 36n80
3x.5kA1
28kA1 staggered in 36n80

Clapton spaced at a 1-stagger gap

I filled the 1-stagger gap with 2x40n80 twisted wire

3.1mm i.d.
.24ohm

Flavor is on point
Fairly warm, certainly not hot


-every animal has an adequate amount of gray matter in its cranium to tan and preserve its own hide-



[Schmucko]

You guys are some forgetful people LOL You guys are the reason I called it a Framed Fused Clapton...You said to call it that!!! Somewhere in Pages 50-60

Pepperidge farms remembers

Sent from my LG-H811 using Tapatalk



[CrazyChef]

So I happened upon a pretty good Griffin wicking video on YouTube. The wicking part starts at 10:41



[Schmucko]

Top to bottom:
28kA1 staggered in 36n80
3x.5kA1
26n80 staggered in 36n80
3x.5kA1
28kA1 staggered in 36n80

Clapton spaced at a 1-stagger gap

I filled the 1-stagger gap with 2x40n80 twisted wire

3.1mm i.d.
.24ohm

Flavor is on point
Fairly warm, certainly not hot


-every animal has an adequate amount of gray matter in its cranium to tan and preserve its own hide-

Well damn, thats a heluva build

Sent from my LG-H811 using Tapatalk



[EndDetour]

I was surprised it only took 45 min


-every animal has an adequate amount of gray matter in its cranium to tan and preserve its own hide-



[EndDetour]

Well damn, thats a heluva build

Sent from my LG-H811 using Tapatalk

Question is what to call it?


-every animal has an adequate amount of gray matter in its cranium to tan and preserve its own hide-



[raymo2u]

Question is what to call it?


-every animal has an adequate amount of gray matter in its cranium to tan and preserve its own hide-

Super Staggerd Fused Wire



[StanleySpadowski]

If you need any help after you get it for wicking or build ideas and more just ask. Once you know how its done its simply amazing and it wont ever let you down...

I went into a local shop today, one that I will actually still support, to get some wire and bam there's a Griffin in the display case. So as usual I left with less money than I intended on. Knowing that I am still unable to pull off those damn claptons, what kind of build and wicking technique would you recommend in this?



[raymo2u]

I went into a local shop today, one that I will actually still support, to get some wire and bam there's a Griffin in the display case. So as usual I left with less money than I intended on. Knowing that I am still unable to pull off those damn claptons, what kind of build and wicking technique would you recommend in this?

2 x 24K/38g Fused Claptons (5 Wrap/3mm ID)
22g or 24g Parallels 5 Wraps/3mm ID
