Post your builds

[CrazyChef]

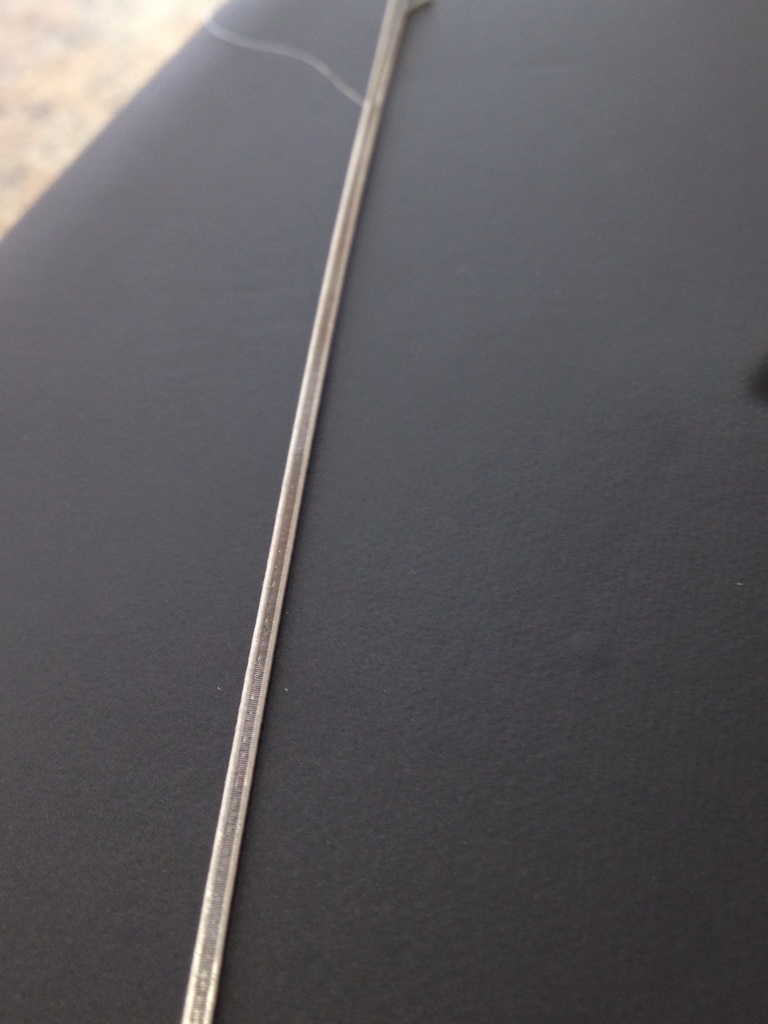

So I tried to make a set of tiny aliens, but I kept getting skips in the wire. But, I ended up with a couple of short usable pieces and decided to go retro and put a build in the Subtank Mini. It's surprising just how well this thing vapes. You'll see in the pics where I now bear the official "Mark Of The Clapton" from thinking the coil was cool enough to move with my thumb. It wasn't. Also, while taking the close up pics, I noticed what looks like the Facebook "F" on the side of only one of the posts on the Subtank. Any idea what it means?

3x32KA1/42N80, 1.5mm ID, 8/9 wraps, 1.2Ω
22 watts of pure power!



[raymo2u]

Good thing it was a small coil...Ive had branding that looks like QR Codes pressed into the sides of my hands...Fuck that Xcube Firing Bar!!!

That probably is the Facebook "F"...probably made some advertising money off of that...



[EndDetour]

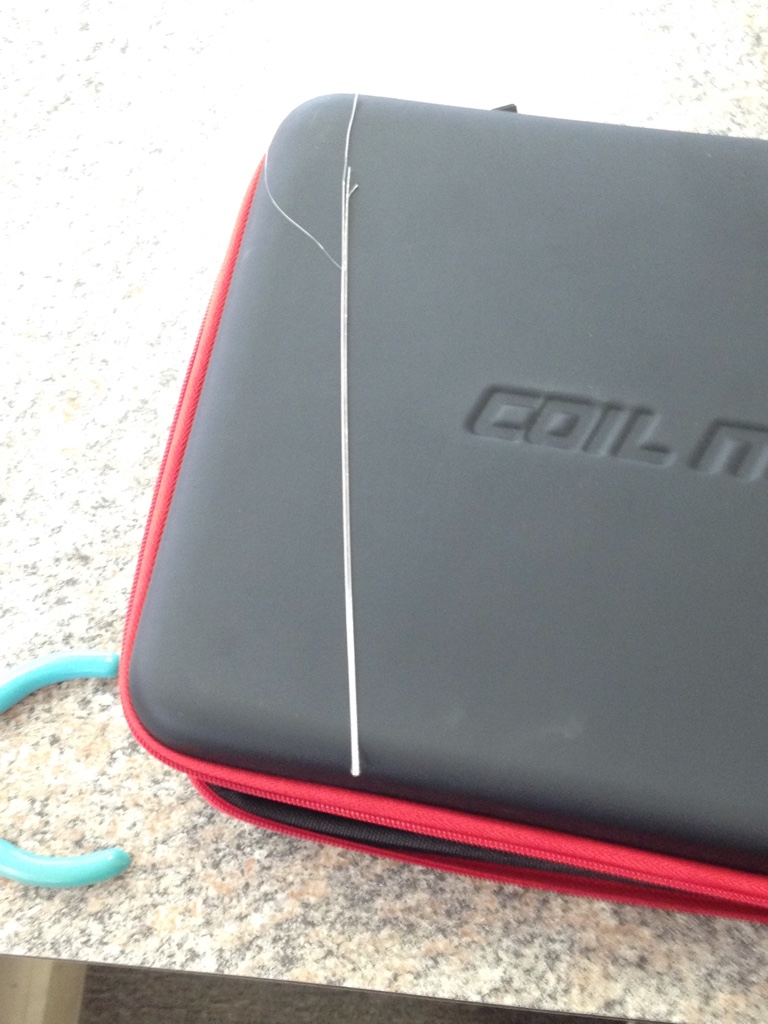

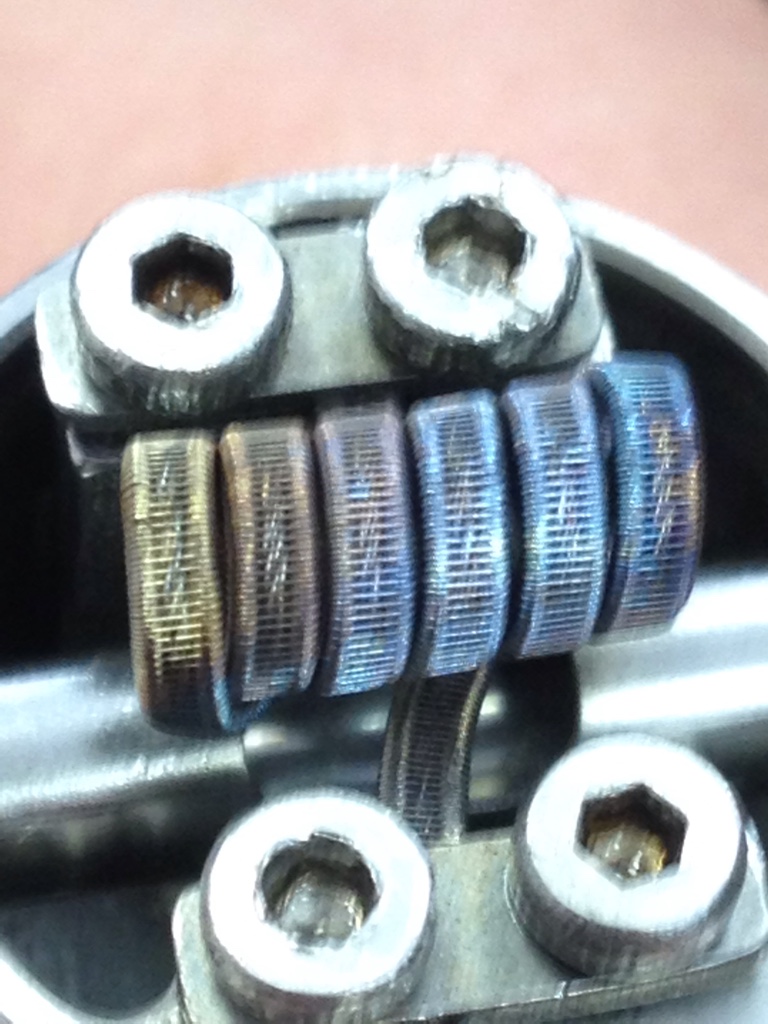

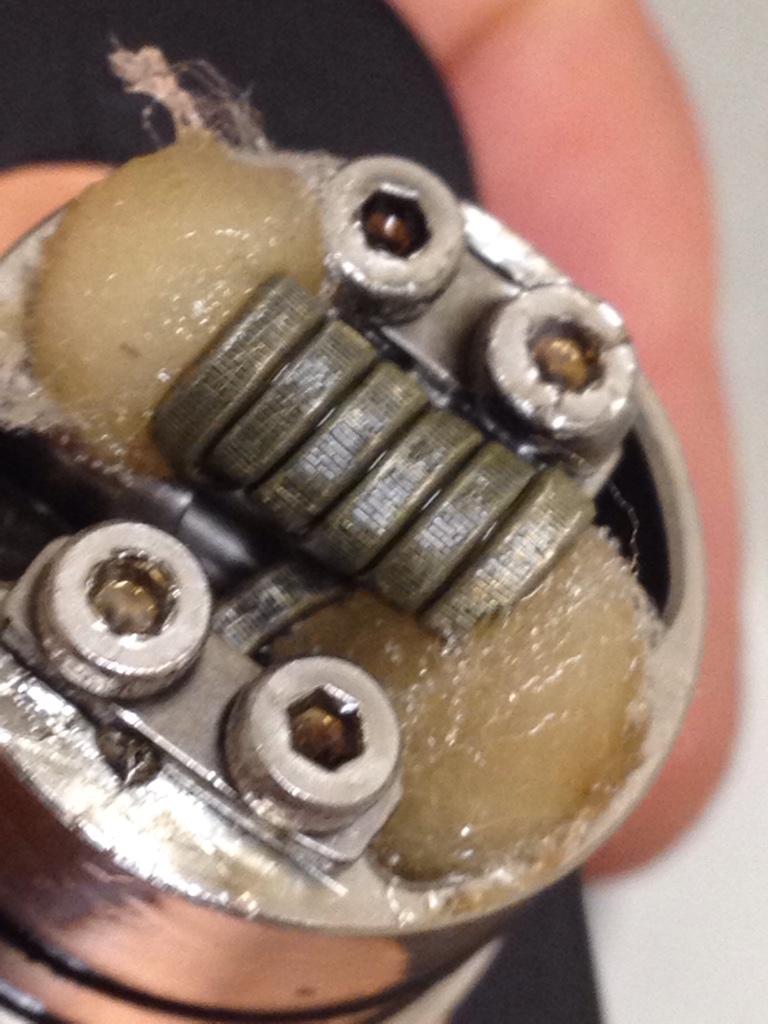

Framed staggered Clapton with a helixed cable core
3 strands of twisted 38kD twisted and then helixed with 32n80 make up the core
26n80 frames
Staggered and claptoned in 40n80

3.5mm i.d.
6 wraps
.39 ohms

Vents like a beast...flavor is on point beyond expectations. Vapor production 9/10 for a single coil

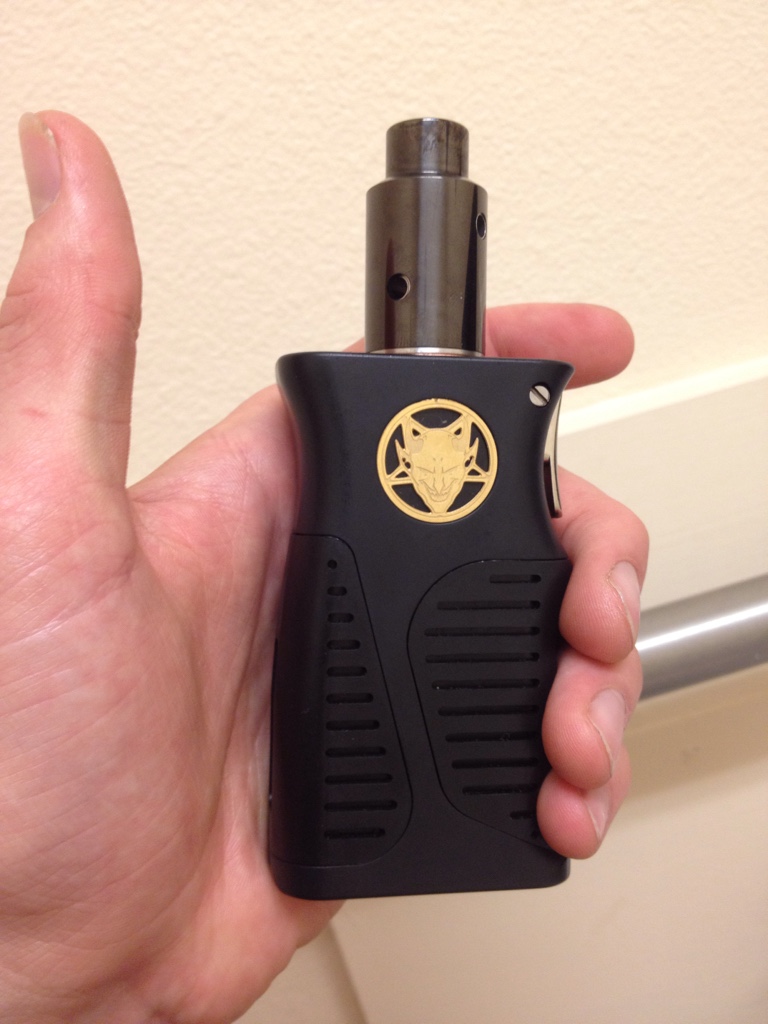

Mounted in the aeronaut on the lucifer in series


-every animal has an adequate amount of gray matter in its cranium to tan and preserve its own hide-



[raymo2u]

Framed staggered Clapton with a helixed cable core
3 strands of twisted 38kD twisted and then helixed with 32n80 make up the core
26n80 frames
Staggered and claptoned in 40n80

3.5mm i.d.
6 wraps
.39 ohms

Vents like a beast...flavor is on point beyond expectations. Vapor production 9/10 for a single coil

Mounted in the aeronaut on the lucifer in series


-every animal has an adequate amount of gray matter in its cranium to tan and preserve its own hide-

Very nice Lucifer you have I feel its much better then the Cricket....Nice build also!



[EndDetour]

Very nice Lucifer you have I feel its much better then the Cricket....Nice build also!

I would have to agree..I've had my eyes on it for months and months. Very pleased to say the least


-every animal has an adequate amount of gray matter in its cranium to tan and preserve its own hide-



[BrattVapes]

Not sure of the price point on the Lucifer, but $20 I couldn't be happier with the NC.

I'm sure there are plenty of high quality series mods out there. But for what I paid I cannot complain one bit.

Matt



[Poppa (K)]

I want to do something crazy for the Mason...Maybe some Altered Bridge Coils or something along the lines...but then again I want the build to be very functional also...any ideas guys?

a whole range of stove tops.4 different burner sizes that all fire at the same rate. the thing will look like Grannies stove at Thanksgiving dinner! lol

you'll want red tops for this build better 5 sec burst



[raymo2u]

a whole range of stove tops.4 different burner sizes that all fire at the same rate. the thing will look like Grannies stove at Thanksgiving dinner! lol

you'll want red tops for this build better 5 sec burst

I may do the Stovetopes....maybe with Claptons or something, I have yet to try those!

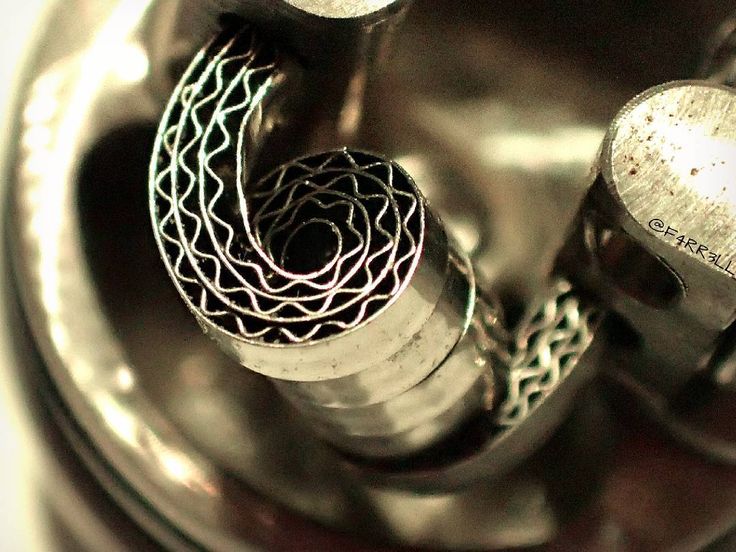

Did anyone see my Corrugated Tip? I hope someone tries it out...



[Schmucko]

you'll want red tops for this build better 5 sec burst

Go big or go home

Sent from my LG-H811 using Tapatalk



[raymo2u]

Not sure of the price point on the Lucifer, but $20 I couldn't be happier with the NC.

I'm sure there are plenty of high quality series mods out there. But for what I paid I cannot complain one bit.

Matt

The clone is extremely similar to the Authentic except the Copper isnt covered in Silver for the Contacts...from what Ive heard thats about it..and the clone is in the $20 range...Its worth the buy.



[raymo2u]

Go big or go home

Sent from my LG-H811 using Tapatalk

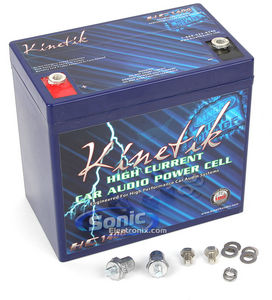

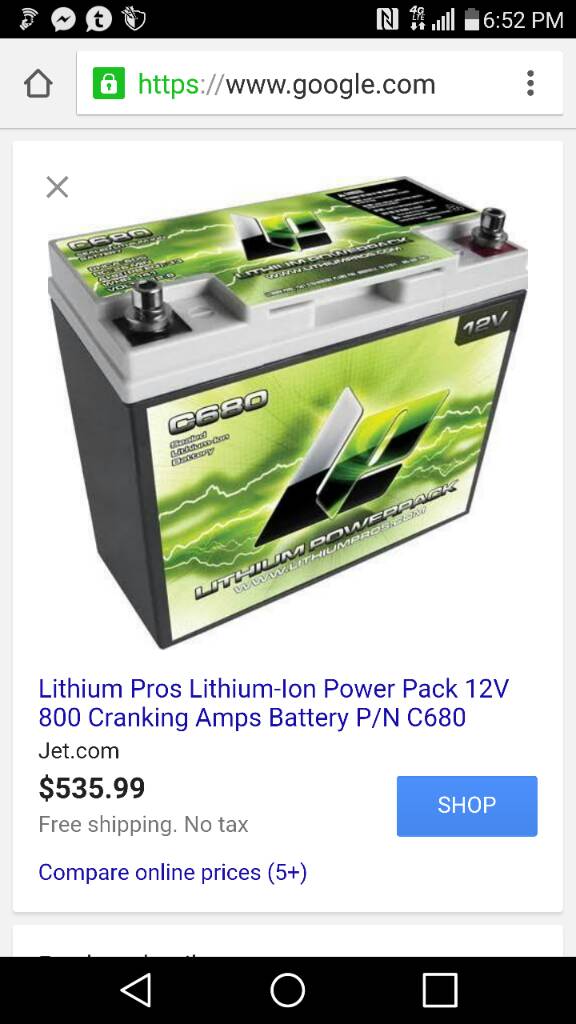

Was planning on stealing a Prius's Cell from its trunk but I may invest in that instead!

1400 Idle Amps and 60ah....
http://www.sonicelectronix.com/item_7341_Kinetik-HC1400-KHC1400.html?



[BrattVapes]

Was planning on stealing a Prius's Cell from its trunk but I may invest in that instead!

I think that's a rewrap..

Matt



[Schmucko]

I think that's a rewrap..

Matt

Yeah, but it comes with a convenient plastic cary case

Sent from my LG-H811 using Tapatalk



[Poppa (K)]

Did anyone see my Corrugated Tip?

no. where???



[raymo2u]

no. where???

People seem to be baffled on how its done and without a nice press it can be difficult but this is a easy way to make your Ribbon Corrugated for builds like on Instagram...they never show how its done or explain how they did it but when I was in my office earlier I saw something that enlightened me...
Ill copy and paste the post..
If anyone here wants to know how they make the Ribbon Corrugated like you see in the Ivy Coils its pretty simple. You need the Precision Screwdrivers like you get at walmart but a Fresh set so the lines arent fucked up...This Set:

Take 2 of the drivers (They lines need to match size and spacing...) and face them in opposing directions and the lines line up like gears.....Now feed your Ribbon through it and roll the drivers. This isnt a perfect method but this is how you can make your own Ivy/Corrugated Ribbon Easily. You need to keep it straight and it can be difficult rolling the drivers with Ribbon between. With some ingenuity you could easily make a jig to crank the ribbon through with guides so it doesnt get messed up. The set of drivers have different widths of lines so you can make various sized shapes using different drivers. I hope this helps you guys and I hope some of you try it and make some Crazy Corrugated/Ivy Builds as you have more time then I do....



[Vesuvius]

This is my first build away from the basic duals, twisted and parallels I usually do. Its a 24/32 Clapton paralleled with 24g. About to toss the rayon in and see how it does.



[Boattlebot]

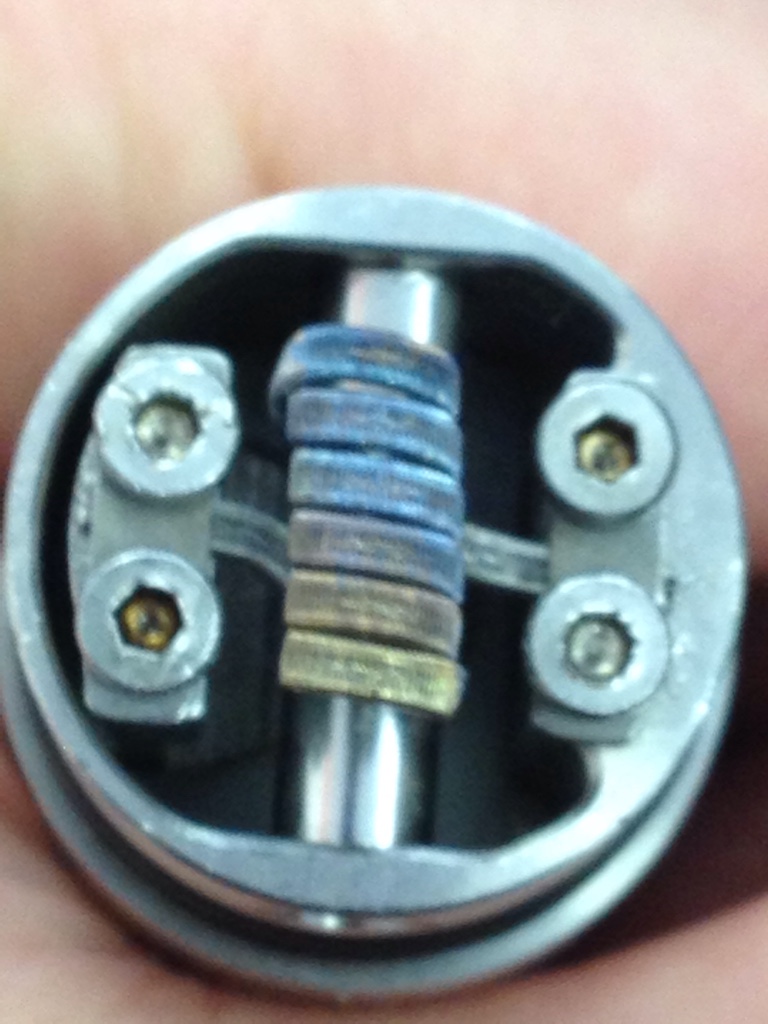

Some helixed parellel claptons.
22/34 claptons helixed with 34. Vapes like a boss.

Also got a question about this build. Ohms out at .12. Cant run duals. But if i do a fused clapton with 22 cores, it ohms high enough to do duals. Im kinda confused as to why the parellel 22 would be lower (alot) then a fused clapton with 22 core. Can anyone answer this question (or even comprehend what im atempting to ask)?



[raymo2u]

Some helixed parellel claptons.
22/34 claptons helixed with 34. Vapes like a boss. View attachment 45040

Also got a question about this build. Ohms out at .12. Cant run duals. But if i do a fused clapton with 22 cores, it ohms high enough to do duals. Im kinda confused as to why the parellel 22 would be lower (alot) then a fused clapton with 22 core. Can anyone answer this question (or even comprehend what im atempting to ask)?

Its shouldnt be much different at all...are you sure one of the wraps isnt touching a post?



[Poppa (K)]

People seem to be baffled on how its done and without a nice press it can be difficult but this is a easy way to make your Ribbon Corrugated for builds like on Instagram...they never show how its done or explain how they did it but when I was in my office earlier I saw something that enlightened me...
Ill copy and paste the post..
If anyone here wants to know how they make the Ribbon Corrugated like you see in the Ivy Coils its pretty simple. You need the Precision Screwdrivers like you get at walmart but a Fresh set so the lines arent fucked up...This Set:

Take 2 of the drivers (They lines need to match size and spacing...) and face them in opposing directions and the lines line up like gears.....Now feed your Ribbon through it and roll the drivers. This isnt a perfect method but this is how you can make your own Ivy/Corrugated Ribbon Easily. You need to keep it straight and it can be difficult rolling the drivers with Ribbon between. With some ingenuity you could easily make a jig to crank the ribbon through with guides so it doesnt get messed up. The set of drivers have different widths of lines so you can make various sized shapes using different drivers. I hope this helps you guys and I hope some of you try it and make some Crazy Corrugated/Ivy Builds as you have more time then I do....

the store next to me has sets for a buck. i think i might one or two just to play around with.



[raymo2u]

the store next to me has sets for a buck. i think i might one or two just to play around with.

Walmart has a set for around 1.99 but you need to buy 2 sets as its doesnt come with drivers with lines that perfectly match up....make sure the set you get has all the same size Flatheads as Phillips!



[Boattlebot]

Its shouldnt be much different at all...are you sure one of the wraps isnt touching a post?

Im positive. Had a slight issue with it on first fire, and corected it. It just confuses me. Becuase its the same amount of wire (for cores) only difrence is their individually wraped instead of one wrap. (Only reason i helixed them was to make coiling up easier and it makes them look badass)



[raymo2u]

Im positive. Had a slight issue with it on first fire, and corected it. It just confuses me. Becuase its the same amount of wire (for cores) only difrence is their individually wraped instead of one wrap. (Only reason i helixed them was to make coiling up easier and it makes them look badass)

The only other reason is one of the leads isnt making perfect contact, the outer make makes less then a .01 difference. A Fused clapton and a Parallel of the same wire is essentially the same.



[Boattlebot]

The only other reason is one of the leads isnt making perfect contact, the outer make makes less then a .01 difference. A Fused clapton and a Parallel of the same wire is essentially the same.

Exactly why im confused. Everythings nice and tight, the posts are tight as fuck, nothings obviously wrong with the build. Its one of the cleanisr builds ive done in a while (ive been playing with crazier builds so the cleanliness has lacked lately) its a big build but it fits right into the mason 24 (absolutly love this rda and am torn between ordering a goon or the 40)

So i just dont know at this point



[raymo2u]

Exactly why im confused. Everythings nice and tight, the posts are tight as fuck, nothings obviously wrong with the build. Its one of the cleanisr builds ive done in a while (ive been playing with crazier builds so the cleanliness has lacked lately) its a big build but it fits right into the mason 24 (absolutly love this rda and am torn between ordering a goon or the 40)

So i just dont know at this point

Im stumped then...

I would get the Goon unless you got some boxes powerful enough to push builds that would go into the Mason 40mm...Half the Boxes I own barely push the last build and smaller builds dont make it as warm of a vape...Its a great RDA but its a demanding one. I have the Goon and the Tsunami arriving in the morning...I cant wait to see and try them out. Ill let you know how it goes!



[Boattlebot]

I think 200w

Im stumped then...

I would get the Goon unless you got some boxes powerful enough to push builds that would go into the Mason 40mm...Half the Boxes I own barely push the last build and smaller builds dont make it as warm of a vape...Its a great RDA but its a demanding one. I have the Goon and the Tsunami arriving in the morning...I cant wait to see and try them out. Ill let you know how it goes!

got an rx 200. Power is no issues on my end.



[Boattlebot]

If anything, it would let me really play up thst high. Highest i ever really go is 150w. (Only builds thst use that much is my framed staple coils 6 wraps dual) i hover around 100 mostly. Im at 75 right now on a more power saver build.


And yeah, im stumped on my coil issue as well. Build astheticly looks perfect. But i just dont understand why it ohms alot lower then a single fused clapton with 22 cores.



[raymo2u]

I think 200w

got an rx 200. Power is no issues on my end.

Still not enough...Will have to use unregulated Mods, the RX200 and most other Regulated mods wont fire under .08. You would need atleast 2 massive/long coils that would need crazy amounts of power to ramp up or multiple coils that will register crazy low and still need crazy wattage. There really isnt a build for that thats "easy on mods".



[JERUS]

Some helixed parellel claptons.
22/34 claptons helixed with 34. Vapes like a boss. View attachment 45040

Also got a question about this build. Ohms out at .12. Cant run duals. But if i do a fused clapton with 22 cores, it ohms high enough to do duals. Im kinda confused as to why the parellel 22 would be lower (alot) then a fused clapton with 22 core. Can anyone answer this question (or even comprehend what im atempting to ask)?

I'm running a 22g FC in my Haze and it's at .14Ω, I believe it's 3mm ID and 6 wraps. So it doesn't sound like your coil is off here. 1 less wrap and .02Ω less. What are your dual 22g builds running?



[Boattlebot]

Still not enough...Will have to use unregulated Mods, the RX200 and most other Regulated mods wont fire under .08. You would need atleast 2 massive/long coils that would need crazy amounts of power to ramp up or multiple coils that will register crazy low and still need crazy wattage. There really isnt a build for that thats "easy on mods".

Ehhhh idk then. I just want more room for really big wire. Maby the mason 30? Idk. How big is the goon? Is it just a standered 22?



[Boattlebot]

I'm running a 22g FC in my Haze and it's at .14Ω, I believe it's 3mm ID and 6 wraps. So it doesn't sound like your coil is off here. 1 less wrap and .02Ω less. What are your dual 22g builds running?

I have to coax my 22g 6 wrap fcs to .1 dead. But if i have the other coil In, its at a .07



[raymo2u]

Ehhhh idk then. I just want more room for really big wire. Maby the mason 30? Idk. How big is the goon? Is it just a standered 22?

Goon is 24mm. The 24mm, 28.5mm, and 30mm I think are great sizes, the 30mm may be a bit more then what you would really be looking for. The Magma Reborn is also 24mm and I find it the perfect size to work with as it gives you more room and its not too big. When you get to a certain size then you actually limited into finding what would actually work and work well and most builds would actually be just for pictures...I would say stay lower then 30mm but 24mm-28.5mm I find to be perfect..



[Boattlebot]

Goon is 24mm, 24, 28.5, and 30mm I think are great sizes, the 30mm may be a bit more then what you would really be looking for. The Magma Reborn is also 24mm and I find it the perfect size to work with as it gives you more room and its not too big. When you get to a certain size then you actually limited into finding what would actually work and work well and most builds would actually be just for pictures...I would say stay lower then 30mm but 24mm-28.5mm I find to be perfect..

Yeah, the 24 is good size but a little bigger with a better spacing between the posts would be nice. Honestly, if i could find a 24 velocity big post hole rda, id be in heaven. A very very foggy heaven.



[raymo2u]

Yeah, the 24 is good size but a little bigger with a better spacing between the posts would be nice. Honestly, if i could find a 24 velocity big post hole rda, id be in heaven. A very very foggy heaven.

Try the Magma Reborn clone...or wait for the Tsunami24 by Geekvape, its supposed to be released when the Tsunami 22mm hits the shelves. Also the Temple Mini and Cthulhu Shuriken may also fit your wants



[JERUS]

I have to coax my 22g 6 wrap fcs to .1 dead. But if i have the other coil In, its at a .07

Isn't the coil you have in the picture less wraps then? Wouldn't that explain it?



[Boattlebot]

Isn't the coil you have in the picture less wraps then? Wouldn't that explain it?

It might. If i recall corectly (builds put away atm) it was a 5 wrap build



[scarecrowjenkins]

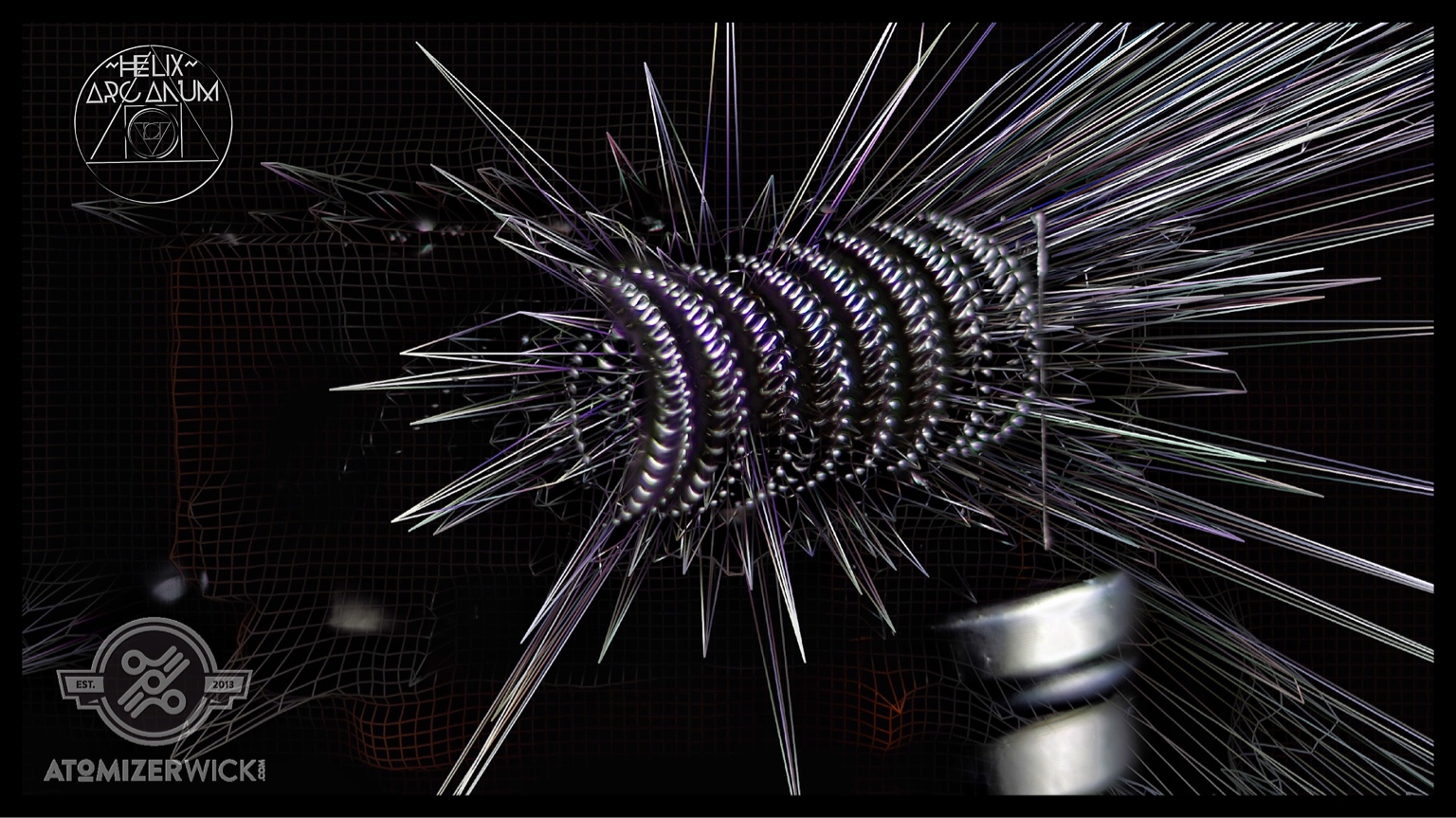

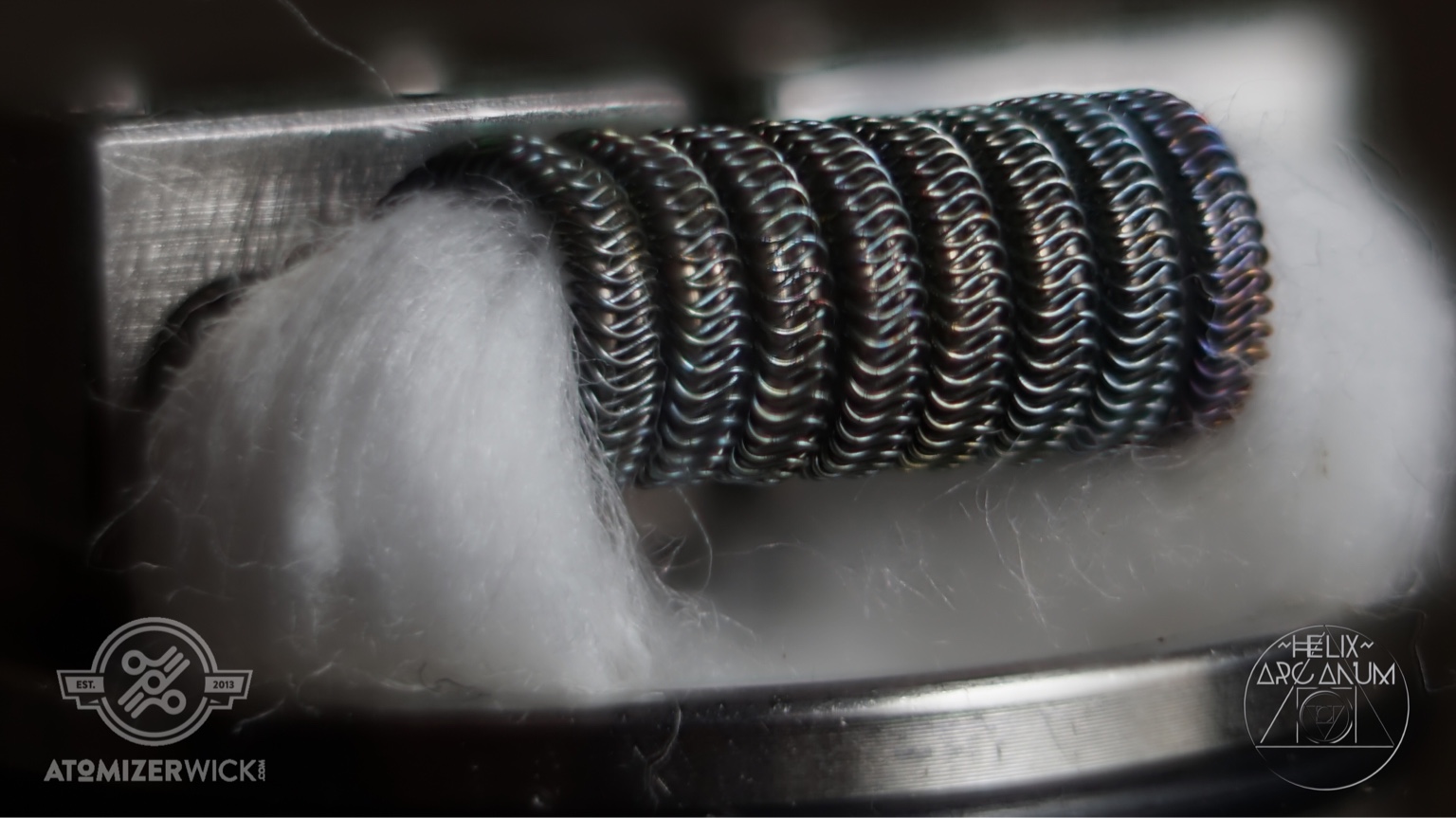

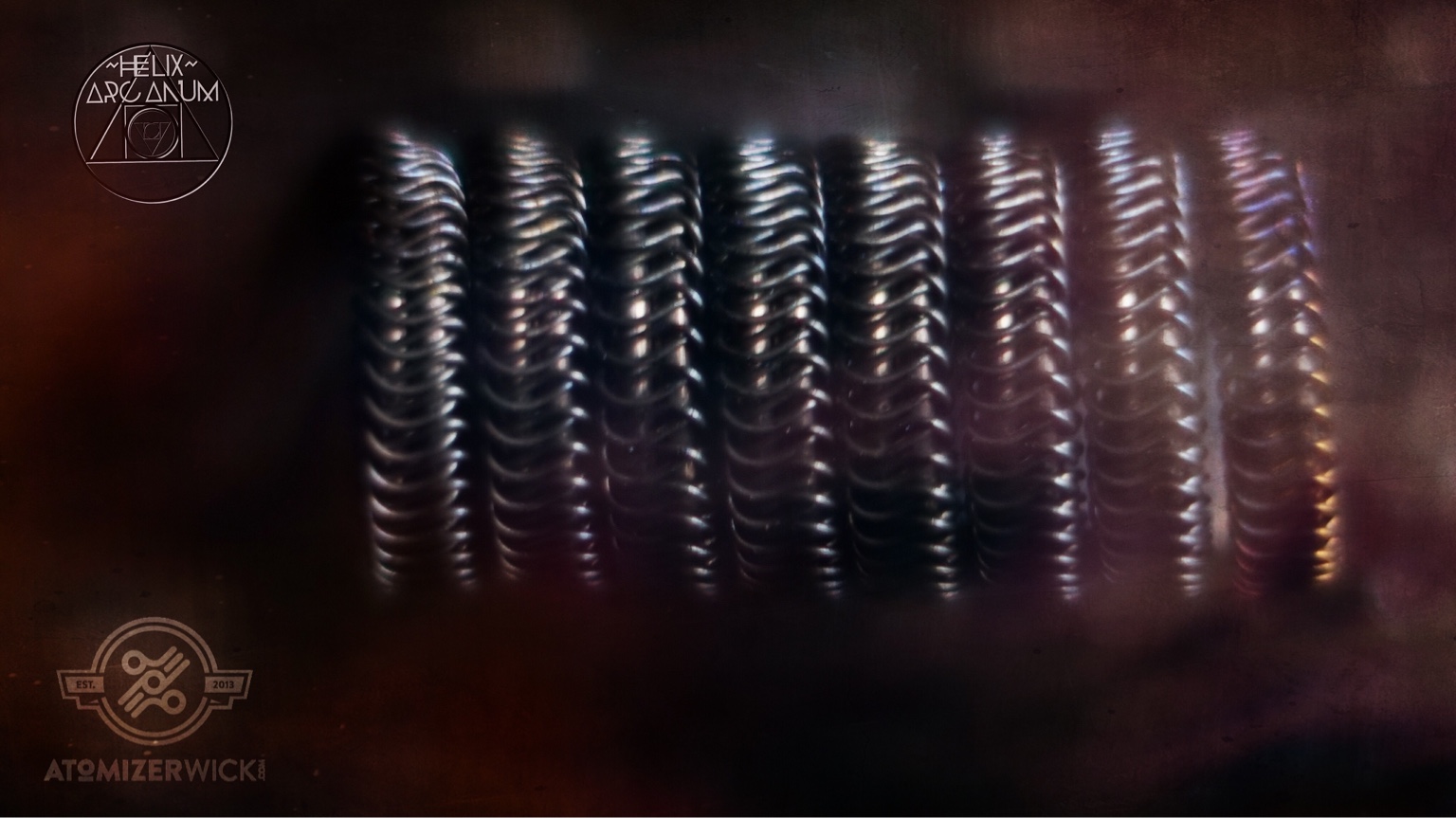

Dual~core Interlocking Aliens built for series in the TM(squared).
~2x26g KA-1 cores // 36g outer
~.3mm inner
~8 wraps is .3Ω

Notes:
This is just a stellar build for series vaping. Hits SUPER hard, immensely flavorful. Ramp up is almost preemptive, fires up the instant you touch the button. Vapor is warm and smooth, also plentiful. Very happy with this build, worth the trouble for sure.



[AnthonyLouis]

Framed staggered Clapton with a helixed cable core
3 strands of twisted 38kD twisted and then helixed with 32n80 make up the core
26n80 frames
Staggered and claptoned in 40n80

3.5mm i.d.
6 wraps
.39 ohms

Vents like a beast...flavor is on point beyond expectations. Vapor production 9/10 for a single coil

Mounted in the aeronaut on the lucifer in series


-every animal has an adequate amount of gray matter in its cranium to tan and preserve its own hide-

These type builds are the only reason why I want to learn staggered Clapton's. -_-

Sent from my HTC One_M8 using Tapatalk



[AnthonyLouis]

I may do the Stovetopes....maybe with Claptons or something, I have yet to try those!
Did anyone see my Corrugated Tip? I hope someone tries it out...

I didn't really understand it

Sent from my HTC One_M8 using Tapatalk



[raymo2u]

I didn't really understand it

Sent from my HTC One_M8 using Tapatalk

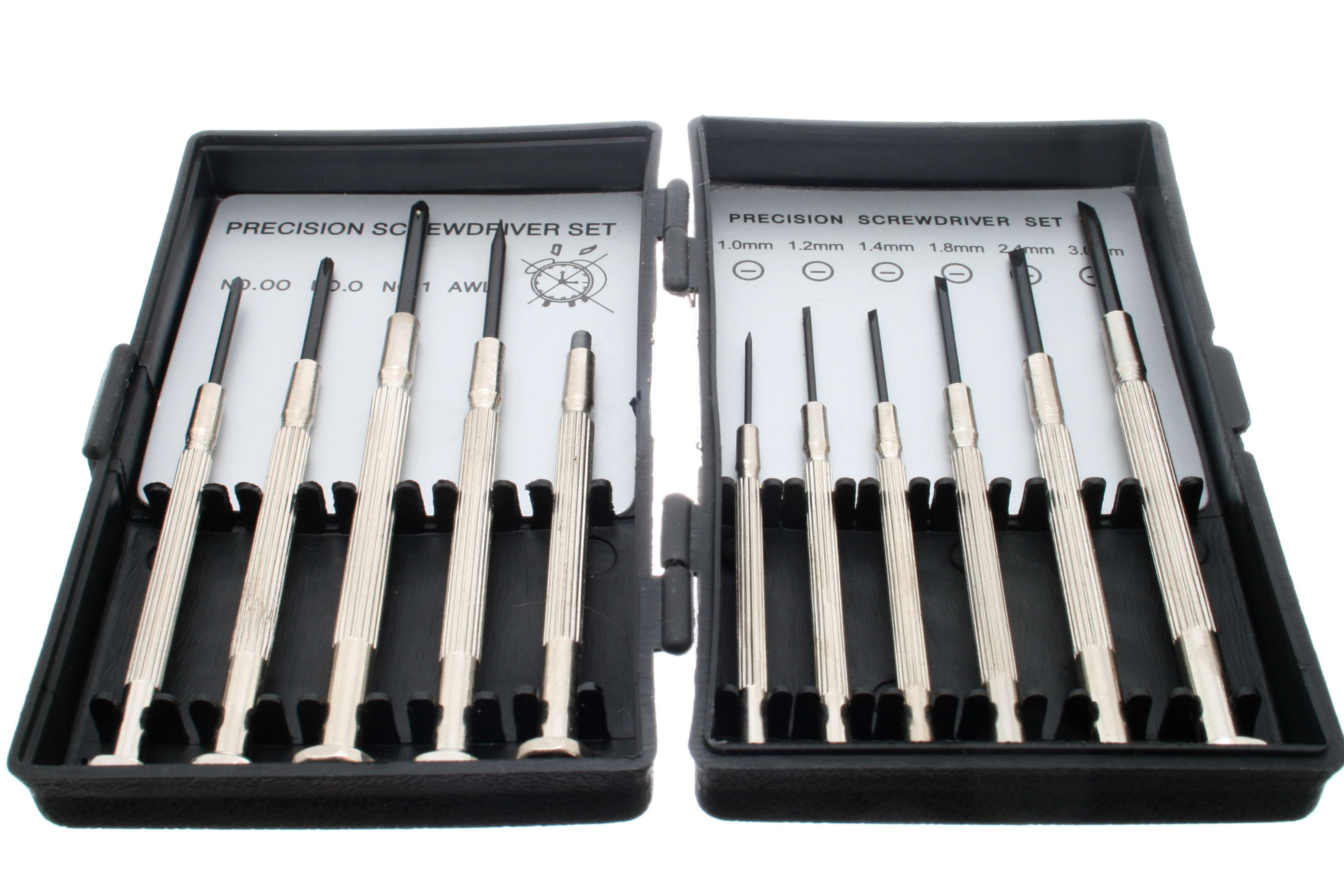

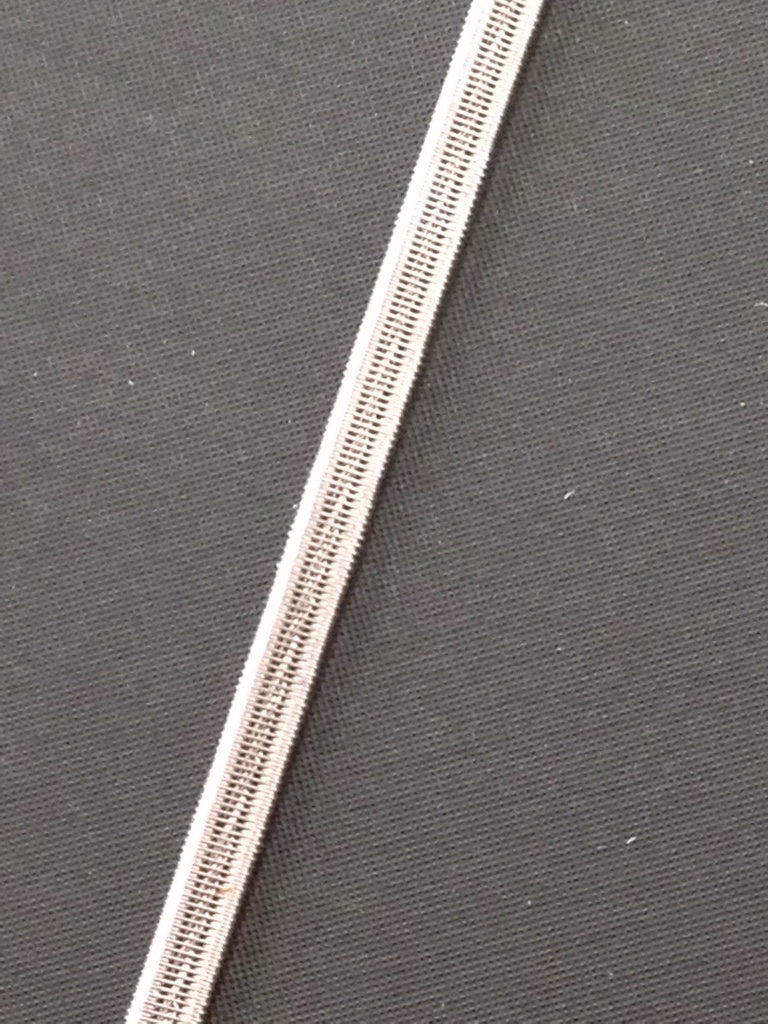

Think of the lines that go down the sides of the screwdriver handles are much like gear teeth. Two of them with matching teeth will act as a crimping setup. Rolling the Screwdriver handles together while pulling/feeding the Ribbon wire between them will press the lines/teeth into the corrugated shape on the Ribbon....Ill make a Real Tut later for you.
Alot like this:



[BrattVapes]

Got a mech mod coming today, courtesy of Ray

Trying to decide how to build for this guy while in class.

Thinking I'll probably just do some aliens or 3 core FC. What is your guys preferred resistance on parallel mechs? Been months since I've build for Mech...

Matt



[MR.G.]

Some helixed parellel claptons.
22/34 claptons helixed with 34. Vapes like a boss. View attachment 45040

Also got a question about this build. Ohms out at .12. Cant run duals. But if i do a fused clapton with 22 cores, it ohms high enough to do duals. Im kinda confused as to why the parellel 22 would be lower (alot) then a fused clapton with 22 core. Can anyone answer this question (or even comprehend what im atempting to ask)?

Have you ever noticed how if you do a coil build with open wraps and then you decide to snug the wraps together the resistance drops, with your FC build the wraps are snugged which will drop the resistance and with the claptons around each wire in your second build is like having spaced cores.

i noticed this along time ago and on average i was getting a difference of 0.2ohms but this might have been due to the type of wire and resistance i normally shoot for.



[JERUS]

Have you ever noticed how if you do a coil build with open wraps and then you decide to snug the wraps together the resistance drops, with your FC build the wraps are snugged which will drop the resistance and with the claptons around each wire in your second build is like having spaced cores.

i noticed this along time ago and on average i was getting a difference of 0.2ohms but this might have been due to the type of wire and resistance i normally shoot for.

.02 or .2, because that's a pretty huge jump.



[MR.G.]

Think of the lines that go down the sides of the screwdriver handles are much like gear teeth. Two of them with matching teeth will act as a crimping setup. Rolling the Screwdriver handles together while pulling/feeding the Ribbon wire between them will press the lines/teeth into the corrugated shape on the Ribbon....Ill make a Real Tut later for you.
Alot like this:

You can get cogs easy enough on ebay, if you had the type where you had a smaller hole in the middle which ive seen you could use a pin nail to nail the cogs to a piece of wood then feed your ribbon vertically whilst using your other hand to spin one cog



[MR.G.]

.02 or .2, because that's a pretty huge jump.

its been a really long time since i tested but im pretty sure its 0.2, try it and see i will try it and test it again myself later



[MR.G.]

what was the difference Boattlebot was getting?



[raymo2u]

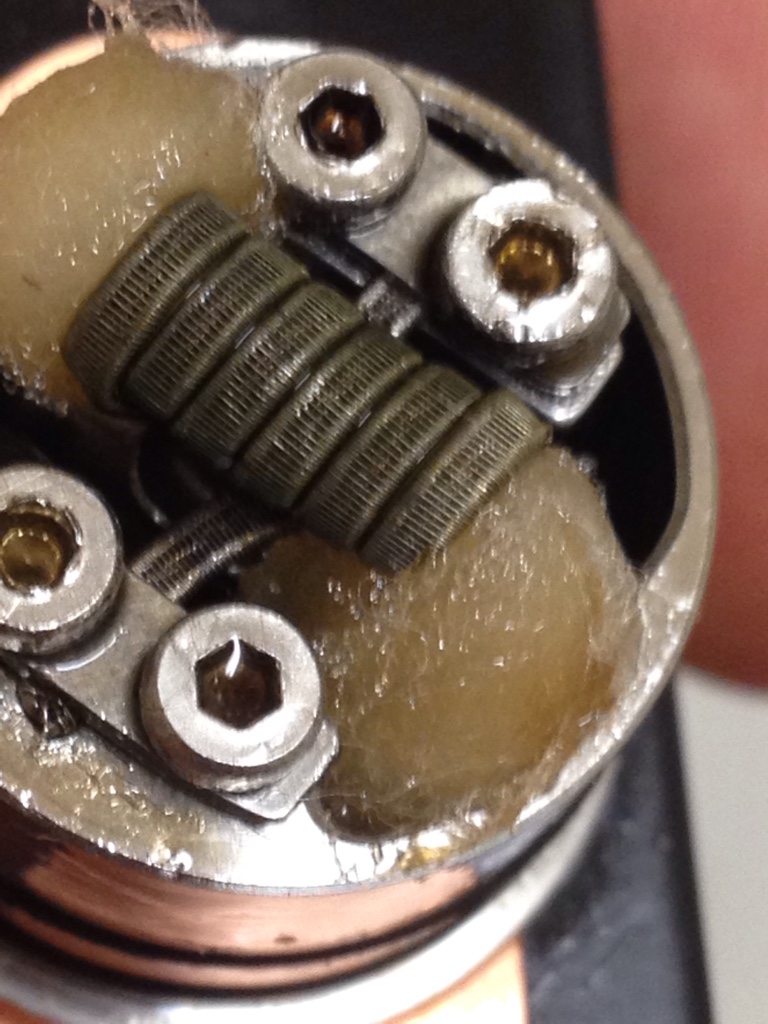

Got the Goon in today and I really didnt have time to do anything crazy yet so Ill be revisiting it soon. It came with some oil on it but not a crazy amount and the screw for the Post was loose, so I tightened it all up and started building for the Lucifer. When I was building one of the Posts kept turning....this should NOT be an issue and I would have thought they had learned to squared off the post and insulator by now but it is a issue and Im sure I will only get a few more builds in before it gets TOO loose....Fucking $70 for that....really?

2 x 26KA1/40N80 Fused Claptons (11 Wraps/3.5mm ID @ .42 Ohms)



[BrattVapes]

Looks nice with a build in it though..

Yo Ray what resistance should I shoot for on this here Mech box

Matt



[raymo2u]

Looks nice with a build in it though..

Yo Ray what resistance should I shoot for on this here Mech box

Matt

You got it today?? That was quick! I would shot for .085-.15



[JERUS]

what was the difference Boattlebot was getting?

6 wrap 22g FC was reading .2 each (so .1 dual), while his new 22g claptons paralleled together is reading .14( would be .07 dual), but if you look he has less than 6 wraps (2 halfs and 3 fulls, though not sure how he was counting his 22g, I know sometimes I just count the outsides even knowing that's wrong)

Anyways, yeah I know what you're talking about, just seemed that .2 is quite a large jump, but yes as you pull and tighten things up you're squeezing the ID down which means less wire in the coil and a lower resistance. At least that's what I think you're talking about right?



[BrattVapes]

It's in the mail waiting for me to get home from class. Good deal I'll shoot for that. Might do aliens or struggle with framed staples again.

Matt
