With the newest update in in the "Settings" option, its supposed to be for Locking or Adjusting the resistance for a TC coil but it also works for Kanthal/Ni80. Unless your making minuscule adjustments I advise against it...dont do as I do...its unsafe
The sigelei 150tc mod? Where did you get the update?

Sent from my SM-G900T using Tapatalk


CTFX

Platinum Contributor
Member For 4 Years
Member For 3 Years
Member For 2 Years
Member For 1 Year
Ohhhhh sorry confused a post lol

Sent from my SM-G900T using Tapatalk


CTFX

Platinum Contributor
Member For 4 Years
Member For 3 Years
Member For 2 Years
Member For 1 Year
I think it may be time for a new ohm reader then. I know the limitations of the sig but I've fired a .09 and .08 coil before. Looks like I'm going straight to the store tomorrow for a new reader.

Sent from my SM-G900T using Tapatalk
Yeah as far as I know it goes down to .10

Sent from my SM-G900T using Tapatalk


AndyRoundhead

Member For 4 Years
Member For 3 Years
Member For 2 Years
Member For 1 Year

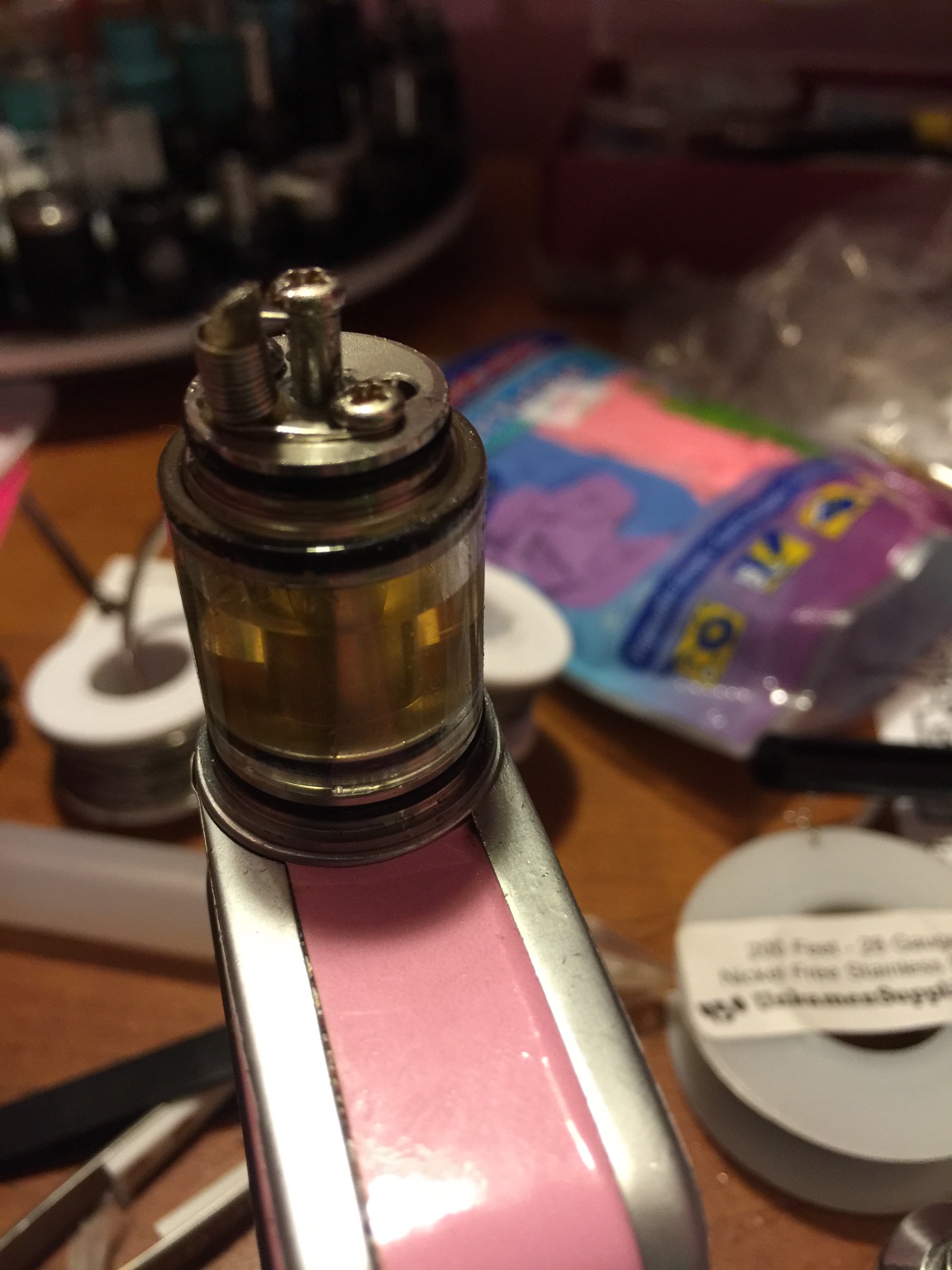

This was my first attempt at vertical build



Sent from the lab in my basement of vapement
What deck is that?

Sent from my Z995 using Tapatalk


AndyRoundhead

Member For 4 Years
Member For 3 Years
Member For 2 Years
Member For 1 Year
I think it may be time for a new ohm reader then. I know the limitations of the sig but I've fired a .09 and .08 coil before. Looks like I'm going straight to the store tomorrow for a new reader.

Sent from my SM-G900T using Tapatalk

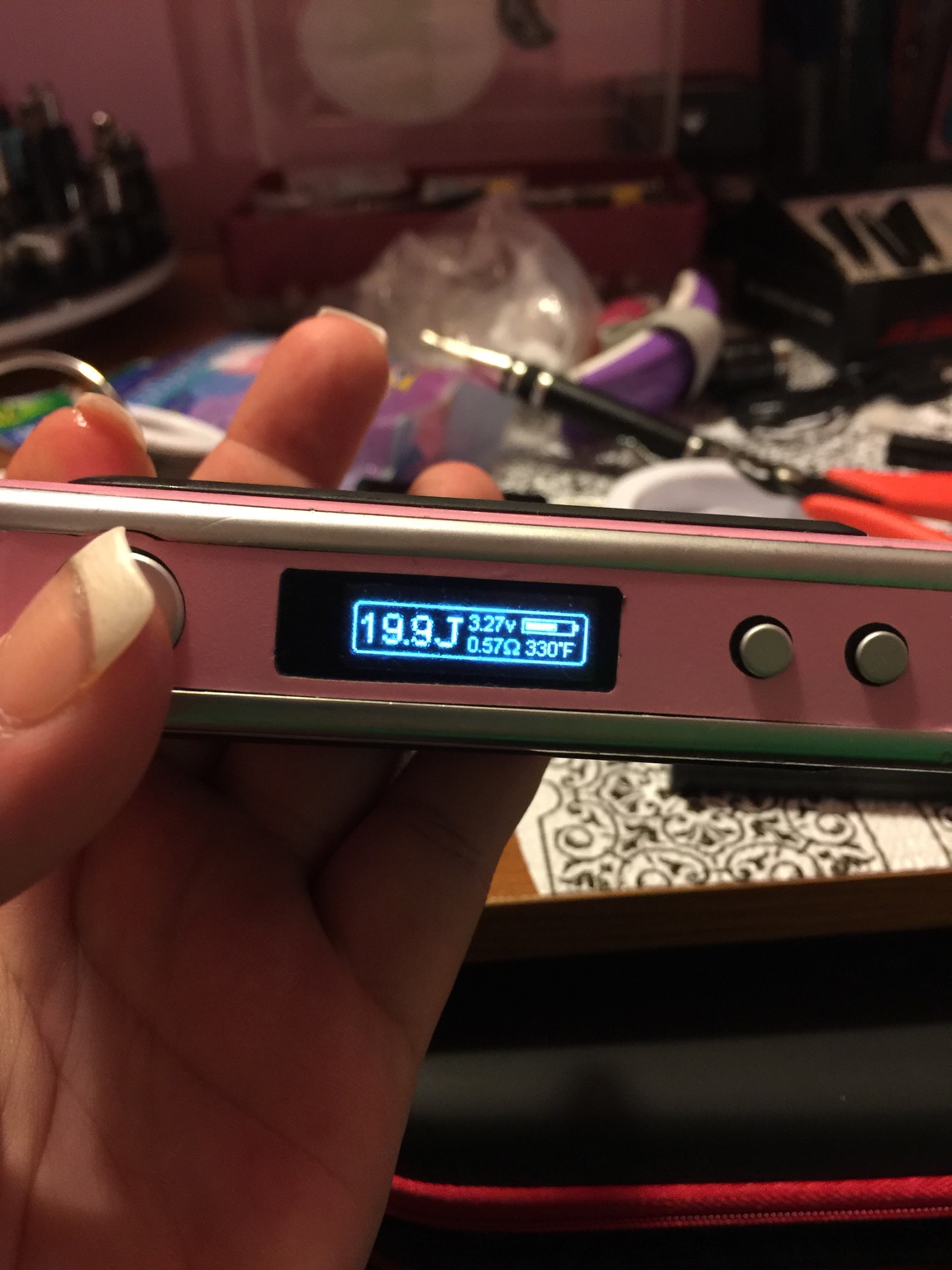

What does it read on the sigeli screen?
Made a small build with the some of the wire I made yesterday...not as pretty as I thought it would of turned out but made it makes for a nice smooth vape with great amount of flavor and crazy amount of vapor!
View attachment 33248
View attachment 33249 View attachment 33247


Sent from my Z995 using Tapatalk


TF Vaping

Bronze Contributor
Member For 4 Years
Member For 3 Years
Member For 2 Years
Member For 1 Year
Can you vape ss in wattage mode?

Sent from my Z995 using Tapatalk
I do it all the time 316 and 304. Based on what studies I've seen its temp resistance is much higher than we use before it becomes bad.

Sent from my Nexus 6 using Tapatalk


Dawn0810

Gold Contributor
Member For 4 Years
Member For 3 Years
Where are you guys getting these packs from?

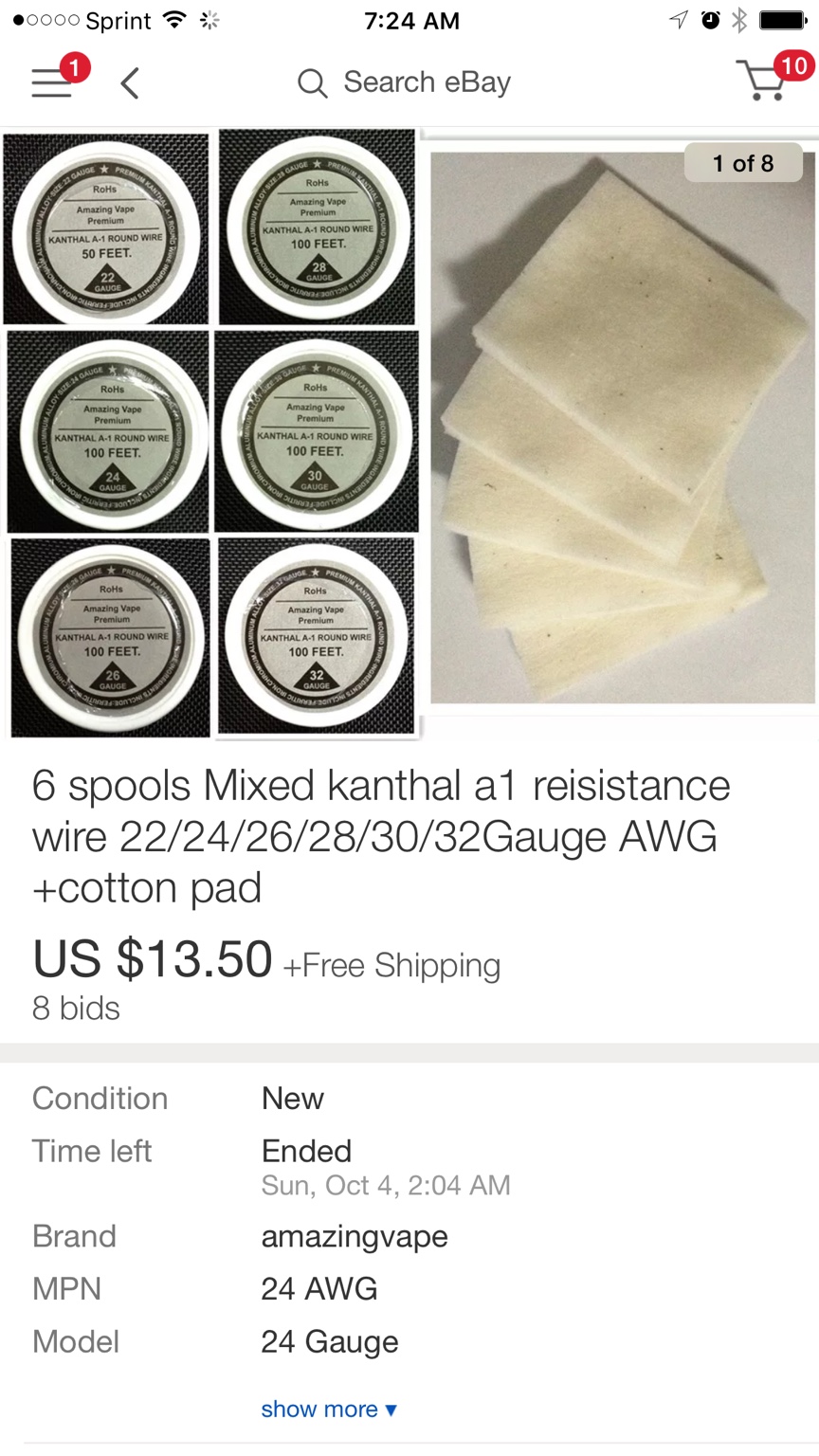

eBay they have auctions all the time right now I think I won one for 13.50 for 550 but I don't want it because I really don't use kanthal anymore


Sent from the lab in my basement of vapement


Dawn0810

Gold Contributor
Member For 4 Years
Member For 3 Years
Ni80 comes in a pack like that as well I got both of them


Sent from my Nexus 6 using Tapatalk
Ok now where did you find that I hardly ever use kanthal I was trying to give it away


Sent from the lab in my basement of vapement


Dawn0810

Gold Contributor
Member For 4 Years
Member For 3 Years
Yup. Too good to pass up. Now its just the question of what to do with it.

Sent from my LG-H811 using Tapatalk
That's the question I have because I had 3 sets sooooo yeah most of its gone I was pifin it to any one who wanted some lol


Sent from the lab in my basement of vapement


Dawn0810

Gold Contributor
Member For 4 Years
Member For 3 Years

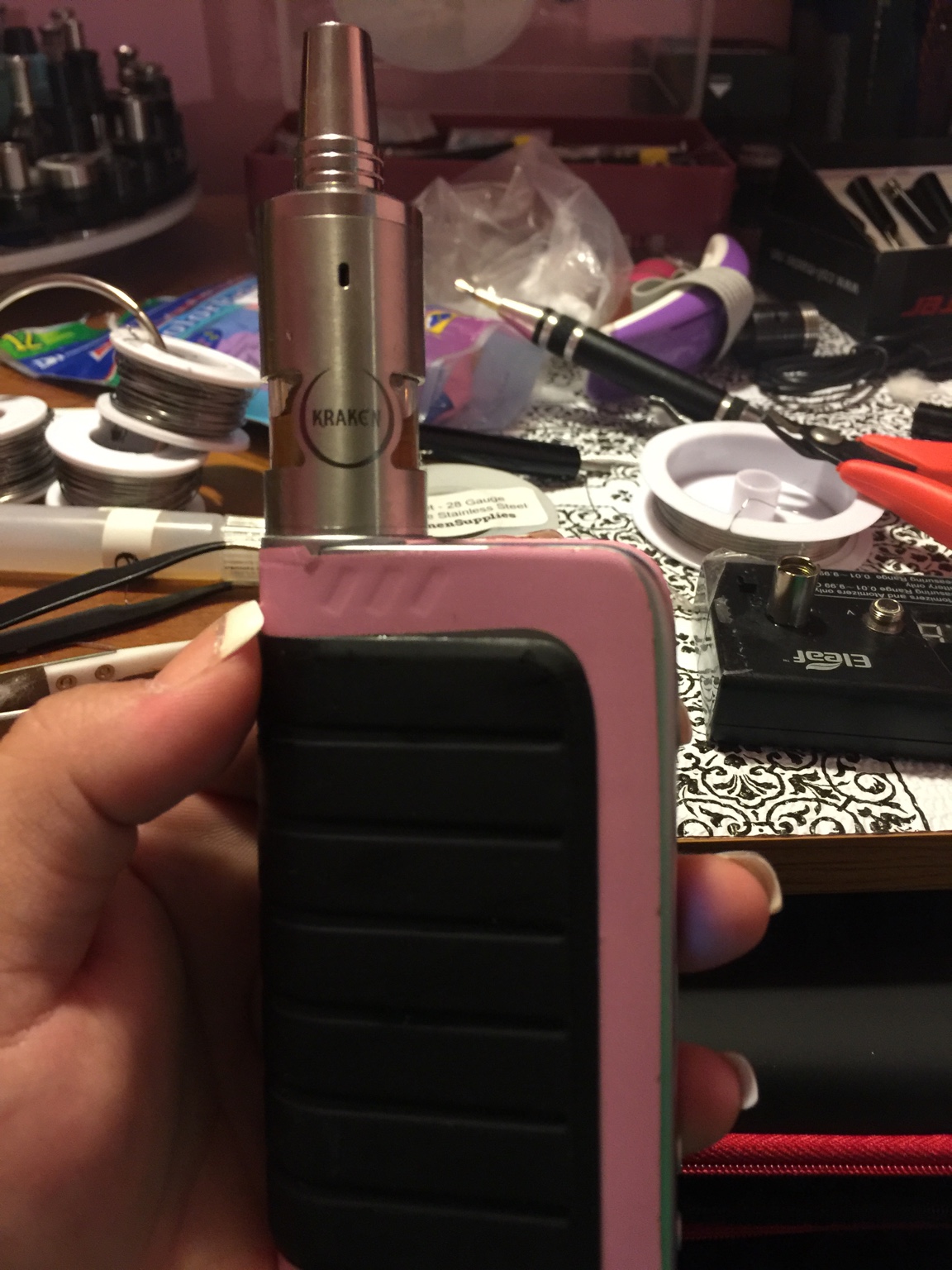

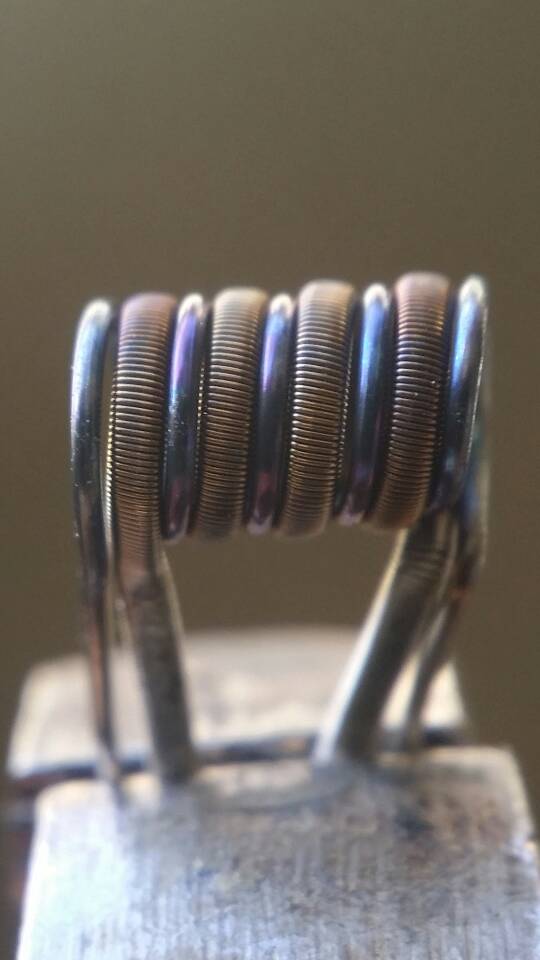

Nothing too fancy, I'm just really happy with the way this turned out.



What is it and how did you do it I was really serious when I said I've only been building for about 2 weeks well anything beyond the rba of the kanger subtank


Sent from the lab in my basement of vapement


Dawn0810

Gold Contributor
Member For 4 Years
Member For 3 Years
5ft Wire Lengths of Today ;)

Top to Bottom Wires are:
2 x 24g Twisted Then Claptoned with 34g and Helixed with 32g
2 x 24g/28g/32g Staggered Clapton
2 x 26g/32g Slightly Flattened Fused Clapton
2 x 24g/34g Fused Clapton
2 x 24g/Flattened 24g Clapton Then Flattened Afterwards
2 x 24g Twisted, Helixed with 32g and Flattened
View attachment 33208 View attachment 33212 View attachment 33211
Boneyard Coil (My Version) and Slightly Flattened Fused Clapton:
View attachment 33209
Wait a minute here just one sec you frickan made those?? I thought it was pretty cool I made Clapton geez I can't even comprehend how I'd need to see it done


Sent from the lab in my basement of vapement


CrazyChef

Custom Hand Crafted Coils - PureCoils.com
VU Vendor
VU Donator
Platinum Contributor
Member For 4 Years
ECF Refugee
What is it and how did you do it I was really serious when I said I've only been building for about 2 weeks well anything beyond the rba of the kanger subtank


Sent from the lab in my basement of vapement
It's called an Alien coil. Look up "Alien Coil" on YouTube. There are a number of good videos that can explain it MUCH better than I can.


Dawn0810

Gold Contributor
Member For 4 Years
Member For 3 Years
It's called an Alien coil. Look up "Alien Coil" on YouTube. There are a number of good videos that can explain it MUCH better than I can.
Nice YouTube and I are close friends since I started building lol any other ones you'd recommend trying


Sent from the lab in my basement of vapement


iLiptiKal

Bronze Contributor
Member For 4 Years
Aliens are one of those builds that make you want to pull your hair out until you "get it". Then they are super fun, and perform wonderfully. Prepare to waste wire if you are going to start learning them.

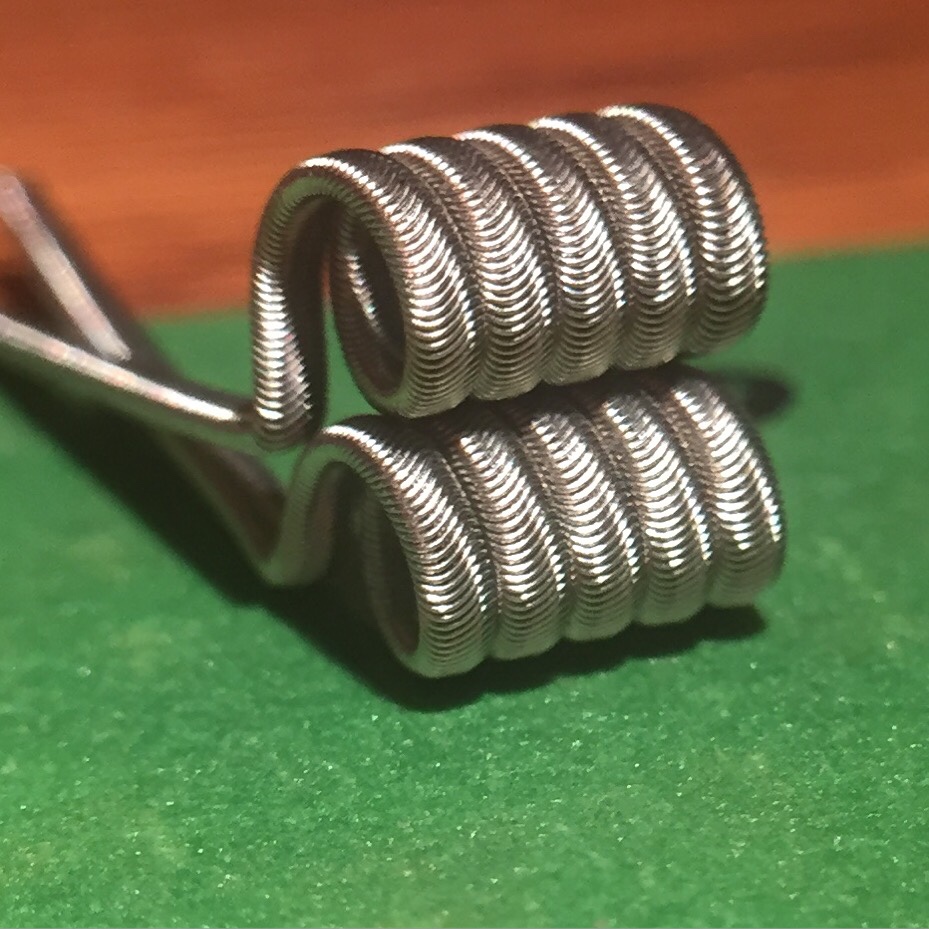

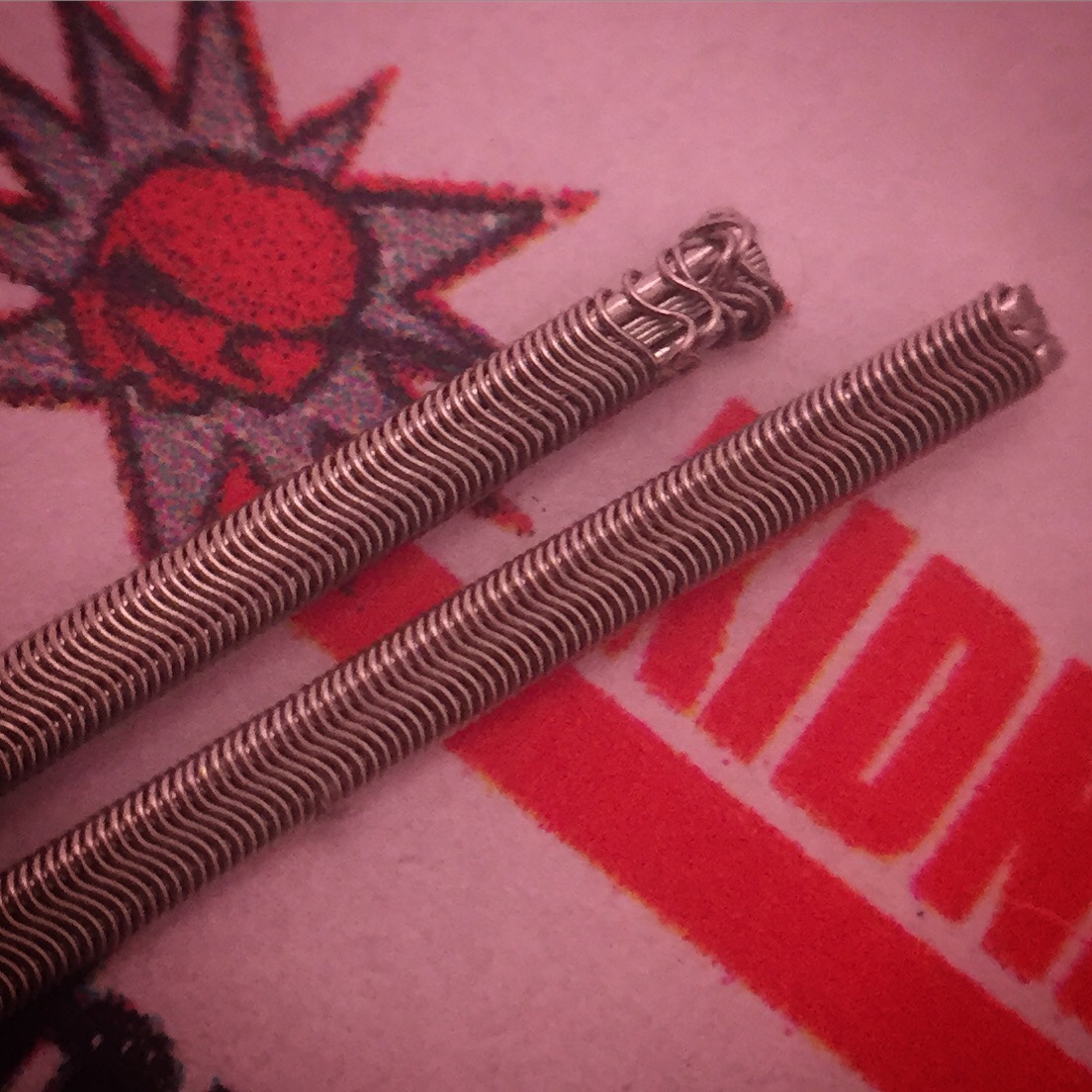

These have a ribbon core, so a Framed staple alien. 26g frames, 4x0.5mm ribbon cores, 36g alien wrap.


Here's an example of 3x26g cores with 36g alien wrap.


Here you can see what's going on inside both.



Sent from my iPhone using Tapatalk

Last edited:

CrazyChef

Custom Hand Crafted Coils - PureCoils.com
VU Vendor
VU Donator
Platinum Contributor
Member For 4 Years
ECF Refugee
@iLiptiKal Those look awesome!

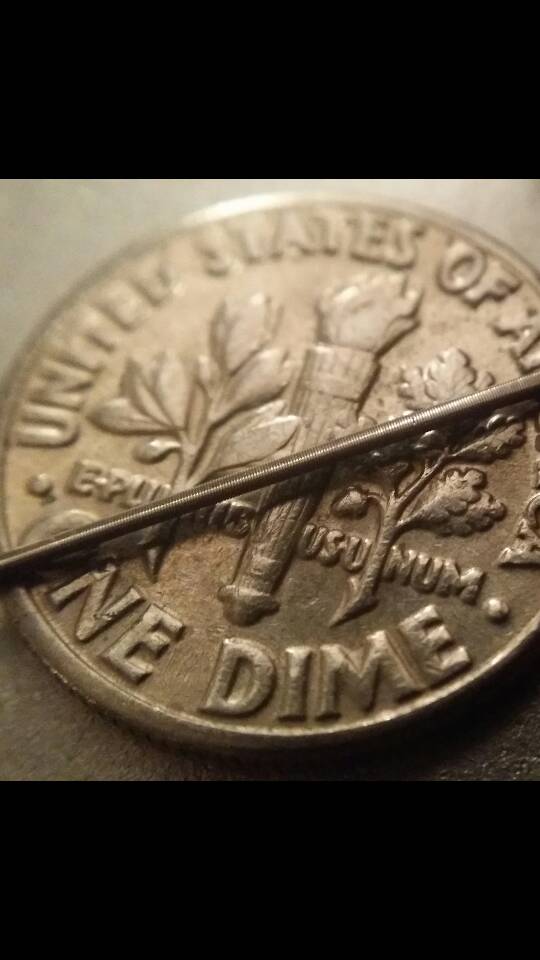

Here's my latest attempt. 30K cores with 38N outer. They wrapped kinda wonky when I coiled them for some reason, but they should perform okay. I hope...



The wire seemed okay:


MidwestExpress

Silver Contributor
Member For 4 Years
Those look awesome!

Here's my latest attempt. 30K cores with 38N outer. They wrapped kinda wonky when I coiled them for some reason, but they should perform okay. I hope...

These look like the blades used in battle by the alien coils. Just call yours alien blades. Boom... new style of coil is made!

Sent from my SM-G925V using Tapatalk


CTFX

Platinum Contributor
Member For 4 Years
Member For 3 Years
Member For 2 Years
Member For 1 Year
These are the three that helped me the most:
+1 for VV Vapes. That was the first b&m I shopped at with getting off the stinkies. Jersey represent! :)

Sent from my SM-G900T using Tapatalk


MidwestExpress

Silver Contributor
Member For 4 Years
Aliens are one of those builds that make you want to pull your hair out until you "get it". Then they are super fun, and perform wonderfully. Prepare to waste wire if you are going to start learning them.

These have a ribbon core, so a Framed staple alien. 26g frames, 4x0.5mm ribbon cores, 36g alien wrap.


Here's an example of 3x26g cores with 36g alien wrap.


Here you can see what's going on inside both.



Sent from my iPhone using Tapatalk
How slow do you go to keep your core wires straight and not rolling over each other? ! That is always my biggest problem.

Sent from my SM-G925V using Tapatalk


iLiptiKal

Bronze Contributor
Member For 4 Years
Those look awesome!

Here's my latest attempt. 30K cores with 38N outer. They wrapped kinda wonky when I coiled them for some reason, but they should perform okay. I hope...

Ahh cool. The tri-point alien, or I've seen it called a Mohawk alien. This happens if you don't stretch the alien wrap enough for them to lay flat. I pretty sure the first time I saw this was by @theparallelgravedance on Instagram.


Sent from my iPhone using Tapatalk


CrazyChef

Custom Hand Crafted Coils - PureCoils.com
VU Vendor
VU Donator
Platinum Contributor
Member For 4 Years
ECF Refugee
This happens if you don't stretch the alien wrap enough for them to lay flat
Yeah, sometimes I get paranoid I'll overstretch and have to start over.


iLiptiKal

Bronze Contributor
Member For 4 Years
How slow do you go to keep your core wires straight and not rolling over each other? ! That is always my biggest problem.

Sent from my SM-G925V using Tapatalk
I go a bit over half of my drill speed for the majority of the length of wire. I start going pretty slow at the start tho to make sure my alien wire is perfectly stretched. Too tight and it will collapse the cores or form that tri-point. The real key for me getting these down was switching to really good fishing swivels that allow you to keep the right amount of tension on the cores while wrapping.


Sent from my iPhone using Tapatalk


MidwestExpress

Silver Contributor
Member For 4 Years
I go a bit over half of my drill speed for the majority of the length of wire. I start going pretty slow at the start tho to make sure my alien wire is perfectly stretched. Too tight and it will collapse the cores or form that tri-point. The real key for me getting these down was switching to really good fishing swivels that allow you to keep the right amount of tension on the cores while wrapping.


Sent from my iPhone using Tapatalk
Next time you build a coil, can you snap a pic of how you setup your swivel and drill?! I have just been binding everything with the chuck and going to town...

Sent from my SM-G925V using Tapatalk


iLiptiKal

Bronze Contributor
Member For 4 Years
My alien wire setup

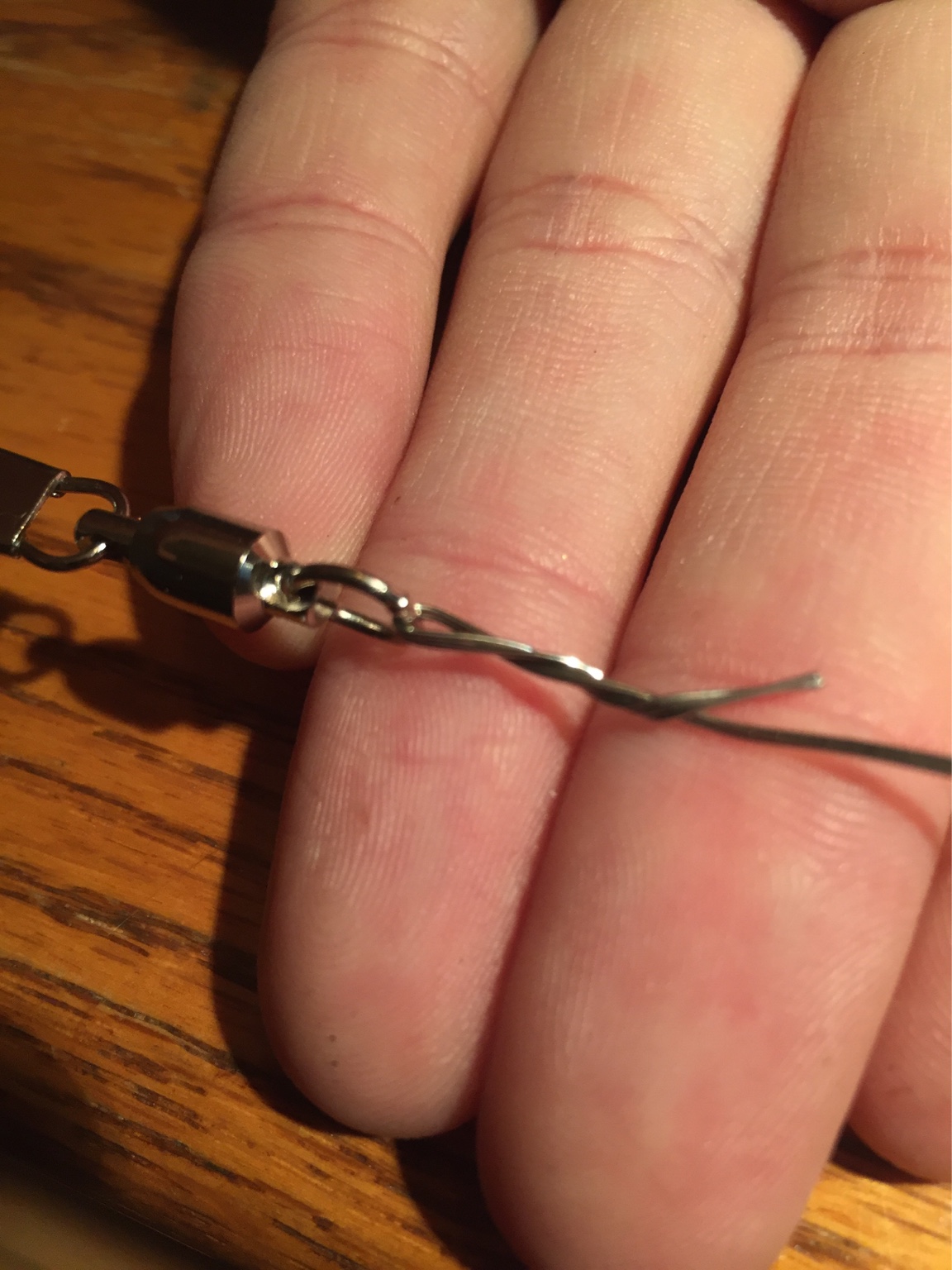

Swivels

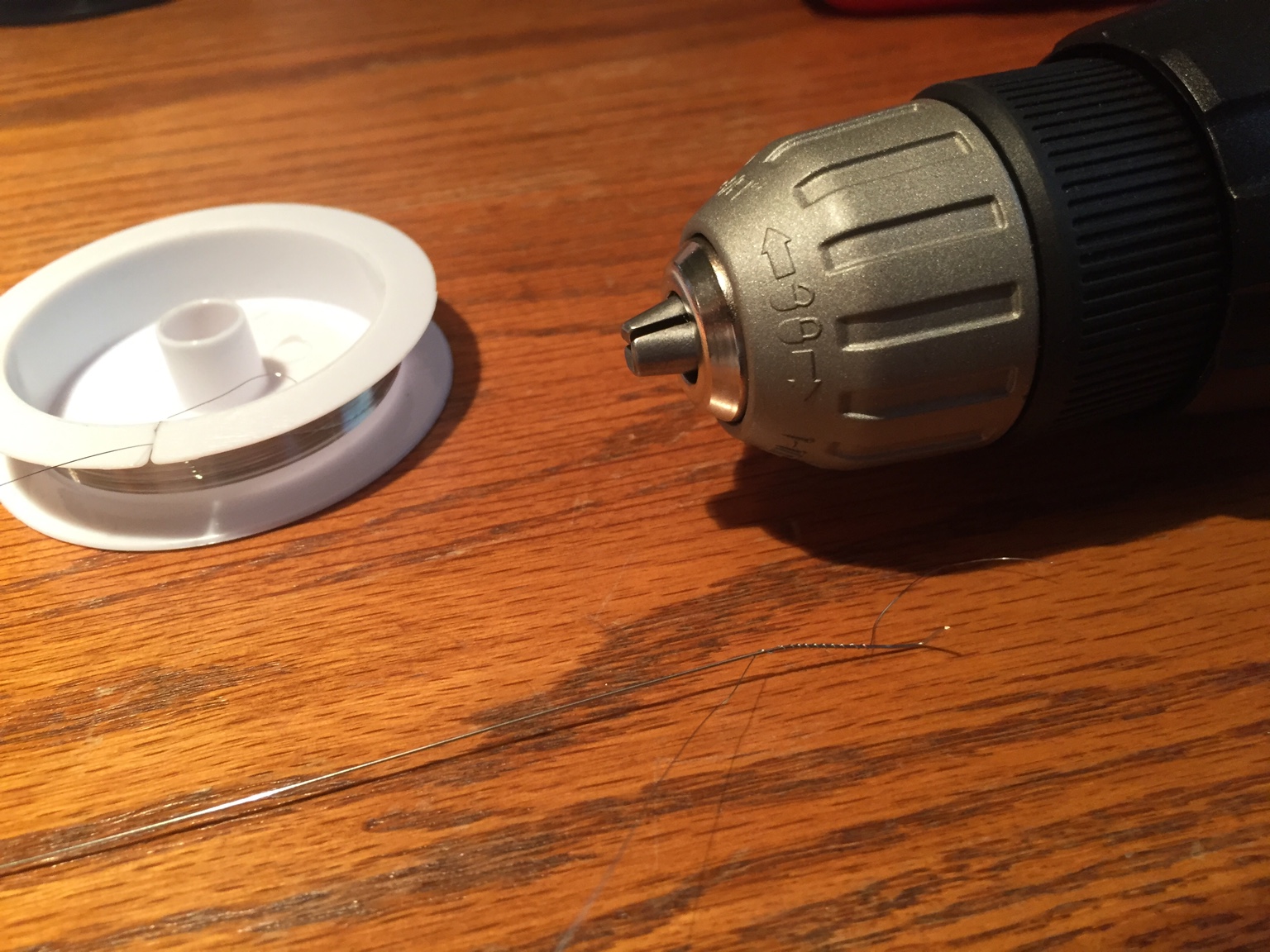

Alien Clapton setup

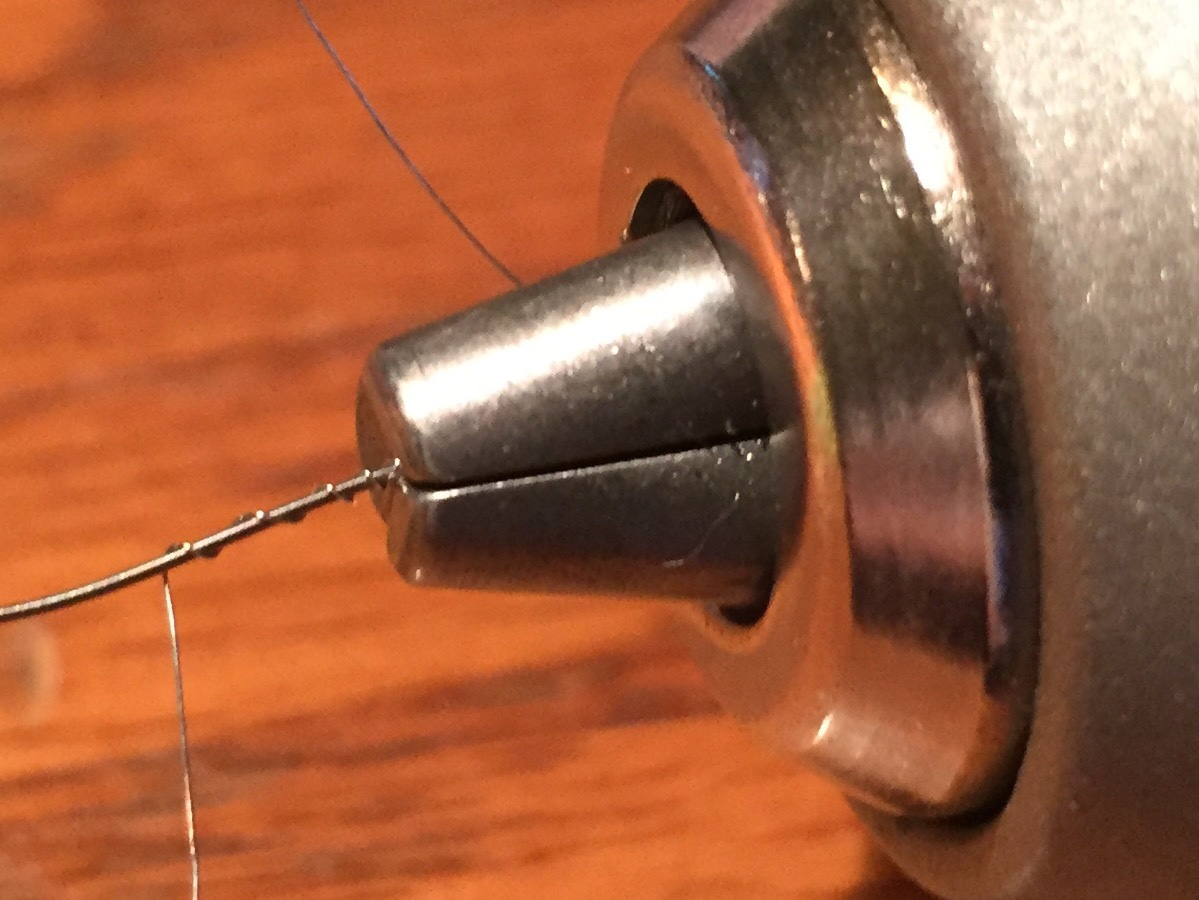

In the chuck to clapton and then de-core after


Now onto the alien part.

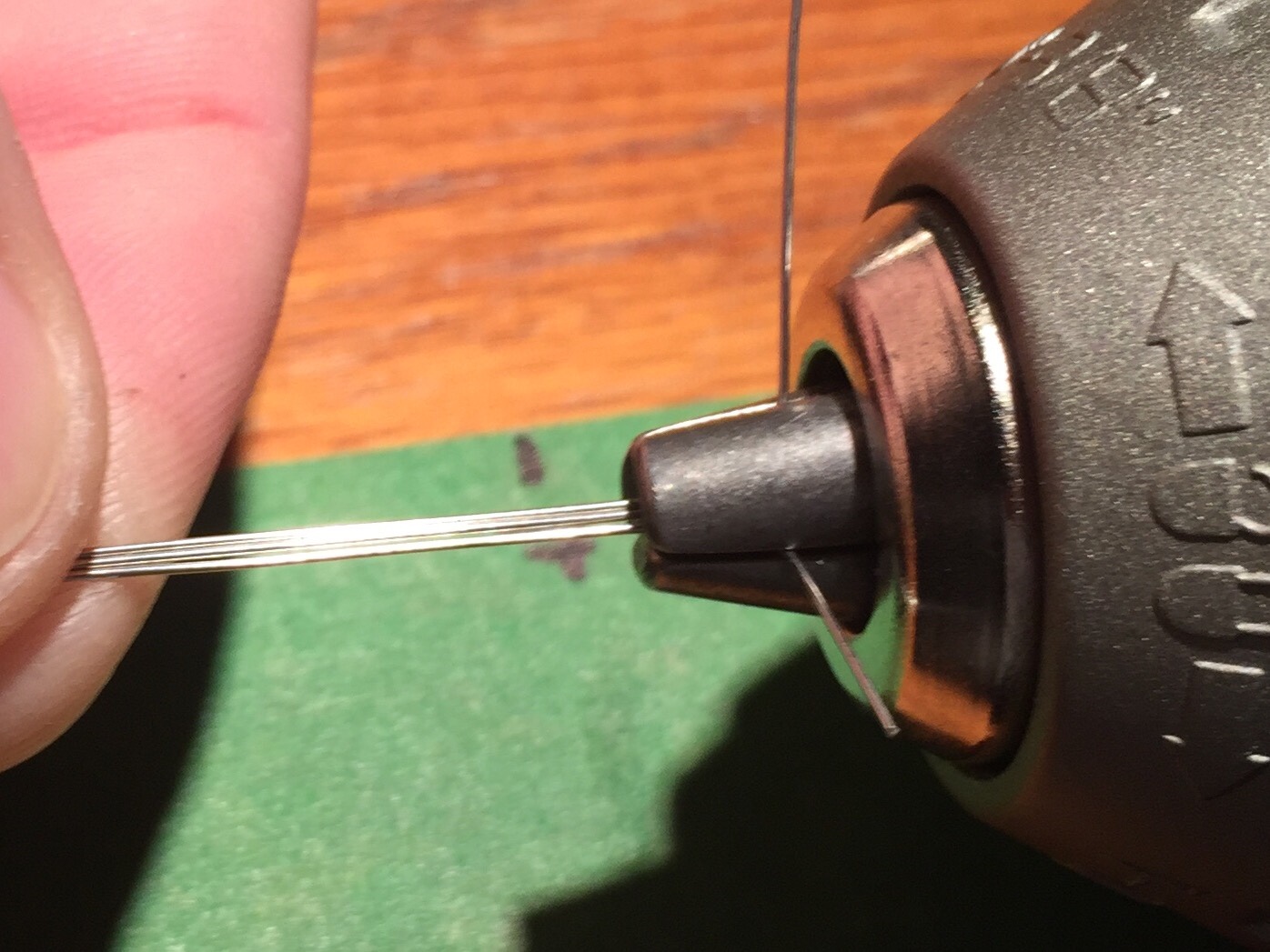

Setup your 3 core wires in the drill


Keep them parallel to the other end of the wires and attach to the swivels.

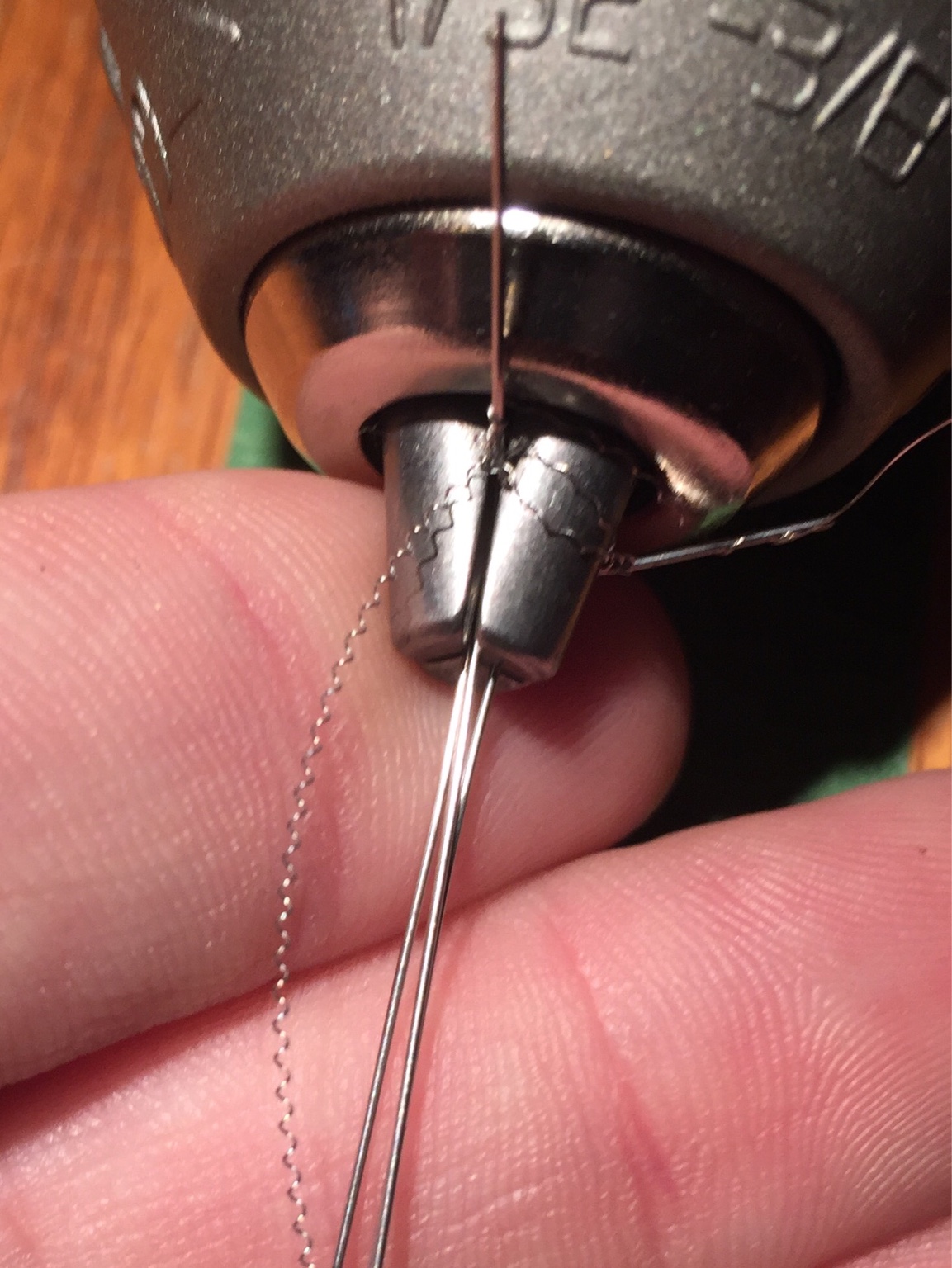

Attach de-cored Clapton to a leg or two at the chuck


Stretch it out

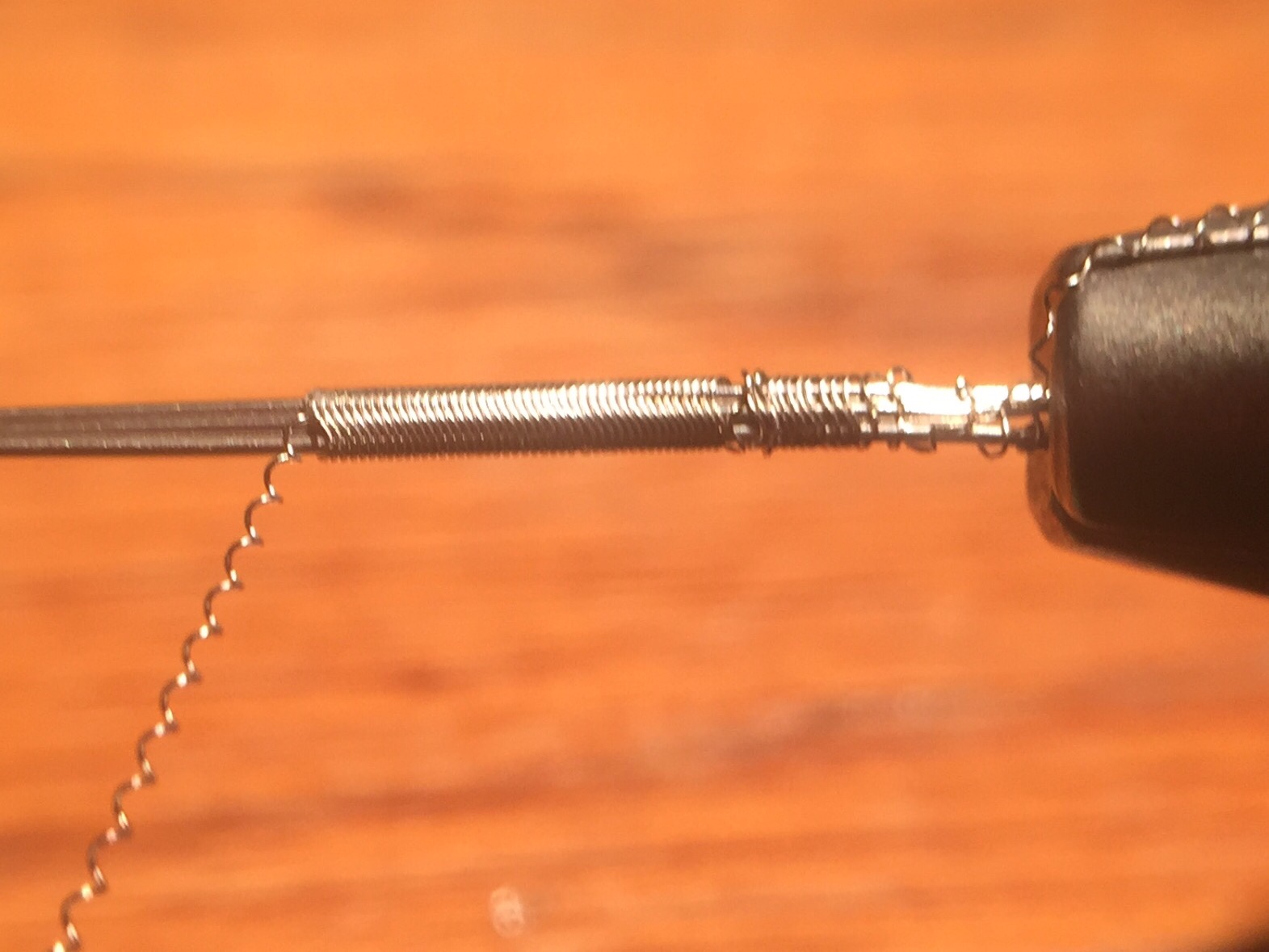

Wrap it up

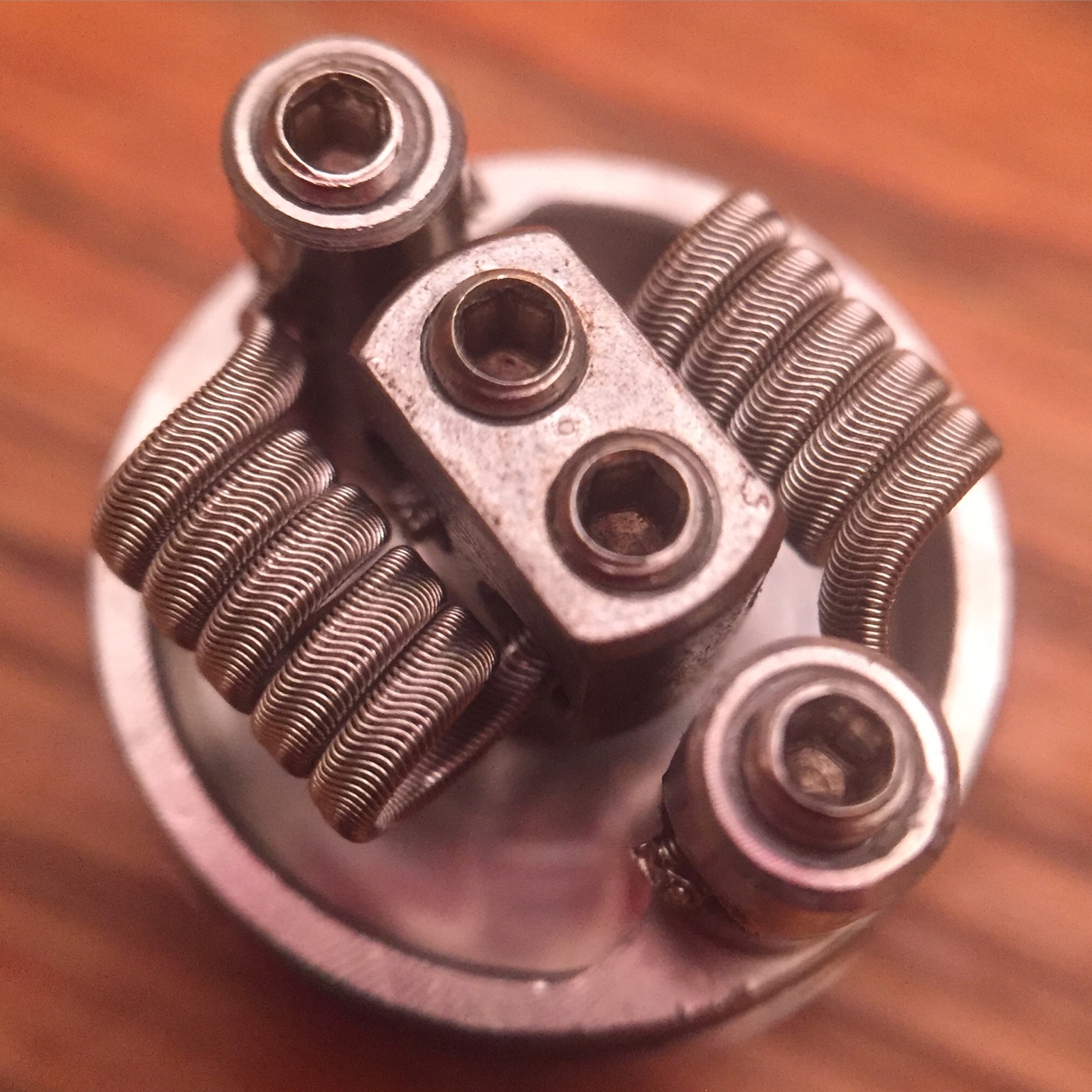

Here's the pair I got from that completed strand.



Sent from my iPhone using Tapatalk

Last edited:

raymo2u

VU Donator
Platinum Contributor
Member For 4 Years
Unlisted Vendor
My alien wire setup

Swivels


Alien Clapton setup


In the chuck to clapton and then de-core after


Now onto the alien part.

Setup your 3 core wires in the drill


Keep them parallel to the other end of the wires and attach to the swivels.


Attach de-cored Clapton to a leg or two at the chuck


Stretch it out


Wrap it up


Here's the pair I got from that completed strand.



Sent from my iPhone using Tapatalk
I use 6 of those same fishing swivels, they have ball bearing and all but if you pull too hard on the drill I notice they start to bind and then stick like that...So dont pull too hard on your drill when using the swivels!


iLiptiKal

Bronze Contributor
Member For 4 Years
I use 6 of those same fishing swivels, they have ball bearing and all but if you pull too hard on the drill I notice they start to bind and then stick like that...So dont pull too hard on your drill when using the swivels!

Oh yeah, you don't want too much tension, just enough to keep the cores aligned


Sent from my iPhone using Tapatalk


MidwestExpress

Silver Contributor
Member For 4 Years
My alien wire setup

Swivels


Alien Clapton setup


In the chuck to clapton and then de-core after


Now onto the alien part.

Setup your 3 core wires in the drill


Keep them parallel to the other end of the wires and attach to the swivels.


Attach de-cored Clapton to a leg or two at the chuck


Stretch it out


Wrap it up


Here's the pair I got from that completed strand.



Sent from my iPhone using Tapatalk
Can you print that post into a huge poster for me please! Haha that is awesome! Thanks man. About to go raid my tackle box!

Sent from my SM-G925V using Tapatalk


Dawn0810

Gold Contributor
Member For 4 Years
Member For 3 Years
I just had to place an order for some swivels yayy


Sent from the lab in my basement of vapement


wr3ckin_it

Member For 4 Years
Member For 3 Years
Member For 2 Years
Member For 1 Year
I just had to place an order for some swivels yayy


Sent from the lab in my basement of vapement
Order? I just get mine from wally world lol are they different kind of swivel that works better?

Sent from my SM-N900V using Tapatalk


iLiptiKal

Bronze Contributor
Member For 4 Years
Order? I just get mine from wally world lol are they different kind of swivel that works better?

Sent from my SM-N900V using Tapatalk
You want ball bearing swivels for sure. The other ones bind up much easier which will cause twisting in your wire.


Sent from my iPhone using Tapatalk


wr3ckin_it

Member For 4 Years
Member For 3 Years
Member For 2 Years
Member For 1 Year
You want ball bearing swivels for sure. The other ones bind up much easier which will cause twisting in your wire.


Sent from my iPhone using Tapatalk
That was my original mistake, not getting ball bearing swivels, but ya I still just buy them from Walmart or whatever store I happen to be near when I need them lol

Sent from my SM-N900V using Tapatalk
